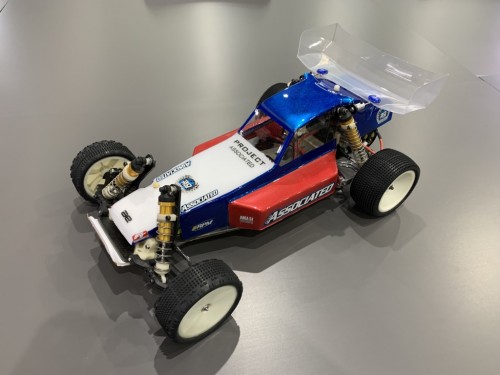

Houge RC10 with JC Racing gear case
I got the car from ebay (body too) and restored.

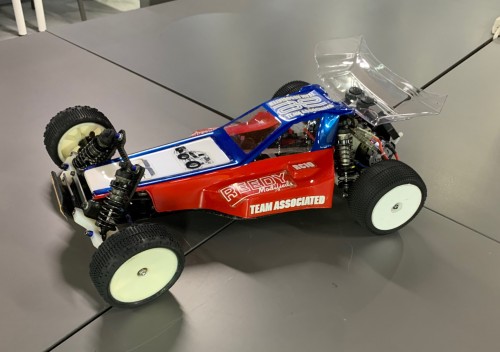

RC10 WOIN style with RPM transmission (1.96), used for a carpet race

https://www.youtube.com/watch?v=MAsEGmVGwpg

The B3 ran very well in a rear motor class (outdoor carpet). My car is green one (back flipped at the start )

<B3 with big bore shocks> RC10B3 big bore_1.jpg This car is same as RC10B3 in page 6. <Front> 12X23mm V1 big bore shocks (buggy front) 1.6mm piston 400CS oil (Kyosho) blue 12mm V1 spring Shock tower center hole, arm inside RC10B3 big bore_2.jpg The blue spacer on the top is 3mm thick. ASC6473 shock ...

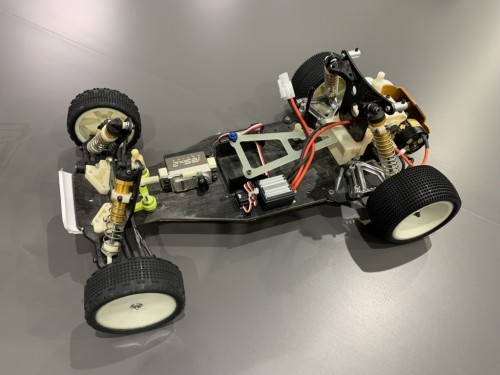

RC10 A&L conversion

A&L bellcrank, Factory Works A&L front truck shock tower, A&L trailing arm,
RC10T shocks, Composite Craft chassis, 6-gear transmission, RPM front arm

<RC10 LWB (long wheel base with 13 mm big bore shocks) > This car is based on RC10 SWB stock in page 6. I remove the rear brace and use the long wheelbase position in rear arm mounts, RC10 13mm shocks_1.jpg RC10 13mm shocks_2.jpg RC10 13mm shocks_3.jpg Front 1.7mm piston 450CS oil (Kyosho) white 13m...

<RC10 Laydown Ver.5> RC10LD_13.jpg RC10LD_14.jpg <Front> RC10LD_15.jpg ・Dynotech front arm ・RPM Front bumper ・Front shock tower from FibreLyte, "RC10 tower-Raymond Power" https://www.rc10talk.com/viewtopic.php?f=38&t=33388&sid=6da407611632cce403fb197ffc9ad35f#p379717 ・Shock tower, ...

Thank you Chewbacca. <RC10 Laydown Ver.4> RC10LD_8.jpg RC10LD_11.jpg <Front> RC10LD_9.jpg ・Stock front A arm and caster block (30 degree) and RC10 axle ・Stock ballstud with one thin shim + 1mm spacer below it on the steering block ・Front bumper from Shapeway (rapid_rc) ・Extended front shock tower fr...

<RC10 Laydown Ver.4> To move the rear shocks forward, you need to make a shock tower mount. I used the RC10GT transmission brace (ASC7670) and RC10B44 shock tower mount (ASC9714) and those are combined. RC10LD_2.jpg RC10LD_3.jpg RC10LD_4.jpg My friend made it for me and used aluminum to strengthen i...

<RC10 Laydown Ver.4>
I modified RC10 laydown ver.2 in page 5. Rear shocks are placed in front of rear arms. I will report how to make it.

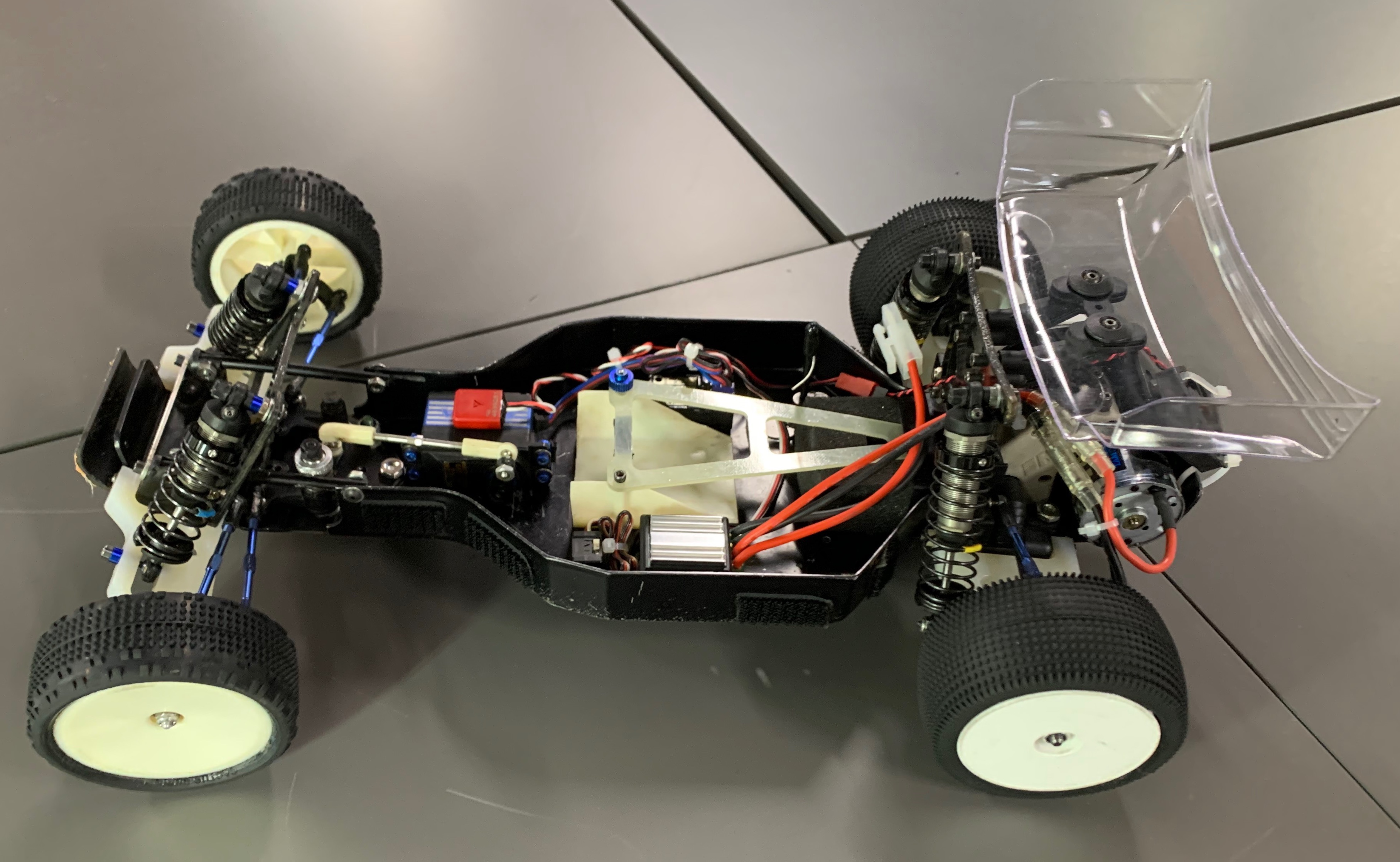

<RC10Mid Ver.2>

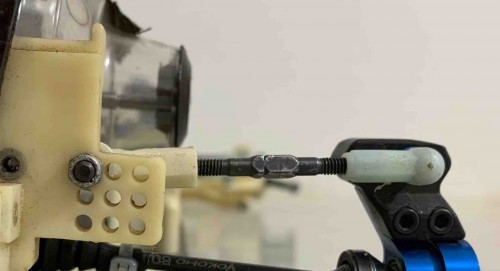

The car turns better with this camber link position (the second hole from the out side on the B4 rear hub carrier)

I think that you need to invert #92180.

<RC10Mid Ver.2>

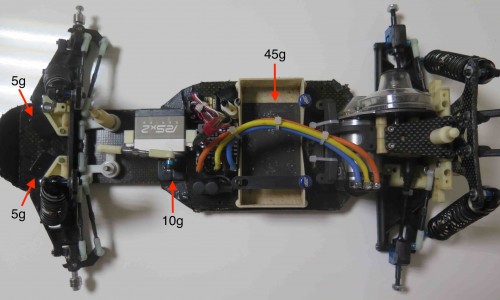

I changed additional weight positions for the track in above videos (because of jumps).

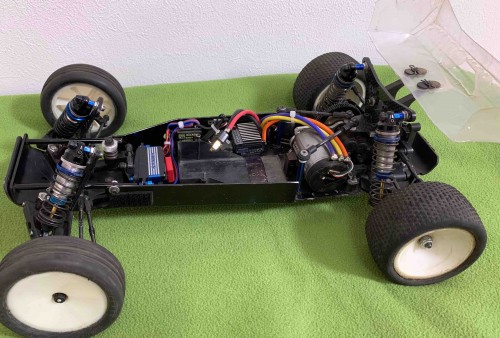

My friend's RC10 as shown in page 5. He replaced the world's re-re chassis to C stamp. https://youtu.be/OVrS_7Ih5dw OVrS_7Ih5dw https://youtu.be/cMXGQ3v-11U cMXGQ3v-11U Weight distribution is similar to my RC10 Ver. 3 in page 4. But he uses the original rear hub carrier, Kyosho big bore shocks, and ...

Thank you for your comment. I did not shoot video after removing 10g... I added weights and used the lighter oil to stabilize the car on bumpy surface. Those worked well but the car lost agility (spread weight distribution), turned less in corners (increased rear grip and rearward weight bias) and n...
