59burst's A&L trailing conversion

Post by 59burst »

got a pair of A&L trailing arms on RCTech a month ago. then got almost complete conversion kit from a01butal weeks ago. I'm building runners so I didn't need to whiten or shine the parts. actually did but not that hard :mrgreen:

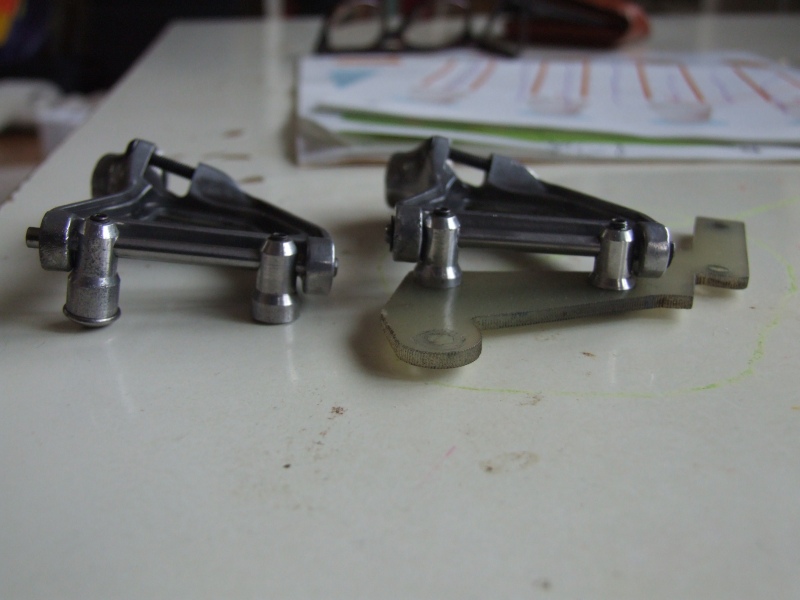

I noticed the heights of the posts are different. the arm on the left is for A&L chassis, and right one is for conversion as you can see

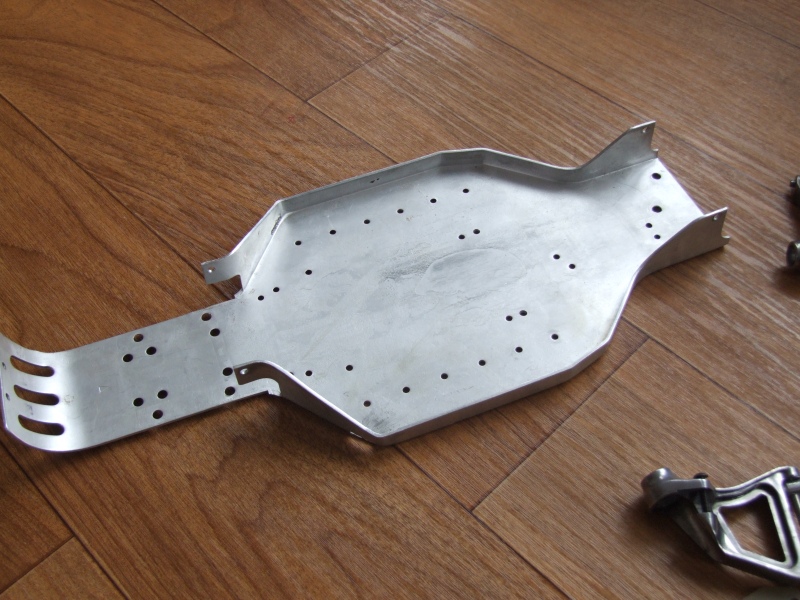

and here goes the chassis for this project

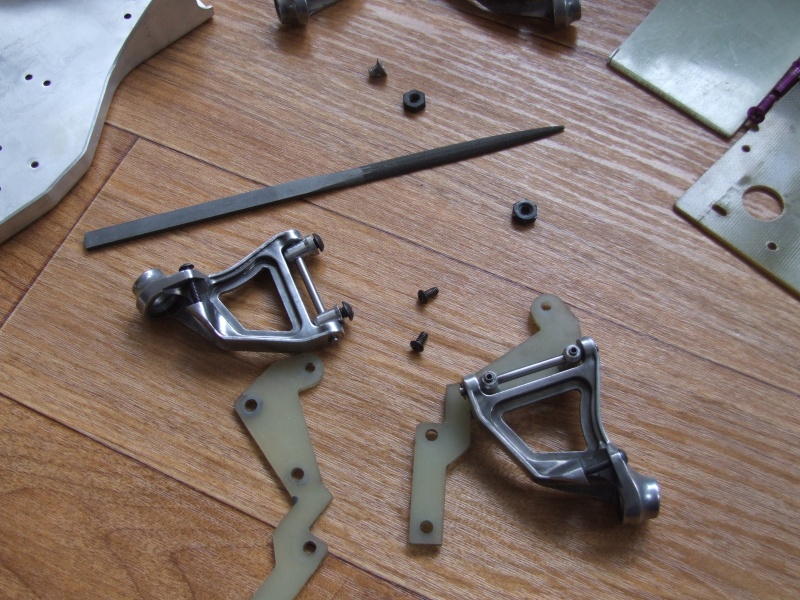

arms and a new file
not trimmed yet. but already drilled

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

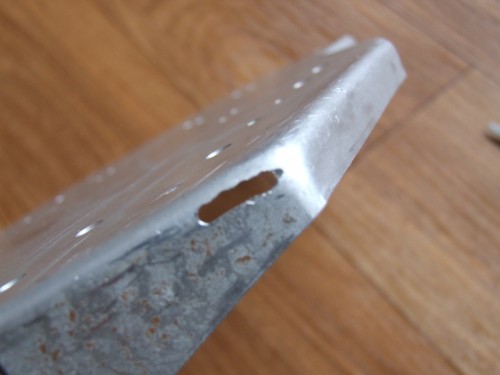

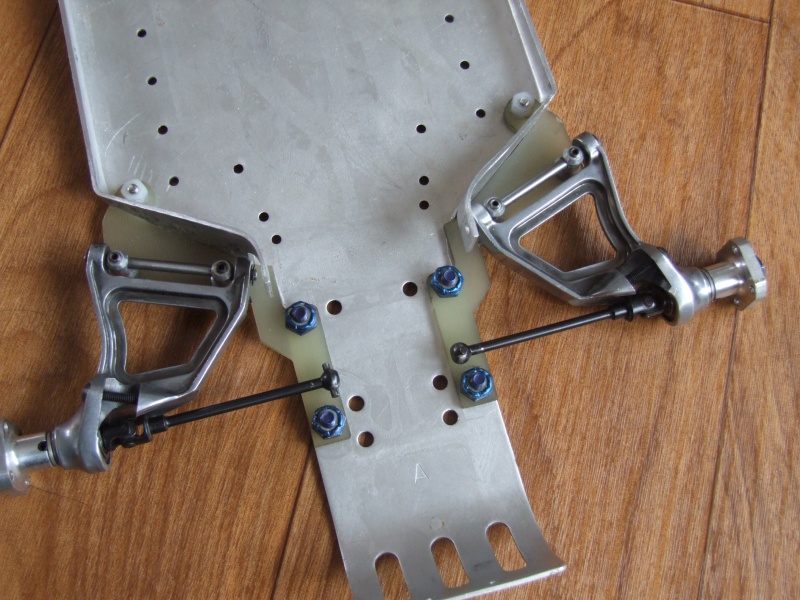

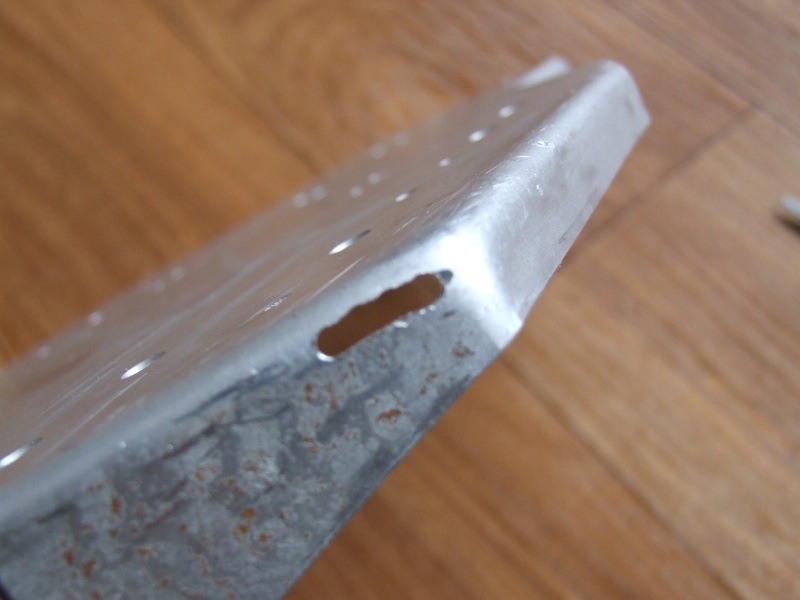

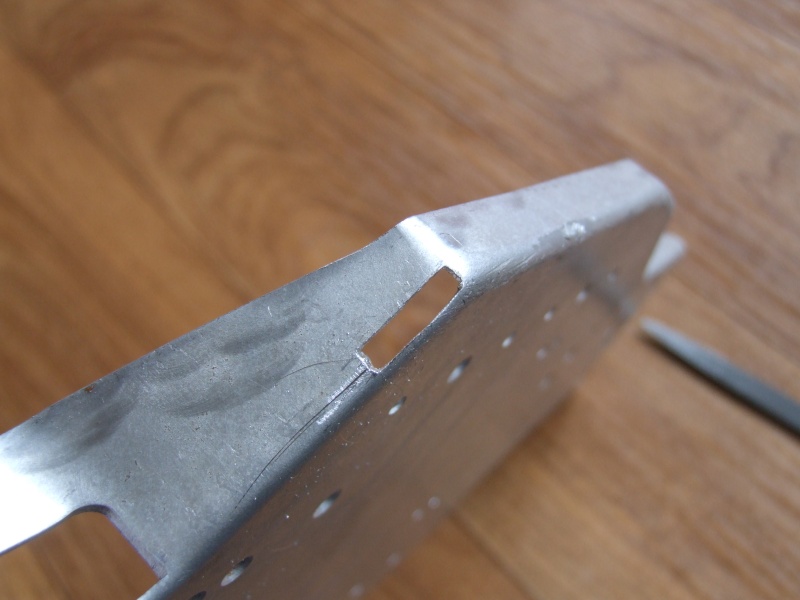

finished the slots. and put the arms on the chassis

User avatar
a01butal
Approved Member
Posts: 2397
Joined: Sat Jan 12, 2008 2:15 pm
Location: Shorewood, IL
Has thanked: 33 times
Been thanked: 39 times

Re: 59burst's A&L trailing conversion

Post by a01butal »

Is that the same chassis I sent you? Did you cut down the sides? It looks pretty sweet good work there.
___________________________________________________________


This is all very interesting!

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

a01butal wrote:Is that the same chassis I sent you? Did you cut down the sides? It looks pretty sweet good work there.
I tried to use the chassis. but couldn't fill the 2 large holes up. so I tried a different one :mrgreen:
thanks for your help again 8)

User avatar
m_vice
Approved Member
Posts: 1313
Joined: Fri Feb 23, 2007 5:46 pm
Location: Dallas, TX
Been thanked: 1 time

Re: 59burst's A&L trailing conversion

Post by m_vice »

Nice work on the slots... I am liking this. :D

User avatar
GJW
Approved Member
Posts: 2325
Joined: Mon Oct 15, 2007 11:22 pm
Location: AUSTRALIA!!
Been thanked: 1 time

Re: 59burst's A&L trailing conversion

Post by GJW »

so you did cut down the chassis hyeong? looking good buddy very tidy.

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

m_vice wrote:Nice work on the slots... I am liking this. :D
spent $5 for a new file. and it worked well. thanks

GJW wrote:so you did cut down the chassis hyeong? looking good buddy very tidy.
I started this project right after I got a new front tower from Jay dub last week. the chassis I got was already cut. but the job was rough. and I trimmed it for a week :mrgreen:

User avatar
vintage AE
Approved Member
Posts: 3012
Joined: Fri Nov 14, 2008 6:47 pm
Location: Sunken Lake, Nova Scotia
Has thanked: 29 times
Been thanked: 35 times

Re: 59burst's A&L trailing conversion

Post by vintage AE »

m_vice wrote:Nice work on the slots... I am liking this. :D
x2

are you going to get a rear Jay dub tower too?

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

vintage AE wrote: are you going to get a rear Jay dub tower too?
got an A&L tower from askbob. but I got 1.18 shocks and the original tower with a few new mounting holes in my mind. the original is short for this setup, and A&L's is rather high to me

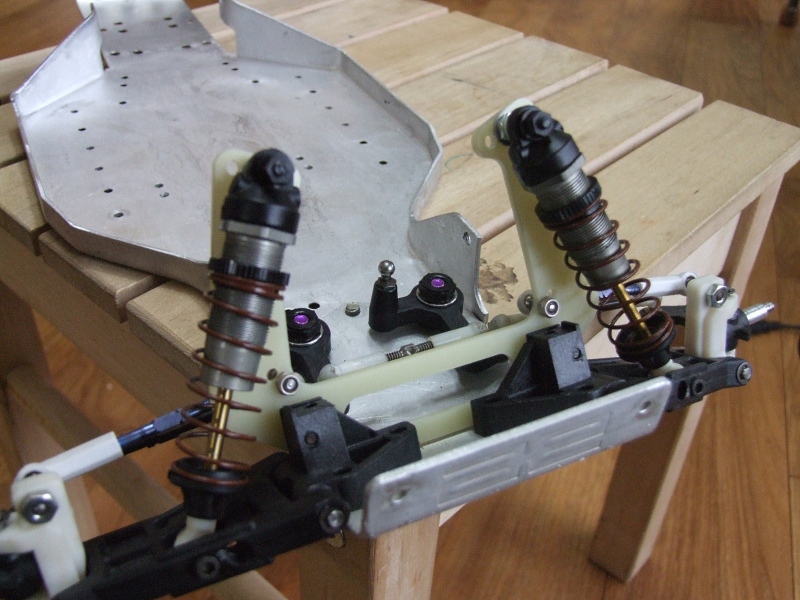

BTW, I love this front tower. thanks Jay Dub

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

stripping down the dyed black surfaces. I can use them before I get a complete set from Aaron :D

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

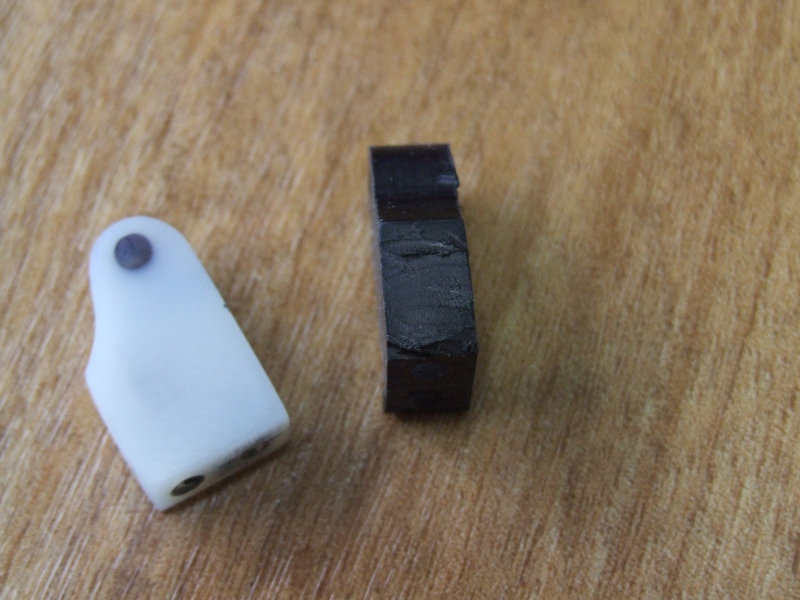

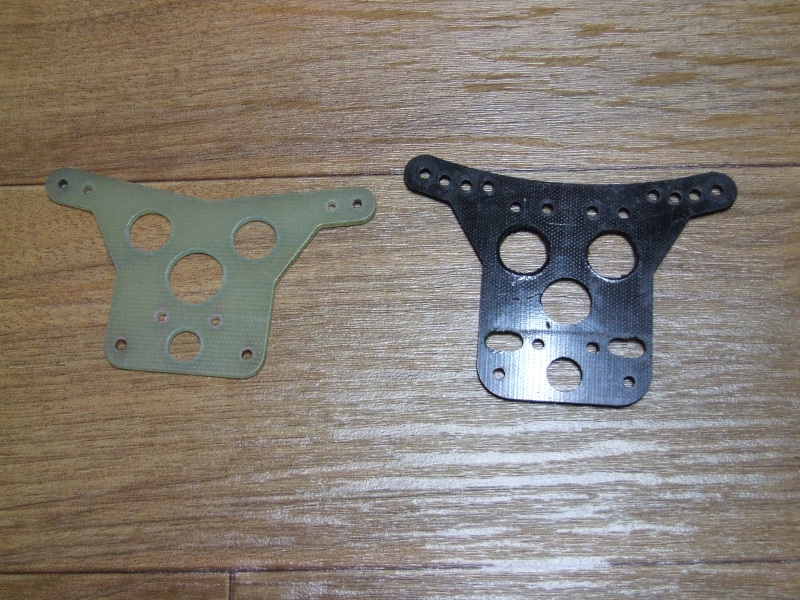

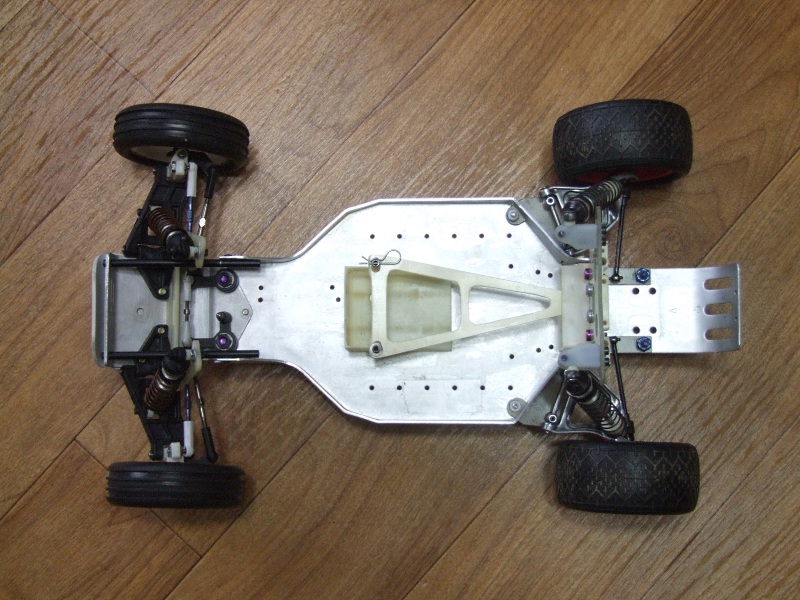

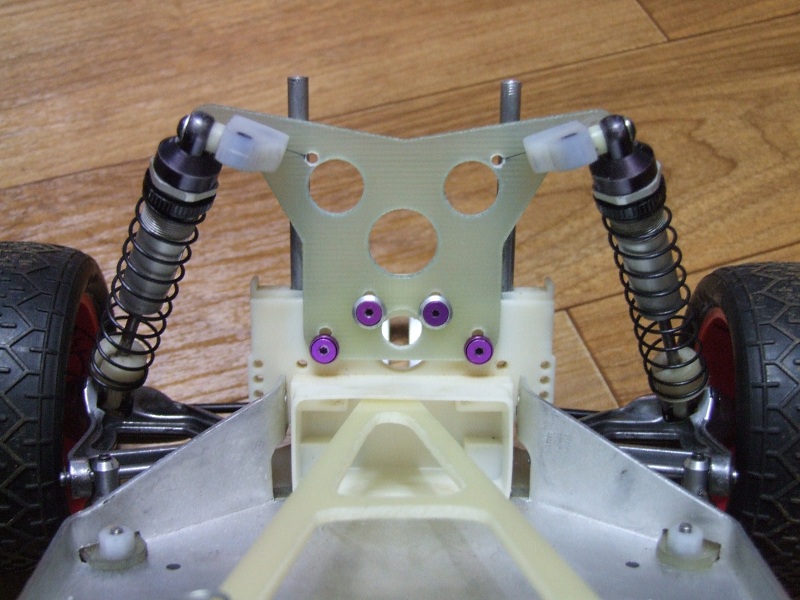

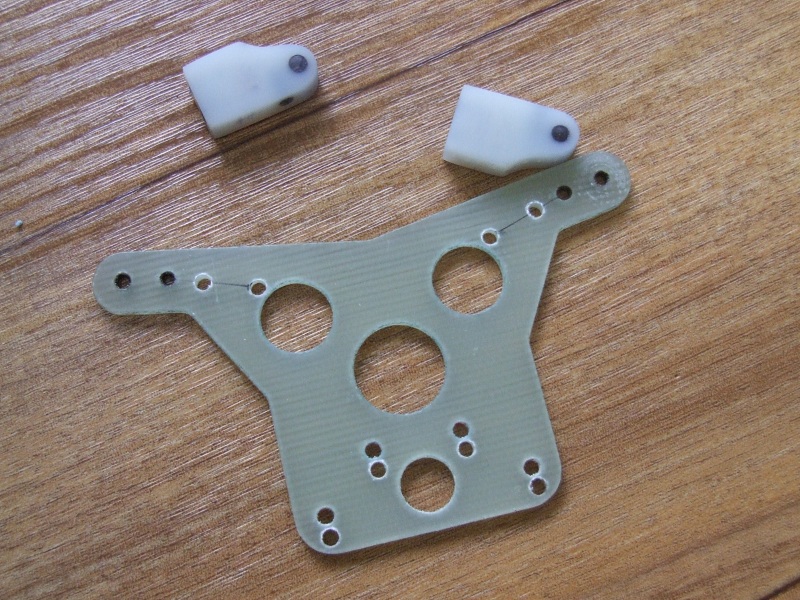

cleaned the mounts up, and drilled new holes on the original tower. I'll make my own tower for 1.18 shocks later. but this mod looks not that bad

everything is pretty much finished except for the tranny now.

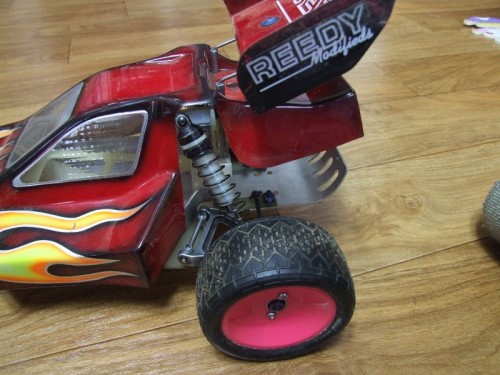

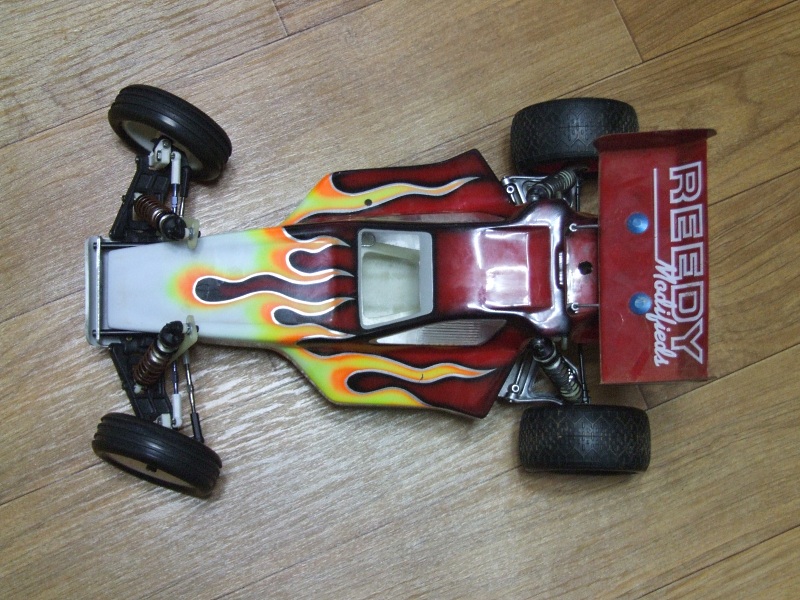

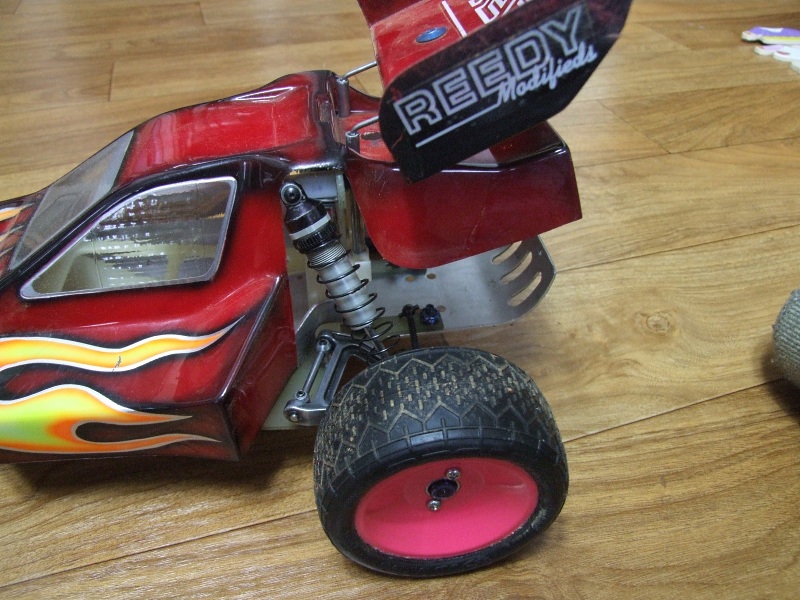

turbo mirage fits well and, it's the reason I didn't use A&L tower. even still can use original wing mounts. I put older longer tubes with later CE bulkhead

still have to replace front .71 shafts with .80 shafts, put spacers in the rear shocks, replace the tires, try different bodies, and maybe more. and waiting for a motor plate to finish this project

User avatar
GJW
Approved Member
Posts: 2325
Joined: Mon Oct 15, 2007 11:22 pm
Location: AUSTRALIA!!
Been thanked: 1 time

Re: 59burst's A&L trailing conversion

Post by GJW »

so this will take over as your new racer? or just another to experiment with? looks very nice! have to do one of those chassis one day :wink:

User avatar
a01butal
Approved Member
Posts: 2397
Joined: Sat Jan 12, 2008 2:15 pm
Location: Shorewood, IL
Has thanked: 33 times
Been thanked: 39 times

Re: 59burst's A&L trailing conversion

Post by a01butal »

59burst wrote:everything is pretty much finished except for the tranny now.
looks like you could use an A & L Chassis stiffener kit to really pimp it out dude. 8) :mrgreen: :mrgreen: :mrgreen:
___________________________________________________________


This is all very interesting!

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 1:52 pm
Location: Seoul, Korea

Re: 59burst's A&L trailing conversion

Post by 59burst »

GJW wrote:so this will take over as your new racer? or just another to experiment with? looks very nice! have to do one of those chassis one day :wink:
another racer you know :wink:


a01butal wrote:
looks like you could use an A & L Chassis stiffener kit to really pimp it out dude. 8) :mrgreen: :mrgreen: :mrgreen:

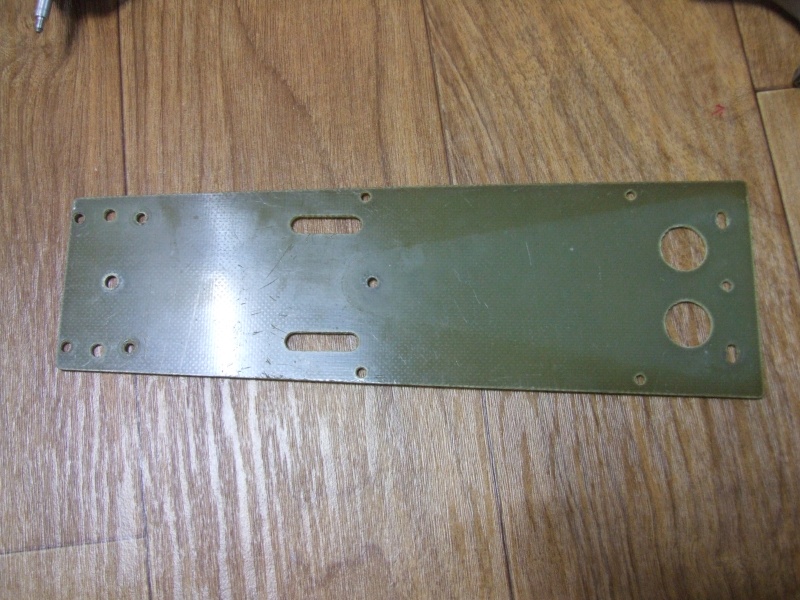

I was about to cut this to make stiffener. but it's too thick. and I'm not sure if I can make it right
me want the kit :twisted: :mrgreen:

User avatar
losiXXXman
Approved Member
Posts: 936
Joined: Sat Aug 29, 2009 1:53 pm
Location: Cary, NC
Been thanked: 5 times

Re: 59burst's A&L trailing conversion

Post by losiXXXman »

Hey that's a cool idea on redrilling the stock rear tower. I have been interested in a trailing arm conversion, but have not picked one up yet. Using the stock tower was something I wanted to try - nice to see that it works beforehand! Just a thought though, if the taller A&L tower for the trailing kit uses the stock rear length (1.32body/1.02shaft) shocks....couldn't you use the 1.18 shocks with the stock RC10 tower and the trailing arms? I don't think you would need a further shorter tower. Does that make sense?
