My old-new gold tub project...

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

Norman
Approved Member
Posts: 105
Joined: Thu Mar 10, 2011 7:56 am
Location: Chino Hills, CA
Been thanked: 1 time

Re: My old-new gold tub project...

Post by Norman »

hey i had a quick question. I sow that you used the lunsford turnbuckles and on page 6 you posted the sizes. Would you be able to tell me what sizes you use for what.

is this how you had it?

- (2) 1.375" -front camber
- (3) 1.500" -rear camber
- (2) 1.625" -front steering


thanks
Hi. :)

User avatar
losiXXXman
Approved Member
Posts: 936
Joined: Sat Aug 29, 2009 1:53 pm
Location: Cary, NC
Been thanked: 5 times

Re: My old-new gold tub project...

Post by losiXXXman »

I think it was probably 1.375 rear camber, 1.5 front camber, 1.625 front steering.

Stock lengths are 1.25 Rear camber, 1.65 Front camber, 2.06 steering. With the longer ball cups, a shorter rod works out.

Cronus
Approved Member
Posts: 49
Joined: Mon Jan 10, 2011 5:39 am

Re: My old-new gold tub project...

Post by Cronus »

seth556 wrote:Ether of the hubs work, just one you'll need different bearings for the outside.
No they don't. I just ruined a set of hubs with two different sized bearings because I had to drill them out.

If you're following this setup make sure to get the carriers with the same size inner and outer bearings. part number is asc9584

User avatar
Eau Rouge
Approved Member
Posts: 2225
Joined: Sun Jul 30, 2006 3:59 am
Location: Aurora, Illinois
Has thanked: 2 times
Been thanked: 1 time

Re: My old-new gold tub project...

Post by Eau Rouge »

Cronus wrote:No they don't. I just ruined a set of hubs with two different sized bearings because I had to drill them out.

If you're following this setup make sure to get the carriers with the same size inner and outer bearings. part number is asc9584
Wrong, those hubs are for the exact same car (B44). They will fit with the proper bearings. The only difference in them is the inner bearing size for strength on a 4wd car.

User avatar
askbob
Approved Member
Posts: 1735
Joined: Sun Apr 03, 2011 3:24 pm
Location: KY
Been thanked: 3 times

Re: My old-new gold tub project...

Post by askbob »

Since I'm new to this forum, I cannot see the b/s/t section yet. Did this car ever get put up for sale? I'm looking to buy a mostly completed project car.

craigc8791
Approved Member
Posts: 158
Joined: Mon Aug 30, 2010 7:05 pm
Location: Houston, Texas

Re: My old-new gold tub project...

Post by craigc8791 »

I know those are the Kyosho Velvet shocks, but does anyone know the part number for those springs?

User avatar
klavy69
Moderator
Posts: 5141
Joined: Thu May 29, 2008 8:11 pm
Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
Has thanked: 540 times
Been thanked: 253 times

Re: My old-new gold tub project...

Post by klavy69 »

askbob wrote:Since I'm new to this forum, I cannot see the b/s/t section yet. Did this car ever get put up for sale? I'm looking to buy a mostly completed project car.
Yep, one of the members picked it up rather quickly if I recall. Might've lasted a couple days max...
Peace and professionlism.....Kabunga signing off!!!

craigc8791
Approved Member
Posts: 158
Joined: Mon Aug 30, 2010 7:05 pm
Location: Houston, Texas

Re: My old-new gold tub project...

Post by craigc8791 »

So no one knows what shock springs those are :roll:

User avatar
Bimdapogs
Approved Member
Posts: 376
Joined: Thu Feb 11, 2010 8:54 pm
Location: Toronto, Canada

Re: My old-new gold tub project...

Post by Bimdapogs »

Go to Amain's site. You should see them under Kyosho RB5 parts. :roll:


:mrgreen:

mikea96
Approved Member
Posts: 3252
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 152 times
Been thanked: 537 times

Re: My old-new gold tub project...

Post by mikea96 »

Did whoever bought this ever run it?

User avatar
dldiaz
Approved Member
Posts: 793
Joined: Thu Apr 01, 2010 3:21 pm
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: My old-new gold tub project...

Post by dldiaz »

I have this model, and [embarassingly] I have not run it.
I do plan to install electronics and run it... someday.

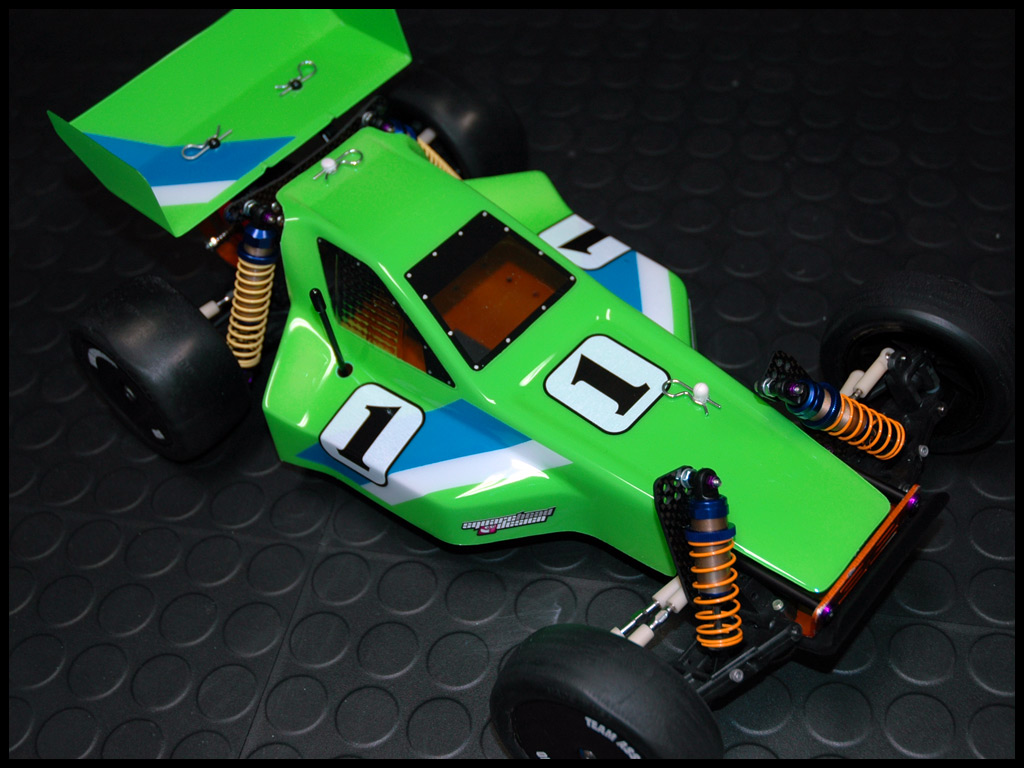

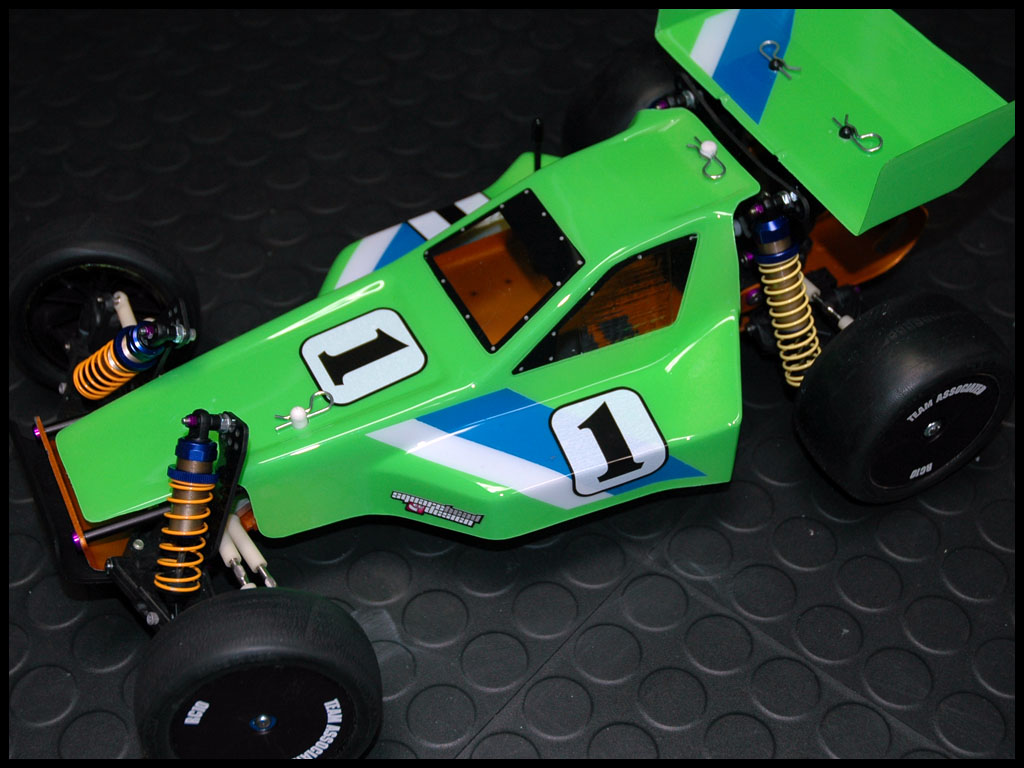

Here's a couple pics with the body Doug painted for me;
((paint scheme is a tribute to a 1980's Kawasaki dirt bike)):
Associated RC10 (B4 hubs and carriers, Kyosho Velvet shocks, Kawasaki tribute body) 32.jpg
Associated RC10 (B4 hubs and carriers, Kyosho Velvet shocks, Kawasaki tribute body) 35.jpg
-dldiaz

mikea96
Approved Member
Posts: 3252
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 152 times
Been thanked: 537 times

Re: My old-new gold tub project...

Post by mikea96 »

I like that color scheme! 8)

User avatar
flipwils11
Approved Member
Posts: 1904
Joined: Mon Feb 15, 2010 3:30 am
Location: St Paul, MN
Been thanked: 15 times

Re: My old-new gold tub project...

Post by flipwils11 »

Wow looks great, are those tires slicks?

User avatar
dldiaz
Approved Member
Posts: 793
Joined: Thu Apr 01, 2010 3:21 pm
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: My old-new gold tub project...

Post by dldiaz »

flipwils11 wrote:Wow looks great, are those tires slicks?
The tires shown above are slicks, but, they are just trued-down knobby tires, if you look closely the patterns of the knobbies are still there.
-dldiaz

User avatar
dldiaz
Approved Member
Posts: 793
Joined: Thu Apr 01, 2010 3:21 pm
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: My old-new gold tub project...

Post by dldiaz »

I have finally run this one! It really runs great!
I am very pleased with the handling, I would love to try it out in a vintage race...
Too bad there aren't many vintage racers down here in South Texas. :(
- the Kyosho Velvet shocks work like Butta Baby!

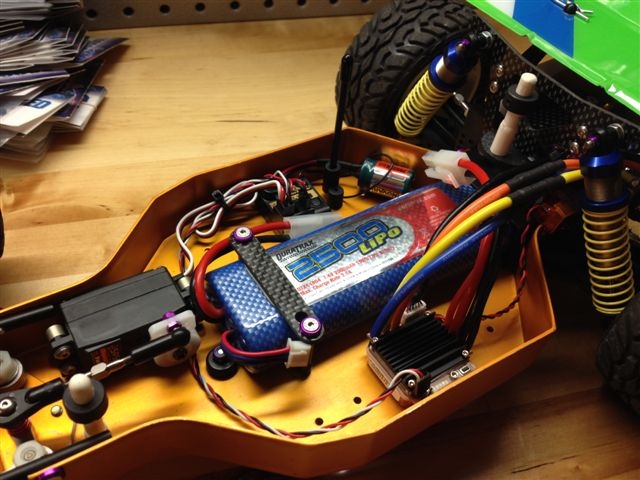

Electronics include:
Novak Club Sensored 17.5T combo
Futaba S9551 servo
Airtronics 2.4GHz Tx/Rx

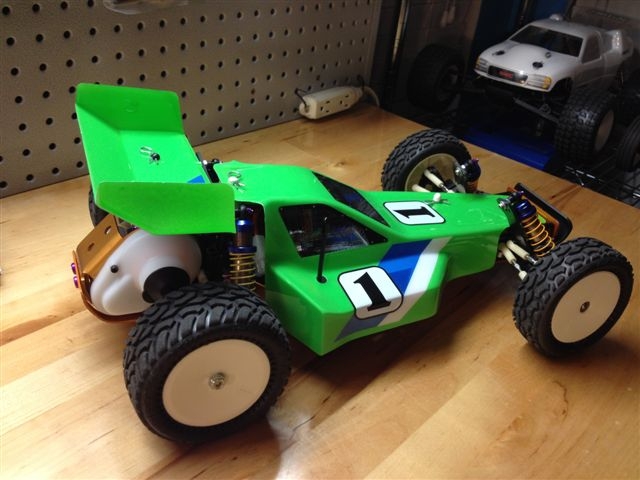

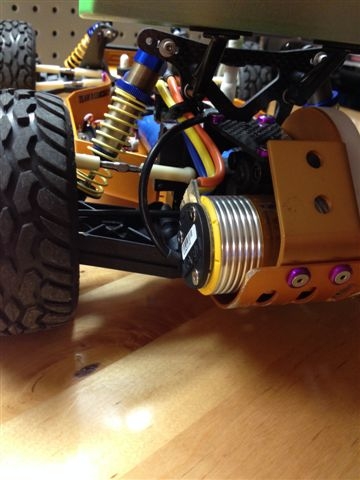

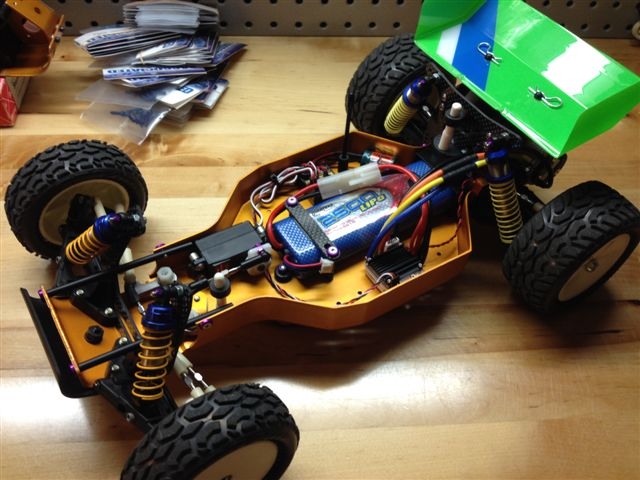

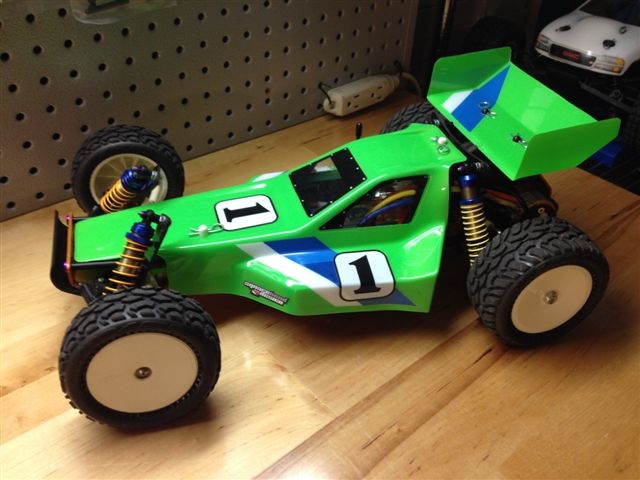

Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 4_small.JPG
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 9_small.JPG
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 9_small.JPG (102.29 KiB) Viewed 783 times
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 9_small.JPG
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 9_small.JPG (102.29 KiB) Viewed 783 times
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 14_small.JPG
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 2_small.JPG
Associated RC10 (Novak 17.5, B4 carriers, Kyosho Velvets, Kawasaki MX body) 3_small.JPG
-dldiaz
