Re: Bosscat Works project- updating the slipper

Post by jwscab »

gonna need some more tooling if you are intending to make that square drive center shaft on that lathe 8)

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

I have a friend with a mill for the flats and square. I just have to make it round first lol
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

I'm with dan I don't care what it's made of just make me one now now now now now now now





Thankyou :lol:

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

Thanks for the drawing gomachv I have foud that the Procat slipper assembly has the same layshaft but just uses a different slipper assembly. I now have the layshaft, slipper plates and nut all I need is the spring have you got the length and width of that so I can find one of them please :mrgreen:

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

Sorry, my slipper did not have the proper spring, nut, bearing ect. They had made random parts fit, but they didn't fit well.

I would expect however that a stealth slipper spring should work fine- it's nice and short, and should be fairly easy to locate. Associated part number 6587. Don't use the locknut that comes with it though!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

I've got a new Schumacher spring so if that works I haven't checked yet but would of thought so. How's the progress pal?

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

Still working on the lathe, not going very fast at all. If you can find a ready made one I would say go for it- I can't find anyone to machine it and I'm learning as I go
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

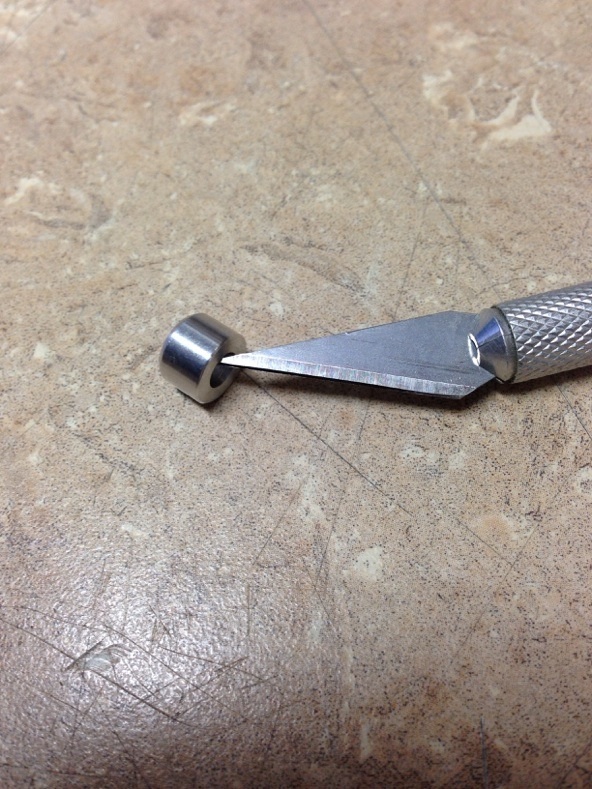

Baby steps! One spacer down lmfao!
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

Baby steps are ok better than no steps at all :lol:

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

I just need to split it in half now. The shaft should begin this weekend- out of aluminum. Once I can mock it up, I will try it in steel. The cross drilling and flats will be the next big challenge, as I need to make fixtures. The schumacher slipper shaft will take a bit longer yet as it's more complex than the associated.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
jwscab
Super Member
Posts: 6517
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 456 times

Re: Bosscat Works project- updating the slipper

Post by jwscab »

if you get into a bind, let me know, i might know a guy that can help. 8)

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

Don't keep us hanging how are you getting on ? Anymore baby steps

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

Nope, still waiting on parts. Probably be a while between sdp and ups they are killing me
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Peakey
Approved Member
Posts: 578
Joined: Tue Feb 25, 2014 8:55 am
Location: Nottingham, UK
Been thanked: 3 times

Re: Bosscat Works project- updating the slipper

Post by Peakey »

I've managed to source 2 bosscats both with slippers so that will keep me going till my nice shiny new one is made :wink:

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: Bosscat Works project- updating the slipper

Post by GoMachV »

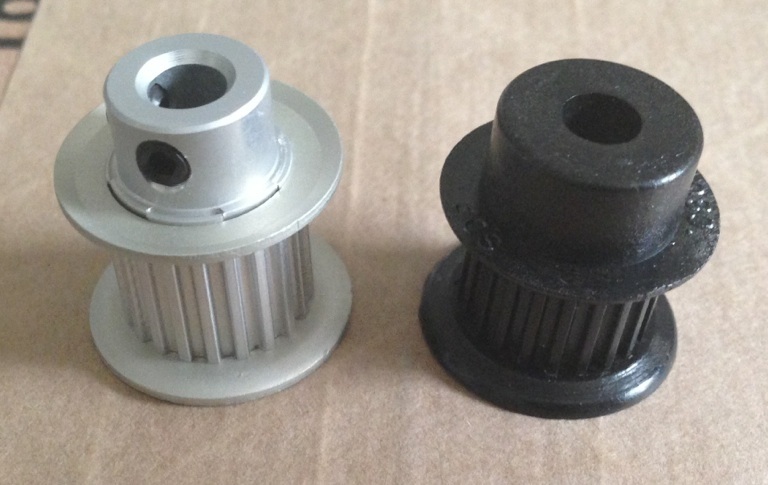

Well...that took a while! Finally got my pulleys. Plastic for the center roller and two aluminum for the rear drives. Now I have to do some measuring and get them to fit between the plates. The end on the plastic will be cut off, and I may have to knock down the pulley flanges as well. These have a 3/16 bore so the slipper shaft will be easier. Bearings will ride on the pulley where the setscrews are, after they are turned down to 8mm
Attachments
