Re: '91 WC Stealth vs B4

Post by edwin pibal »

ill buy one regardless 8)
Hi, my name is Ed, and im a addict.

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

The hope is that we can 3D print the suspension components and CNC the chassis and shock towers. Ultimately we (or anyone else) would need to provide the remaining parts; tranny, battery cup, rear bulkhead (and CF brace), wheels, bearings, motor mount and all hardware. The rear bulkhead needs to be cut with a dremel to accommodate the rear suspension components.

After spending a lot of time analyzing the front end it appears the kick up is just 20 degrees rather than the 25 or 30 typically found on 2WD buggies. To accommodate this may require a CF layup mold to be fabricated.

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

One necessary but seemingly difficult item to find is the chassis standoff posts. I checked McMAster-Carr but they don't seem to have the tapered version we need. If anyone has an idea where to find this please advise.

fredswain
Approved Member
Posts: 1167
Joined: Fri Mar 11, 2011 9:20 pm
Location: Houston
Been thanked: 4 times

Re: '91 WC Stealth vs B4

Post by fredswain »

I'm not concerned with 100% accuracy here. As long as they are the proper length I'd let the exact shape slide.
Raborn Racing Originals Shapeways store

User avatar
jwscab
Super Member
Posts: 6494
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 446 times

Re: '91 WC Stealth vs B4

Post by jwscab »

those profiled standoffs are something easily made in a lathe from regular round rod. I can't recall the dimension of a composite craft worlds buggy standoff, but I suspect it's not a 'standard' length so they would have to be custom trimmed anyway.

if you guys get to the point where the standoffs are necessary, I can help make some.

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

jwscab wrote:those profiled standoffs are something easily made in a lathe from regular round rod. I can't recall the dimension of a composite craft worlds buggy standoff, but I suspect it's not a 'standard' length so they would have to be custom trimmed anyway.

if you guys get to the point where the standoffs are necessary, I can help make some.
I'm pretty sure they are 1" in length. I found these made by Lunsford in 1", 1.25" and 1.5" lengths. However, if you can machine some that's even better 8)


fredswain
Approved Member
Posts: 1167
Joined: Fri Mar 11, 2011 9:20 pm
Location: Houston
Been thanked: 4 times

Re: '91 WC Stealth vs B4

Post by fredswain »

Since the top deck sits directly on top of the battery box (what's left of it) on the rear bulkhead, figuring out the height should be easy.
Raborn Racing Originals Shapeways store

fredswain
Approved Member
Posts: 1167
Joined: Fri Mar 11, 2011 9:20 pm
Location: Houston
Been thanked: 4 times

Re: '91 WC Stealth vs B4

Post by fredswain »

Here's a quick but crappy screenshot of the Stealth car top deck model.
Attachments
stealth top deck.jpg
Raborn Racing Originals Shapeways store

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

Main Chassis in progress..

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

I have my CAD file of the main chassis 99% done; just some final tweaks and it will be ready to go (hopefully tomorrow). Then on to creating a mold for the chassis 8)

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

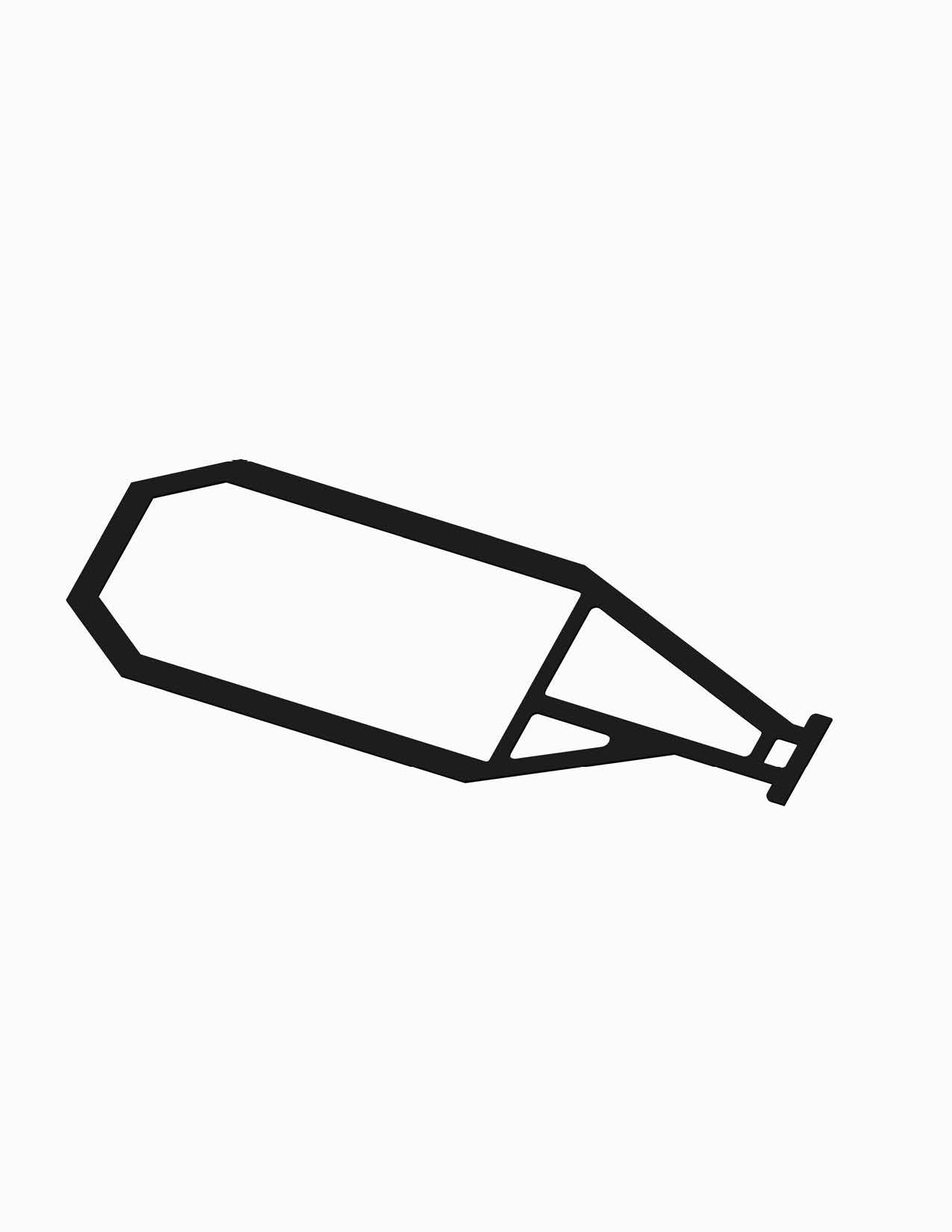

Main Chassis CAD finished

edwin pibal
Approved Member
Posts: 255
Joined: Mon Jul 14, 2008 9:24 pm
Location: Wellington, New Zealand
Has thanked: 1 time

Re: '91 WC Stealth vs B4

Post by edwin pibal »

wow dude!

I feel like I need to be chucking money at you now to make I get one !!

ed
Hi, my name is Ed, and im a addict.

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

Just finished custom machined standoffs for top deck

NIK91 front bulkhead bottom width and rear mounting blocks are exact match to our calculated measurements so they line up perfectly over the mock up.

User avatar
littleVETTE
Approved Member
Posts: 1418
Joined: Mon Aug 11, 2008 8:07 pm
Location: U.S.A.
Has thanked: 6 times
Been thanked: 9 times

Re: '91 WC Stealth vs B4

Post by littleVETTE »

great stuff justin.

are you guys still going through with your version of the 1991 stealth?

User avatar
jbmeyer13
Approved Member
Posts: 174
Joined: Wed Jul 02, 2014 3:13 pm
Location: NJ
Has thanked: 25 times
Been thanked: 11 times

Re: '91 WC Stealth vs B4

Post by jbmeyer13 »

littleVETTE wrote:great stuff justin.

are you guys still going through with your version of the 1991 stealth?
Definitely moving forward with having a chassis cut. The NIX components are first rate and thus far tie out to the dimensions we have so it doesn't appear to be any reason to replicate those pieces. The sole exception may be the front bulkhead depending on how things play out. The main reason to move forward with the chassis is that there are some subtle differences cosmetically and also because I want to have control over the thickness and type of CF used. If it turns out that the kick up ends up being 20 degrees then we'll have a mold created to ensure optimal accuracy.
