Re: trailing arm rc10

Post by Dr. Robotnik »

I love the mix of parts on this car an awesome hybrid.

tulsa
Approved Member
Posts: 615
Joined: Mon Jan 22, 2007 3:18 pm
Location: pa. usa

Re: trailing arm rc10

Post by tulsa »

thanks guys........i'll try and get some body off pics today.

NEK5
Regular Member
Posts: 5
Joined: Wed Mar 05, 2008 4:27 pm

Re: trailing arm rc10

Post by NEK5 »

I have the same chassis as the one in the first picture, with Andy`s a-arms in the front, and trailing arms in the rear. It also has the original 6 gear tranny. Are there a-arms that will work with the chassis?

User avatar
bscotti
Approved Member
Posts: 617
Joined: Fri Jul 14, 2006 1:48 pm
Location: Freeville, NY
Been thanked: 1 time

Re: trailing arm rc10

Post by bscotti »

I'm not positive, but I think standard type rear arms (Associated, Andy's, RPM, etc.) would fit fine (or so it looks in the second pic I posted on page 1). If a rear arm mount lines up with the chassis holes, you're probably all set.
Classics rule, moderns drool

NEK5
Regular Member
Posts: 5
Joined: Wed Mar 05, 2008 4:27 pm

Re: trailing arm rc10

Post by NEK5 »

bscotti wrote:I'm not positive, but I think standard type rear arms (Associated, Andy's, RPM, etc.) would fit fine (or so it looks in the second pic I posted on page 1). If a rear arm mount lines up with the chassis holes, you're probably all set.
Would it be worth it to switch out the trailing arms?

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Thu Dec 13, 2007 2:43 am
Location: Illinois, USA
Been thanked: 3 times

Re: trailing arm rc10

Post by highwayracer »

I guess it depends. If the car will be a runner, the standard arms would probably be better. In addition, you don't want to damage the trailing arms or the chassis (mounting points).

If it was going to be restored as a display piece, I would definately keep the trailing arm suspension. You can probably find a ton of graphite chassis rc10s with the standard arms, but the trailing arm set up is getting pretty rare.

my thoughts/opinions....

regards,
highwayracer

NEK5
Regular Member
Posts: 5
Joined: Wed Mar 05, 2008 4:27 pm

Re: trailing arm rc10

Post by NEK5 »

highwayracer wrote:I guess it depends. If the car will be a runner, the standard arms would probably be better. In addition, you don't want to damage the trailing arms or the chassis (mounting points).

If it was going to be restored as a display piece, I would definately keep the trailing arm suspension. You can probably find a ton of graphite chassis rc10s with the standard arms, but the trailing arm set up is getting pretty rare.

my thoughts/opinions....

regards,
highwayracer
I`m not sure if its going to be possible or not...the guy I bought it from doesn`t believe the stock rear a arms will work..I have them, and the 2 mounting holes line up, but he thinks the "upper link" may not have a place to mount...

Is carbon/graphite the same thing? I believe this has a full carbon chassis...and it has andys a-arms in the front..also has the original 6 gear tranny..

I don`t plan on restoring or racing it...just tossing the sidewinder/5700kv in it, taking it to the beach and bashing in the sand, hitting small jumps, etc...

User avatar
scr8p
Administrator
Posts: 16556
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 29 times
Been thanked: 981 times

Re: trailing arm rc10

Post by scr8p »

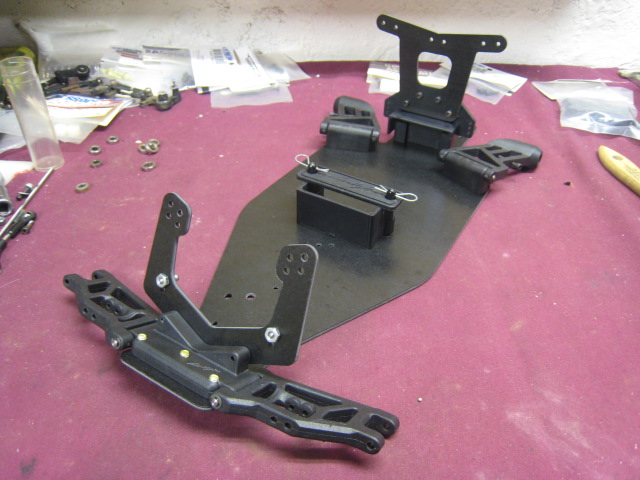

NEK5, is yours like this?
Attachments

NEK5
Regular Member
Posts: 5
Joined: Wed Mar 05, 2008 4:27 pm

Re: trailing arm rc10

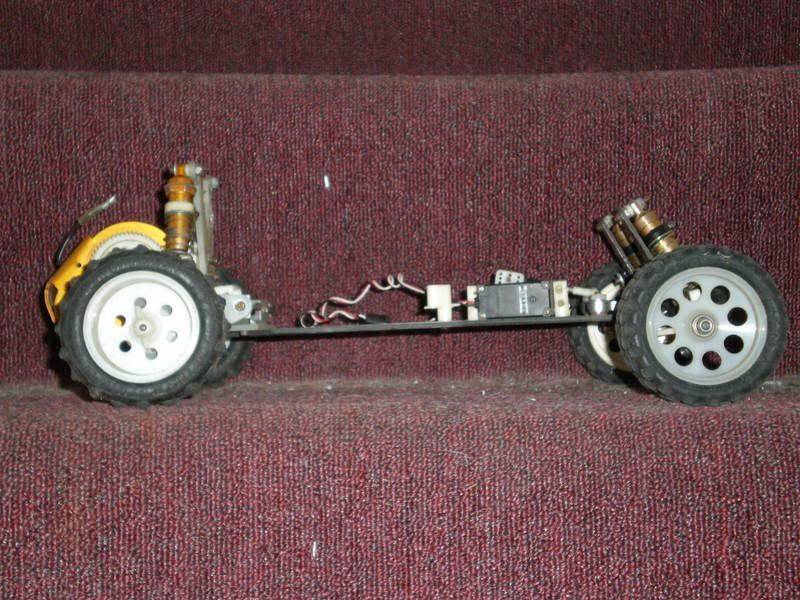

Post by NEK5 »



User avatar
templeofspeed
Approved Member
Posts: 2087
Joined: Wed Aug 02, 2006 2:02 am
Location: Central Ohio
Been thanked: 8 times

Re: trailing arm rc10

Post by templeofspeed »

That's an early MIP trailing arms setup...you might want to reconsider its fate with that BL setup. You've probably got a few PM's I guess...

NEK5
Regular Member
Posts: 5
Joined: Wed Mar 05, 2008 4:27 pm

Re: trailing arm rc10

Post by NEK5 »

Hmmm...no PM`s here...

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Thu Dec 13, 2007 2:43 am
Location: Illinois, USA
Been thanked: 3 times

Re: trailing arm rc10

Post by highwayracer »

well, I just sent you a PM :lol:

Looking at the picture, it looks like a standard chassis with the MIP suspension.

You should be able to use the standard a-arms for the rear. The only thing you may have to do is to drill a hole in the rear bulkhead (if there is no hole). From the photo, it looks like the previous owner cut the sides of the bulkhead.

Good luck with your project.

regards,
highwayracer

User avatar
scr8p
Administrator
Posts: 16556
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 29 times
Been thanked: 981 times

Re: trailing arm rc10

Post by scr8p »

ya, i think i'd swap that mip trailing arm setup for a pair of standard a-arms.

badhoopty
Approved Member
Posts: 3759
Joined: Tue Feb 07, 2006 7:12 pm
Has thanked: 18 times
Been thanked: 36 times

Re: trailing arm rc10

Post by badhoopty »

scr8p wrote:ya, i think i'd swap that mip trailing arm setup for a pair of standard a-arms.
i agree. and then he should send me that trailing arm setup ASAP.

:lol:

User avatar
RichieRich
Approved Member
Posts: 2352
Joined: Thu Jun 15, 2006 3:42 am
Location: Los Angeles, CA
Has thanked: 36 times
Been thanked: 19 times

Re: trailing arm rc10

Post by RichieRich »

That conversion always looked a little fragile to me.
