Quadra-symmetric RC10
- Vale
- Approved Member
- Posts: 369
- Joined: Tue Jul 24, 2012 5:13 pm
- Location: Luxemburg
- Has thanked: 2 times
- Been thanked: 3 times
Re: Quadra-symmetric RC10
Just wonder if somebody tried to use truck setup on steering (bell cranks) ??
Should work or am I wrong!??
Should work or am I wrong!??
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
Re: Quadra-symmetric RC10
Truck setup? I"m using the A&L Steering bellcrank. SEems to work fine.Vale wrote:Just wonder if somebody tried to use truck setup on steering (bell cranks) ??
Should work or am I wrong!??
- GoMachV
- Super Member
- Posts: 11356
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 831 times
- Been thanked: 2464 times
Re: Quadra-symmetric RC10
Even the trucks went back to buggy length bellcranks on the gt and T2....the long arms change Ackerman and probably would not be desirable
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- Vale
- Approved Member
- Posts: 369
- Joined: Tue Jul 24, 2012 5:13 pm
- Location: Luxemburg
- Has thanked: 2 times
- Been thanked: 3 times
- Niki
- Approved Member
- Posts: 522
- Joined: Wed Nov 02, 2011 7:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 36 times
Re: Quadra-symmetric RC10
I can make a comparison diagram 10T bellcranks (rear holes) vs Worlds Car bellcranks (front holes).
Then we know...
Then we know...
NIXconcepts -Shapeways Shop- -I.materialise Shop-
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- Vale
- Approved Member
- Posts: 369
- Joined: Tue Jul 24, 2012 5:13 pm
- Location: Luxemburg
- Has thanked: 2 times
- Been thanked: 3 times
Re: Quadra-symmetric RC10
Could you show us please ¿RichieRich wrote:Truck setup? I"m using the A&L Steering bellcrank. SEems to work fine.Vale wrote:Just wonder if somebody tried to use truck setup on steering (bell cranks) ??
Should work or am I wrong!??
You don't have to Niki, thank you anyway my quadra is partialy assembled and just wantex to know if i could use rear holes + truck bell cranks or rpm style bell cranksNiki wrote:I can make a comparison diagram 10T bellcranks (rear holes) vs Worlds Car bellcranks (front holes).
Then we know...
- Niki
- Approved Member
- Posts: 522
- Joined: Wed Nov 02, 2011 7:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 36 times
Re: Quadra-symmetric RC10
OK. As you can see from pictures in first page, I'm using long wheelbase setup for nose plate and still front holes for Worlds bellcranks. Works perfect.
NIXconcepts -Shapeways Shop- -I.materialise Shop-
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
Re: Quadra-symmetric RC10
Check that thread again... Joey is using b4 caster blocks, Niki designed for rc10 caster blocks. On a B4, he wheel is a little 'further out' from the hinge pin. How much... maybe 2mm? But enough to make it too wide. I would love to add trailing axle and front hex to my quadra-mid gold pan racer.mk-Zero wrote:Joey's car was outside the limits, might want to check with him...Beau S wrote:Niki,
So, this design has the front and rear Track width maxed to 250mm, Roar Limit, using B4 drives, hub, hex, and std rc10 front casters with OG inline axles?
I read thru all 4pgs and saw this kinda scattered through comments. I'm just dbl checking the width, and strict need for the front suspension components.
thanks
http://www.rc10talk.com/viewtopic.php?f=35&t=38746&start=15

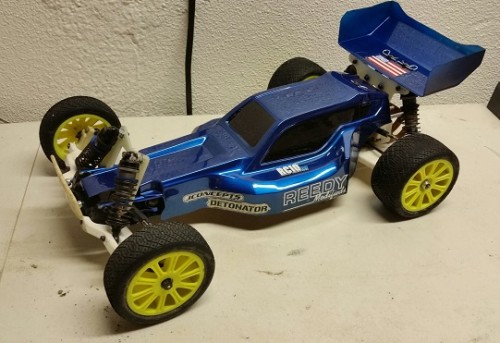

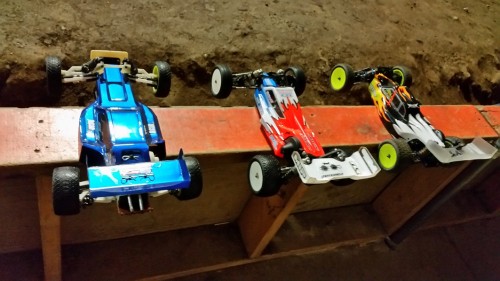

My racer pictured below is an absolute blast to drive. The quadra suspension and longer wheelbase transformed the car. I took 3rd place of the class of 12 stock buggies last night. I am planning to run two local club racing series this winter with this car in 17.5 blinky.
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
Re: Quadra-symmetric RC10

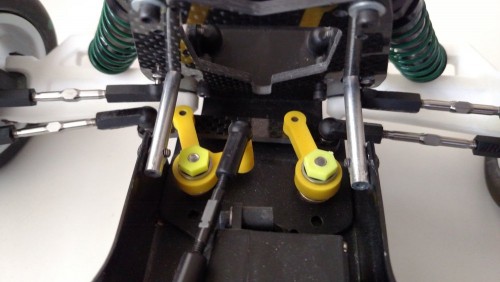

Here's what my steering setup looks like with the Nix arms. Also, the front is exactly 250 mm wide. I'm using rulux wheels all around.Vale wrote: Could you show us please ¿
- Niki
- Approved Member
- Posts: 522
- Joined: Wed Nov 02, 2011 7:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 36 times
Re: Quadra-symmetric RC10
Jason, your Mid looks great.

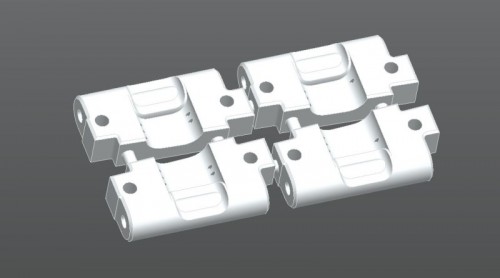

I just made beefier rear arm mounts with 2 degree and 1 degree anti-squat. Both 3 degree toe-in / side.
Do we need 3 degree and 0 degree anti-squat versions also?
I just made beefier rear arm mounts with 2 degree and 1 degree anti-squat. Both 3 degree toe-in / side.
Do we need 3 degree and 0 degree anti-squat versions also?
NIXconcepts -Shapeways Shop- -I.materialise Shop-
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
Re: Quadra-symmetric RC10
What drill and tap's would you suggest using to prep the printed parts? Obviously an 8/32 tap for the rear arm mounts. But what else?
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
Re: Quadra-symmetric RC10
Well, you'd use a #29 drill bit for the 8-32 tap. You can use a 4-40 tap/#43 drill bit for the shock screws on the arms.
- Niki
- Approved Member
- Posts: 522
- Joined: Wed Nov 02, 2011 7:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 36 times
Re: Quadra-symmetric RC10

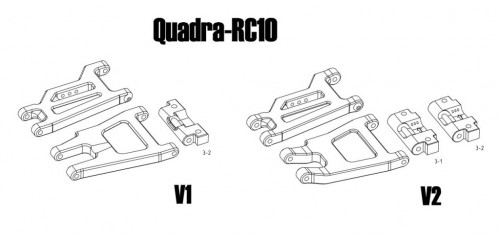

V2 parts ready. New arms are much stronger around hinge pin areas and rear arm has a new bent shape.
NIXconcepts -Shapeways Shop- -I.materialise Shop-
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
--- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
