Since I was switching out the outdrives in my RC10T4 FT from the regular units to the lightweight outdrives, I decided to weigh the three different AE outdrive options that were for the various versions of the B4, T4, SC10 and GT2.
Associated part numbers:
- 1766 FT Lightweight Outdrive Set (uses 3/8" x 5/8" outdrive bearings). Compatible with transmission case part # 9574.
- 7667 & 7668 Diff Outdrive Hub, right & left (uses 3/8" x 5/8" outdrive bearings). These were used in the original version of the B4, T4, SC10 and GT2. Compatible with transmission case part # 9574.
- 9852 SC10 FT Ball Diff Outdrives (uses 10mm x 16mm outdrive bearings). These were used in the B4.1 & 4.2, T4.1, T4.2 & T4.3, and later SC10s. Compatible with transmission case part # 9826.

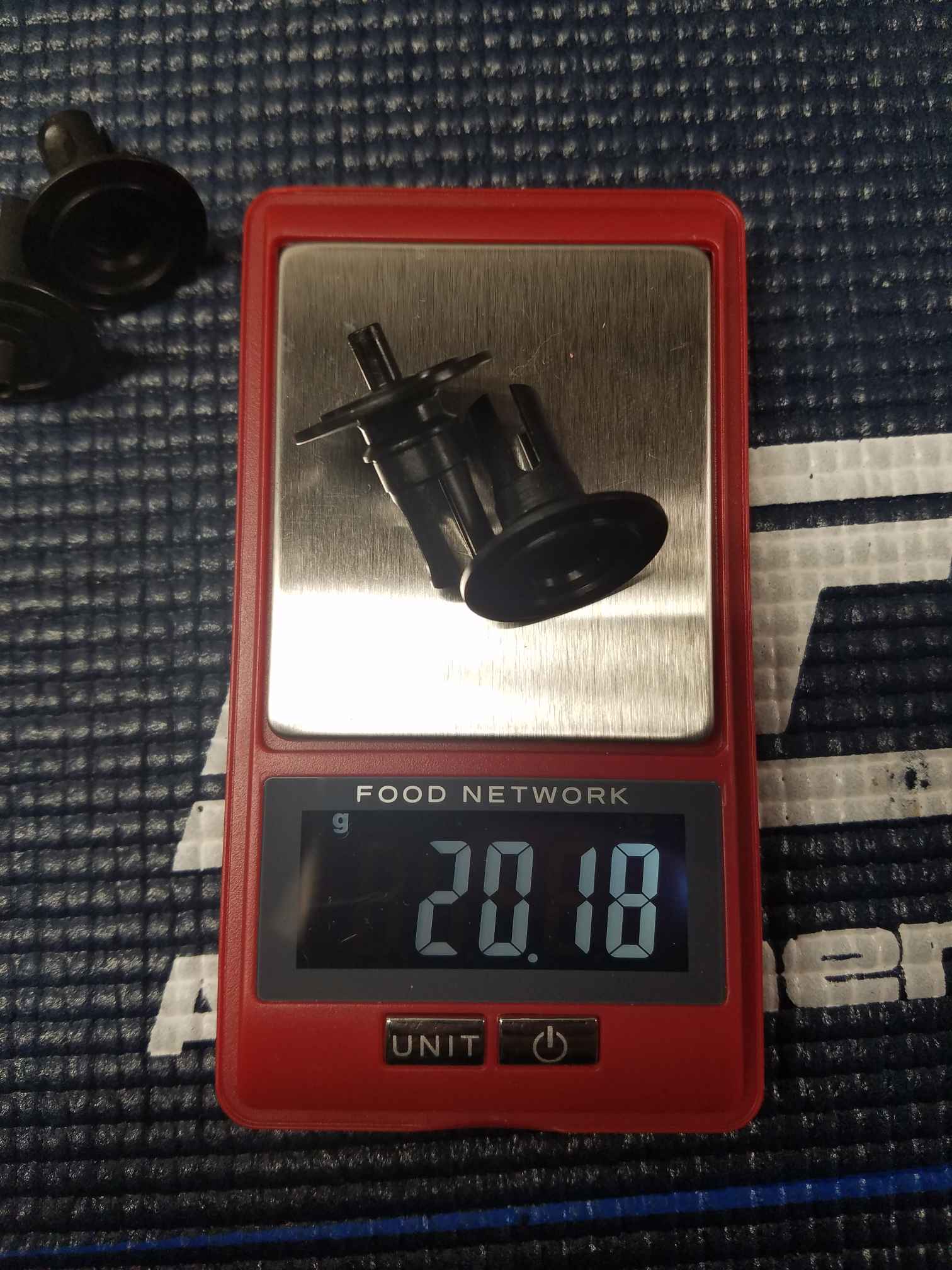

Part # 1766

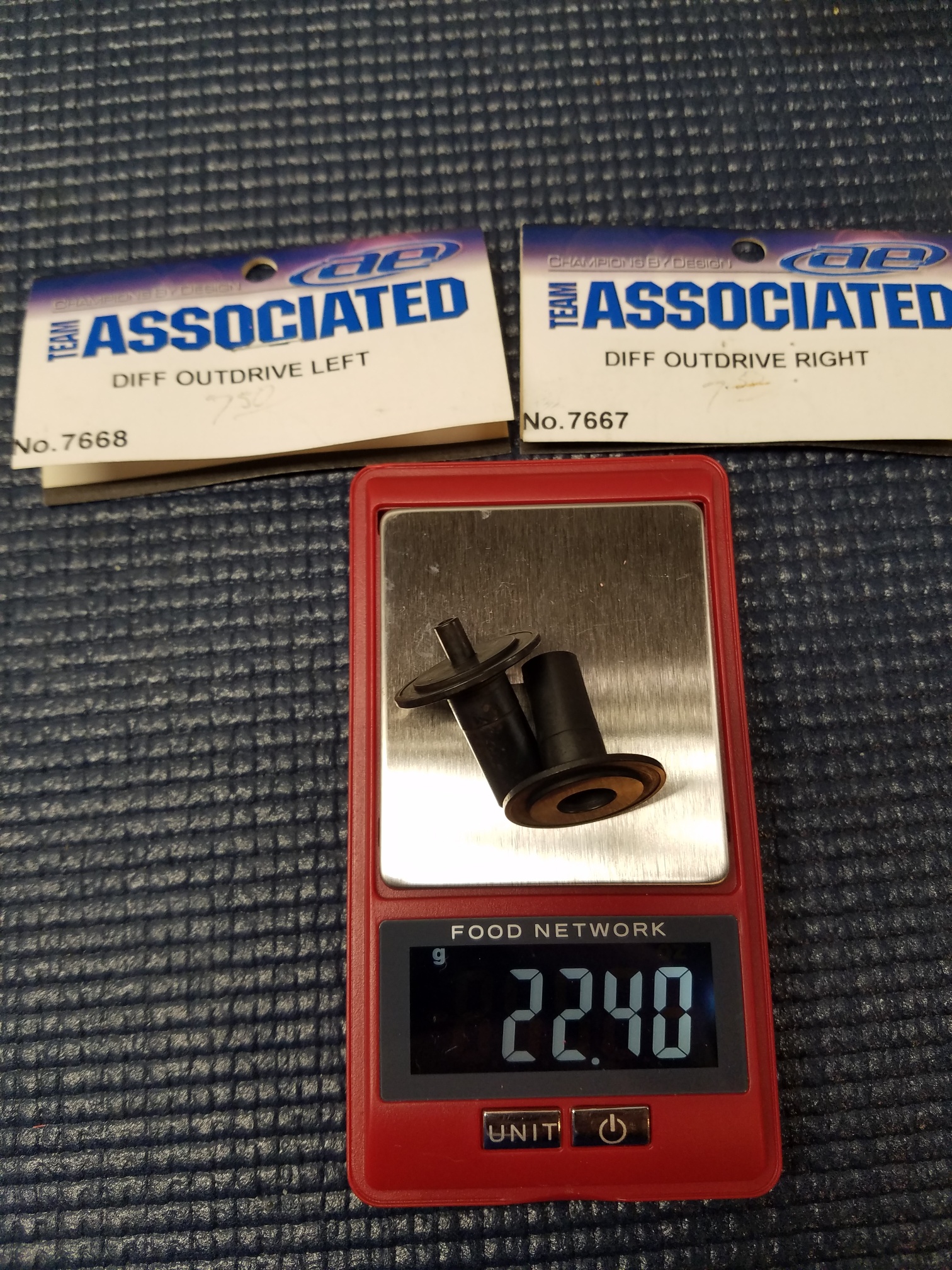

Part # 7667 and 7668

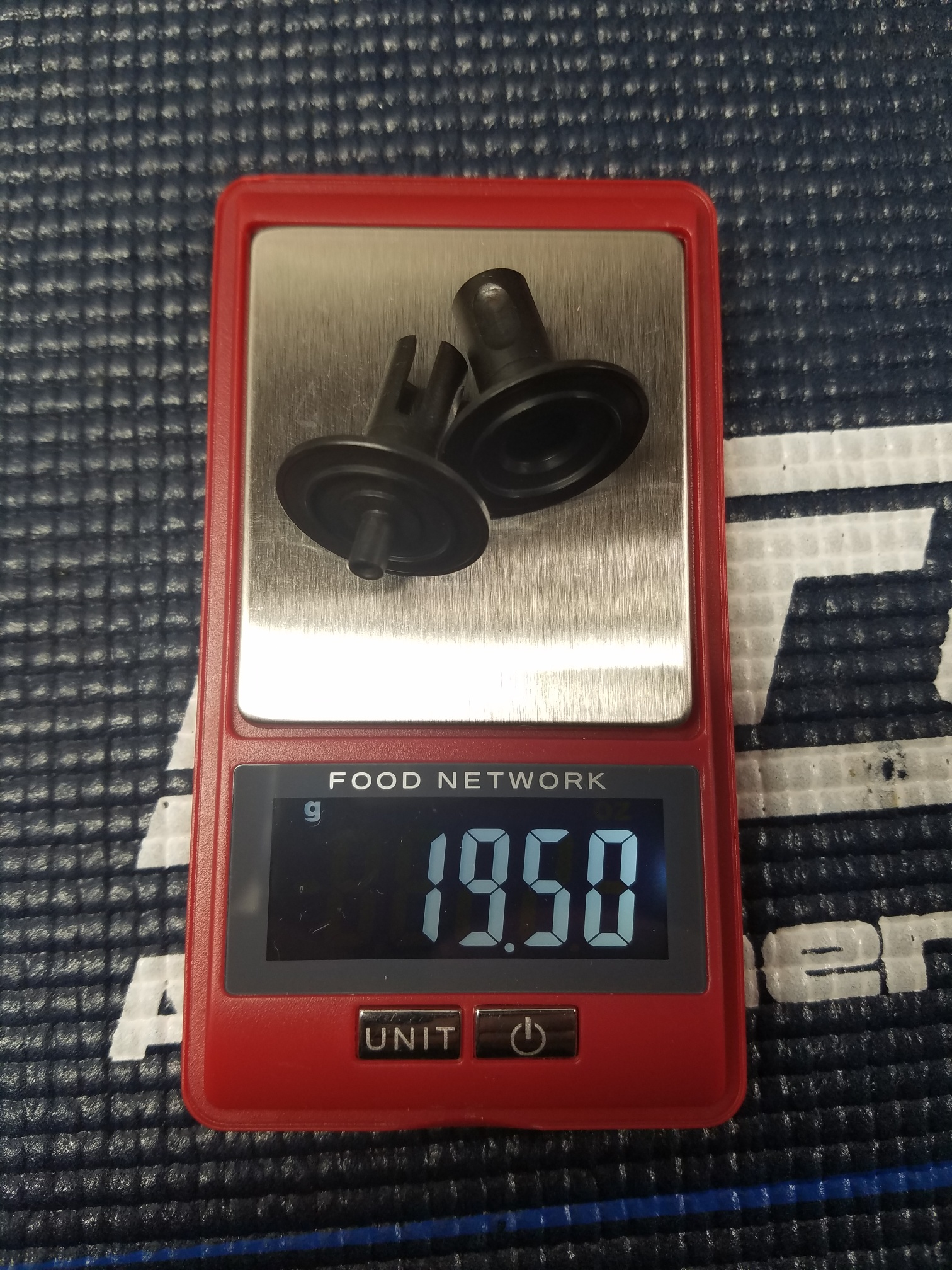

Part # 9852
Associated outdrives for B4/T4/SC10- Lightweight vs Regular
