Matt Francis 1995 World Champs RC10B2 Replica Project

[Moggie XL]

Sorry my mistake I did notice after I had written it but it was too late.

[RC10resto]

It's never too late Moggie XL

[Bugle]

Looks like the stealth brace might be made out of kydex? Where it mounts to the shock tower you could wrap the kydex around a 4-40 screw I guess.

[Charlie don't surf]

Cedric, I have one more white servo horn (JR) for you project if you don't have one(free)

Reggie

[kenooze]

Hi Reggie

Thanks for the offer, but I have the parts I need.
More pictures to follow asap.

[kenooze]

One more Matt Francis signature front wheel.



The upper front shock mount fit 2 4-40 nuts.



Steering servo whithout hears, just fixed with double tape.



Front shocks fit Lunsford titanium black shafts & flat head titanium screws to adjust the ride height.



The rear one's fit MIP gold shafts.



MIP CVD's and Yokomo TR-51 rear Tyres used by Matt in they first rounds of qualifications and during the Main Practice.



The front End.



The Matt Francis B2 1995 World Champ replica car waiting he's Hitec receiver, and the right gear box.









Enjoy

[lowrydesign]

looking awesome!!!
i cant wait to see the gear box mounted.

[JPAE07]

Good Job Cedric!

[markt311]

Great Job Cedric, you always have the cleanest, most accurate builds.

And congrats to Mr. Matt Francis on being the first ever inductee to the RC Car Racing Hall Of Fame!!!

[slotcarrod]

Very nice Cedric, I can't wait to see it with the painted body!

[kenooze]

I got the receiver today.





And I put it in the car.





To follow the right transmission.

[slotcarrod]

You missed the 3M double sided tape covering the extra (not in use) RX plugs and the hacked B2 sticker on top of the servo. Do you have the Orion SCRC1700? If not, that's going to be hard to find!

You even have the servo wire twisted in the correct direction. Again, great job Cedric, I just love looking at your work. So many people think it's just a B2, but they don't understand how rare the correct parts are.

For that transmission brace. I am sure it's milled white nylon that has been dyed (I say poorly dyed as it has a dull tone). Notice how it bends? I bet you could get a shop to mill that for about $50.00. Not sure the prices in France, but for a build like this, it's well worth it! The 2.25 tranny and motor plate are easy but I think you will have to drill new holes in the chassis plate! I wonder if Matt's chassis plate had the square cut out for the 2.4?????

[kenooze]

Yes I know, but I have no 3M tape at home.
I just started to look after

[breizhator2]

Very good job !

Enfin trés beau travail !

[breizhator2]

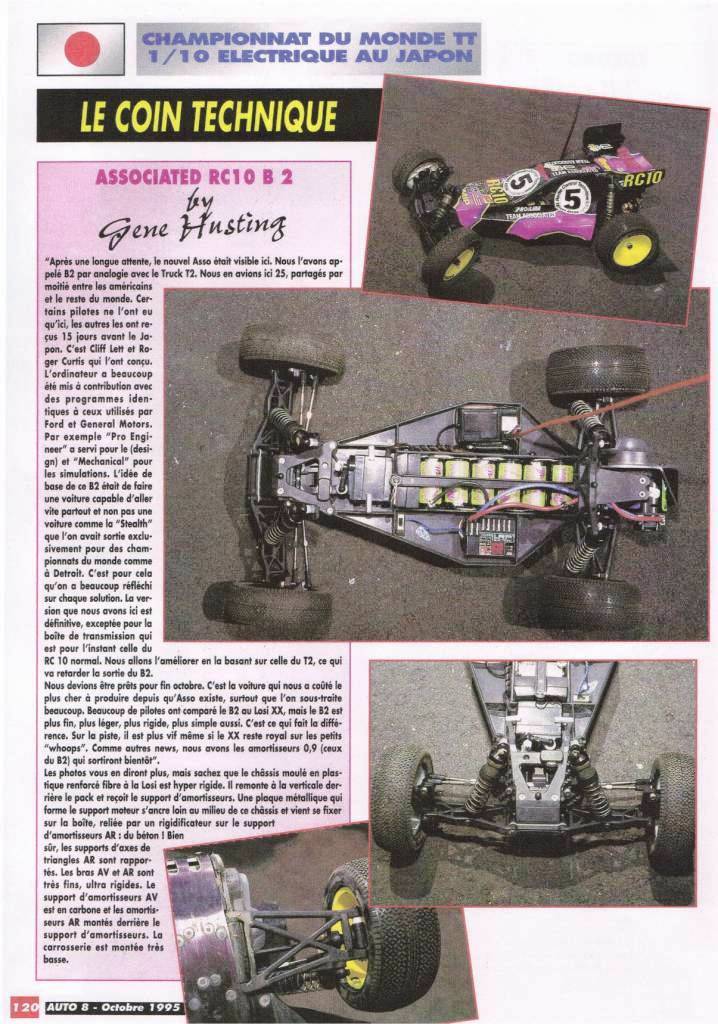

B2 in Japan
