Re: Some tuning options for racers and runners
Thanks!
I'm pretty backed up right now with projects, I need to get the bolt-in mid motor conversion kit ( http://www.rc10talk.com/viewtopic.php?f=35&t=40247 ) done, then I can tackle some of these other ideas
I'm pretty backed up right now with projects, I need to get the bolt-in mid motor conversion kit ( http://www.rc10talk.com/viewtopic.php?f=35&t=40247 ) done, then I can tackle some of these other ideas
- Garage Hack
- Approved Member
- Posts: 30
- Joined: Tue Oct 11, 2016 10:47 pm
- Has thanked: 136 times
- Been thanked: 5 times
Re: Some tuning options for racers and runners
ca-rj what do the 25 degree hubs do that makes the car handle better? I am a long time RC guy but know zero about tuning. Any info would be appreciated. Thanks guys!ca-rj wrote:I finally got a chance to have some track time with my Worlds Car equipped with your 25º hubs. The car is just so much fun to drive now. My brushed 27T car was only .2 of a second slower than my 17.5 B4.2. Thanks for providing a good alternative to the crazy expensive Ebay hubs.
- JK Racing
- Super Member
- Posts: 4603
- Joined: Thu Jul 19, 2007 2:32 pm
- Location: Placentia, CA
- Has thanked: 103 times
- Been thanked: 200 times
Re: Some tuning options for racers and runners
Reducing the caster in the front carriers will give the car more initial turn in, be solid on mid turn, but will drift out more on exit - in my experience. The steering will be more aggressive and change directions better.
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: Some tuning options for racers and runners
So I'm back at this again. I've been spending a lot of time tuning on my B1M test mule and I've come to a couple conclusions. First, it doesn't need to be tuned anything like an RC10, infact quite the opposite. This car has tons of front traction and steering, the challenge is getting the rear hooked up. Second, the tuning options available for RC10's don't work for today's tracks. At least not for a mid motor, and probably not even ideal for a rear.
So ive been spending a lot of time studying setup sheets for modern MM cars like the B5M and the B6 and trying to set things up more like those cars. And so far everything I've tried has really benefited the B1M.

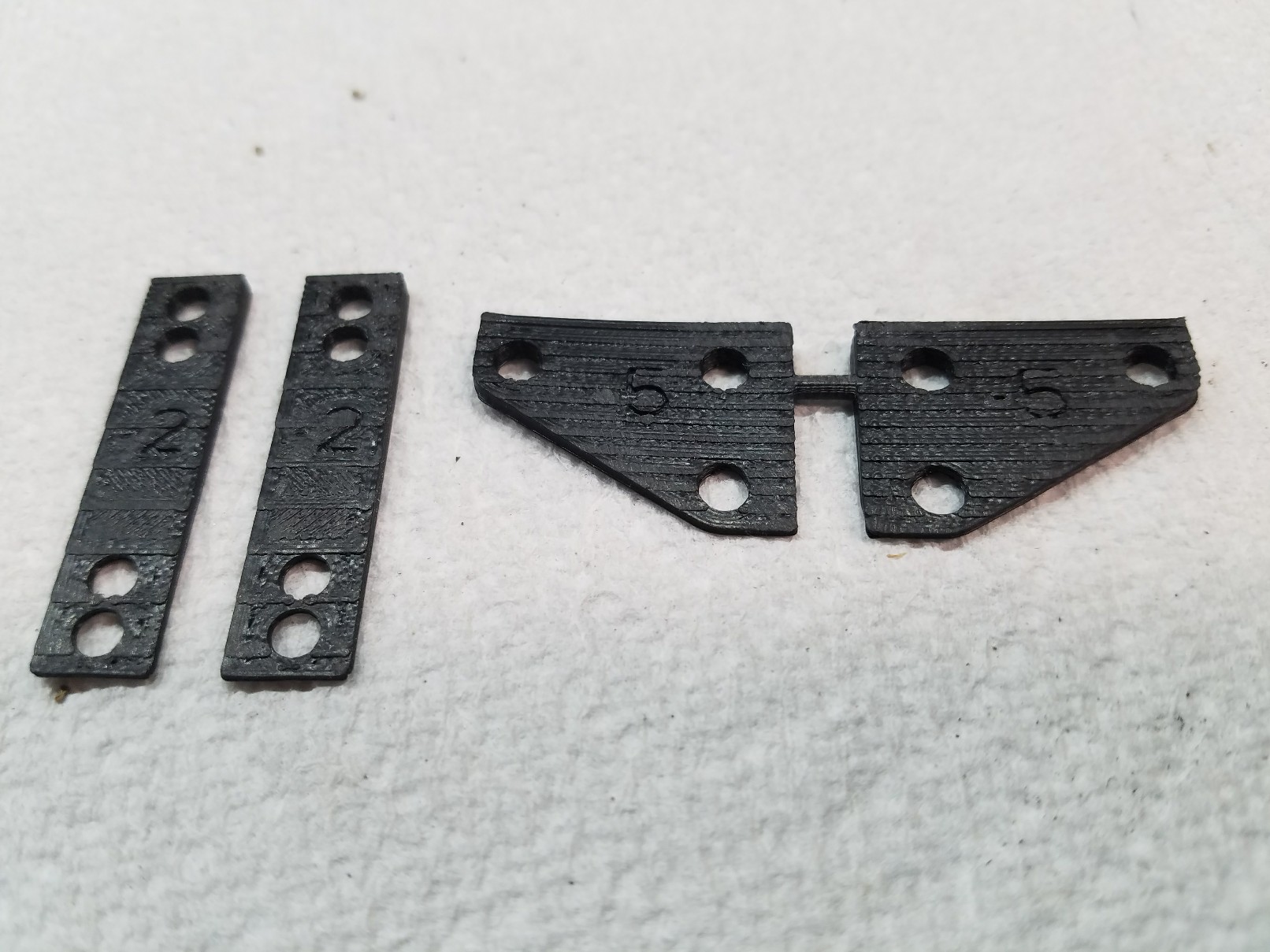

That brings me to these options I'm working on. The first will be a shim set to get front kickup and rear antisquat some adjustability. For now I've printed -5 deg kickup shims for the front and -2 deg antisquat shims for the rear. These will bring those two geometries more in line with modern cars by acheiving 25 deg of kickup and 1 deg of antisquat. I'll probably make these available in a kit that will have -2.5 and -5 shims for kickup (giving 27.5 or 25 deg of kickup) and -1 and -2 for antisquat (giving 2 or 1 deg of antisquat). It will be cheap because they are small thin parts. I may even just print them myself depending on demand...
So far i have been running 1 deg of antisquat on my B1M and it loves it. Next time out i plan to try 25 deg of kickup and see how that goes.

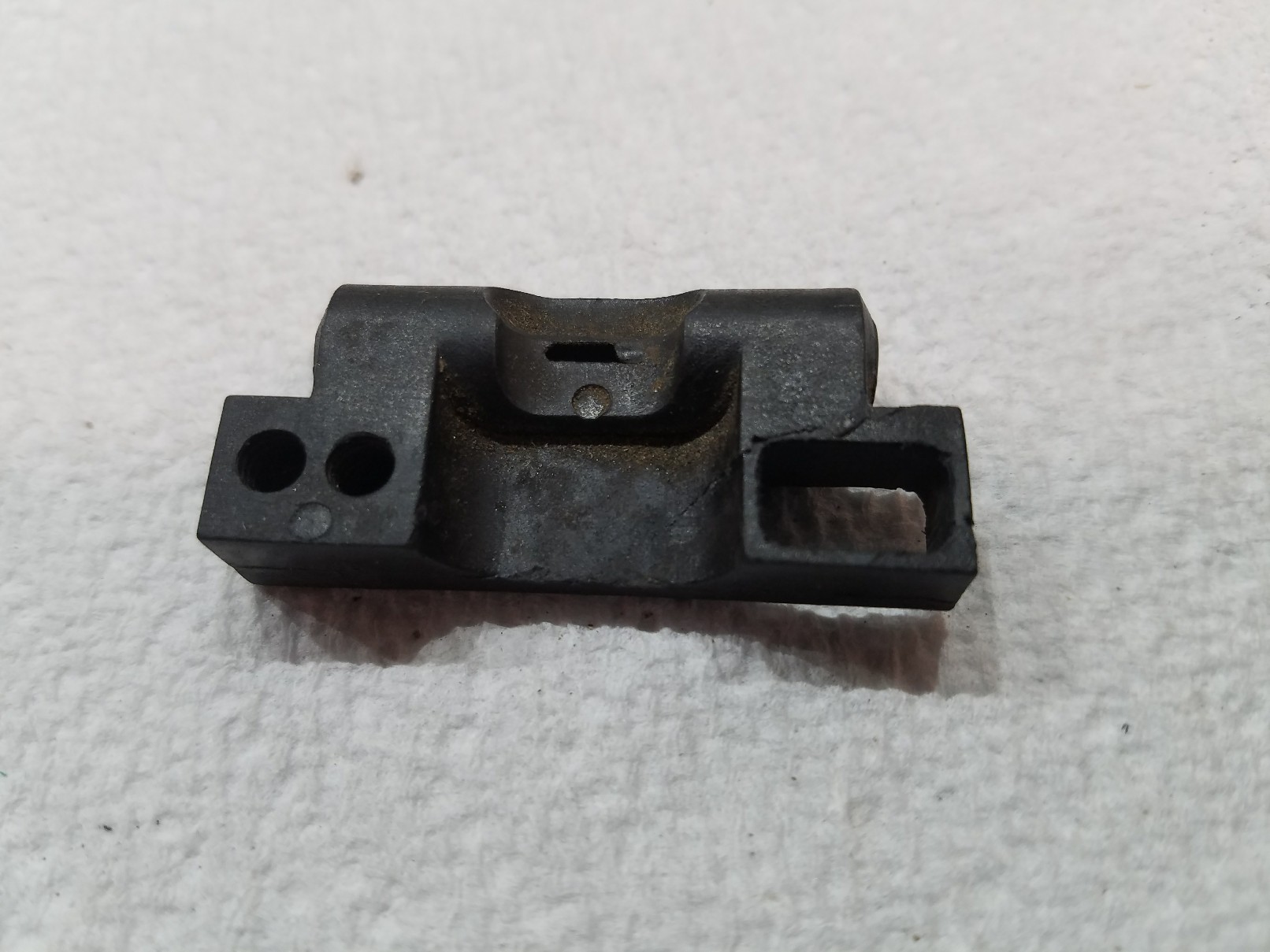

The other idea I've been playing with is adjustable rear toe. I machined a 1.5 deg rear arm mount and plan to make inserts for it that will give either 1.5, 3, or 4 deg of rear toe per side. The B1M loves 3 deg per side, i havent tried 4 yet because it doesnt exist (closest would be 3 deg mounts + 1.5 deg hubs for 4.5 deg toe per side, which i *think* would be too much). The obvious concern with these will be strength. I'm also not sure on a production version if i would machine the AE mounts an then print the inserts, or print both mounts and inserts. We'll see on this one.
