Trail Rigging

[badhoopty]

looks pretty darn fun... i'm jealous...

[Halgar]

looks pretty darn fun... i'm jealous...

You could do it too if you put a snorkel on the Zuk!

[slotcarrod]

Don't even mention Christmas! We just got summer and plus you have been a bad boy!

What do you mean I've been a bad boy? I ain't hardly dont nuth'n to no one, besides, I gots some dirt on ol' Santy, so he don't dare miss my house.


Great vid. That little beast seems to go anywhere you point it. Have you done much for hop-ups to it or is it relatively stock?

Thanks Halgar! It's a Tamiya Touareg CC01 with a Nikko G-Wagon body. It has full rubber sealed bearings that I have repacked with Bell Ray water proof grease, same with the tranny and both locked diffs. The esc is a water proof M-Tronics with reverse, the motor is a 27 turn arm in a mod can at zero timing. It has a sealed Futaba S9351 servo, a bit $$$ in case my seal is bad and it gets wet. So I'm putting in a Traxxas digital servo. The RX is in a Slash RX box with the two lower mounting holes sealed. The original plastic 4 link has been modded to 4 aluminium rods with Traxxas ball ends. The front has been cut for more clearance and the castor blocks shaved for better droop on the front suspension. I use 1.9 Losi Blue Rock Claws on Integy aluminium wheels

My G-Wagon has even out crawled some crawlers! I have beat on and abused this truck for over three years and it just keeps ticking. When I mud bog with it, I have to rebuild the motor and replace the brushes every time, but thats it! I did have a small grinding noise during this outing, so I'm going to rebuild the tranny and diffs with new gears.

[Halgar]

All I can say is that you've done a nice job with it. Very nice looking and capable to boot. Thanks for sharing.

[Jester]

Real cool! Such a good job with the truck realizm! I'm looking in the background convinced I'll see a 7" dude standing on the rocks with a 4oz (1/10 of 40oz ) in his hand checking it all out!

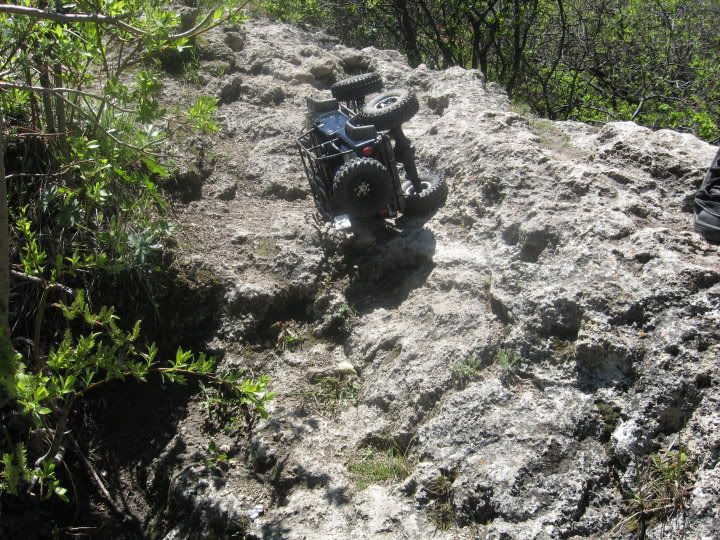

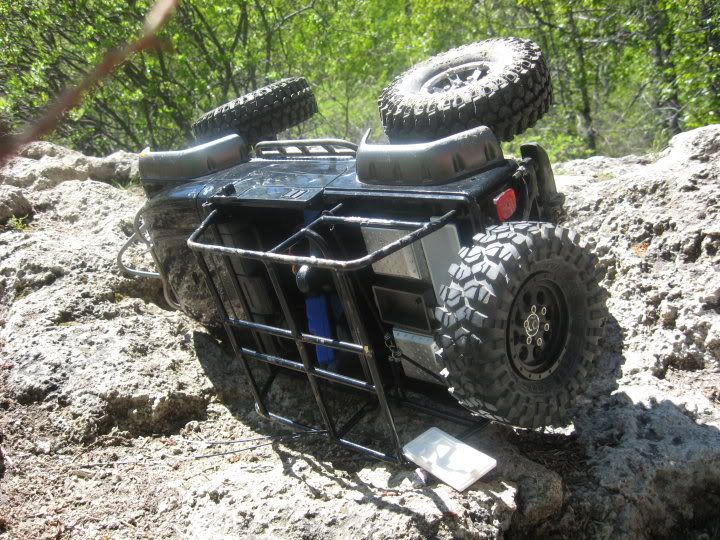

Funny you say that. Jester, the guy with the sik Jeep, has a scale cooler in the back full of scale beer and scale ice cubes. Well he rolled the Jeep in a tricky section. It was a bad fall and made a loud crash, the cooler busted open. In true 4X4 dude form, all Jester said was "MY BEER! "

Oh wait those are mine. Oops.

[slotcarrod]

Nice!

[Halgar]

Whew! No loss, it was only Budwiser ...

[slotcarrod]

My son threw together this video of some trail rigging we did 2 winters ago. You can see the G-Wagon in it's early stages. The Trail Finder was mint then!

Y'all come back now!


[youtube]p-wU6LgE364[/youtube]

[Halgar]

Still love the Yota.

[slotcarrod]

Whew! No loss, it was only Budwiser ...

Hey! There was a bottle of vodka in there too!

[Halgar]

Whew! No loss, it was only Budwiser ...

Hey! There was a bottle of vodka in there too!

If it were a good rum, I could understand the concern.

[scr8p]

vodka and bud, huh? no wonder it tipped over.

[bearrickster]

Love the video's it almost makes me want to get one. or take my Hummer out for a spin.

[slotcarrod]

Love the video's it almost makes me want to get one. or take my Hummer out for a spin.

If you never have, you guys have to try Trail Rigging. It is very relaxing! If you have ever had a bad day or week, there is nothing better to get a smile on your face.

The Axial Honcho is a great starter rig and is not a bad price. In box stock form is very capable and the chassis will fit many truck type bodies if you don't like the stock one!

http://www.axialracing.com/ftp/scx10-rtr/index.html

PM Hobby Craft (the store I work for) sells the RTR AXI AX90016 for $319.99 CDN about 299.99 US

http://www.pmhobbycraft.ca/store/product/346968/SCX10-4WD-RTR-W-HO/

I recommend waterproofing, as it brings even more fun to trail rigging. You can do this with a new type (blue) Traxxas servo and ESC or a LRP waterproof ESC. I use Traxxas Slash receiver boxes in all my trail rigs and have never lost an RX. As you can see in the Sub video I am not afraid of water!

[Halgar]

I recommend waterproofing, as it brings even more fun to trail rigging. You can do this with a new type (blue) Traxxas servo and ESC or a LRP waterproof ESC. I use Traxxas Slash receiver boxes in all my trail rigs and have never lost an RX. As you can see in the Sub video I am not afraid of water!

Along with waterproofing, I'd also stick with bushings rather than changing them out to bearings. Bushings are low maintenance and don't require much attention, whereas bearings must be removed and cleaned EVERY time you get them wet if you want them to still be bearings when you come back to the truck the next time.
