YOKOMO RESTORE HELP

[Toasted Coastie]

Sounds like you are on your way to recovery....

[Toasted Coastie]

First of all, your CAD skills rock.

Second of all, I have no idea. There are others on the board that can identify it quick enough for you though. My Yoke experience is limited to the 870c....

[MIKE VALENTINE]

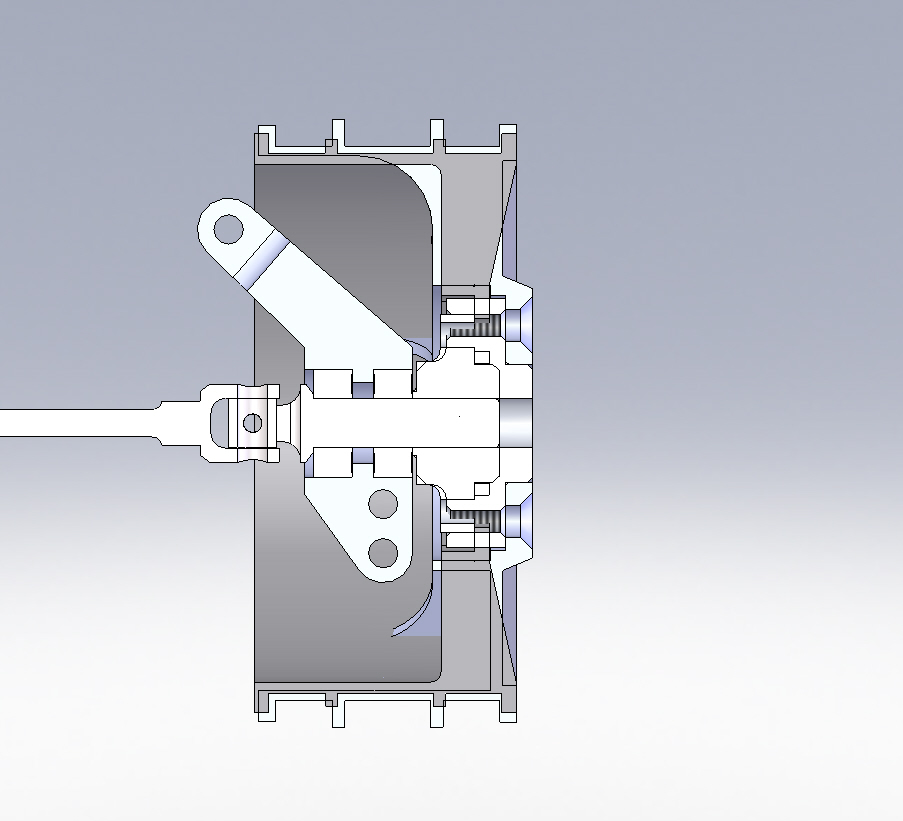

Thanks, it's what i do for a living. I know this post with be hard to seperate out the out hub and old rim compared to the new stuff. But I wanted to make sure the newer rim and new hub I designed would yield the same offset as the old ones. Here's a cross section thru the hub/axle/rim. You can see the old rim is smaller but slighlty wider then new 2.2 rim.

[Charlie don't surf]

Safe to assume this is the M.V. of the Ozite variety?

[MIKE VALENTINE]

Charlie, Yes
Erich who runs the Vintage Offroad Nats is a good friend of mine, and I have always loved offroad.
Just not enough time in the summer to race, so indoor carpet was the only choice left for me.
But I do plan to race the VONATS again this year.

[Charlie don't surf]

I think we raced under the same sponsor flag at a race in Feb of 09' or I may be off on the date- this would have been brown carpet, that turns to black asphalt by the mains

[MIKE VALENTINE]

Send me a PM or E-Mail me [email protected]
I can't make the conection, I'm assuming you mean DO at B&J
Mike

[Charlie don't surf]

PM sent-

[MIKE VALENTINE]

Finally got to take some pictures. Please let me know if this really is a 91 works or some hybrid.

[MIKE VALENTINE]

More pictures

[kenooze]

Black wheels from Works 93.

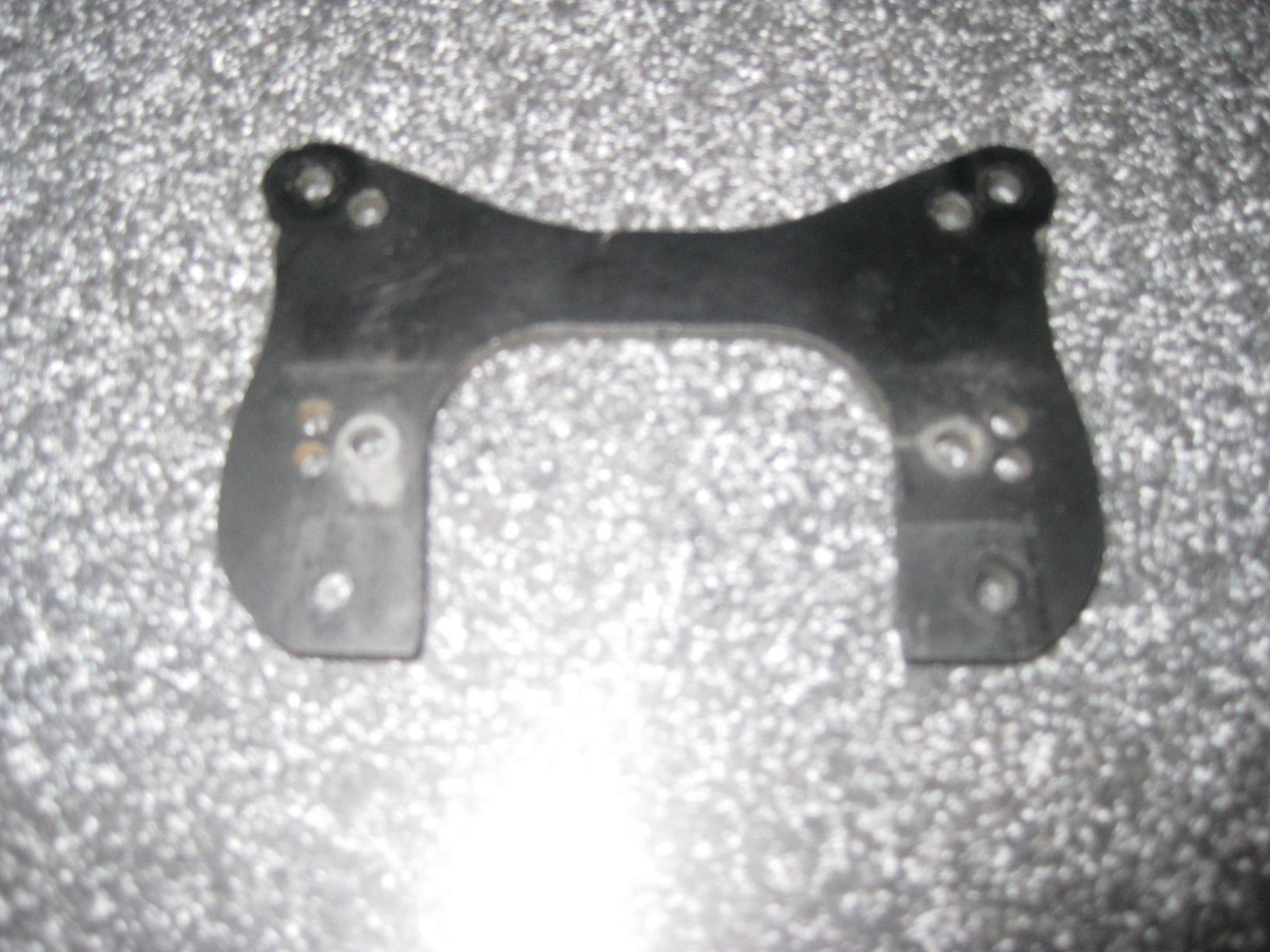

Front tower seems to be hand modified works 91

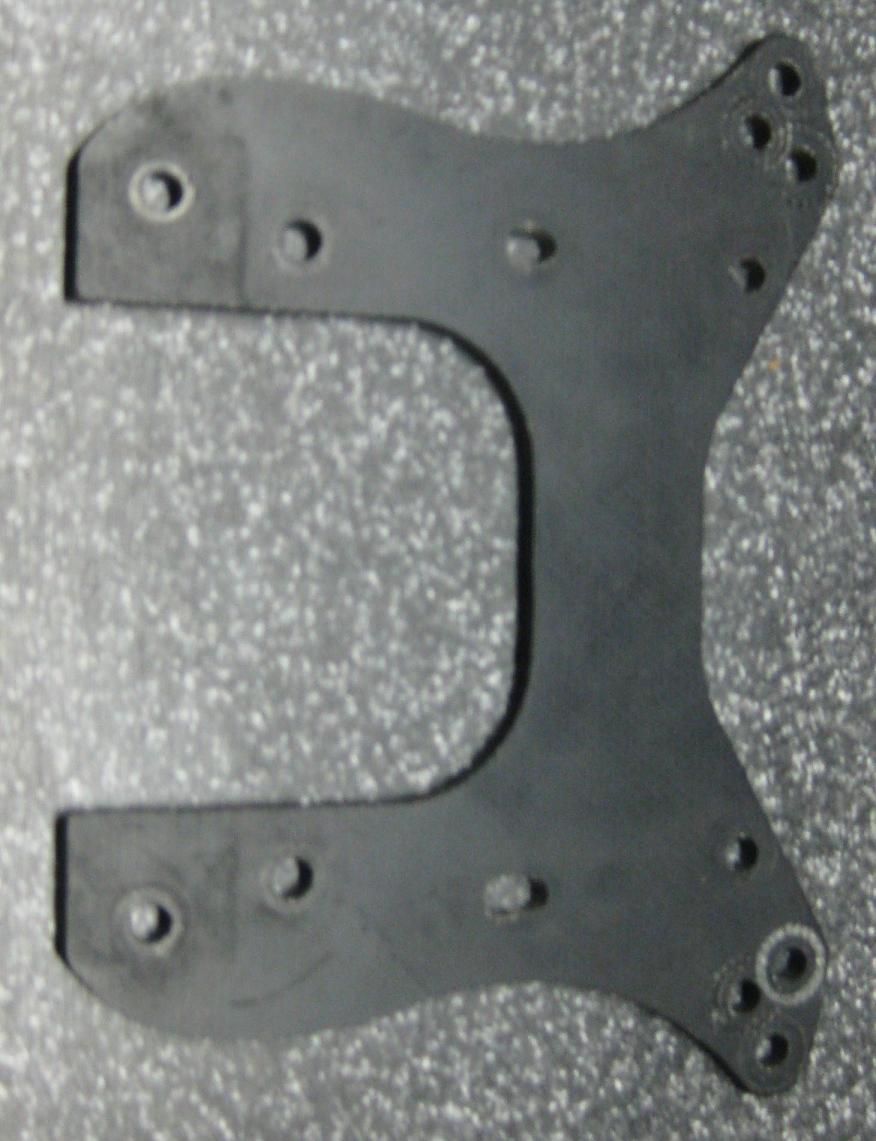

Rear tower from works 91

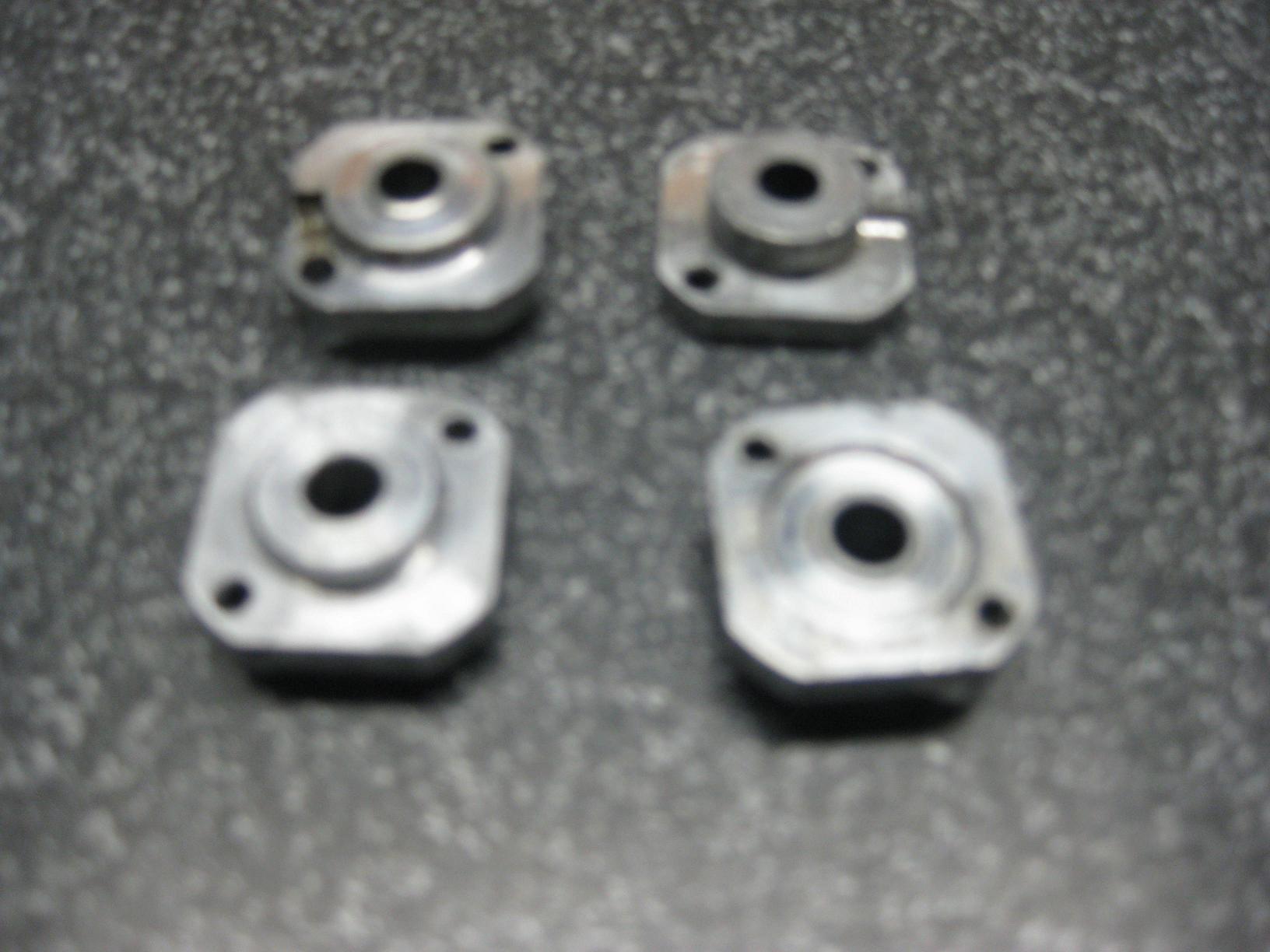

Wheel adapters, difficult to say

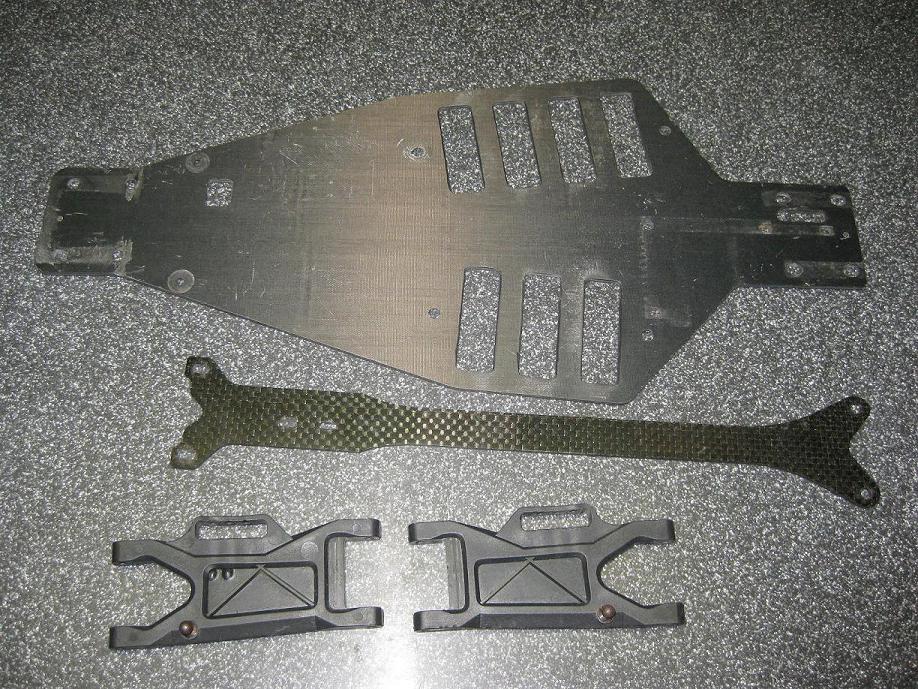

Chassis works 91 design, material ?
Top deck, tuning part

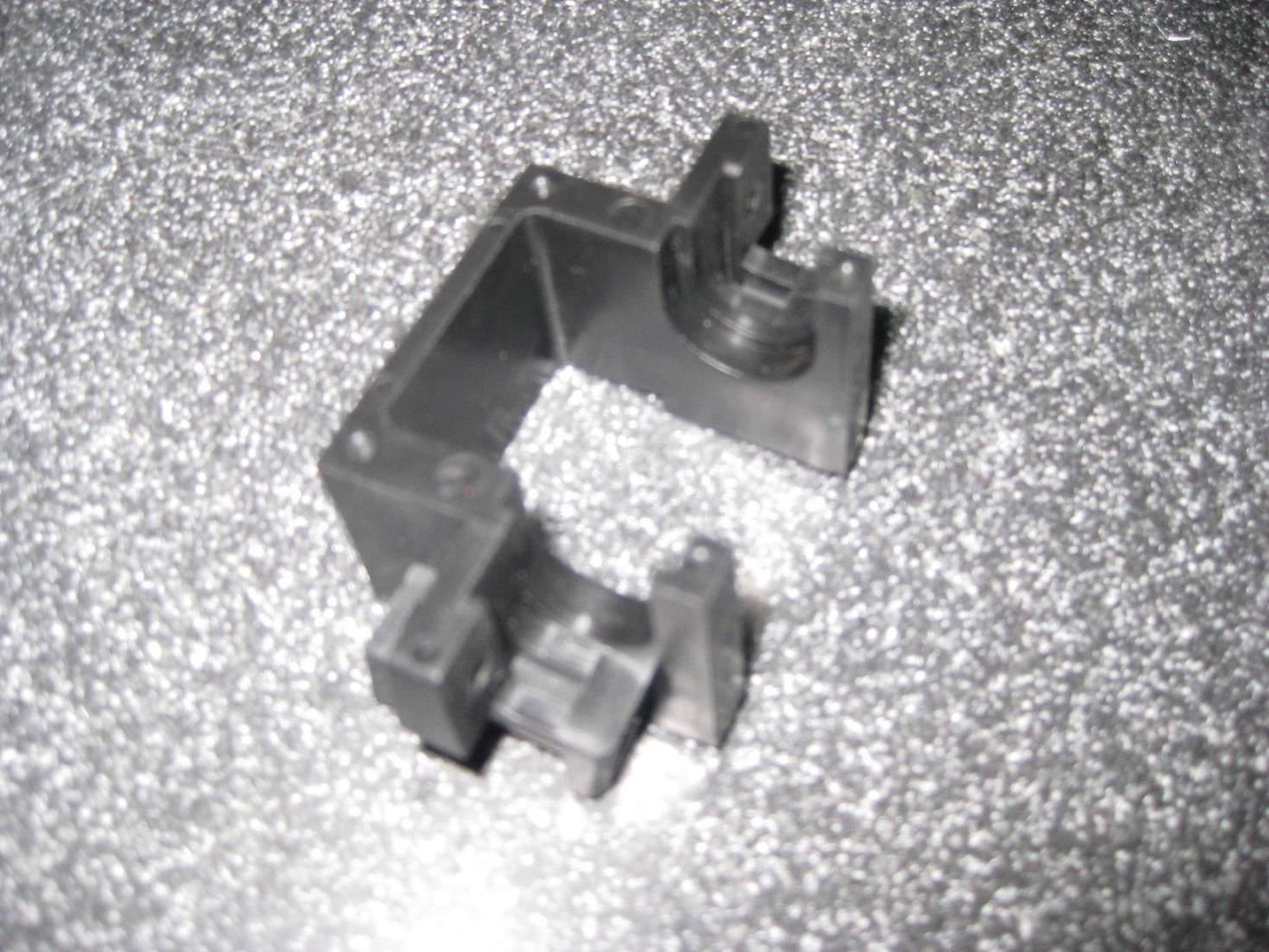

Plastic black front bulkhead YR4

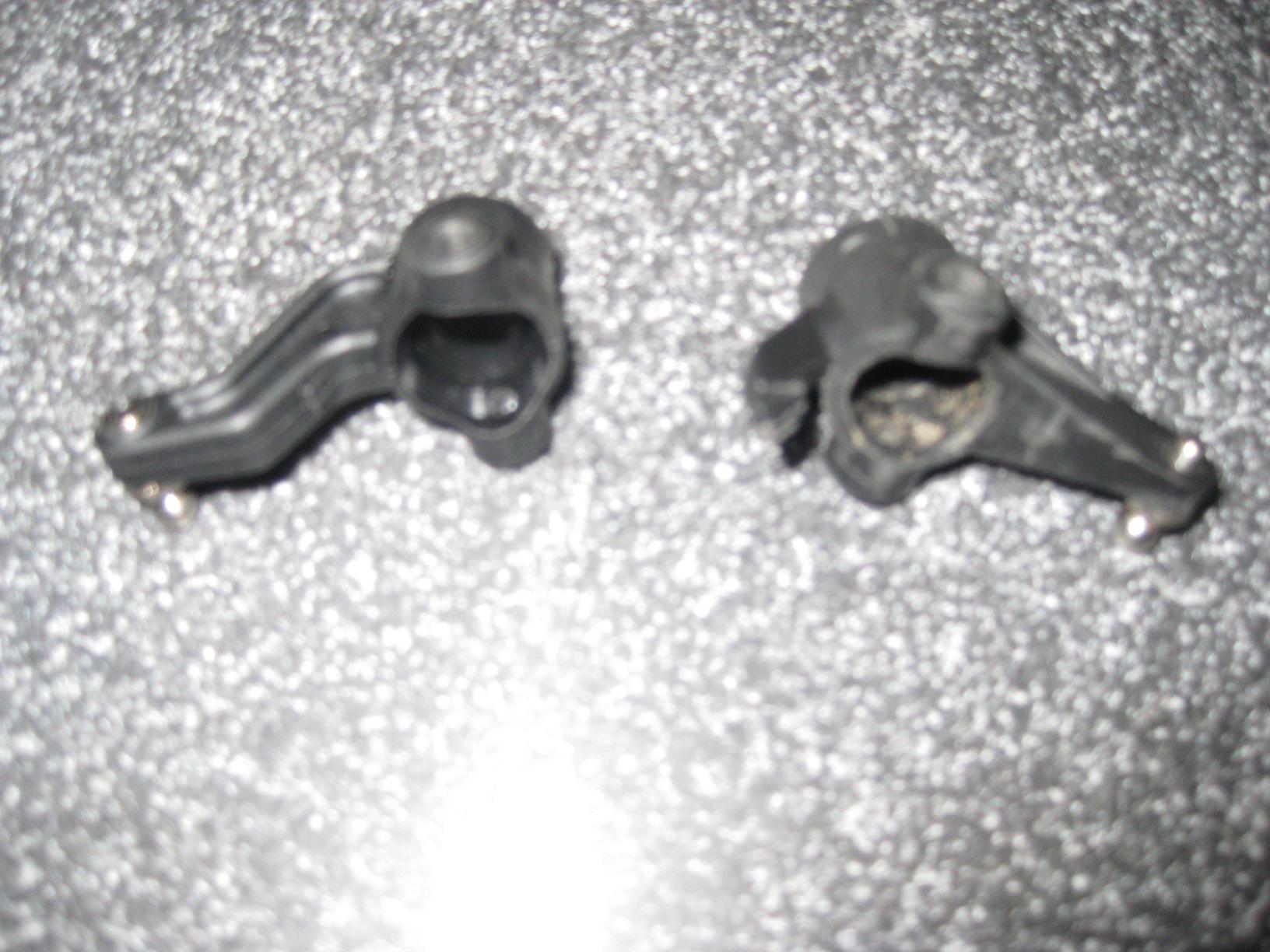

Hubs, Works 91 & 93

[MIKE VALENTINE]

Chassis is carbon top and bottom layer with a white (assume fiberglass) middle.

Why do you say front Shock tower is modified?

Ok thanks, Wish I took pictures prior to taking the car apart.

[Justjoe]

Mike,
Do you have all the parts to build the car? have you looked at Podium RC. They list quite a few parts but I have not ordered anything from them yet. I got my TCS shaft from End of the line but they dont have many parts left for the YZ10's.

[MIKE VALENTINE]

No I haven't looked at Podium Rc, it never came up in any of my queries. I'm close to having everything I need to built the car to race. It's won't be shelf queen but should race well. I still need a body, wing, and tires, but those are easy to find.

[Justjoe]

I plan on running my car again when it is finally back together. I also have been accumulating some extra parts for replacements. I know when I was racing this thing back in the early 90's I went through hubs bulkheads and arms like they were going out of style. I am going to change out front bulkhead to the nylon YR4 type since they seem to hold up better. I also have been trying to use Lipo batteries and burnt up both of my old ESC's This has been a learning experience.
