Re: Kyosho Turbo Optima Legendary series - 30619
The helmet was refined this afternoon.
After quite a few step of 2 minutes job, with some time in between, at the end of the paintjob operations, the driver helmet took shape.
I decided to add a visor before putting it in the car
He is alive now
Time for a photoshoot within his brand new car.
The car is not yet ready as the motor is not soldered yet...
... but the driver is fully focused on the coming tasks
Next steps : soldering the motor, and add stickers. There will be a few sponsors, a number and driver name maybe...
After quite a few step of 2 minutes job, with some time in between, at the end of the paintjob operations, the driver helmet took shape.
I decided to add a visor before putting it in the car
He is alive now
Time for a photoshoot within his brand new car.
The car is not yet ready as the motor is not soldered yet...
... but the driver is fully focused on the coming tasks
Next steps : soldering the motor, and add stickers. There will be a few sponsors, a number and driver name maybe...
I buy kits to build and ru(i)n them
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
Received today the famous optional brushless blue spur gear OTW126
51T vers 61T, that makes a lot of difference.
For information, both Javelin and the Turbo Optima are including a 25T pinion and the 61T spur gear.
The 51T brushless spur gear came with another gearing chart.
I did some calculation to identify what would be the proper gearing ratio for both the Javelin (13.5T - supposedly around 7) and the Turbo Optima (10.5T supposedly around .
I have 48dp pinions from 20T to 30T available, and will check the highlighted yellow elements, likely for short 3-5 minutes runs and temperature measure with a infrared thermometer... And will decide what to do next. But definitely not today, as the weather is terrible outside... And definitely, the motor will find it's place easily with the smaller spur gear (no problems anymore with the contact tabs slightly exposed to the motor guard...
51T vers 61T, that makes a lot of difference.
For information, both Javelin and the Turbo Optima are including a 25T pinion and the 61T spur gear.
The 51T brushless spur gear came with another gearing chart.
I did some calculation to identify what would be the proper gearing ratio for both the Javelin (13.5T - supposedly around 7) and the Turbo Optima (10.5T supposedly around .
I have 48dp pinions from 20T to 30T available, and will check the highlighted yellow elements, likely for short 3-5 minutes runs and temperature measure with a infrared thermometer... And will decide what to do next. But definitely not today, as the weather is terrible outside... And definitely, the motor will find it's place easily with the smaller spur gear (no problems anymore with the contact tabs slightly exposed to the motor guard...
I buy kits to build and ru(i)n them
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
Time to call it done.
The motor was connected this morning. And this afternoon, I took care of the finition and the stickers. Some of the stickers are coming from the kit, and some have been prepared by myself (either because what is within the kit are not white, either because I wanted something else than what came in the kit.
And here is the (almost) final result...
The motor was connected this morning. And this afternoon, I took care of the finition and the stickers. Some of the stickers are coming from the kit, and some have been prepared by myself (either because what is within the kit are not white, either because I wanted something else than what came in the kit.
And here is the (almost) final result...
I buy kits to build and ru(i)n them
- XLR8
- Approved Member
- Posts: 2981
- Joined: Sun Feb 19, 2017 3:46 am
- Location: north/central Alabama
- Has thanked: 1216 times
- Been thanked: 880 times
Re: Kyosho Turbo Optima Legendary series - 30619
Wow, the car looks great!
Another nice departure from standard box art.
Another nice departure from standard box art.
Doug
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
A small modification with Molotov Liquid Chrome pen in the evening, because, that looks like it is made for this...
I buy kits to build and ru(i)n them
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
Finally tested the updated part for the front led with the Turbo Optima sway bar and it works... (It's published it on Thingiverse, in case you search for it: https://www.thingiverse.com/thing:4938849)
And while I was ordering my prints for the Marui Hunter, I also included replacement parts for the sway bar attachement (the design was pretty straight forward, it went untested to final print). I tested the parts and they work perfectly (they are on the picture with the other part. I will publish those parts at some point, but I want to complete this with a few other parts. I will also work out a steering link part as I saw some mentioning it breaks sometime. MJF PA12 print should work perfectly for this purpose...
And while I was ordering my prints for the Marui Hunter, I also included replacement parts for the sway bar attachement (the design was pretty straight forward, it went untested to final print). I tested the parts and they work perfectly (they are on the picture with the other part. I will publish those parts at some point, but I want to complete this with a few other parts. I will also work out a steering link part as I saw some mentioning it breaks sometime. MJF PA12 print should work perfectly for this purpose...
I buy kits to build and ru(i)n them
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
I published the parts mentioned during the previous post here : https://www.thingiverse.com/thing:5021935
That was pretty straight forward to change the length of the link while the balls used are the same as for the sway bar...
That was pretty straight forward to change the length of the link while the balls used are the same as for the sway bar...
I buy kits to build and ru(i)n them
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
Finally, the Turbo Optima made its first run today in the garden. I could have done it one the track, but where I was, there was a tremplin in the middle track with no possible shortcut, and I was not ready to get the first run of the Turbo Optima there due to this (I did not really succeed to pass it smoothly with both the Turbo Scorpion and the Javelin, and my friend broke a 1/8 car on it). So it was the garden at the end of the day.
At the end of the run it was a bit dirty
I did manage to check the temp of the motor in the middle of the run and it was quite cold. I believe that I can add some tooth on the motor pinion (not even one but more than this, and by the way the statement is similar for the Javelin - the recommended gearing for 10.5T or 13.5T motor I found on internet seems to be overly conservative).
Another statement : the sway bars present on the Turbo Optima are making a huge difference on curves on the garden slope. It is definitely easier to handle than the Javelin with no sway bar in those conditions...
At the end of the run it was a bit dirty
I did manage to check the temp of the motor in the middle of the run and it was quite cold. I believe that I can add some tooth on the motor pinion (not even one but more than this, and by the way the statement is similar for the Javelin - the recommended gearing for 10.5T or 13.5T motor I found on internet seems to be overly conservative).
Another statement : the sway bars present on the Turbo Optima are making a huge difference on curves on the garden slope. It is definitely easier to handle than the Javelin with no sway bar in those conditions...
I buy kits to build and ru(i)n them
-
- Approved Member
- Posts: 55
- Joined: Sun Nov 07, 2021 10:54 am
- Location: Bristol, UK
- Has thanked: 74 times
- Been thanked: 17 times
Re: Kyosho Turbo Optima Legendary series - 30619
That's a fantastically detailed build thread, many thanks
I'm still trying to get my hands on a Turbo Optima kit, some places here in the US are suggesting they'll have them this month but who knows if that's true?! If anyone happens to spot one online then I'd appreciate a steer!
I love that colour scheme, I was thinking of gun-metal and orange with black wheels but we shall see if I ever get the chance.
Can I ask if you posted the makes and details of all the electronics you used during the build? I wizzed through it again but didn't see any details except briefly in the first post? I got that you went brushless (with the blue spur gear) but not which motor/ESC/battery and steering servo you used, any chance of listing what you used?
Thanks again for a great build thread
I'm still trying to get my hands on a Turbo Optima kit, some places here in the US are suggesting they'll have them this month but who knows if that's true?! If anyone happens to spot one online then I'd appreciate a steer!
I love that colour scheme, I was thinking of gun-metal and orange with black wheels but we shall see if I ever get the chance.
Can I ask if you posted the makes and details of all the electronics you used during the build? I wizzed through it again but didn't see any details except briefly in the first post? I got that you went brushless (with the blue spur gear) but not which motor/ESC/battery and steering servo you used, any chance of listing what you used?
Thanks again for a great build thread
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
Re: Kyosho Turbo Optima Legendary series - 30619
That's very simple. Let's go. I'll add the details as well for the Javelin and Turbo Scorpion, but the approach is similar.USAPaulo wrote: ↑Fri Nov 19, 2021 5:51 pm Can I ask if you posted the makes and details of all the electronics you used during the build? I wizzed through it again but didn't see any details except briefly in the first post? I got that you went brushless (with the blue spur gear) but not which motor/ESC/battery and steering servo you used, any chance of listing what you used?
Turbo Optima
ESC : SkyRC Toro TS120A no fan, mounted under the the top deck.
Motor : Performa Racing (sensored) stock 10.5T
Sensor cable : 200 mm
Servo : Low profile SPT4412LV (12kg, 0.09s/60°) : it's low budget, works well and is direct fit within the chassis size - a non low profile servo may be too large to fit within the chassis size.
Receiver : flysky FS-BS6 placed under the driver. I don't really use the gyro included, though I've tried in a gymnasium track and it works well.
Mounted with OTW-1126 blue spur gear and 25T pinion to fit with the motor recommended gearing, but I can probably add a few teeth to the motor pinion as per my temp checks during runs.
Javelin
ESC : Performa Racing P1 no fan, mounted under the the top deck. (This ESC is the same as the Kyosho Le Mans brushless ESC, with a different color, and cheaper. Plus the programmation card exist for it)
Motor : Performa Racing (sensored) stock 13.5T
Sensor cable : 200 mm
Servo : Low profile SPT4412LV (12kg, 0.09s/60°) - same as Turbo Optima
Receiver : flysky FS-A3 placed under the driver. It's easier to place the driver, as it is lower profile than the FS-BS6
Mounted with OTW-1126 blue spur gear and 28T pinion to fit with the motor recommended gearing, but I can probably add a few teeth to the motor pinion as per my temp checks during runs.
Turbo Scorpion
ESC : Performa Racing P1 no fan
Motor : Performa Racing (sensored) stock 13.5T
Sensor cable : 230 mm
Servo : Low profile SPT4412LV (12kg, 0.09s/60°) - same as Turbo Optima. On this car, a low profile servo may not be required, but you need to pay attention two things : it's a 2WD so speed is important, and a servo with a bulky head won't fit under the body shell.
Receiver : flysky FS-BS6. I had in mind the gyro with the idea it could be useful, but actually I don't use it most of the time...
Standard gearing
In terms of Lipo battery, I have some vintage cars and some Tamiya cars and they are more constraining in terms of battery size. I use Lipos in stick format 134 x 46 x 23,5 mm in 4000mAH/45C or 50C. I works perfectly, and provides a quite decent running time with a discharge rate largely enough for those motors. The Kyosho legendary series are largely easier than the Tamiya in terms of lipo pack choice, and I may consider some shorty pack in HV and higher capacity eventually. I've not made any decision yet, as I don't need to change any of my Lipos yet.
Hope this helps.
I buy kits to build and ru(i)n them
-
- Approved Member
- Posts: 3869
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2286 times
- Been thanked: 1994 times
Re: Kyosho Turbo Optima Legendary series - 30619
I like em dirty
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
- silvertriple
- Approved Member
- Posts: 1669
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 593 times
- Been thanked: 860 times
- XLR8
- Approved Member
- Posts: 2981
- Joined: Sun Feb 19, 2017 3:46 am
- Location: north/central Alabama
- Has thanked: 1216 times
- Been thanked: 880 times
Re: Kyosho Turbo Optima Legendary series - 30619
YES! I like it!!

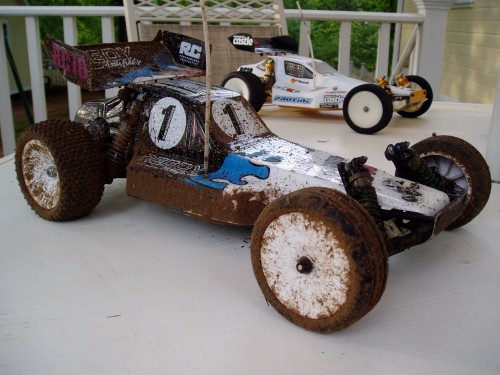

Hey Dadio, this one's for you.
Hey Dadio, this one's for you.
Doug
-
- Approved Member
- Posts: 3869
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2286 times
- Been thanked: 1994 times
Re: Kyosho Turbo Optima Legendary series - 30619
Steady on guys this is a family forum
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Approved Member
- Posts: 55
- Joined: Sun Nov 07, 2021 10:54 am
- Location: Bristol, UK
- Has thanked: 74 times
- Been thanked: 17 times
Re: Kyosho Turbo Optima Legendary series - 30619
Fantastic, many thanks for the additional detail. My background is very Tamiya, NiCad, rotary speed controllers, etc but I'd like to move with the times for any new cars (even 'vintage' re re's! Cheers,silvertriple wrote: ↑Sat Nov 20, 2021 3:40 amThat's very simple. Let's go. I'll add the details as well for the Javelin and Turbo Scorpion, but the approach is similar.USAPaulo wrote: ↑Fri Nov 19, 2021 5:51 pm Can I ask if you posted the makes and details of all the electronics you used during the build? I wizzed through it again but didn't see any details except briefly in the first post? I got that you went brushless (with the blue spur gear) but not which motor/ESC/battery and steering servo you used, any chance of listing what you used?
Turbo Optima
ESC : SkyRC Toro TS120A no fan, mounted under the the top deck.
Motor : Performa Racing (sensored) stock 10.5T
Sensor cable : 200 mm
Servo : Low profile SPT4412LV (12kg, 0.09s/60°) : it's low budget, works well and is direct fit within the chassis size - a non low profile servo may be too large to fit within the chassis size.
Receiver : flysky FS-BS6 placed under the driver. I don't really use the gyro included, though I've tried in a gymnasium track and it works well.
Mounted with OTW-1126 blue spur gear and 25T pinion to fit with the motor recommended gearing, but I can probably add a few teeth to the motor pinion as per my temp checks during runs.
In terms of Lipo battery, I have some vintage cars and some Tamiya cars and they are more constraining in terms of battery size. I use Lipos in stick format 134 x 46 x 23,5 mm in 4000mAH/45C or 50C. I works perfectly, and provides a quite decent running time with a discharge rate largely enough for those motors. The Kyosho legendary series are largely easier than the Tamiya in terms of lipo pack choice, and I may consider some shorty pack in HV and higher capacity eventually. I've not made any decision yet, as I don't need to change any of my Lipos yet.
Hope this helps.
Paul
