RC10 B4 tips and tricks
-
- Approved Member
- Posts: 226
- Joined: Wed Jul 30, 2008 8:47 pm
- Location: Denver, Colorado
- Been thanked: 1 time
RC10 B4 tips and tricks
I know there are a lot of us that run modern RC's so I figured I'd get the ball rollin on some B4 knowledge that I know is in this forum
So if you have any setup tips, tricks, etc. post them up!
Right now I'm running the "soft" setup on AE's website. I'm also running everything plastic except the main chassis is carbon. I've also switched out the rear hubs to B44 rear hubs as it has a bigger outer bearing to handle more power and not blow out bearings as much. Bleeder caps, don't use the aluminum or the aluminum shock mounts either, too much slop.
POST UP YOUR INFO!
So if you have any setup tips, tricks, etc. post them up!
Right now I'm running the "soft" setup on AE's website. I'm also running everything plastic except the main chassis is carbon. I've also switched out the rear hubs to B44 rear hubs as it has a bigger outer bearing to handle more power and not blow out bearings as much. Bleeder caps, don't use the aluminum or the aluminum shock mounts either, too much slop.
POST UP YOUR INFO!
-
- Approved Member
- Posts: 496
- Joined: Thu Mar 12, 2009 12:32 am
- Location: Ontario, Oregon
- Been thanked: 3 times
- JHarris
- Approved Member
- Posts: 526
- Joined: Sat Jan 16, 2010 11:17 am
- Location: Orlando, Florida
- Been thanked: 1 time
Re: RC10 B4 tips and tricks
The carbon chassis will work on a high bite track, but if you are on a marginal track the plastic will actually give you more bite. Also, we currently run the lightweight setup with the 4th hole drilled in the rear tower, black springs with B44 spring cups and cut black springs. This setup seems to work pretty good on almost every surface. The front is pretty standard with the brown springs and mounting locations. My son drives for AE and runs plastic everything with this setup.
- LowClassCC
- Approved Member
- Posts: 888
- Joined: Wed Mar 25, 2009 12:08 am
- Location: Mauckport, Indiana
- Has thanked: 89 times
- Been thanked: 104 times
Re: RC10 B4 tips and tricks

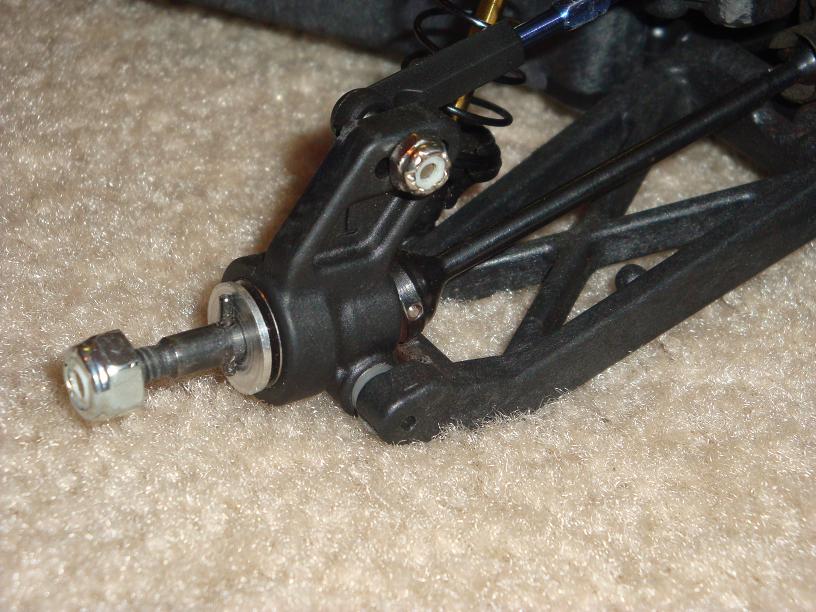

on ft front axles ditch the pan head screws and use cap head screws. the larger hex is a bit less likely to strip using L wrenches. sure they stick out a fraction more but when was the last time you heard somebody use the excuse "my front wheel bolt got hung up on the pipe causing me to wreak. that's why i lost."
may seem small and lame but try to get a stripped pan head screw out at the track between heats.
may seem small and lame but try to get a stripped pan head screw out at the track between heats.
-
- Approved Member
- Posts: 226
- Joined: Wed Jul 30, 2008 8:47 pm
- Location: Denver, Colorado
- Been thanked: 1 time
Re: RC10 B4 tips and tricks
I'm running the B44 spring cups front and rear. I also just changed over to RPM tire rod ends as the J-Concepts seem to bend easy.
I do notice that my tranny needs to be refreshed. Any tips on getting it rolling smooth?
I do notice that my tranny needs to be refreshed. Any tips on getting it rolling smooth?
- slotcarrod
- Approved Member
- Posts: 4415
- Joined: Tue Nov 25, 2008 10:57 pm
- Location: Calgary Alberta Canada
- Has thanked: 1 time
- Been thanked: 41 times
Re: RC10 B4 tips and tricks
How much of the spring do you cut and any pics please?JHarris wrote:The carbon chassis will work on a high bite track, but if you are on a marginal track the plastic will actually give you more bite. Also, we currently run the lightweight setup with the 4th hole drilled in the rear tower, black springs with B44 spring cups and cut black springs. This setup seems to work pretty good on almost every surface. The front is pretty standard with the brown springs and mounting locations. My son drives for AE and runs plastic everything with this setup.
Rod Littau
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: RC10 B4 tips and tricks
Two complete coils, then flatten back. This puts you between a black and green. I put green paint marks on mine...slotcarrod wrote:
How much of the spring do you cut and any pics please?
- JHarris
- Approved Member
- Posts: 526
- Joined: Sat Jan 16, 2010 11:17 am
- Location: Orlando, Florida
- Been thanked: 1 time
Re: RC10 B4 tips and tricks

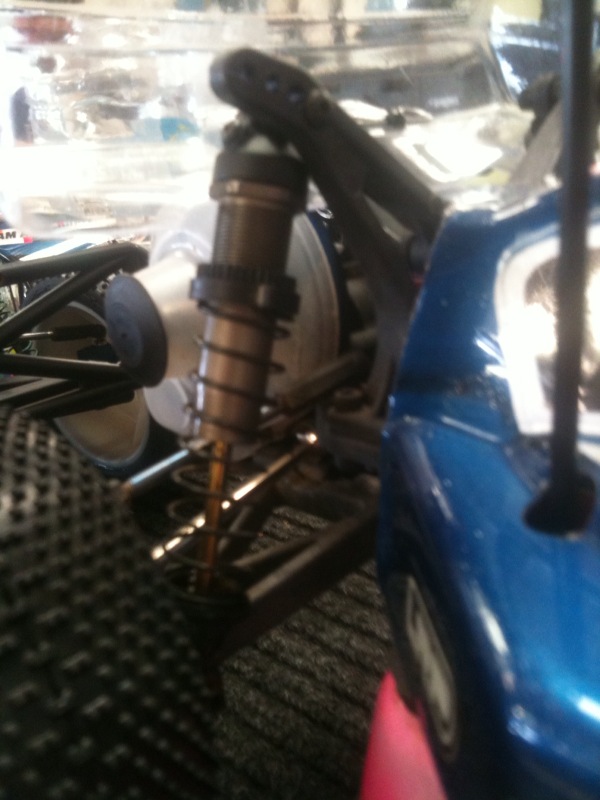

This isn't the greatest picture but it will do for now. I took this with my phone at the track yesterday. After I clean everything up I can post pictures of the car.
- JHarris
- Approved Member
- Posts: 526
- Joined: Sat Jan 16, 2010 11:17 am
- Location: Orlando, Florida
- Been thanked: 1 time
Re: RC10 B4 tips and tricks

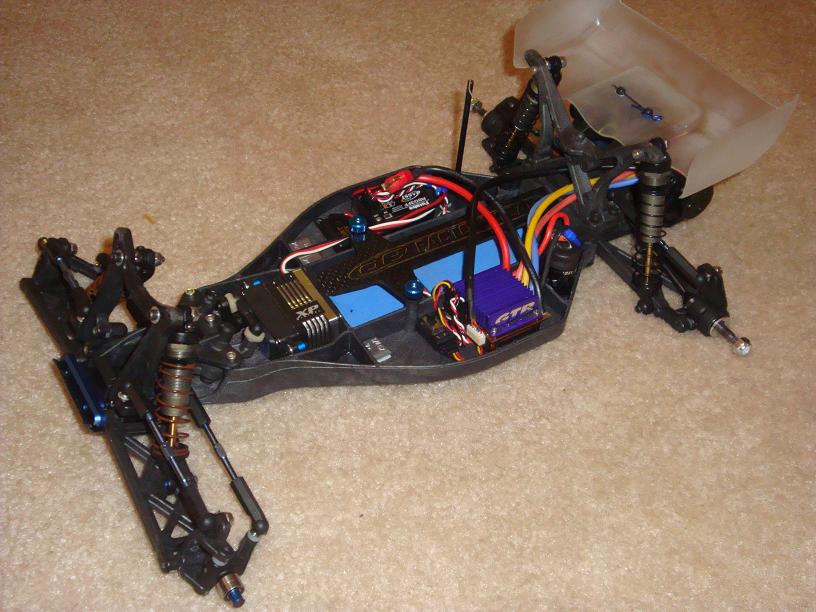

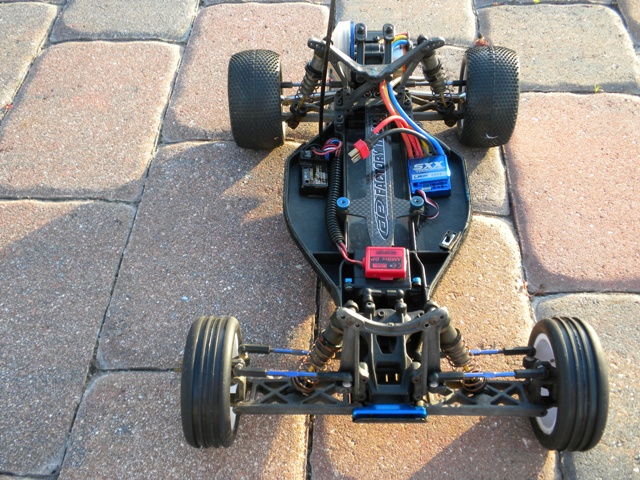

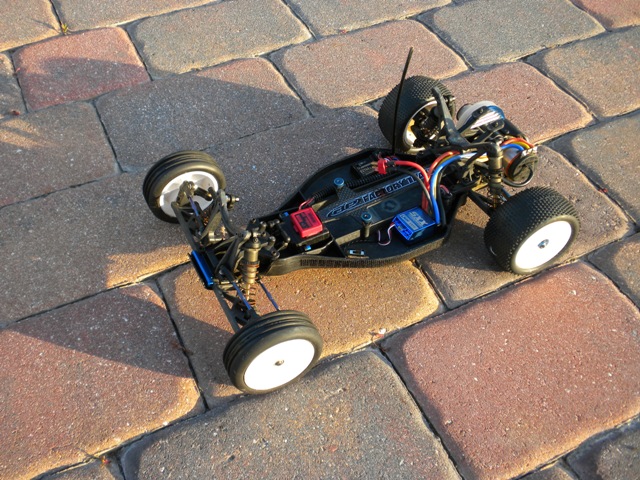

These aren't great, but they at least show mounting locations for the shocks and ball studs.
- slotcarrod
- Approved Member
- Posts: 4415
- Joined: Tue Nov 25, 2008 10:57 pm
- Location: Calgary Alberta Canada
- Has thanked: 1 time
- Been thanked: 41 times
Re: RC10 B4 tips and tricks
Cool! Thank you!
Rod Littau
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
Re: RC10 B4 tips and tricks
Thanks! I'm looking for any setup info for my new B4.1 brushless. Took it to the track for the first time yesterday. I really need to learn to drive it!!!
-
- Approved Member
- Posts: 226
- Joined: Wed Jul 30, 2008 8:47 pm
- Location: Denver, Colorado
- Been thanked: 1 time
Re: RC10 B4 tips and tricks
The one thing I noticed at my last race is after going to the 30 degree casters I had to move the top of the front shocks to the outermost hole. Now I have good turn in stability and it turns a lot better.
Re: RC10 B4 tips and tricks
Got any T4 tips? I just got a bunch of T4.1 parts off Ebay, so now I have a pretty much brand new T4.1 with a ball diff. I've never really raced stadium truck though.
Mark
Aaaaahhhh crap! I'm about to get passed by that orange truck!
Aaaaahhhh crap! I'm about to get passed by that orange truck!
- klavy69
- Moderator
- Posts: 5146
- Joined: Thu May 29, 2008 4:11 pm
- Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
- Has thanked: 556 times
- Been thanked: 262 times
Re: RC10 B4 tips and tricks
OK, got the dumb question for you on the b4 setup....wait for it....wait for it....this is for offroad course or for offroad oval or onroad course (well you get the idea)?
Todd
Todd
Peace and professionlism.....Kabunga signing off!!!
