Tamiya Blitzer Beetle - 2011 Reissue

[GreenBar0n]

This just showed up today from Japan, got another great deal. These seem to be drying up out there, kept seeing "Last One" on ebay, everywhere I looked, so I got one of these before I can't. Anything early air-cooled Volkswagen gets me every time.




Will start on this soon.

[juicedcoupe]

Several upgrade ideas here.

https://www.rc10talk.com/viewtopic.php?f=32&t=46479


One thing that I would definitely avoid is using the self tapping screws to attach the shocks to the towers. Drill through, tap to M3, and use longer machine screws. I run full length screws from the back of the towers and attach the shocks with threaded pivot balls.

[GreenBar0n]

Thanks for that, your Stadium Blitzer's are both really nice. Well done!

I do have a lot of extra hardware here, including M3 stuff, I'll check those shock towers out.

[GreenBar0n]

Was going to try to finish the chassis tonight, but not liking my servo choices, going to get something else.


Got as far as I could.

[Elkcycles]

What are your thoughts on the blue 14kg low profile servo? I was going to buy one or two for stadium truck use.

[juicedcoupe]

I'd also consider the Tamiya HD servo saver. The included one will get sloppy quickly.

I recommended the Tamiya model because it fits better than other types that I've tried.

[GreenBar0n]

I'd also consider the Tamiya HD servo saver. The included one will get sloppy quickly.

I recommended the Tamiya model because it fits better than other types that I've tried.

Would the Tamiya HD Servo Saver be called something else? I found this:
https://www.amazon.com/Tamiya-54799-OP1799-Hi-Torque-Aluminum/dp/B07CXMQLCM

[GreenBar0n]

What are your thoughts on the blue 14kg low profile servo? I was going to buy one or two for stadium truck use.

I would think they would work fine if you're just having fun and not competing, $16 with metal gears, and enough torque for 1/10 tires. Other's would know better than I would about all of this, but that would be my best guess. I also prefer to stick to 180 degree servos, I find my 270 degree servos have to be dialed down too far with the Tx, with the older RC10\Tamiya models.

[juicedcoupe]

Tamiya 300051000 51000 DIY https://a.co/d/itZfKDn

[GreenBar0n]

Tamiya 300051000 51000 DIY https://a.co/d/itZfKDn

That's the exact one that came with the M08 kit. Ordered (3). Thanks!

[GreenBar0n]

Got the servo and Tamiya HD servo saver in.


The Tamiya HD servo saver sticks out a bit further than the stock servo horn.


Was hitting the front bulkhead with the HD servo saver, on the top left.


Trimmed the support on the top left.


Chassis completed except for shocks, and electronics.

[juicedcoupe]

That servo must have a lot of top offset.

I have five Blitzers with that servo saver and all of them cleared.

[juicedcoupe]

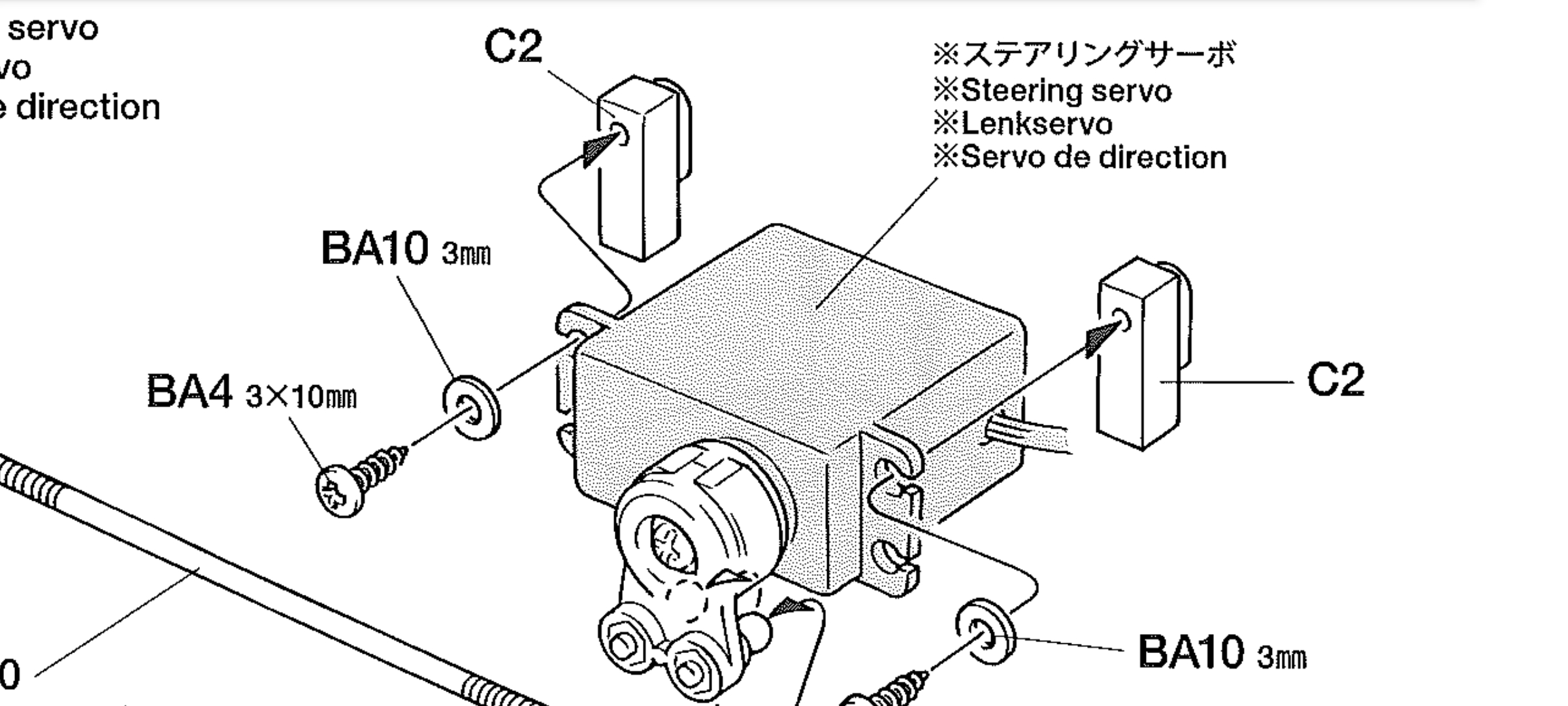

I see the problem. Your servo posts are backwards.

[GreenBar0n]

I see it now, thanks for that!

Got the servo mounts turned the right direction now, glad it didn't require a lot of disassembly.


Going to get the shocks ready and then decide on the M3 hardware.

[GreenBar0n]

I was going to check out the M3 screws for the shocks, and threaded balls, but this one will maybe see a trip around the backyard, and then go on the shelf.




Will get the electronics sorted, then the body which will take me a while.
