My SG COYOTE...
Hi everybody,
Again a 4wd to present to you, a COYOTE SG 4wd.
Like it's a special car , I love , I make a preparation to run without troubles.
The transmission is a major problem , the original spur diff are too bad and like mine are dead, I used the spur diff from the B44 with the small pinion.
with many work, pass the spur on the lathe .
Big luke the 4 screws on the spur are on a tooth
The 4 screws are sand.
Drill the shaft , to put the axle for the pinion.
I keep the plastic ring , on the lathe I drill holes for 2 flanged ball bearing 5x10x2.5 mm.
The shocks , the original are , 1 O ring .
I made new piston with 2 small holes.
The shafts are new but look like the grand canyon,I used the shock shaft from GPX4 HOBAO or 1/10 on road, On the lathe I drill the cartbridge to put 2 O rings with a washer and glue a small lexan ring.
The caps pass on the lathe too.
I siliconed the caps on the body and put a thin O ring on the cartbridge.
Result , really good shock
I made too a new shock tower, because the original in plastic are crack and push the shock too far and twist the arm and in the same time reinforce the body post.
I put washers under balls arms to give more caster for the front and antisquat for the rear.
The suit soon...
Again a 4wd to present to you, a COYOTE SG 4wd.
Like it's a special car , I love , I make a preparation to run without troubles.
The transmission is a major problem , the original spur diff are too bad and like mine are dead, I used the spur diff from the B44 with the small pinion.
with many work, pass the spur on the lathe .
Big luke the 4 screws on the spur are on a tooth
The 4 screws are sand.
Drill the shaft , to put the axle for the pinion.
I keep the plastic ring , on the lathe I drill holes for 2 flanged ball bearing 5x10x2.5 mm.
The shocks , the original are , 1 O ring .
I made new piston with 2 small holes.
The shafts are new but look like the grand canyon,I used the shock shaft from GPX4 HOBAO or 1/10 on road, On the lathe I drill the cartbridge to put 2 O rings with a washer and glue a small lexan ring.
The caps pass on the lathe too.
I siliconed the caps on the body and put a thin O ring on the cartbridge.
Result , really good shock
I made too a new shock tower, because the original in plastic are crack and push the shock too far and twist the arm and in the same time reinforce the body post.
I put washers under balls arms to give more caster for the front and antisquat for the rear.
The suit soon...
- Mr. ED
- Approved Member
- Posts: 5477
- Joined: Thu Dec 21, 2006 1:30 am
- Location: Back @ home: Belgium
- Has thanked: 58 times
- Been thanked: 56 times
-
- Approved Member
- Posts: 952
- Joined: Mon Jan 08, 2007 10:10 pm
- Location: Australia
- Has thanked: 7 times
Re: My SG COYOTE...
Good stuff mate - looks very nice so far!
Really makes me feel bad aboutr the car I have to restore - have a tonne of parts - really need to pull my finger out!
Thanks for the inspiration!
Cheers
Darryn
Really makes me feel bad aboutr the car I have to restore - have a tonne of parts - really need to pull my finger out!
Thanks for the inspiration!
Cheers
Darryn
- nvxwax
- Approved Member
- Posts: 1070
- Joined: Tue May 25, 2010 8:28 pm
- Location: Front Royal, VA (AKA: Helltown)
- Been thanked: 1 time
Re: My SG COYOTE...
Nice.... That car brings back memory's. Me and my friend had a 2wd and 4wd Coyote that we knew nothing about.... long story short we proceeded to strap gasoline motors to them basically destroying them... Now i wish i still had them now looking back lol
-
- Approved Member
- Posts: 8921
- Joined: Tue Apr 08, 2008 2:44 pm
- Location: USA
- Been thanked: 8 times
Re: My SG COYOTE...
I never really looked at these cars until now and I have to say that it is a cool ( and fragile ) looking design!! What is the deal with the battery placement?
-
- Approved Member
- Posts: 462
- Joined: Wed Oct 13, 2010 9:29 am
- Location: Mississauga, ON, Canada
Re: My SG COYOTE...
That is cool! I love the look of the shocks, mounted so low profile that they are actually mounted at the same level as the upper control arm!Charlie don't surf wrote:I never really looked at these cars until now and I have to say that it is a cool ( and fragile ) looking design!! What is the deal with the battery placement?
This is the car that has a unique saddle pack config, right? 3 cells mounted inline on either side of the chassis.
- prp
- Approved Member
- Posts: 665
- Joined: Sun Dec 10, 2006 4:27 pm
- Location: Lyon FRANCE
- Been thanked: 11 times
- Bormac
- Approved Member
- Posts: 3112
- Joined: Wed Sep 05, 2007 3:52 pm
- Location: CENTRAL COAST, NSW AUSTRALIA
- Has thanked: 21 times
- Been thanked: 3 times
Re: My SG COYOTE...
Great job Pierre!
I like the Coyote very much. Not because of its perforance but simply its style.
I like the Coyote very much. Not because of its perforance but simply its style.
- prp
- Approved Member
- Posts: 665
- Joined: Sun Dec 10, 2006 4:27 pm
- Location: Lyon FRANCE
- Been thanked: 11 times
Re: My SG COYOTE...
New pics of the day:

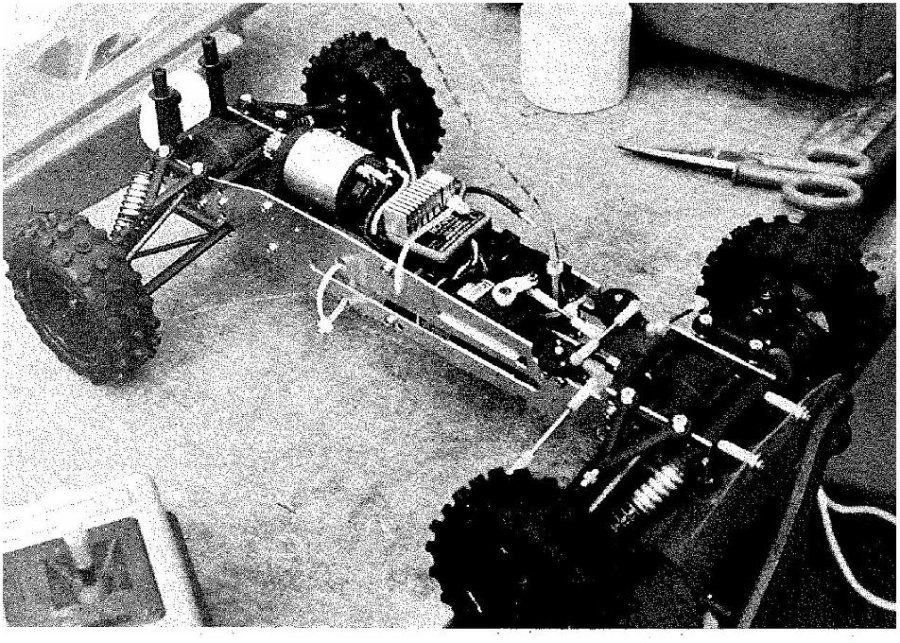

Where I am..., electronic is in place , with some good thinks:
-Motor DEMON
-ESC Novak 4
-Servo RS700 / 131 sh FUTABA
-Receveir Micro
The rear
The front
The front shock tower like the rear, I must cut the front body mount, if no I have the same trouble than on the rear.
Washers on the screws.
I used a plastic ring from wheel, to replace the ring spring presure, I broke the original...
The light antenna mount...
I make in this post a small comment on the Arms ball running...
Where I am..., electronic is in place , with some good thinks:
-Motor DEMON
-ESC Novak 4
-Servo RS700 / 131 sh FUTABA
-Receveir Micro
The rear
The front
The front shock tower like the rear, I must cut the front body mount, if no I have the same trouble than on the rear.
Washers on the screws.
I used a plastic ring from wheel, to replace the ring spring presure, I broke the original...
The light antenna mount...
I make in this post a small comment on the Arms ball running...
- GJW
- Approved Member
- Posts: 2325
- Joined: Mon Oct 15, 2007 7:22 pm
- Location: AUSTRALIA!!
- Been thanked: 1 time
Re: My SG COYOTE...
very special build there pierre as usual sg were much more prominent in 1/8th weren't they!
- prp
- Approved Member
- Posts: 665
- Joined: Sun Dec 10, 2006 4:27 pm
- Location: Lyon FRANCE
- Been thanked: 11 times
Re: My SG COYOTE...

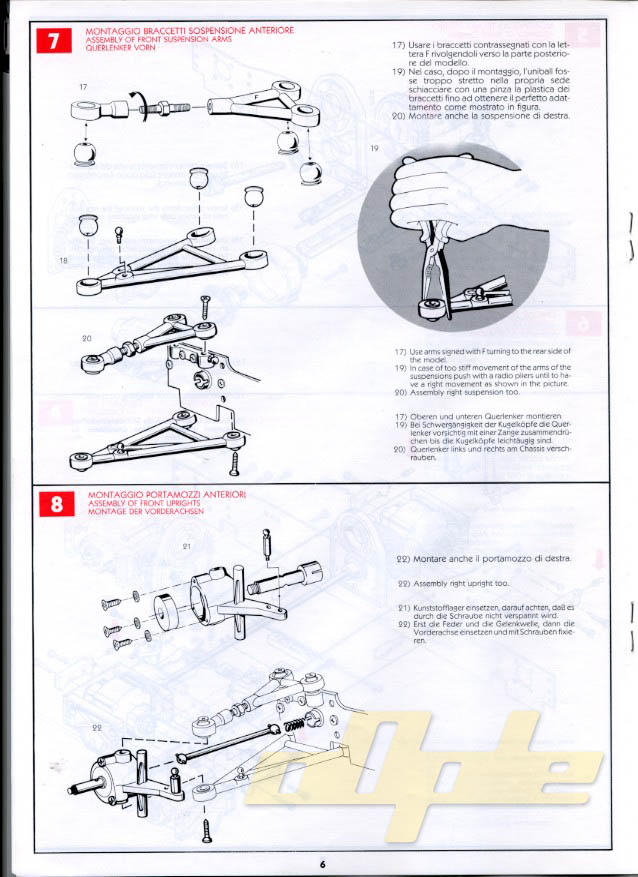

from Oople web site.
On the manual , they says to use a radio pliers to have the right movements, but when you do that the plastic breaking.
Without built of the ball from the arm, use a long screw with a bolt and put it on power drill, and drill with short run until you have a soft movement, it's long but it's the best way to save your arms.
Carefully with the ball on the shock support, the hole is short and the part is thin...the plastic is very fragile.
Same thinks on the lower shock cup, the hole is short and I filled them for a good alignment...
Enjoy
- Coelacanth
- Approved Member
- Posts: 7370
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 289 times
Re: My SG COYOTE...
I find that car's design very intriguing. It's like they did everything different just for the sake of being different. Did the sum of all those oddball design elements result in good performance?
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- RC10resto
- Super Member
- Posts: 2937
- Joined: Tue Sep 09, 2008 2:26 am
- Location: Los Angeles, CA
- Has thanked: 1112 times
- Been thanked: 430 times
- prp
- Approved Member
- Posts: 665
- Joined: Sun Dec 10, 2006 4:27 pm
- Location: Lyon FRANCE
- Been thanked: 11 times
Re: My SG COYOTE...
Hi, for now , I glued the TMS tires on the black died wheels, I made a bumper with look like Kydex from Electronic box,
more strong than the original lexan bumper...
more strong than the original lexan bumper...
