Tekin M Star

[bully]

Hey all,anyone here point me in the direction or share with me the manual,instructions for the tekin M star esc.. Or point me to another tekin that may share the same setup calibration procedure as the m star.. Thanks everyone

[Dual]

Hey Bully,

Can you tell us what colour the label is on the M Star you have? I can't confirm but I am pretty sure the M Stars were re branded (by Yokomo) Tekin G12's and depending on what colour the label is (Black, Gold, Red), it could be a G12c, G12c III GoldFet or G-9.

Here is a link to the manual covering set-up for the G-12c which also applies to the other 2 listed above -

http://www.teamtekin.com/manuals/P12_G12c.pdf

I will try and find some more information as I have an M Star also and it came with the standard G-12c III manual and a supplement page in Japanese.

Vin

[bully]

Awesome mate thanks for that. It's on it's way to me now but i think the decals are gold. Thanks for your help mate

[Charlie don't surf]

I have G9 and G12c manuals if that helps once you get it

[bully]

Thanks alot guy's,in a back an forth with tekin to get the story hopefully. Not much help at first just pointing me to the readily available manuals but i said i wanted to know about the rebranding by yokomo or if they know which esc's have same wiring,setup an calibration so hopefully monday will get the info i need.. Thanks, will post what i find out

[bully]

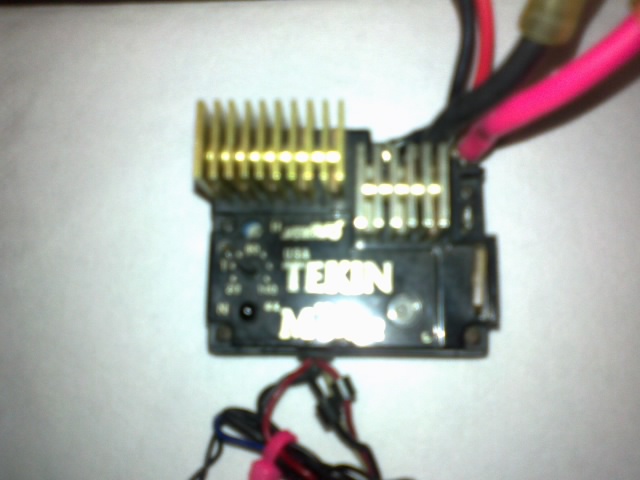

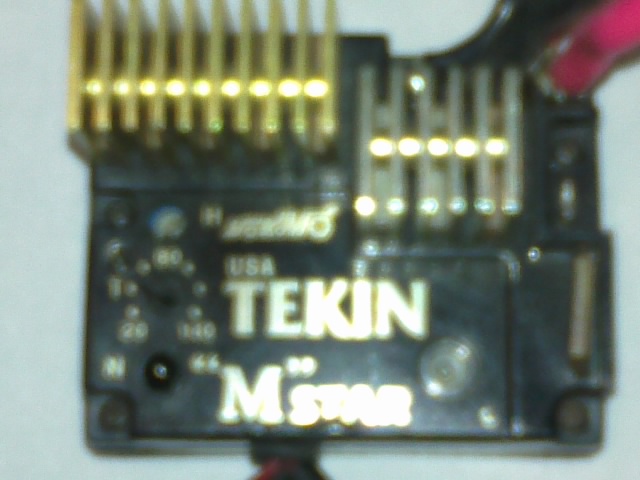

Yeh got it today, it's the gold m star an i think you were right on the money with g12c |||, it has the same face an features i think. Post pic later thanks everyone for the help.

Anyone know what the little round magnet looking things that are on two of the receiver wires coming out of the esc?

[EvolutionRevolution]

Yeh got it today, it's the gold m star an i think you were right on the money with g12c |||, it has the same face an features i think. Post pic later thanks everyone for the help.

Anyone know what the little round magnet looking things that are on two of the receiver wires coming out of the esc?

That's the black label M-Star. The gold label has, wait for it!!!, a gold label with black text.

[knixdad]

They are chokes to cut down on glitching.

[bully]

Yeh ferrite filters to help with interference like you said mate.. Wow black label ay.. I am pretty sure it is the same as the G12C|||,re wire it soon and check it out,i got few old esc off Alex aka incredible serious that I have been re wiring an testing and the tekin is next to do.. Got Novak cyclone c2 ,tc2,futaba mc800c an this tekin and I also got the novak pit wizard thingy from Alex.. I recently got a tekin rebel off mikea96 an a Novak tempest max off another person so been busy with the soldering iron lately.

[LTO_Dave]

Here's a crappy scan I just did of the back of my YR-4M2 kit box because I couldn't get it to lay flat on the scanner:




If you want a pic of it, just let me know.

I also noticed that the car on the box has an orange or red receiver with a sticker that has Imported By Yokomo on it like the one shown on the sides of the ESCs. Anyone know if Yokomo used re-branded Tekin receivers?

[bully]

Not sure about the receivers but thanks for the esc pic mate....
