My original Top Cat

The place for all things Schumacher.

Moderators: scr8p, klavy69

1911Colt
Approved Member
Posts: 620
Joined: Fri May 06, 2022 1:11 pm
Has thanked: 722 times
Been thanked: 369 times

Re: My original Top Cat

Post by 1911Colt »

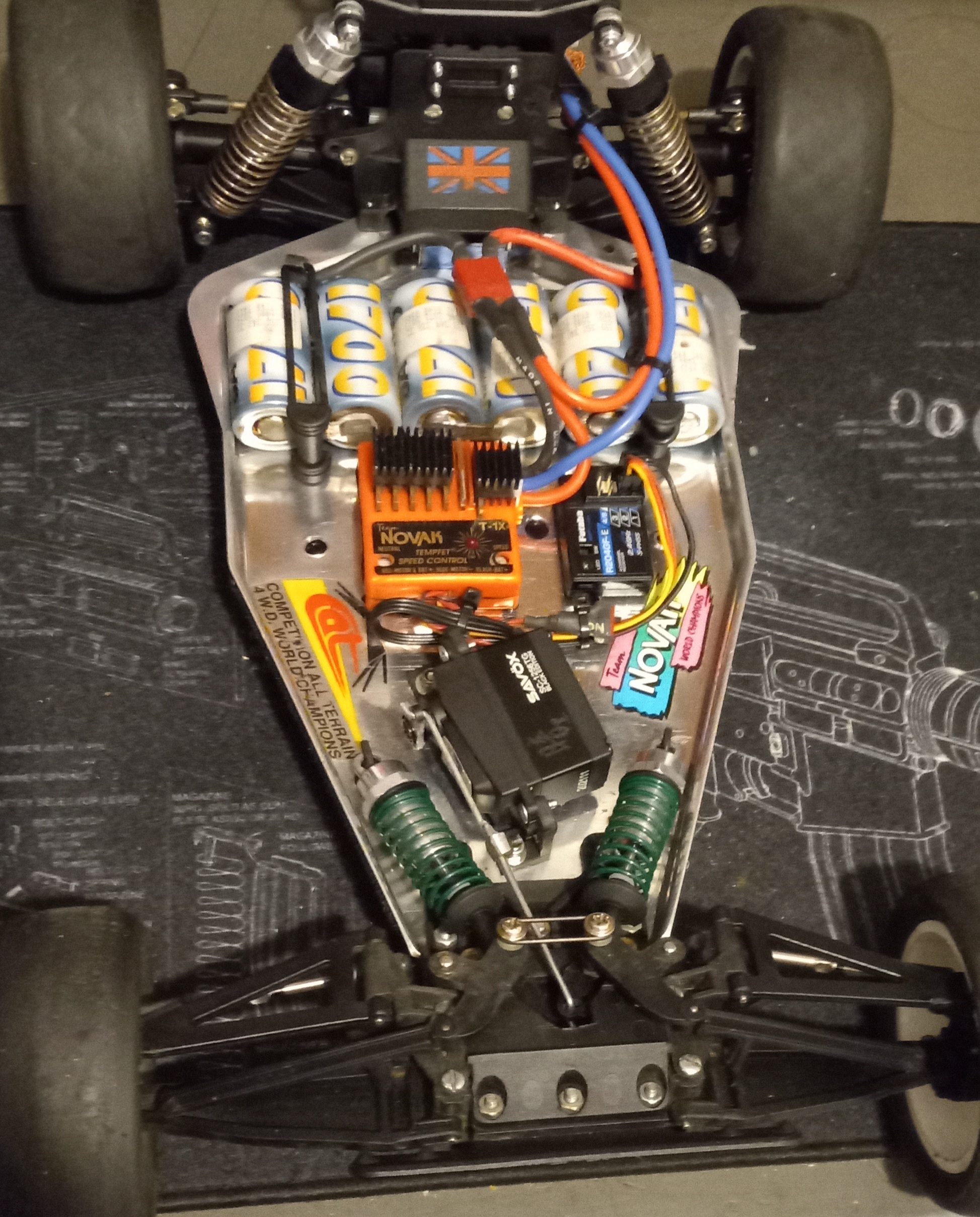

I got the motor fitted and the T1-x rewired. The Rx lead is not correct, I know, but I have loads of these brown/orange/yellow leads from my days flying RC planes. When racing this car originally, I would have used whatever worked, so the color doesn't bother me. The servo and receiver are modern, because this will be a runner.

I put a clear decal over the "speed holes" on the inside of the chassis to keep dirt out. I found a large checkerboard decal leftover from my pylon racer and put that on the bottom. It won't last long, but looks cool (to me) and is better than nothing.

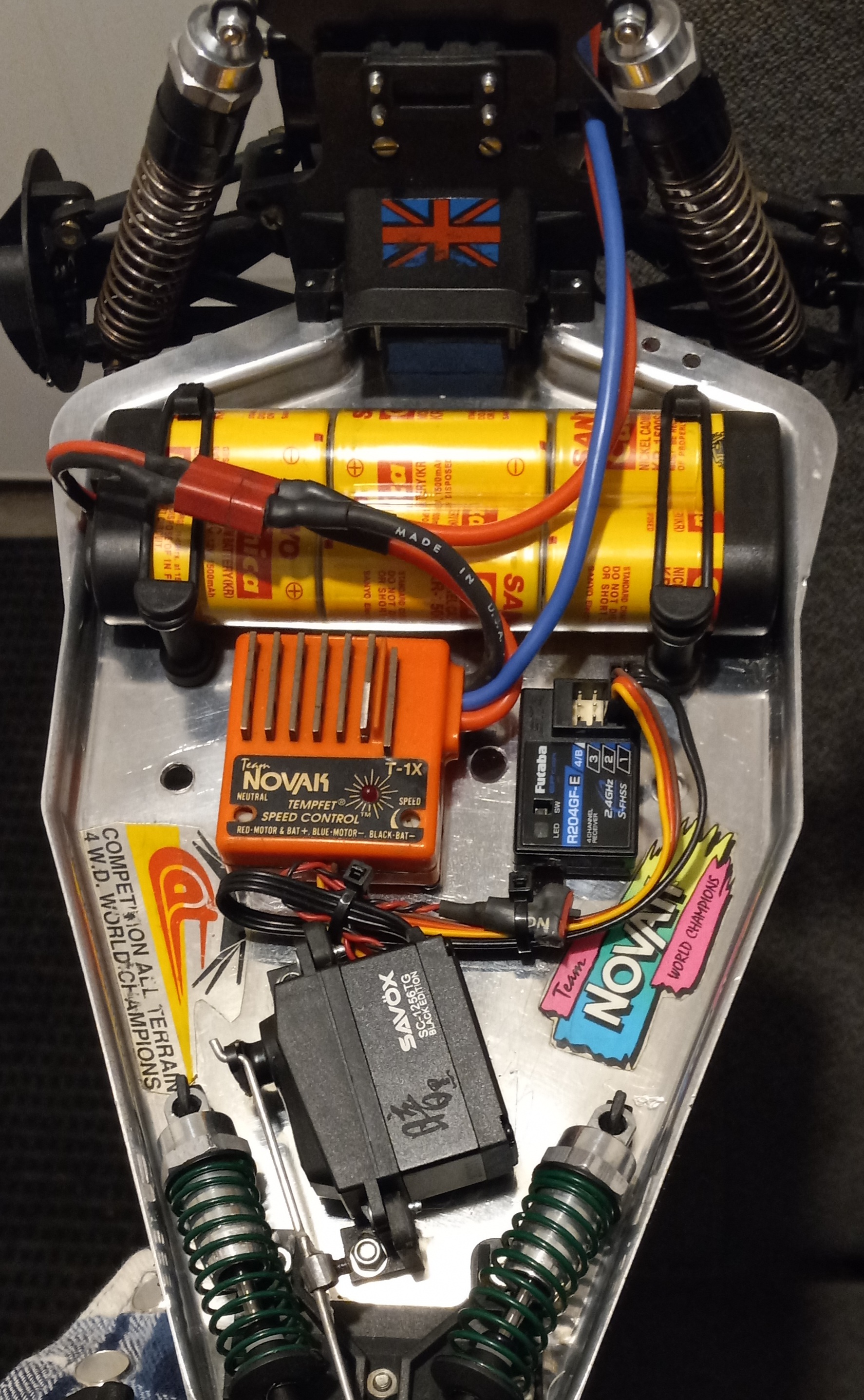

The Savox took up too much room on the chassis to mount the batteries longitudinally. Plus, the holes had been reamed to a ridiculous size. :? Not sure what happened there. The batteries both fit perfectly mounted horizontally. I used leftover lipo posts from a KF2 for the front mounts and one side of Bosscat saddle pack straps for the rear mounts. Large O-rings secure the battery. Schumacher loves o-rings, so it almost looks "normal".
Attachments

1911Colt
Approved Member
Posts: 620
Joined: Fri May 06, 2022 1:11 pm
Has thanked: 722 times
Been thanked: 369 times

Re: My original Top Cat

Post by 1911Colt »

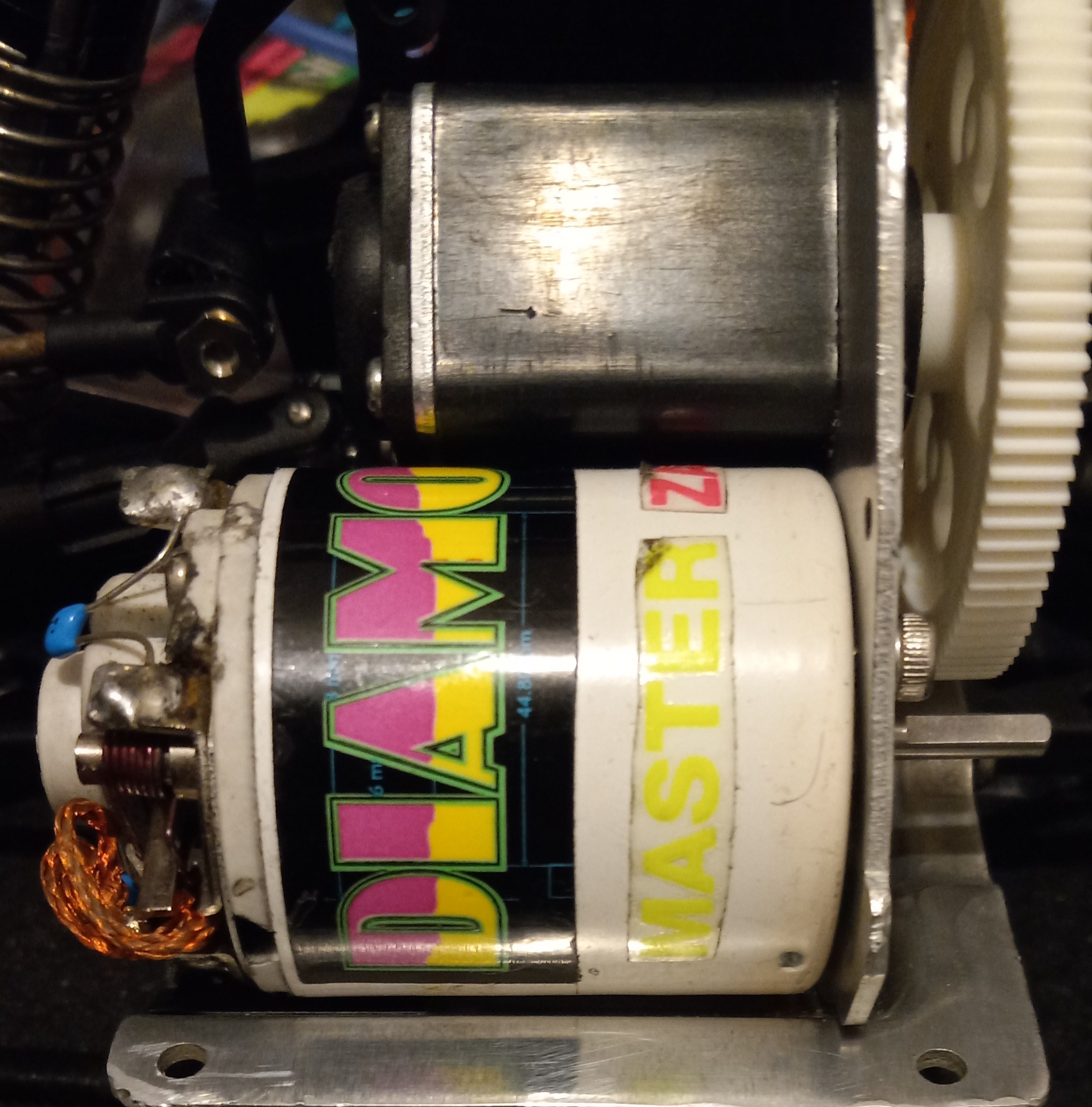

I bought that motor because it seemed too good to be true. It is in great shape, is "period correct" for my buggy, was the only rebuildable brushed motor at the whole swap meet, and it was $5. I didn't know the wind. After a couple of figure 8s in the driveway to check the steering and listen for unwelcome noises from the transmission or elsewhere, I pulled the trigger. Instant backflip! The car actually ended up behind where it started. :lol: No forward movement at all. It just rotated around the back tires. :lol: Luckily, nothing was damaged. I went to the interweb and discovered that the "Diamond" is a 12 turn double! :shock: I was thinking a 19 would be about right, with a 17 on the extreme end but still acceptable.

I haven't worked out the paint scheme yet, but one of the colors is white so the white motor will stay. I will just have to be gentle with the throttle.

Body and wing are next.

The springs, even though they are the ones I had on it way back when, are obviously not going to work. Just bouncing the chassis on the workbench proved that. I will play around with oil and maybe pistons, but I think I will end up replacing them.

1911Colt
Approved Member
Posts: 620
Joined: Fri May 06, 2022 1:11 pm
Has thanked: 722 times
Been thanked: 369 times

Re: My original Top Cat

Post by 1911Colt »

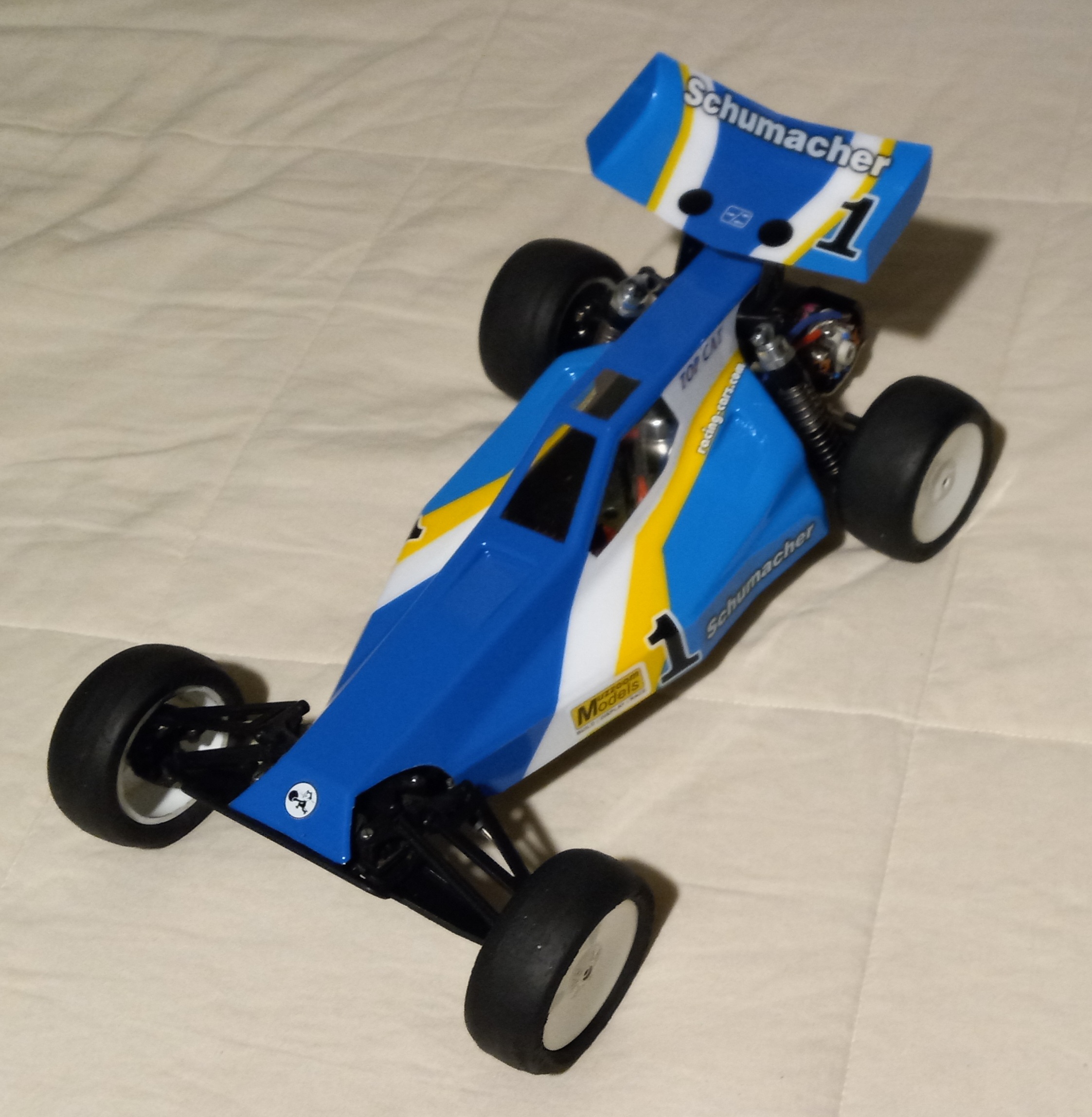

I am calling this one done. :D The paint turned out really well (by my standards) except for the yellow. That was a disaster. :cry: A couple of the decals are there to hide screw ups in the paint. :oops:

I like the scheme, as I think it accentuates the shape of the TC body, i.e. the loooooong nose followed by a busy rear section. I may try it again with different colors, or at least no yellow. :x
Attachments

User avatar
Frankentruck
Super Member
Posts: 2283
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1350 times
Been thanked: 1485 times

Re: My original Top Cat

Post by Frankentruck »

Stickers complete a body. I think that's an excellent paint scheme!
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

Retro rc
Approved Member
Posts: 519
Joined: Sat Apr 04, 2015 10:10 am
Location: Auckland New Zealand
Has thanked: 534 times
Been thanked: 366 times

Re: My original Top Cat

Post by Retro rc »

Nice work colt and I agree stickers on TC make it look done

jonboy
Approved Member
Posts: 26
Joined: Fri Jul 14, 2023 4:41 pm
Location: S. Wales
Been thanked: 4 times

Re: My original Top Cat

Post by jonboy »

Think you done pretty well there.. I'm gutted a missed the TC when it was rere'd
