Drill baby drill?

Post by flipwils11 »

Someone talk me off the ledge here. I'm ready to just get the stealth trans template and drill the holes required in these A stamp gold pan runner chassis I have.

I've been chasing issues from day one it seems, especially with my son's. It's been chewing up spur gears and I don't understand why. After it chewed up another 32 pitch, I decided to just do 48 pitch as long as I was buying new parts. I bought this from Tower:

http://www3.towerhobbies.com/cgi-bin/WTI0095P?FVSEARCH=LXEY28&search=Go

And a not too aggressive pinion. Only when I go to install it with the stock slipper balls, the metal rings that sandwich the slipper balls, even with the nut and spring tightened all the way, are still not making enough contact. The Robinson spur is moving axially on the transmission shaft which won't work. I tried it on both my trans and my son's car's trans and both are the same. Is this Robinson Racing spur not meant to work on our cars? Or are both of my 6-gear trans in need of some work?

I'm running mild, brushed motors.

aconsola
Approved Member
Posts: 1998
Joined: Sat Feb 17, 2007 3:09 am
Location: Upstate NY
Been thanked: 12 times

Re: Drill baby drill?

Post by aconsola »

the spur gear floats between the rings, there is slight play in the axial direction. If the gear was sandwiched directly against the diff plates there would be no differential action as the whole thing would be locked up. radially there should be minimal if any movement of the gear in relation to the hub.

if you are chewing through 32pitch gears, 48 will only be worse until you find out what the problem is as the teeth are smaller and more prone to breakage.

User avatar
vintage AE
Approved Member
Posts: 3012
Joined: Fri Nov 14, 2008 6:47 pm
Location: Sunken Lake, Nova Scotia
Has thanked: 29 times
Been thanked: 35 times

Re: Drill baby drill?

Post by vintage AE »

hey flipwils11, I wouldn't just go drilling your chassis without trying other things first. Having said that, I just drilled, cut and removed the anodizing of an A stamped chassis today. They key thing is that you are using the chassis and are going to continue to use it. Weather or not you but four new holes in it to install a stealth trans or continue to scratch up the bottom by driving it, which you are going to do anyway, I don't think makes a difference.

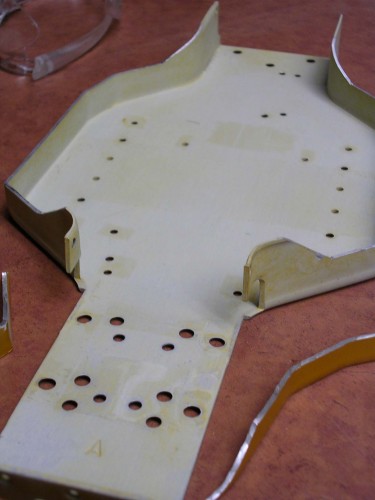

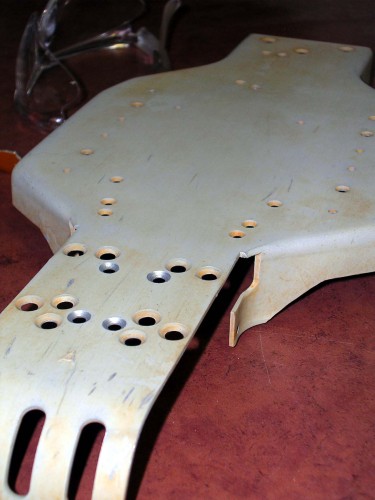

Here mine all cut up and drilled just to make you feel less guilty :P

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: Drill baby drill?

Post by Charlie don't surf »

Rod just called me and said that you better put that chassis under your "special" microscope, because that chassis is not fully de-anodized :roll:

User avatar
scr8p
Administrator
Posts: 16521
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 955 times

Re: Drill baby drill?

Post by scr8p »

use kimbrough spurs.

User avatar
Toasted Coastie
Approved Member
Posts: 662
Joined: Mon Apr 12, 2010 1:22 am
Location: Nashua, NH
Been thanked: 1 time

Re: Drill baby drill?

Post by Toasted Coastie »

If you mess up drilling, I have an extra A stamp (and it is fully de-anodized :lol: )

User avatar
jwscab
Super Member
Posts: 6494
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 446 times

Re: Drill baby drill?

Post by jwscab »

that gear you have linked looks to have too small a pattern for the diff balls/rings.

use what scr8p said. and make sure you get the gear mesh correct. You want the teeth to have just the slightest amount of play between them. You can use a piece of newspaper between the pinion and spur to set the backlash. if they are too loose, you'll rip off teeth. if they are too tight, the gear profile will get mangled and wear quickly.

User avatar
vintage AE
Approved Member
Posts: 3012
Joined: Fri Nov 14, 2008 6:47 pm
Location: Sunken Lake, Nova Scotia
Has thanked: 29 times
Been thanked: 35 times

Re: Drill baby drill?

Post by vintage AE »

Charlie don't surf wrote:Rod just called me and said that you better put that chassis under your "special" microscope, because that chassis is not fully de-anodized :roll:

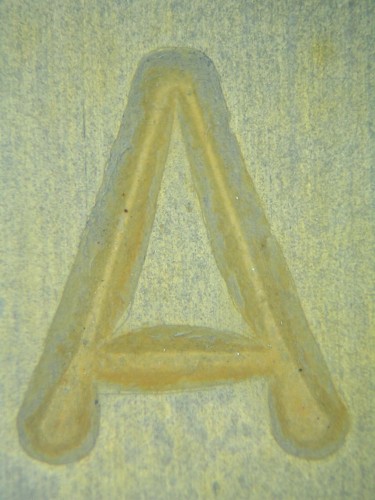

I don't want to take away from the help flipwils11 wants from this thread, but Reggie you are right. I took a look under the microscope and there is still quite a bit left :lol:

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 6:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: Drill baby drill?

Post by JK Racing »

--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

User avatar
fastang
Approved Member
Posts: 752
Joined: Mon Aug 04, 2008 11:53 pm
Location: USA

Re: Drill baby drill?

Post by fastang »

Do you have a chassis with the stealth holes already? Just use it as a template. I place the bottoms of the chassis together and then bolt them to each other using the nose plate holes and the arm mount holes. You only need 2 bolts. This makes for a fool proof method of drilling the holes.

User avatar
flipwils11
Approved Member
Posts: 1904
Joined: Mon Feb 15, 2010 3:30 am
Location: St Paul, MN
Been thanked: 15 times

Re: Drill baby drill?

Post by flipwils11 »

thanks guys, I'll try the Kimbrough spur and hopefully that will work. No, I don't have a stealth chassis to use as a template.
