Re: New Optima Build: Project CYANide

Post by Mr. ED »

where are those spacers and the extra 5mm? confused :oops:

for which car are the blue knuckles? Are those the duratrax parts mentioned in another tread?

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Re: New Optima Build: Project CYANide

Post by Coelacanth »

Mr. ED wrote:where are those spacers and the extra 5mm? confused :oops:

for which car are the blue knuckles? Are those the duratrax parts mentioned in another tread?

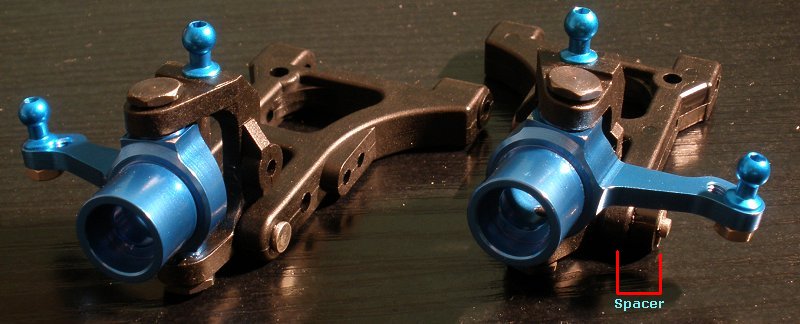

You can barely see it in the picture, this should clarify. The control arms came on a small plastic tree, and there were spacers of 2 different thicknesses on the tree. I tried one and it was a perfect fit. The knuckles are for the Lazer ZX-5, I believe. Here they are, P/N: DTXC9953

http://www3.towerhobbies.com/cgi-bin/WTI0095P?FVSEARCH=DTXC9953&search=Go

I found 'em on eBay for about $10 less, and didn't have to get gouged for over $20 shipping (Tower refused to ship in a more economical manner).
Attachments
Plastic control arm spacer
Plastic control arm spacer
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: New Optima Build: Project CYANide

Post by Mr. ED »

clicked the link and it says on top of the page "DuraTrax Hub Front Aluminum Blue Maximum ST/BX/MT (2)"
Those were the ones I refered to

thanks for clarifying where the spacers went

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Front diff, gearbox, front skid-plate done

Post by Coelacanth »

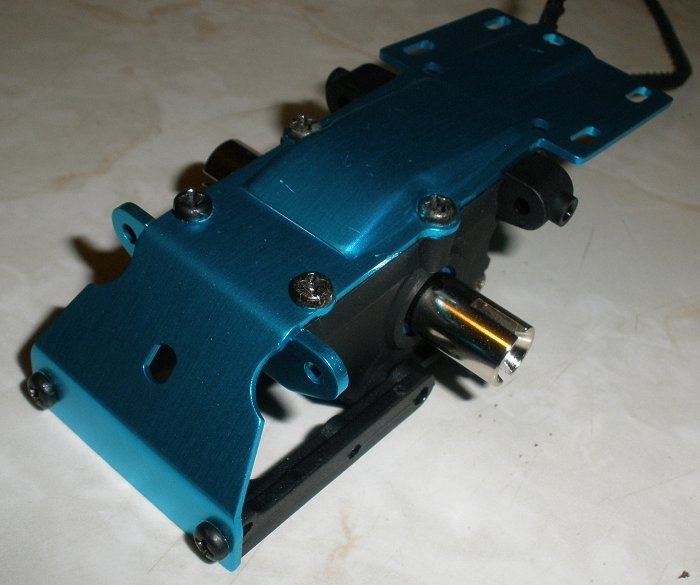

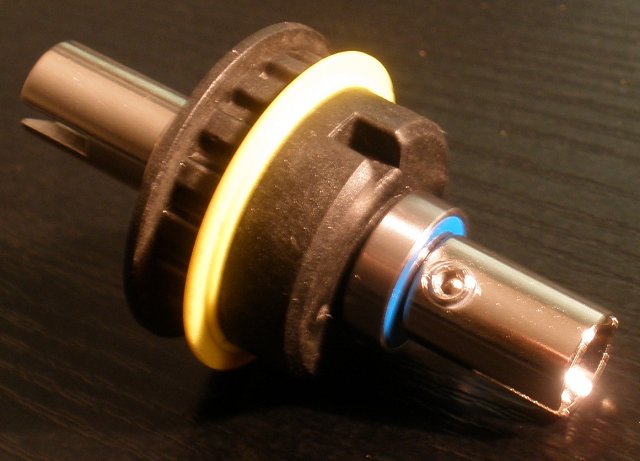

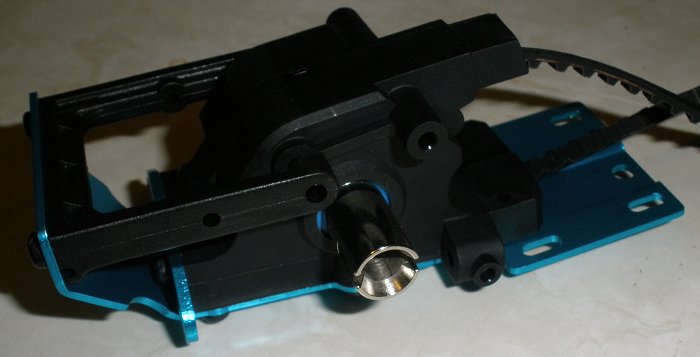

I rebuilt a front belt diff I received with fresh diff lube, sealed bearings and sweet chromed Duratrax joints. Fed a new belt through it that I received from Mad Racer (thanks man, your gold shocks, belly skid-plate & gear will ship tomorrow after work!).
Attachments
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Mad Racer
Approved Member
Posts: 972
Joined: Fri Apr 10, 2009 2:50 am
Location: Vintage at Boondal. Australia.
Been thanked: 1 time

Re: New Optima Build: Project CYANide

Post by Mad Racer »

Looks really sweet Marc.

Glad i can help you with the belt conversion.

Lets hope we can find a solution on the rear diff gear.

Cheers.
Mark
Vintage . Older is Better !!!!!!! Vintage At Boondal, Australia.
http://www.rctech.net/forum/australian-racing/548133-off-road-vintage-boondal.html

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Front end, narrow control arms, CVDs done

Post by Coelacanth »

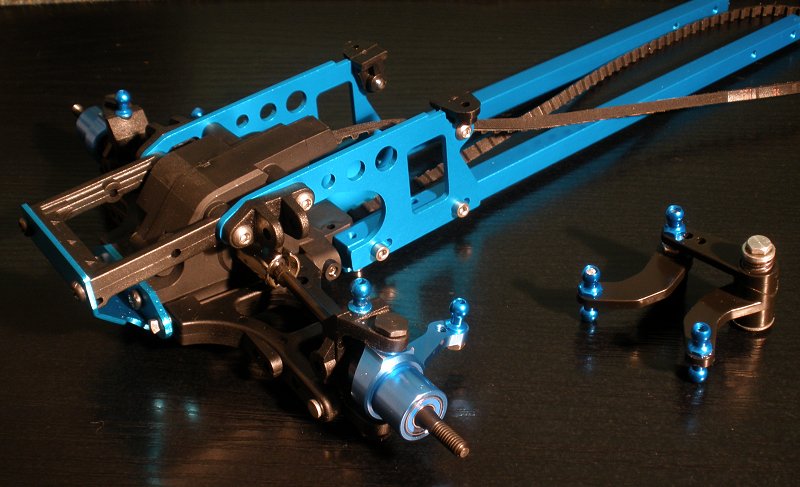

Had a few spare hours this evening and was able to attach the short control arms, hubs & knuckles, and short CVD joints. Also began assembling the servo saver. Unfortunately, I'm at a bit of an impasse until a new Main Gear for the rear belt diff and some turnbuckles arrive.

If I'm not mistaken, the CVD's and control arms are from a Kyosho Spider SP-1. highwayracer was extremely helpful in helping me spec out the exact lengths & fitment of the shorter arms & joints, and aip47-2008 deserves credit for selling me a set. Thank you, Aaron & Roger, I wouldn't be at this stage without lots of research, a dozen questions, and your help!

Speaking of the shorter control arms, I have 2 sets of aftermarket strengthened control arms from a PureTen Alpha GP or EP 2/3 nitro racer that aren't being used. Although they fit perfectly exactly the same way as the stock Spider arms, they move the front wheels about 3 or 4mm forward, slightly increasing the wheelbase. I didn't want to change my wheelbase any as I already have wheel-wells cut out for my existing on-road bodies and didn't want to mess up that look.
Attachments
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Hcp22
Approved Member
Posts: 1858
Joined: Sat Jun 19, 2010 10:31 am
Location: Gothenburg Sweden
Has thanked: 33 times
Been thanked: 16 times

Re: New Optima Build: Project CYANide

Post by Hcp22 »

Damn, it’s looking so nice... :shock:
Cheers
Lars

My Feedback

Hotshotman
Approved Member
Posts: 47
Joined: Thu Jun 17, 2010 6:53 am
Location: Fargo, ND
Has thanked: 2 times

Re: New Optima Build: Project CYANide

Post by Hotshotman »

That's a striking shade of blue. Can't wait to see it finished!

User avatar
losiXXXman
Approved Member
Posts: 936
Joined: Sat Aug 29, 2009 1:53 pm
Location: Cary, NC
Been thanked: 5 times

Re: New Optima Build: Project CYANide

Post by losiXXXman »

Kind of surprise you didn't go for that blue front bumper brace from Pargu while you were at it!! :wink:

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Re: New Optima Build: Project CYANide

Post by Coelacanth »

losiXXXman wrote:Kind of surprise you didn't go for that blue front bumper brace from Pargu while you were at it!! :wink:
I actually avoided getting it for a reason...that part is frequently damaged by a collision. Replacing that plastic piece with a stronger alloy piece--attached directly to the alloy frame--means that a front-ender is likely to cause possible structural damage somewhere else, such as the plastic gear-box, bent gear-box side-plates, frame rails, or damaged screw-holes. I have a few spares of the bumper brace so I'm happy to have one break on impact, if necessary.

There's a method to my madness! ;)
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
sgirouard
Approved Member
Posts: 323
Joined: Thu Sep 23, 2010 8:58 pm
Location: Connecticut, USA
Been thanked: 3 times

Re: New Optima Build: Project CYANide

Post by sgirouard »

Coelacanth wrote:
losiXXXman wrote:Kind of surprise you didn't go for that blue front bumper brace from Pargu while you were at it!! :wink:
I actually avoided getting it for a reason...that part is frequently damaged by a collision. Replacing that plastic piece with a stronger alloy piece--attached directly to the alloy frame--means that a front-ender is likely to cause possible structural damage somewhere else, such as the plastic gear-box, bent gear-box side-plates, frame rails, or damaged screw-holes. I have a few spares of the bumper brace so I'm happy to have one break on impact, if necessary.

There's a method to my madness! ;)
Leave it to the Optima to pioneer crumple zones!

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Re: New Optima Build: Project CYANide

Post by Coelacanth »

sgirouard wrote:
Coelacanth wrote:
losiXXXman wrote:Kind of surprise you didn't go for that blue front bumper brace from Pargu while you were at it!! :wink:
I actually avoided getting it for a reason...that part is frequently damaged by a collision. Replacing that plastic piece with a stronger alloy piece--attached directly to the alloy frame--means that a front-ender is likely to cause possible structural damage somewhere else, such as the plastic gear-box, bent gear-box side-plates, frame rails, or damaged screw-holes. I have a few spares of the bumper brace so I'm happy to have one break on impact, if necessary.

There's a method to my madness! ;)
Leave it to the Optima to pioneer crumple zones!
Exactly...on a runner, sticking with the plastic brace is probably the wise choice. I'd definitely go with the alloy one if this car was going to be a shelf-queen, but I don't believe in that...a car's meant to be driven! :)
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Finally received sprocket set - build can continue

Post by Coelacanth »

I finally received one of the parts that was holding up this build...I wasn't able to assemble the rear diff & gearbox until I'd tracked down and received a sprocket set--and specifically, the all-important Main Gear. It finally arrived today. Hopefully I'll have spare time this weekend with some updates! :mrgreen:
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Rear end and gearbox finished

Post by Coelacanth »

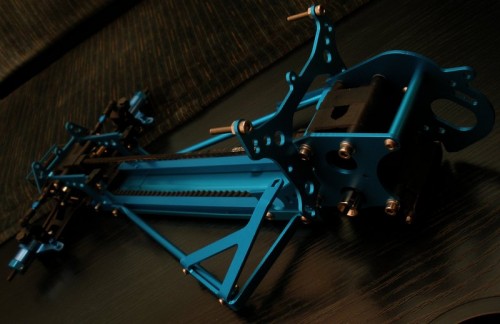

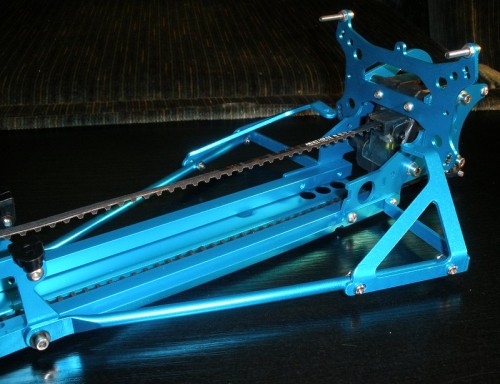

Had a free night tonight, so I rebuilt my rear belt-drive diff with new parts from a Kyosho SG-25 sprocket set I found on eBay, which meant I was finally able to get the ball rolling again on this car. Finished the rear gearbox and bolted on the side-plates & shock tower, attached everything to the frame rails, then bolted on the skid-plate & side-guards.
Attachments
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Custom carbon fiber front shock towers

Post by Coelacanth »

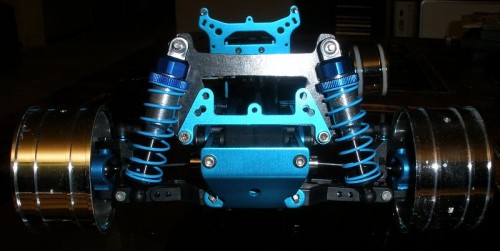

One issue I had to deal with, as a result of the shortened front control arms & CVDs, was shock length. One option was to go to short, dinky little shocks, something I didn't really consider because I wanted off-road driveability without major disassembling. The 3racing shock kit I bought had front shocks a bit longer than the stock Kyosho Golds, which was fine--I just had to fabricate shock towers to make them work. I had to think exactly where to mount the shocks, because the wide shock bodies & adjustment rings prevented me from mounting the shocks the same way the Turbo Optima shocks would've normally mounted. I had to position them more upright and out-board to clear the shock tower itself.

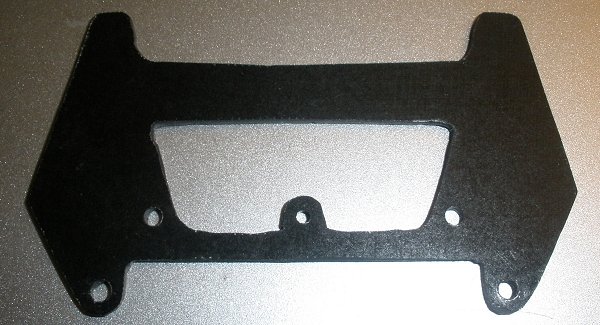

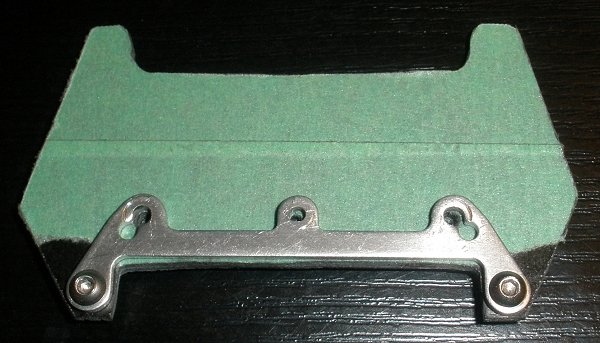

I built the tower from a spare piece of carbon fiber from DW911, thank you Dave! I gave myself a pair of mounting holes; one allowing the CVDs to be close to horizontal, and one giving me a good amount of offroad clearance.

I'll do more filing to clean up the lines later, I just wanted to make sure everything fit and worked nicely...it looks like my '70 AAR 'Cuda body will fit like a glove, even though it seems like the shock tower is so high. I cut out the body but have yet to sand the edges smooth...this is going to look killer when it's done! :twisted:
Attachments
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
