Evolution of front bulkheads and motor plates

Post by GoMachV »

I have searched a bit and came up with little, can anyone shed light on the evolution of the front bulkheads and motor plates? I am piecing a Jrxt together and have a slew of different mounts and towers

Also, didnt the truck come with the servo saver style white bellcranks? Sadly all mine are black servo saver type
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Jirka
Approved Member
Posts: 792
Joined: Mon Feb 23, 2009 1:40 pm
Location: Europe
Has thanked: 18 times
Been thanked: 15 times

Re: Evolution of front bulkheads and motor plates

Post by Jirka »

Bellcracks:
On "boxart" and maybe some first JrxT bellcranks were black:
JrxT bellcranks black.jpg
JrxT bellcranks black.jpg (8.26 KiB) Viewed 1392 times
JrxT bellcranks black.jpg
JrxT bellcranks black.jpg (8.26 KiB) Viewed 1392 times
But later they become white:

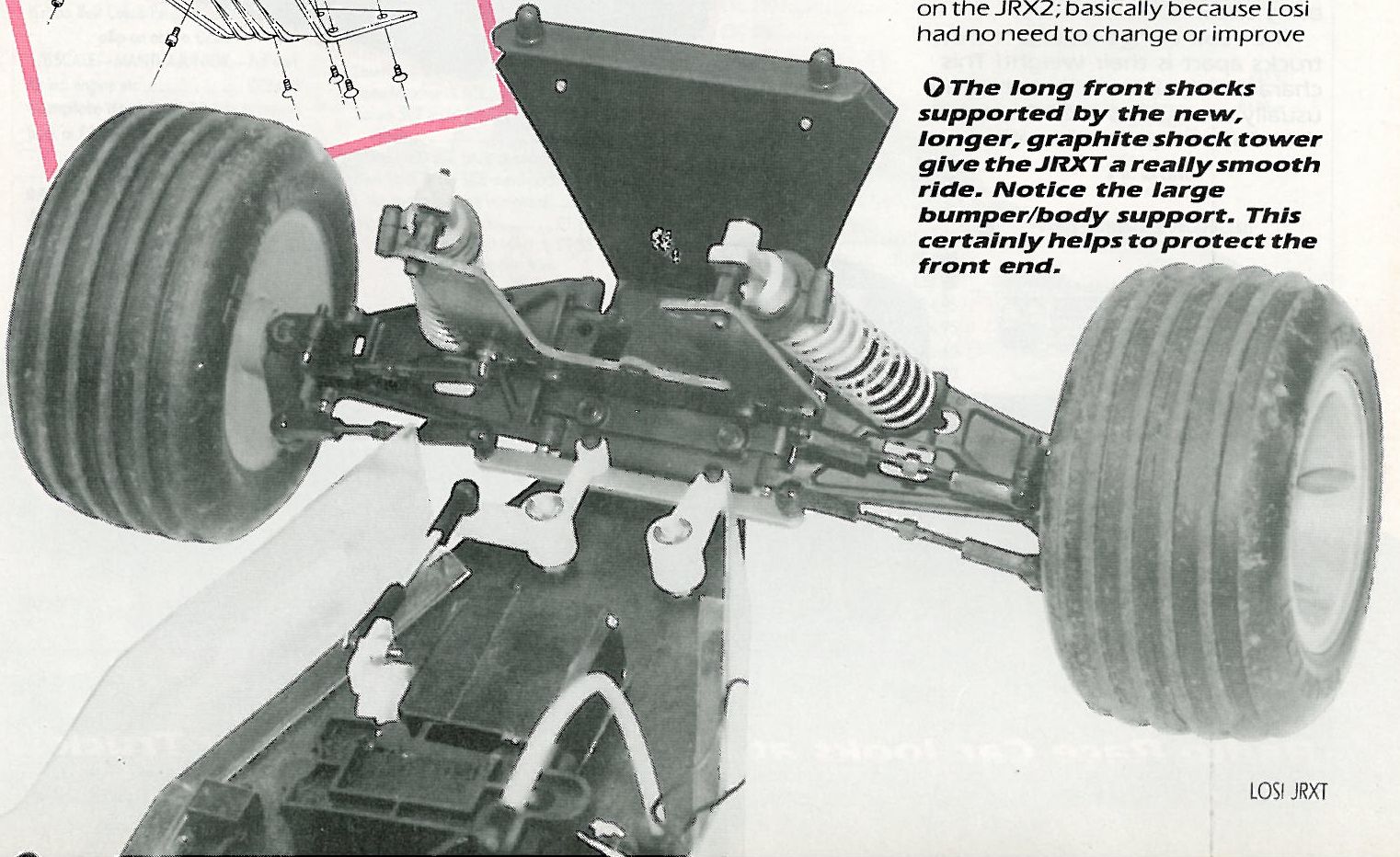

JrxT bellcranks white.jpg
See also this: http://www.rc10talk.com/viewtopic.php?f=27&t=3171

Motor plate:
1st gen: early Jrx2 no stamp
2nd gen: late Jrx2, JrxT, Junior2, JuniorT, JrxPro: "Jrx2" stamp. But there was two different version from this: One like 1st gen and a later version with material removed where the rear upper link mount was:
Motor plate 3 - Jrx2___ and cut for camber link.jpg
3nd gen: JrxProSE LXT: "Team Losi Performance" stamp

Front Bulk head:
1st gen: Jrx2-JrxProSE early models: Jrx2 molded:

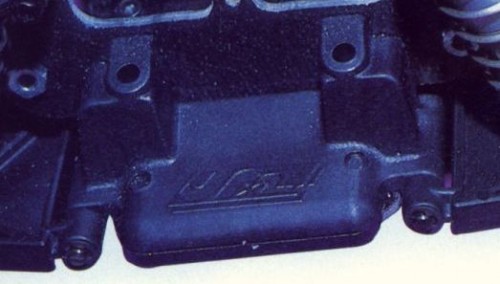

Front bulkhead Jrx2.jpg
2nd gen: JrxProSE and LXT "Team Losi" molded:

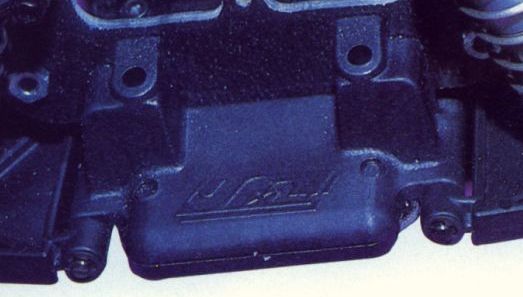

Front bulkhead Team Losi.jpg
Front bulkhead Team Losi.jpg (6.76 KiB) Viewed 1392 times
Front bulkhead Team Losi.jpg
Front bulkhead Team Losi.jpg (6.76 KiB) Viewed 1392 times
Jirka

User avatar
GoMachV
Approved Member
Posts: 11115
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 730 times
Been thanked: 2105 times

Re: Evolution of front bulkheads and motor plates

Post by GoMachV »

Thank you!!! That link was the one I was searching for not sure how I couldn't find it :mrgreen:

I forgot about the rear bulkhead changes too, gotta sort them out now as well!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Jirka
Approved Member
Posts: 792
Joined: Mon Feb 23, 2009 1:40 pm
Location: Europe
Has thanked: 18 times
Been thanked: 15 times

Re: Evolution of front bulkheads and motor plates

Post by Jirka »

If I remember correctly, rear bulkhead with more inner upper link mounting holes did become months before motor plate suitable to use them. Because of this, material was removed by hand from motor plate to make enough room for upper link.

Jirka

User avatar
scr8p
Administrator
Posts: 16467
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 907 times

Re: Evolution of front bulkheads and motor plates

Post by scr8p »

anyone that actually wanted to finish a race used the red heavy duty bellcranks. :wink:

ask me how i know....... :roll:

User avatar
Jirka
Approved Member
Posts: 792
Joined: Mon Feb 23, 2009 1:40 pm
Location: Europe
Has thanked: 18 times
Been thanked: 15 times

Re: Evolution of front bulkheads and motor plates

Post by Jirka »

scr8p wrote:anyone that actually wanted to finish a race used the red heavy duty bellcranks. :wink:

ask me how i know....... :roll:
Yes that is true but it is an another story :lol:

Jirka

User avatar
GoMachV
Approved Member
Posts: 11115
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 730 times
Been thanked: 2105 times

Re: Evolution of front bulkheads and motor plates

Post by GoMachV »

Lol! Yes, I remember how hard it was to keep them on the wall at the hobby store
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 7 times

Re: Evolution of front bulkheads and motor plates

Post by Charlie don't surf »

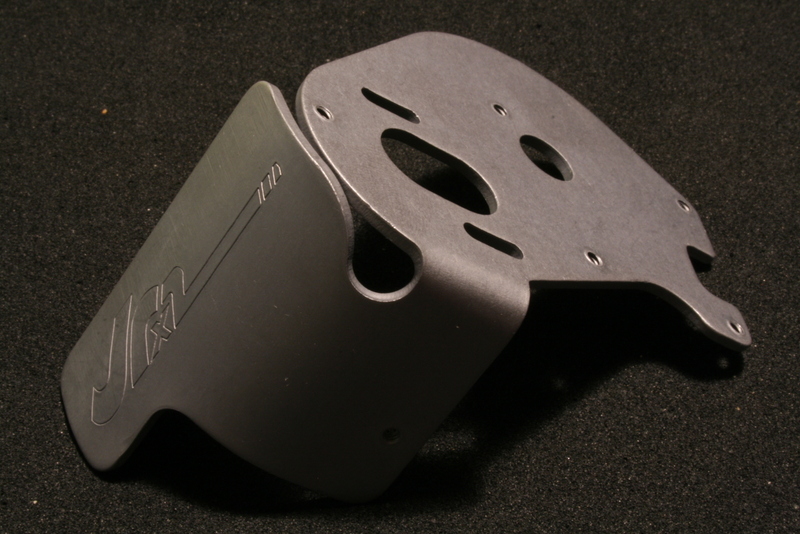

I have some loose motorplates I can pic for reference from the blank, to the non notched JRX-2 and the Team Losi Performance version

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Thu Dec 13, 2007 2:43 am
Location: Illinois, USA
Been thanked: 3 times

Re: Evolution of front bulkheads and motor plates

Post by highwayracer »

scr8p wrote:anyone that actually wanted to finish a race used the red heavy duty bellcranks. :wink:

ask me how i know....... :roll:
You're absolutely correct!!! I thought I was ok when using the white heavy duty piece on my car...until it broke. I made my own until the red version was given to me.

User avatar
GoMachV
Approved Member
Posts: 11115
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 730 times
Been thanked: 2105 times

Re: Evolution of front bulkheads and motor plates

Post by GoMachV »

Charlie don't surf wrote:I have some loose motorplates I can pic for reference from the blank, to the non notched JRX-2 and the Team Losi Performance version
It probably wouldn't hurt if they aren't shown on that other thread, but for my use the notched would be too new anyway
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Thu Dec 13, 2007 2:43 am
Location: Illinois, USA
Been thanked: 3 times

Re: Evolution of front bulkheads and motor plates

Post by highwayracer »

For the front bulkhead, there are 2 versions with the jrx2 stamp. The original has a lip that extends past the bottom of the bulkhead...so it actually covered the front of the chassis. The later version did not have the lip. This was done because of the above chassis bumper...which required the lip to be cut off.

The xt's bumper mounted below the chassis...so it originally had the first version of the bulkhead.
