Kyosho Outlaw Ultima

Post by sandkil »

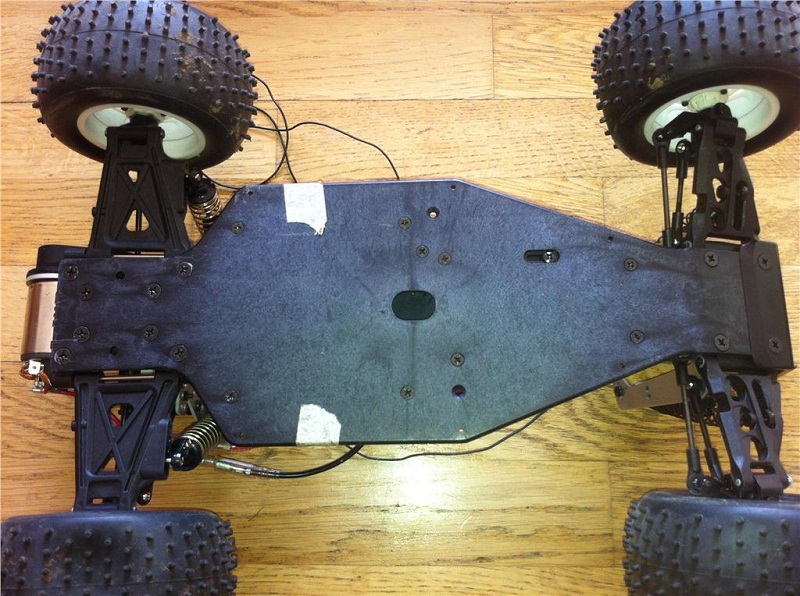

A nice start on a restoration.
Attachments
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

Started cleaning process and some assembly.
Differential and gearbox
Attachments

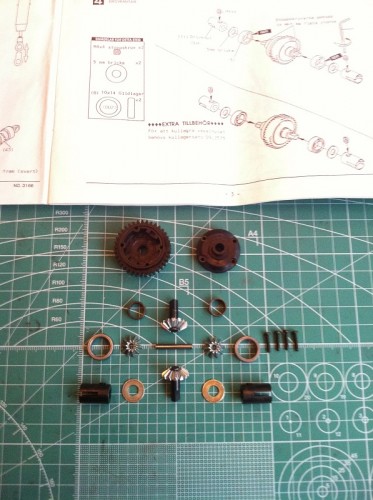

Differential
Differential
Gearbox & Differential
Gearbox & Differential

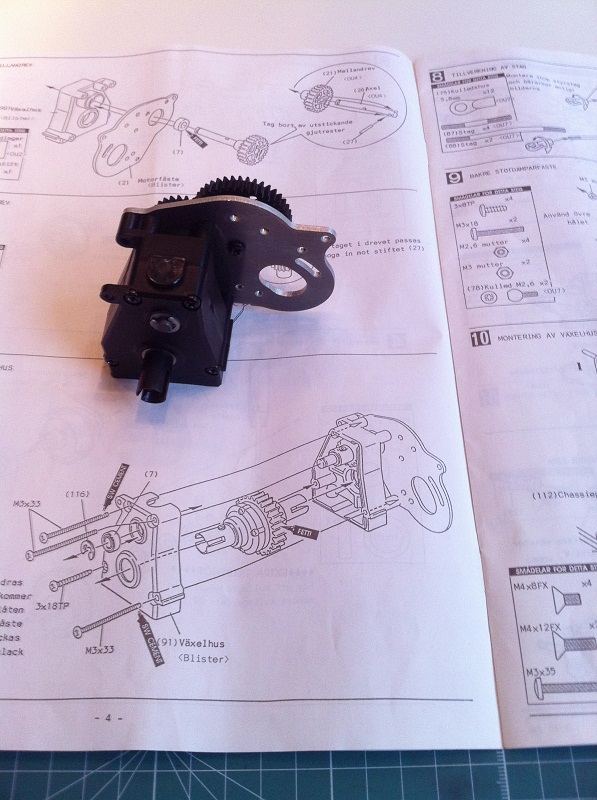

Complete Gearbox
Complete Gearbox
Top
User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden
Been thanked: 4 times

Re: Latest find. Kyosho Outlaw Ultima

Post by j0pp3 »

Looks great. I like the presentation.
Cheers
Joel
Top
User avatar
Momo5
Approved Member
Posts: 398
Joined: Mon Dec 08, 2008 12:47 pm
Location: Farmington, MO
Has thanked: 1 time

Re: Latest find. Kyosho Outlaw Ultima

Post by Momo5 »

The Outlaw Ultima truck is one of the RCs I drooled over as a kid. It was just something about the way it looked, and it still looks cool to me. I'll be watching this build. I'd like to get one someday.
Top
User avatar
mtbkym01
Approved Member
Posts: 345
Joined: Sat Dec 17, 2011 8:31 pm
Location: South Australia
Has thanked: 118 times
Been thanked: 71 times

Re: Latest find. Kyosho Outlaw Ultima

Post by mtbkym01 »

I'll definitely watch your build with interest, here's a pic of mine

Of interest, does yours have the chassis side guards that fill the gap between the chassis and body. I've been unable to locate any, and have been considering making some out of some styrene sheet or similar
You name it - and I want it ;)
If it's Old Skool, It's Kool
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

j0pp3 wrote:Looks great. I like the presentation.
Thanx,
The photos are not that good in quality. I'm only using my Iphone so..
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

mtbkym01 wrote:I'll definitely watch your build with interest, here's a pic of mine

Of interest, does yours have the chassis side guards that fill the gap between the chassis and body. I've been unable to locate any, and have been considering making some out of some styrene sheet or similar
Hi,
Nice one! Mine does miss the side guards too and i have been searching like hell for new/better used, but no luck so far.
I think that they where not used when using stick battery packs. My neighbor had one off these when we where kids and he cut a hole in the "Guards" Just to change the stick pack.
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

Some work done this weekend.
Attachments
Turnbuckles.
Turnbuckles.

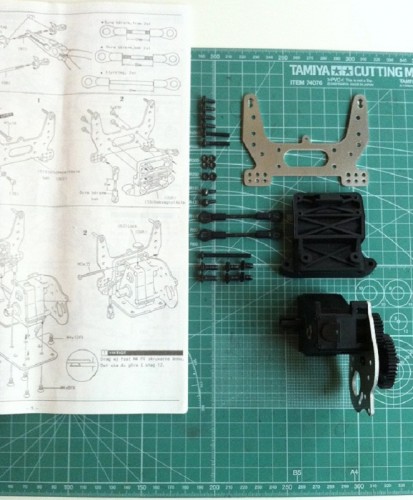

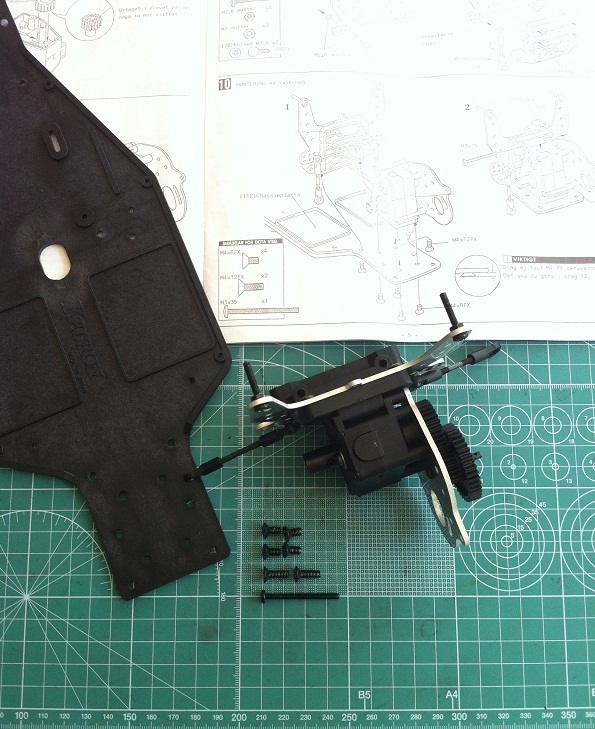

Gearbox and rear bulkhead.
Gearbox and rear bulkhead.
Gearbox and rear bulkhead.
Gearbox and rear bulkhead.
Rear suspension arms.
Rear suspension arms.
Rear end.
Rear end.
Front end.
Front end.

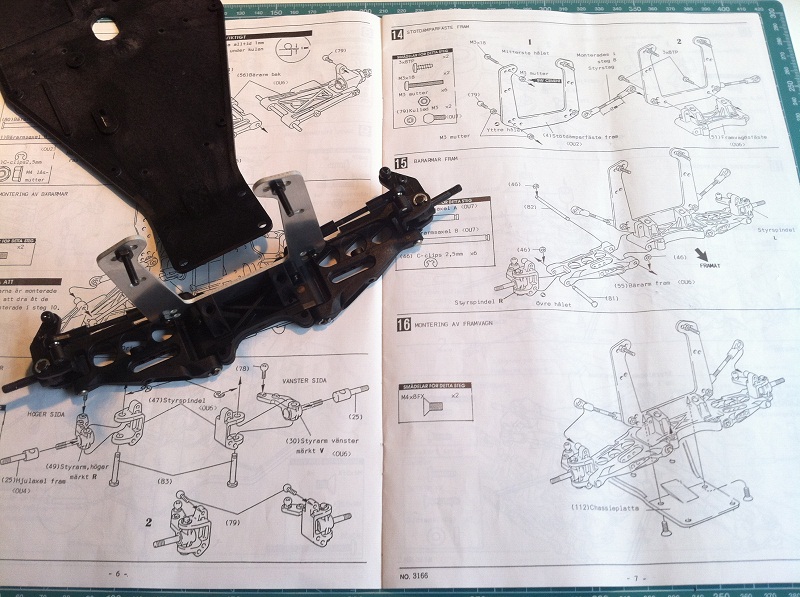

Front suspension arms and front bulkhead.
Front suspension arms and front bulkhead.
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

Getting there
Attachments
Top
User avatar
Hcp22
Approved Member
Posts: 1858
Joined: Sat Jun 19, 2010 10:31 am
Location: Gothenburg Sweden
Has thanked: 33 times
Been thanked: 16 times

Re: Latest find. Kyosho Outlaw Ultima

Post by Hcp22 »

sandkil wrote:Getting there
Yes you are :D
Cheers
Lars

My Feedback
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

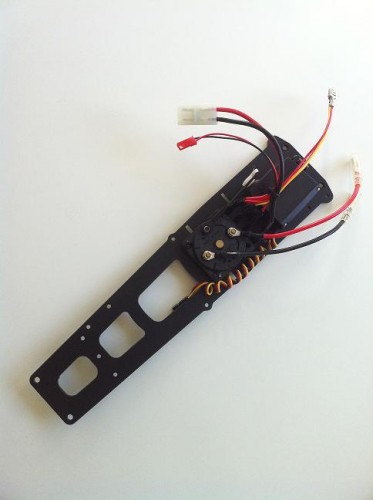

Sorry! It's been a while due to RC10 hysteria, but here is the top deck.
Attachments
Kyosho Outlaw Ultima.jpg
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

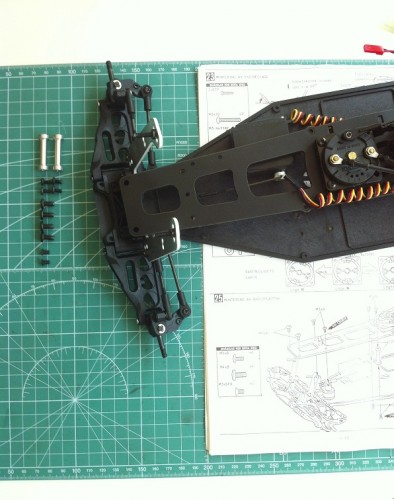

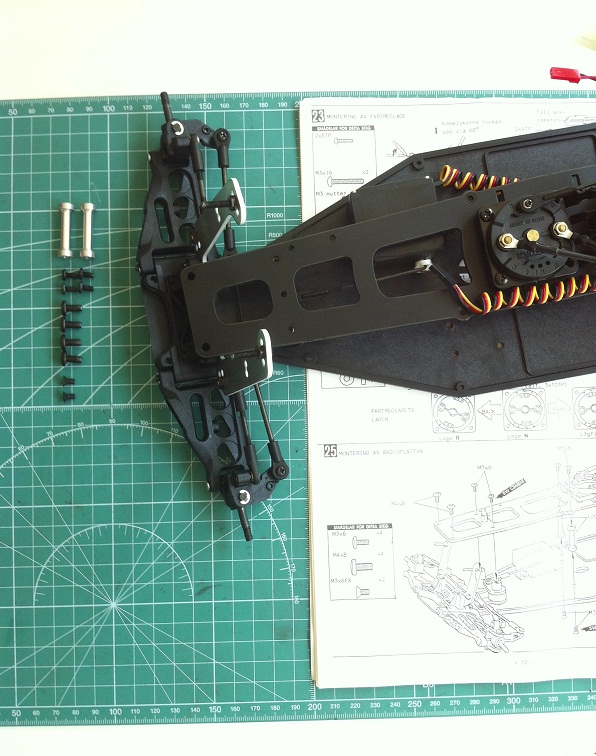

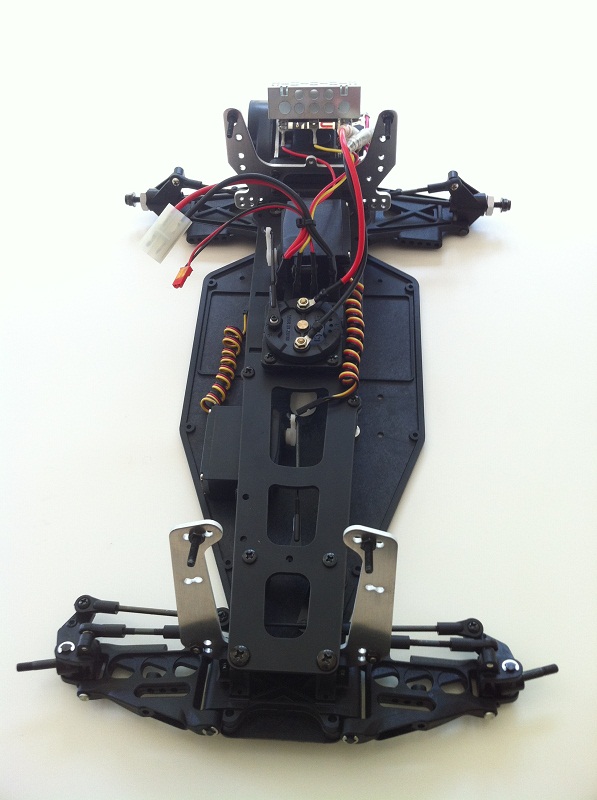

Merging top and bottom chassis.
Attachments
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

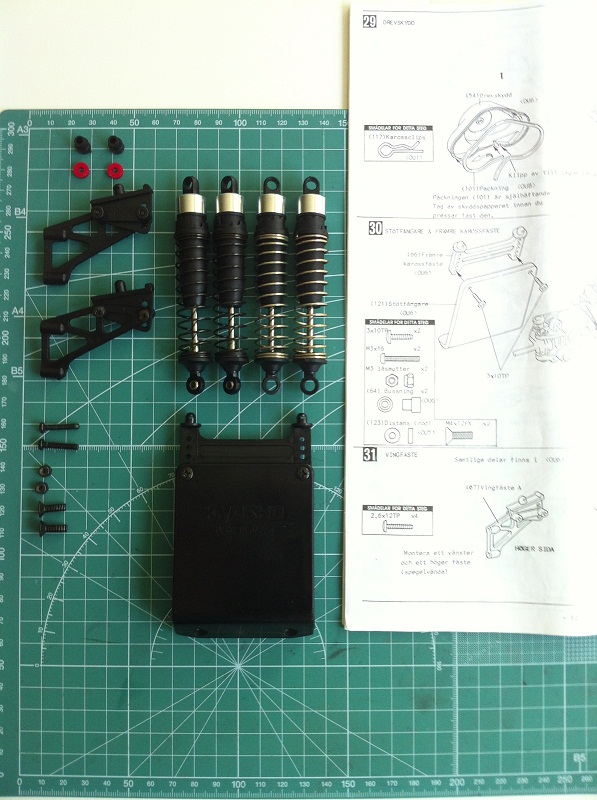

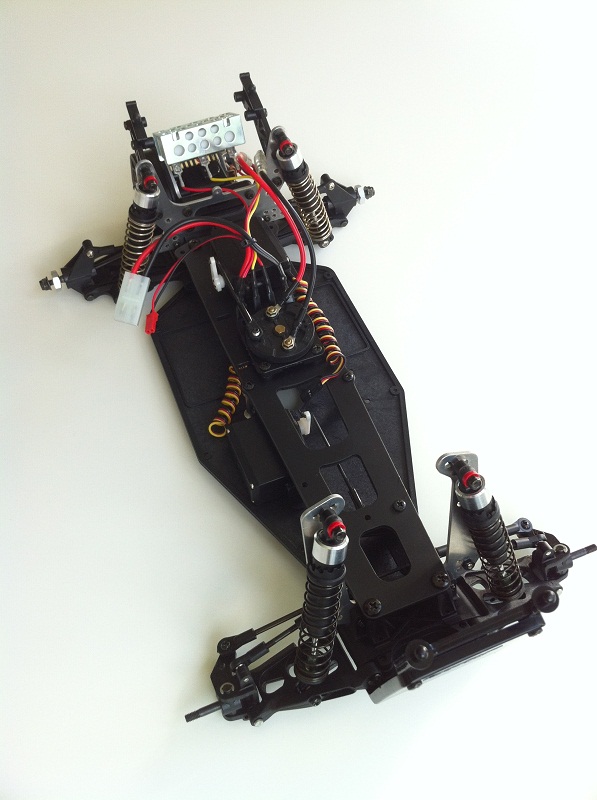

Front and rear shocks and body posts.
Attachments
Top
User avatar
FasterLouder
Approved Member
Posts: 1078
Joined: Thu Oct 23, 2008 12:22 pm
Location: AK,New Zealand (Paradise)
Has thanked: 5 times
Been thanked: 46 times

Re: Latest find. Kyosho Outlaw Ultima

Post by FasterLouder »

Nice job!
Do those use an Ultima II chassis,or is it different?
Think I almost have the parts to build one,bar the chassis.
All The Way Alive
Top
User avatar
sandkil
Approved Member
Posts: 1023
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 592 times
Been thanked: 406 times

Re: Latest find. Kyosho Outlaw Ultima

Post by sandkil »

FasterLouder wrote:Nice job!
Do those use an Ultima II chassis,or is it different?
Think I almost have the parts to build one,bar the chassis.
Thanx :)
Yes it's the Ultima II chassis. The difference is in the front end (body posts, shocks and tower).
