Lazer Lite pro stock old is new build.

Post by NCOHOG »

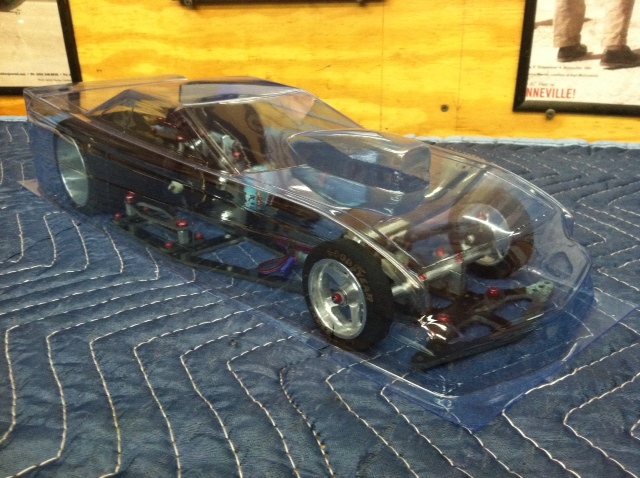

Well I always wanted one of the Lazer Light prostock cars when I was growing up. I finally found one awhile ago. After the coolness wore off I figured I would try an old is new build and turn it into a Promod car. the following are pictures of how it sits now. I kept all of the original parts that I didn't remake so I would be able to put the original version back together. Hope you all enjoy.

Thanks,
Brian
Attachments

User avatar
romulus22
Approved Member
Posts: 2438
Joined: Wed May 19, 2010 11:30 pm
Location: KY
Has thanked: 564 times
Been thanked: 577 times

Re: Lazer Lite pro stock old is new build.

Post by romulus22 »

That's a cool looking chassis.

User avatar
GoMachV
Approved Member
Posts: 11125
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 736 times
Been thanked: 2114 times

Re: Lazer Lite pro stock old is new build.

Post by GoMachV »

Very nice!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Coelacanth
Approved Member
Posts: 7342
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 265 times

Re: Lazer Lite pro stock old is new build.

Post by Coelacanth »

Forget the chassis (beautiful as it is)--I'd love that cutting machine!
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

THUNDERSTRIKE1
Approved Member
Posts: 2022
Joined: Sat Jan 20, 2007 9:41 pm
Location: Cape Carteret.NC
Been thanked: 22 times

Re: Lazer Lite pro stock old is new build.

Post by THUNDERSTRIKE1 »

Thats sweet!!! Like to know more about the cutting process too!!!! :lol: 8) don

User avatar
Hcp22
Approved Member
Posts: 1858
Joined: Sat Jun 19, 2010 10:31 am
Location: Gothenburg Sweden
Has thanked: 33 times
Been thanked: 16 times

Re: Lazer Lite pro stock old is new build.

Post by Hcp22 »

Thats so nice :shock: :D
Cheers
Lars

My Feedback

User avatar
THEYTOOKMYTHUMB
Super Member
Posts: 6764
Joined: Wed Oct 22, 2008 9:15 pm
Location: Evansville, IN
Has thanked: 1917 times
Been thanked: 1259 times

Re: Lazer Lite pro stock old is new build.

Post by THEYTOOKMYTHUMB »

Very slick! 8) As stated above, I'd love to hear details on the methods used.
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken

NCOHOG
Approved Member
Posts: 35
Joined: Tue Mar 06, 2012 2:28 am
Location: OHIO

Re: Lazer Lite pro stock old is new build.

Post by NCOHOG »

What would you guys like to know? Ask away and I will try to answer the best I can.

THUNDERSTRIKE1
Approved Member
Posts: 2022
Joined: Sat Jan 20, 2007 9:41 pm
Location: Cape Carteret.NC
Been thanked: 22 times

Re: Lazer Lite pro stock old is new build.

Post by THUNDERSTRIKE1 »

All i see is the thick plate its sitn on cant see any of the rest of whats used to cut the chassis plates.don

User avatar
Coelacanth
Approved Member
Posts: 7342
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 265 times

Re: Lazer Lite pro stock old is new build.

Post by Coelacanth »

A video of the machine in action would be better than any description. 8)
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

NCOHOG
Approved Member
Posts: 35
Joined: Tue Mar 06, 2012 2:28 am
Location: OHIO

Re: Lazer Lite pro stock old is new build.

Post by NCOHOG »

A video in action on that machine is going to be kind of hard. All you would see is coolant splashing around LOL.

I guess the break down of that project would be as follows.

Measured the original chassis with calipers.
Modeled the new chassis in Solidworks with the changes I wanted to make.

Programmed the aluminum fixture plate. in Edgecam.
Programmed the machining of the material in Edgecam.

Ran the fixture program and the part program on the machine.
The machine I used was a Mazak VTC-200. with a fusion Control.

There are actually two big plates in the one pictures.
One plate is a pallet(the one with the t-slots)

The second plate is the aluminum fixture plate.
It is mounted up off pallet on 123 blocks to keep from damaging the pallet when drilling thru the fixture plate.

The fixture program drills and taps certain holes in the fixture plate. These holes line up with some of the holes in the completed chassis.

Once the fixture was complete I loaded the material blank and clamped it down. The first thing the program does is drill all the holes.
After the holes are drilled I installed screws thru the material into the fixture plate. After the screws are in place the contouring of the parts begins. After the contouring is complete remove the screws and you have your finished parts. The only thing left is to countersink the holes. Now that I think about it I could counter sink the required holes in the machine and save a step.

Keep in mind this was done a big money machine. This was prior to having the machine I recently bought for my garage/shop/mancave/bar :mrgreen: I now use the same process just on a smaller machine and not at work after already being there 12 hours LOL.

Hope this helps a little bit.

Thanks,
Brian
