Leisure 100ss ?

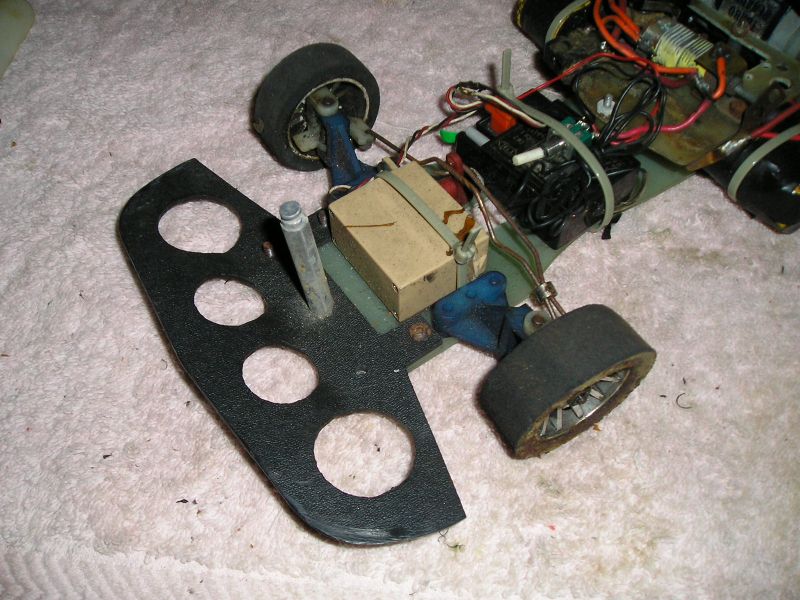

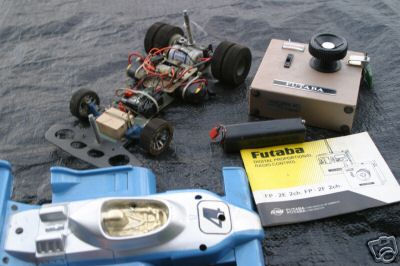

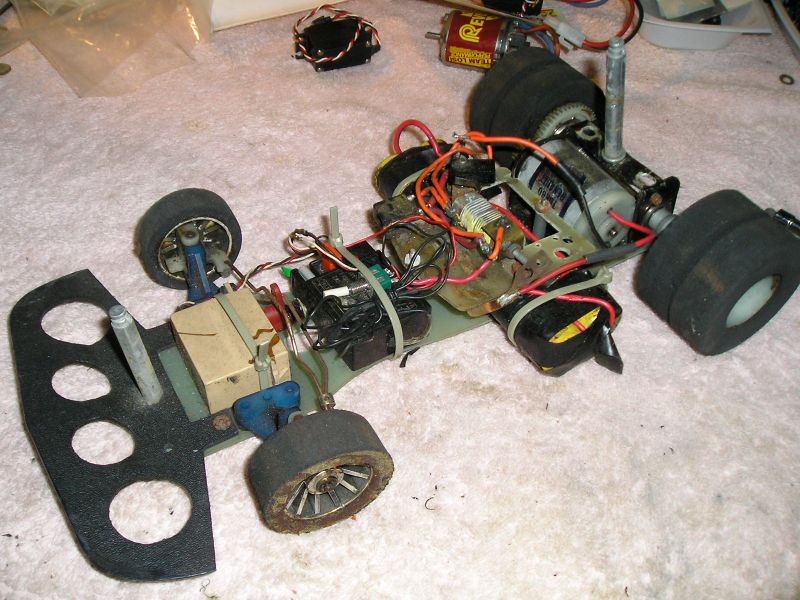

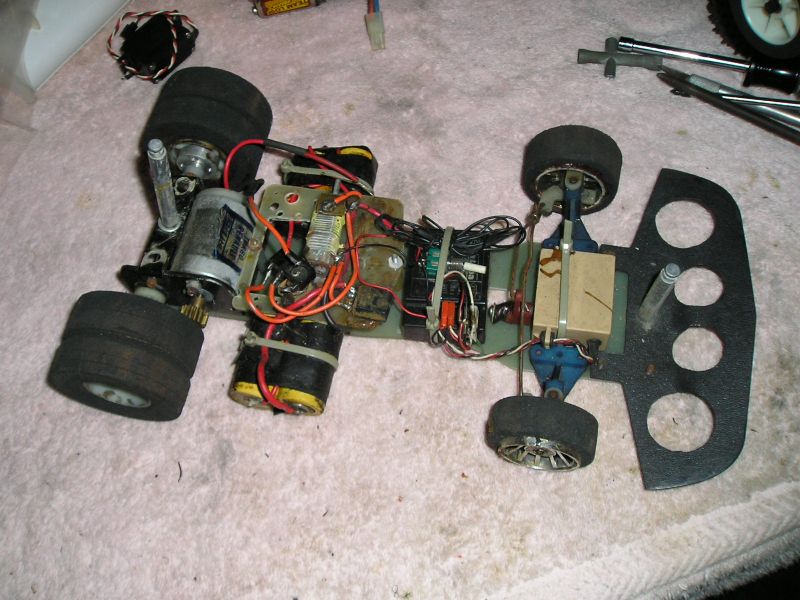

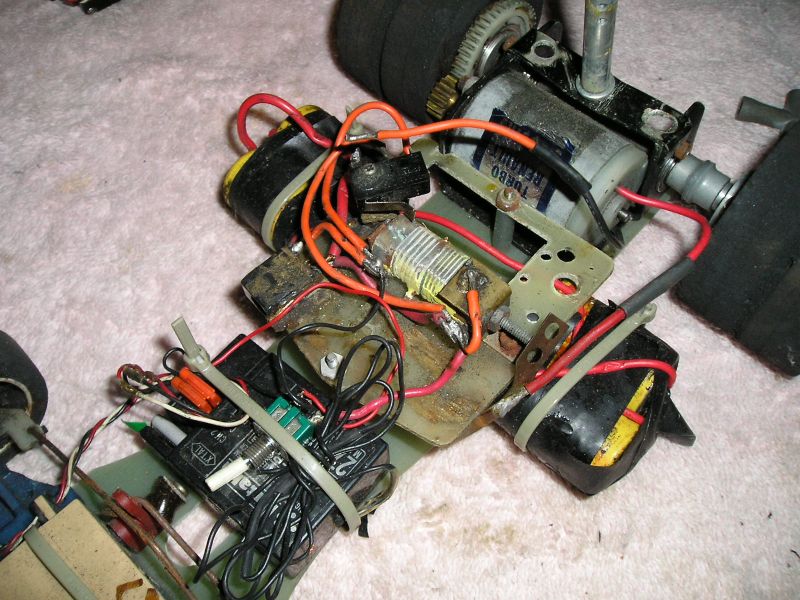

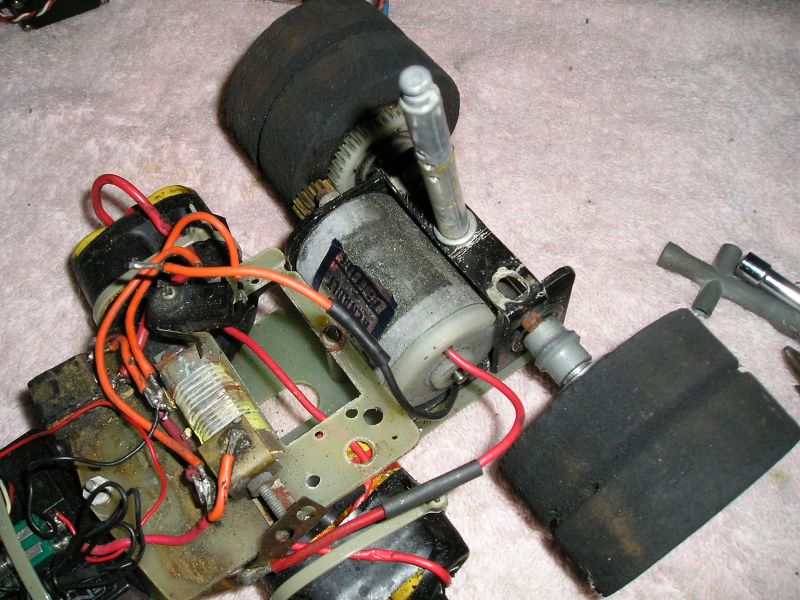

Well, another weirdo 1/12th car, I've already stripped it, but here's the auction, and before disassembly pics. :
- Attachments
-
- a132_1.jpg (24.32 KiB) Viewed 2268 times
- a132_1.jpg (24.32 KiB) Viewed 2268 times
-
- Leisure100_2.jpg (103.8 KiB) Viewed 2269 times
- Leisure100_2.jpg (103.8 KiB) Viewed 2269 times
-
- Leisure100_3.jpg (113.68 KiB) Viewed 2264 times
- Leisure100_3.jpg (113.68 KiB) Viewed 2264 times
-
- Leisure100_4.jpg (112.06 KiB) Viewed 2261 times
- Leisure100_4.jpg (112.06 KiB) Viewed 2261 times
-
- Leisure100_5.jpg (123.63 KiB) Viewed 2257 times
- Leisure100_5.jpg (123.63 KiB) Viewed 2257 times
-
- Leisure100_6.jpg (117.78 KiB) Viewed 2248 times
- Leisure100_6.jpg (117.78 KiB) Viewed 2248 times
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?

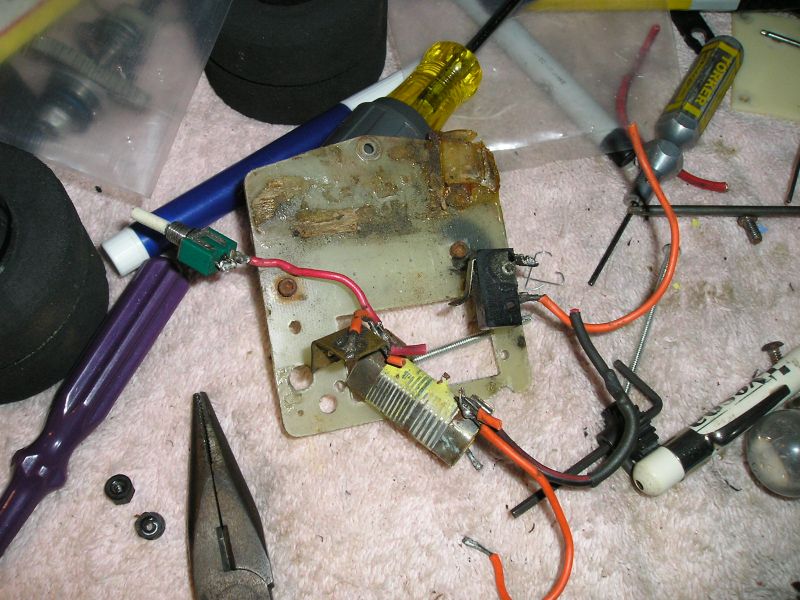

For a simple car the wiring got sort of overcomplicated. No worries, it'll all clean up nice.Asso_man! wrote:Nice, but what a mess in there
- Asso_man!
- Approved Member
- Posts: 3959
- Joined: Thu Aug 03, 2006 7:49 am
- Location: EU
- Has thanked: 40 times
- Been thanked: 70 times
Re: Leisure 100ss ?
I'm sure it will, especially with a sharpie
_____________________________________________
_____________________________________________
Come and visit the stable
_____________________________________________
Come and visit the stable
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
- Dr. Robotnik
- Approved Member
- Posts: 1442
- Joined: Wed Oct 11, 2006 11:05 am
- Location: Nutterham, United Kingdom
- Been thanked: 2 times
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?

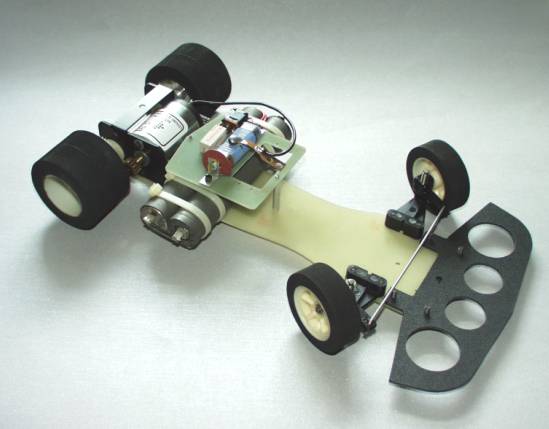

No, but the previous owner must have. Actually the front bumper holes are factory.Dr. Robotnik wrote:Have you thought about drilling some holes in it to make it lighter?
- Attachments
-
- Chassis_von_rechts_vorn.jpg (22.84 KiB) Viewed 2139 times
- Chassis_von_rechts_vorn.jpg (22.84 KiB) Viewed 2139 times
- Dr. Robotnik
- Approved Member
- Posts: 1442
- Joined: Wed Oct 11, 2006 11:05 am
- Location: Nutterham, United Kingdom
- Been thanked: 2 times
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?
Sorry, no that's not mine... I "borrowed" the picture from [CAUTION GERMAN CONTENT]:Dr. Robotnik wrote:^^^^J/K Is this after you've cleaned it up? If so it looks awesome.
http://www.rc-car-museum.de/1_12_Modelle_aus_aller_Welt/1_12_modelle_aus_aller_welt.html
My particular car is a bit different in some of the details, and is sort of a bitsa. The joys of standardised 1/12th screw spacings... As soon as I shovel myself out to the shop I'll get some progress pics.

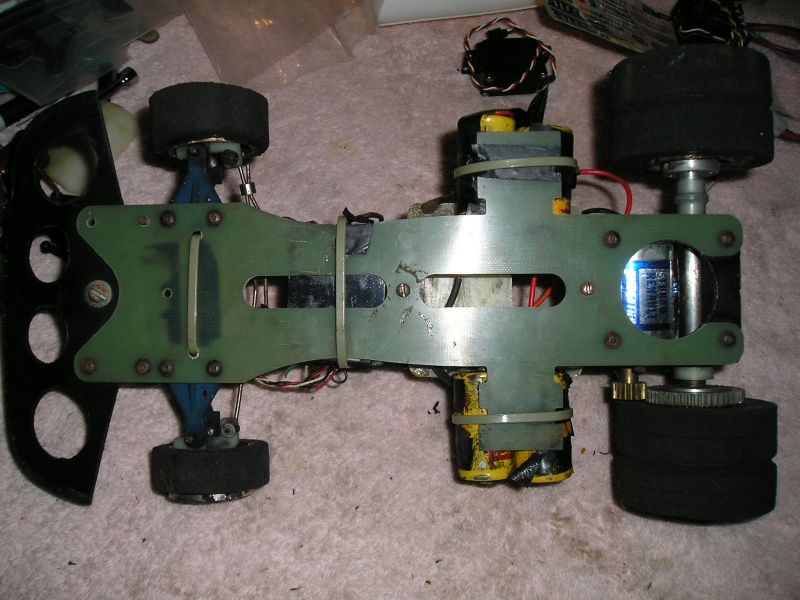

Here's a tasty bottom side shot I neglected to put up:
- Attachments
-
- Leisure100_7.jpg (89.98 KiB) Viewed 2122 times
- Leisure100_7.jpg (89.98 KiB) Viewed 2122 times
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?

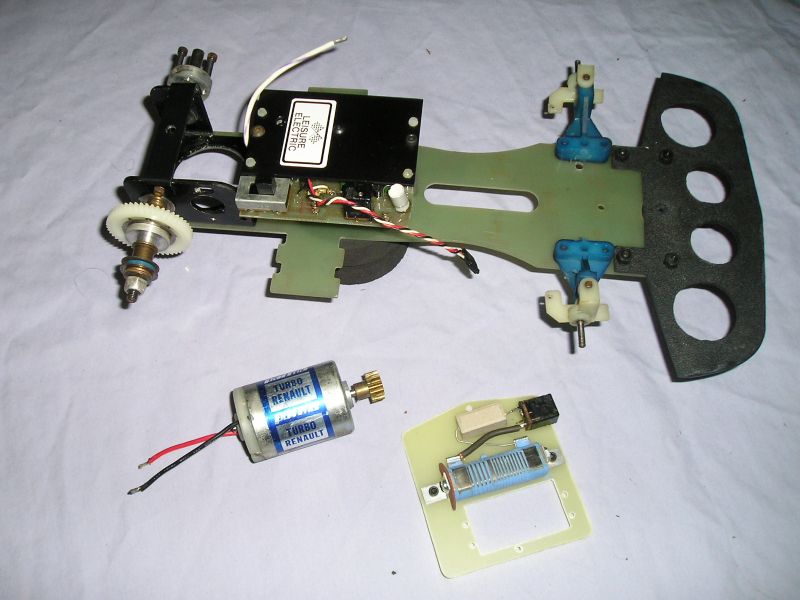

Some progress today:

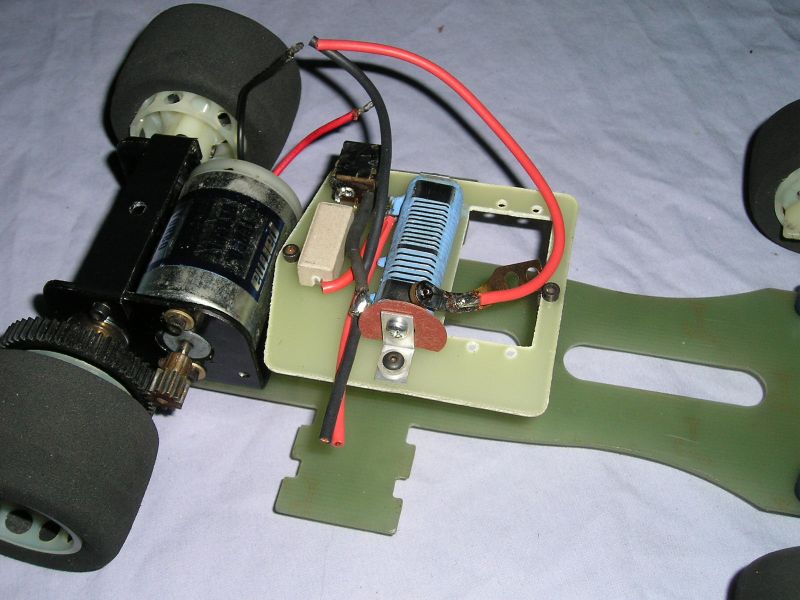

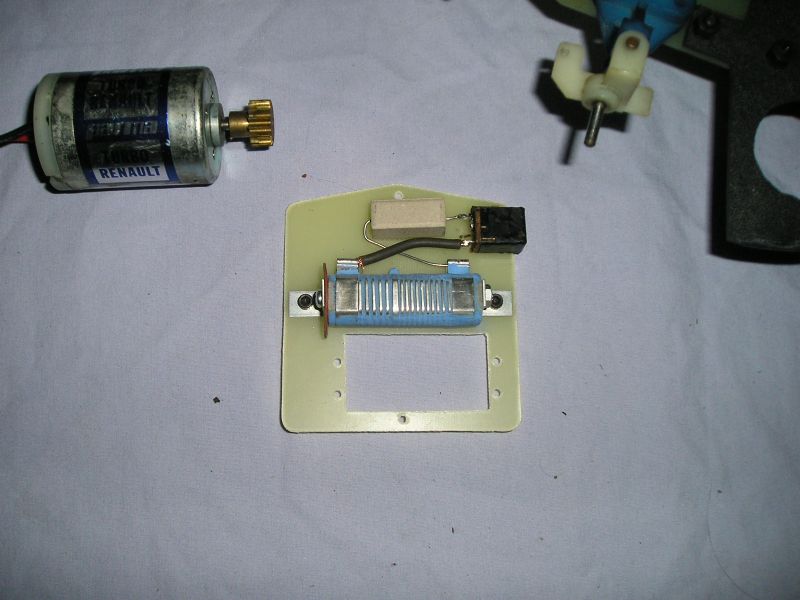

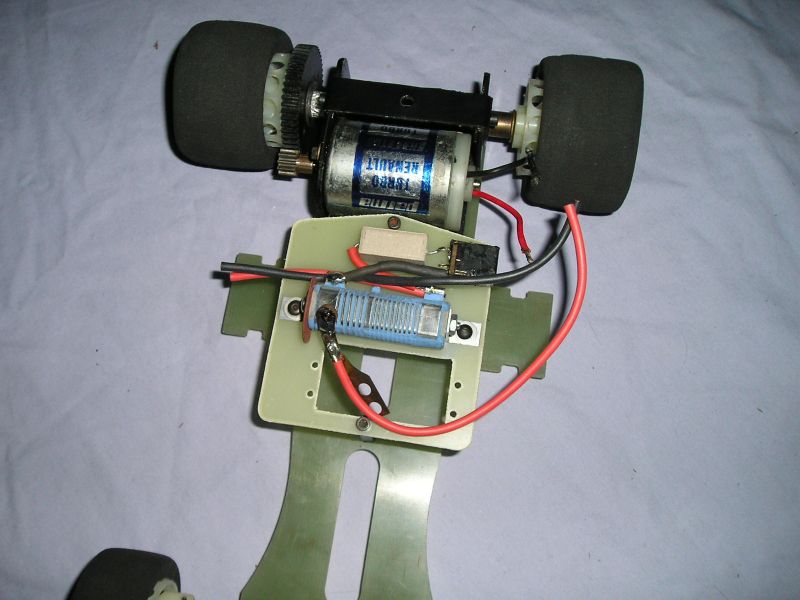

Built a new MSC tray with the suicide charge jack and resistors (the white bit is a 1.5 ohm resistor because the suicide cord is straight 12V, the black bit is the jack).

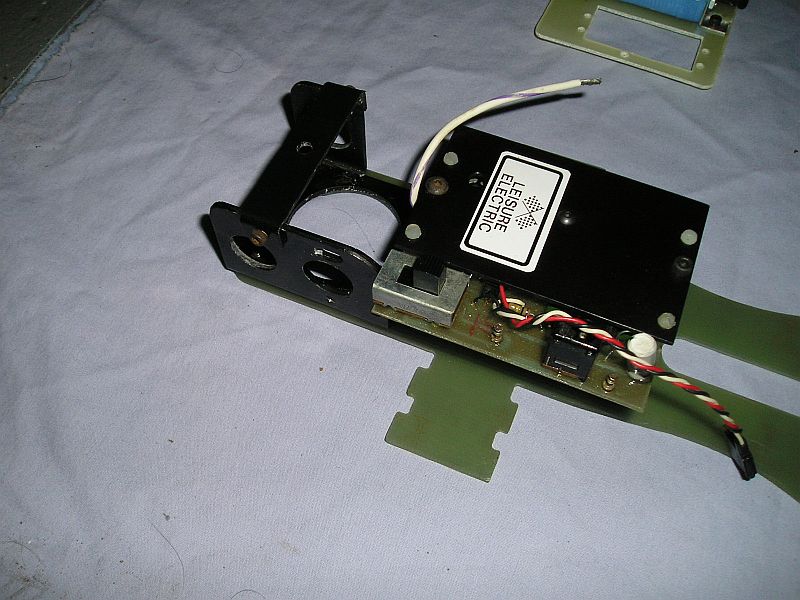

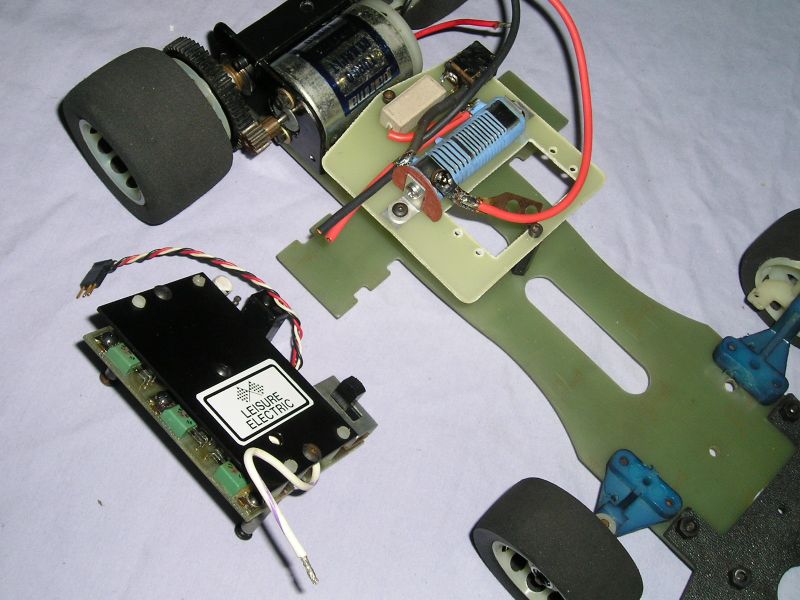

I also fitted the circa 1980 Leisure electronic speed control. I'm not too happy with the Associated rear axle/diff, but I've got a complete Jomac setup, including drilled wheels to try next, I guess to match the Jomac front end... Bitsa this, bitsa that...
At least the rat's nest of wiring is dealt with. It wasn't really obvious in the before pics but the front bumper had been heated with a lighter and bent up at about a 45º angle. I solved that with a heat gun... Nice and flat now. Also I did a mild cleanup on the Parma Turbo Renault motor.
Oh, and the motor pod got a little attention...

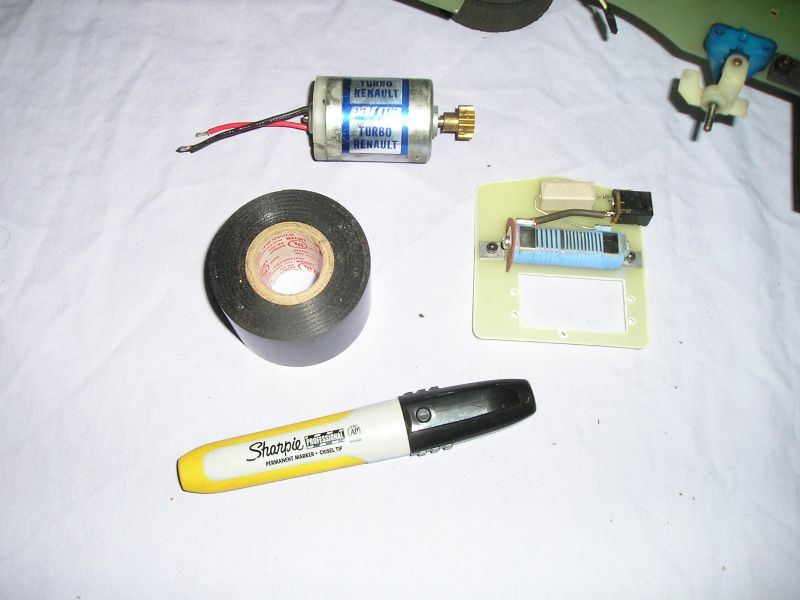

...using the "tools of the trade":
Built a new MSC tray with the suicide charge jack and resistors (the white bit is a 1.5 ohm resistor because the suicide cord is straight 12V, the black bit is the jack).
I also fitted the circa 1980 Leisure electronic speed control. I'm not too happy with the Associated rear axle/diff, but I've got a complete Jomac setup, including drilled wheels to try next, I guess to match the Jomac front end... Bitsa this, bitsa that...
At least the rat's nest of wiring is dealt with. It wasn't really obvious in the before pics but the front bumper had been heated with a lighter and bent up at about a 45º angle. I solved that with a heat gun... Nice and flat now. Also I did a mild cleanup on the Parma Turbo Renault motor.
Oh, and the motor pod got a little attention...
...using the "tools of the trade":
- Dr. Robotnik
- Approved Member
- Posts: 1442
- Joined: Wed Oct 11, 2006 11:05 am
- Location: Nutterham, United Kingdom
- Been thanked: 2 times
Re: Leisure 100ss ?
Awesome step-by-step restore mate just what I like to see.
BTW nice MSC tray replacement. Did you repalce the original because it had glue and residue stuck to it? If that's just the case and you want to save things like that in the future, a soak in acetone will remove the glue and then the part can be lightly polished with sand paper. It will look as new again. I have saved many parts like this.
You probably know that though but it might help someone...
BTW nice MSC tray replacement. Did you repalce the original because it had glue and residue stuck to it? If that's just the case and you want to save things like that in the future, a soak in acetone will remove the glue and then the part can be lightly polished with sand paper. It will look as new again. I have saved many parts like this.
You probably know that though but it might help someone...
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?
I didn't reuse the old msc tray because of the several extra holes (and having a few nib...). I've already given it a home in the plastic scraps box. I'm not one for tossing parts that may have a further use in life.
I wonder why acetone does not break down the epoxies in the grp or cf?
I wonder why acetone does not break down the epoxies in the grp or cf?
- Dr. Robotnik
- Approved Member
- Posts: 1442
- Joined: Wed Oct 11, 2006 11:05 am
- Location: Nutterham, United Kingdom
- Been thanked: 2 times
Re: Leisure 100ss ?
I am glad you're not and thought you might know this one already for sure...templeofspeed wrote:I'm not one for tossing parts that may have a further use in life.
I wonder why acetone does not break down the epoxies in the grp or cf?
I wondered about the acetone glue thing before, maybe it's down to how long you leave them in for and/or surface area?
It's a strange one isn't it, but a good one....
Painted RC10T towers before
RC10T towers after (forgive my camera skills these parts look like new)
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Leisure 100ss ?
Well, a little more progress/options (I was breaking in the new tip on the old Ungar UTC-300 )

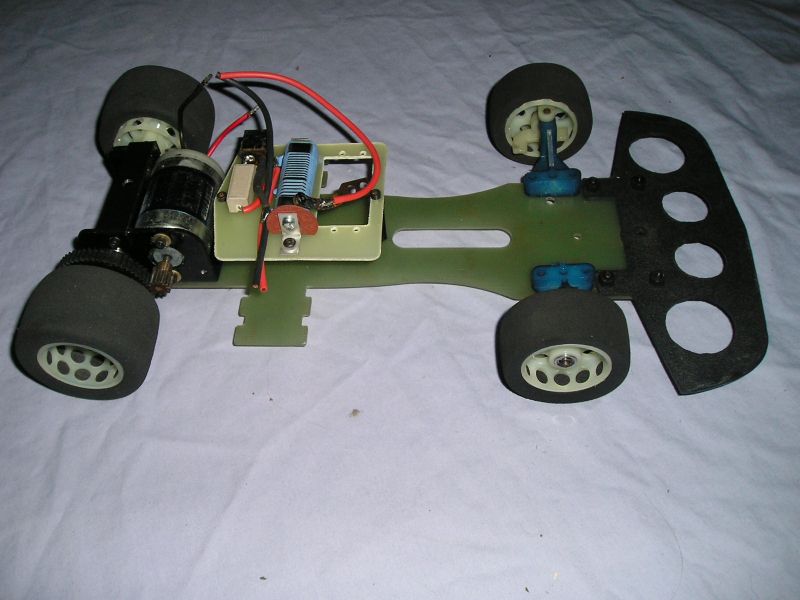

I went ahead and built up a Jomac rear axle/diff and front and rear lightweight wheels:
I also fully did up the msc and kind of like it, suicide jack and all (I've been searching for a new jack, but it seems that there are no new 1970's type out there...). I also can't seem to find any black Dean's five pin connectors. I haven't made up the rx harness yet (remember, this is before BEC's) with the dropping diodes, due to the lack of Dean's connectors.

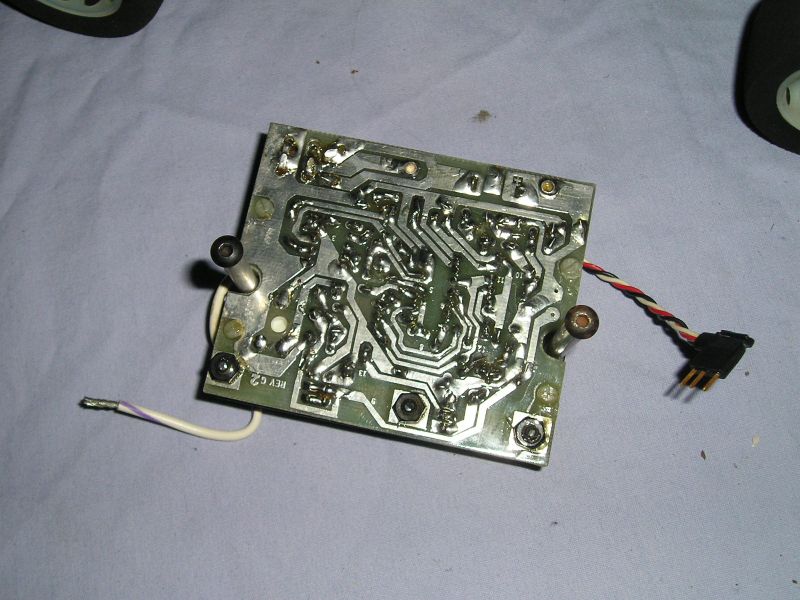

A backside shot of the Leisure 103 elecronic speed control... this is your "Novak 1"'s daddy:
And a comparo between the two:

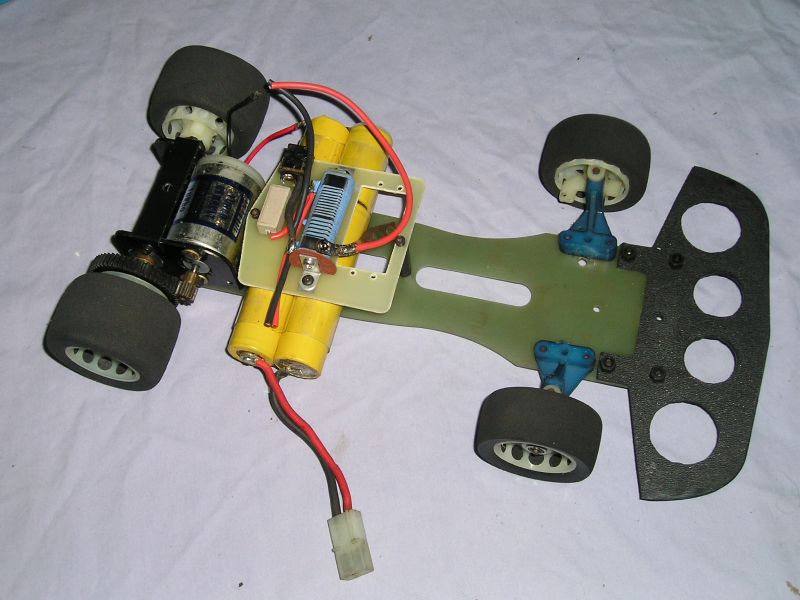

And a full battery shot:
C'mon you guys (and gal) show your 1/12th stuff.... I'm wanting to see someone else's rides. And I'm sure you are all sick of seeing mine.
I went ahead and built up a Jomac rear axle/diff and front and rear lightweight wheels:
I also fully did up the msc and kind of like it, suicide jack and all (I've been searching for a new jack, but it seems that there are no new 1970's type out there...). I also can't seem to find any black Dean's five pin connectors. I haven't made up the rx harness yet (remember, this is before BEC's) with the dropping diodes, due to the lack of Dean's connectors.
A backside shot of the Leisure 103 elecronic speed control... this is your "Novak 1"'s daddy:
And a comparo between the two:
And a full battery shot:
C'mon you guys (and gal) show your 1/12th stuff.... I'm wanting to see someone else's rides. And I'm sure you are all sick of seeing mine.
