Quadra-symmetric RC10
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Quadra-symmetric RC10
1. INTRO

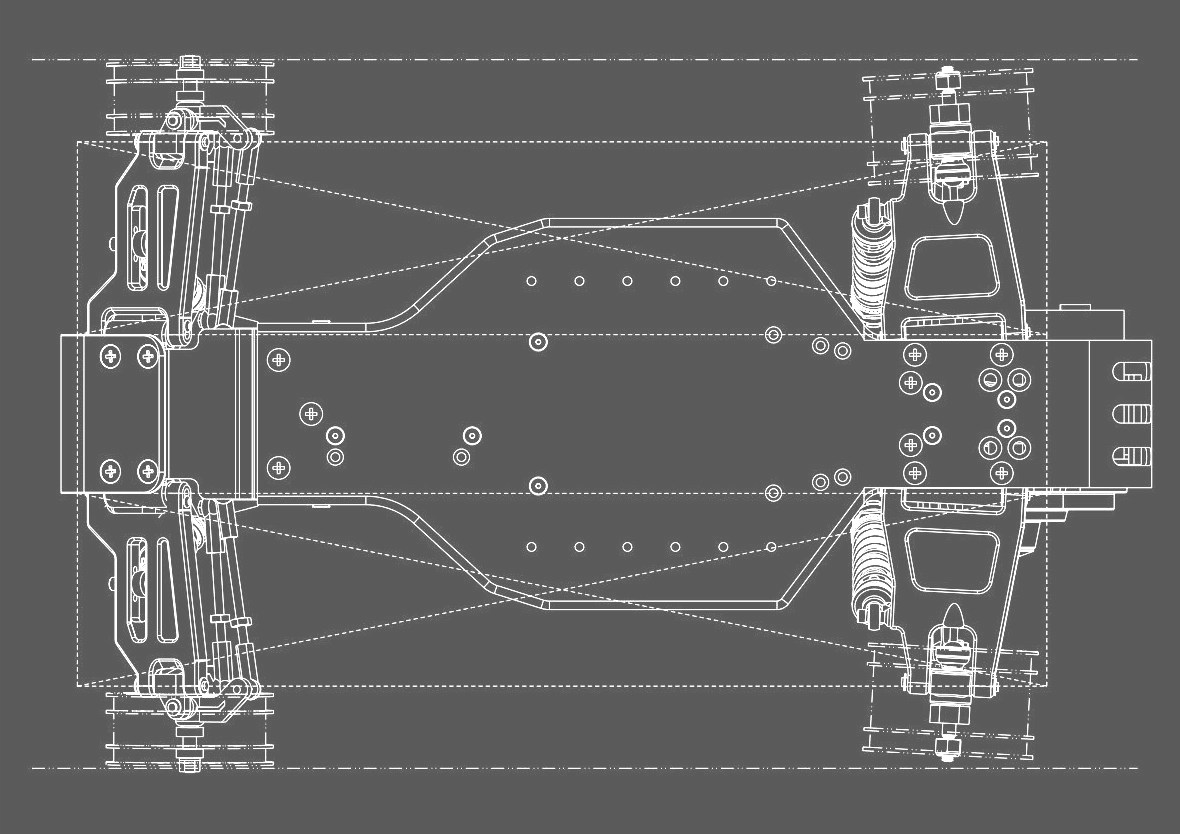

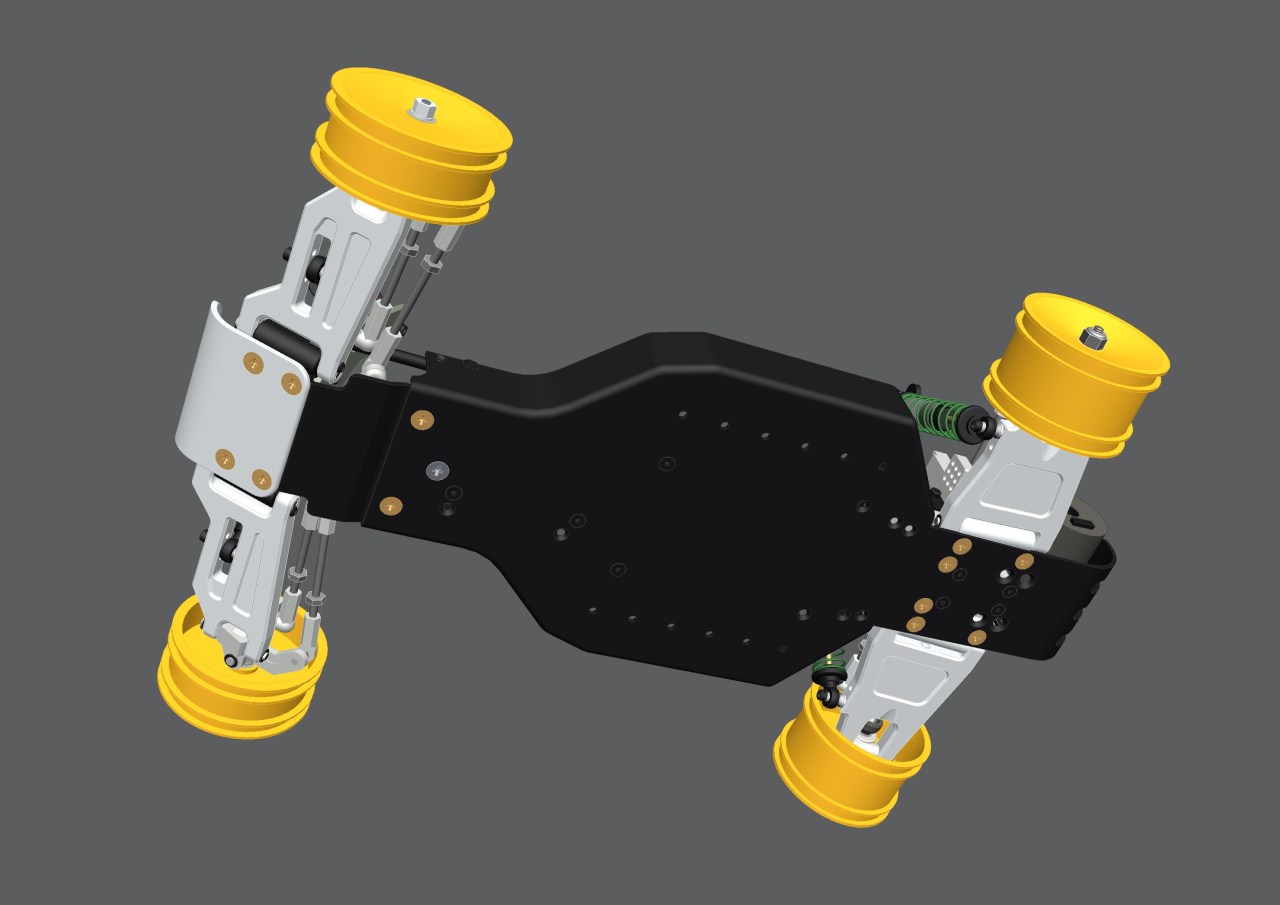

While designing longer arms for NIX10M, I started to think about so called quadra-symmetric suspension layout used from RC10B3 onwards.
Can it be done for tub chassis RC10 and how much tuning is needed?

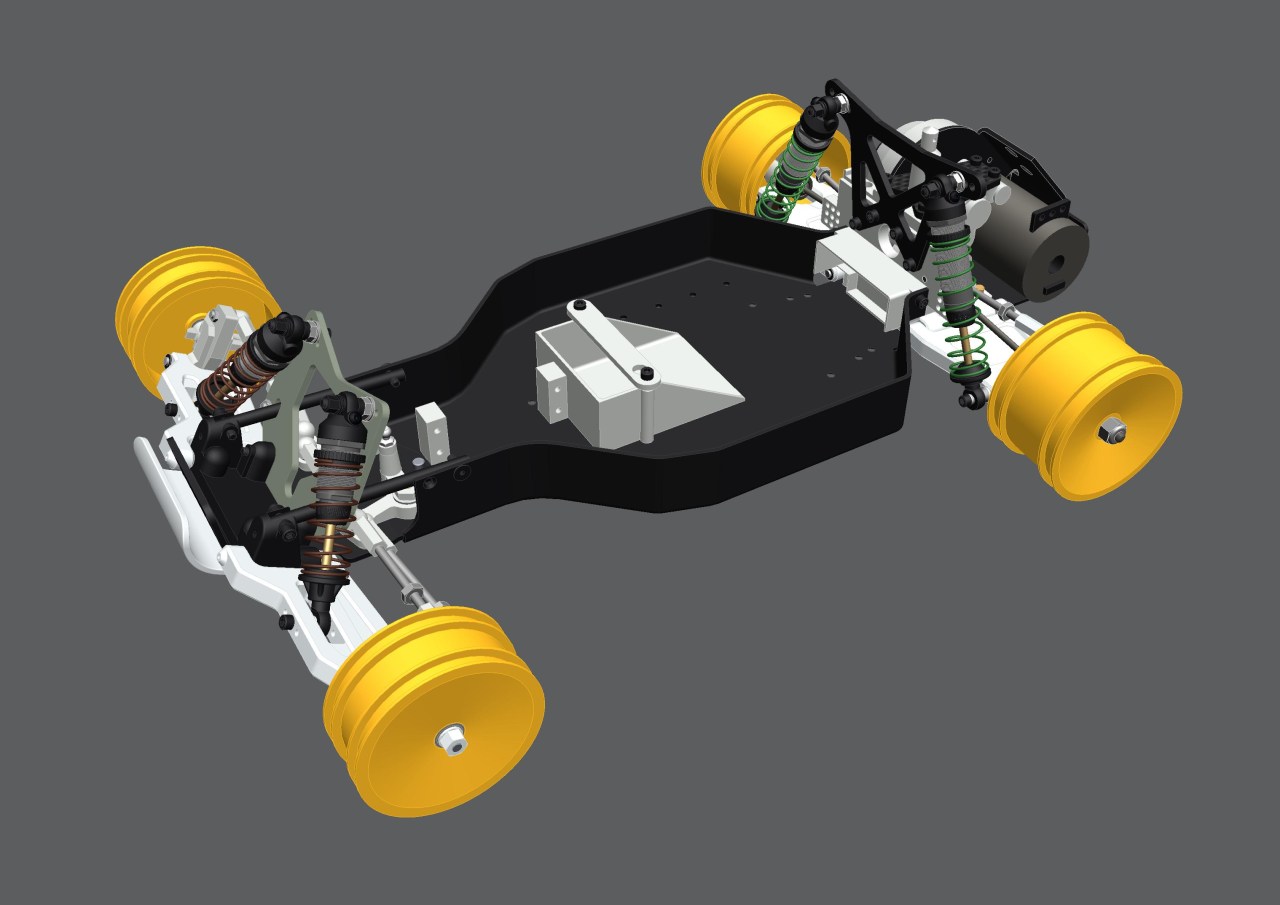

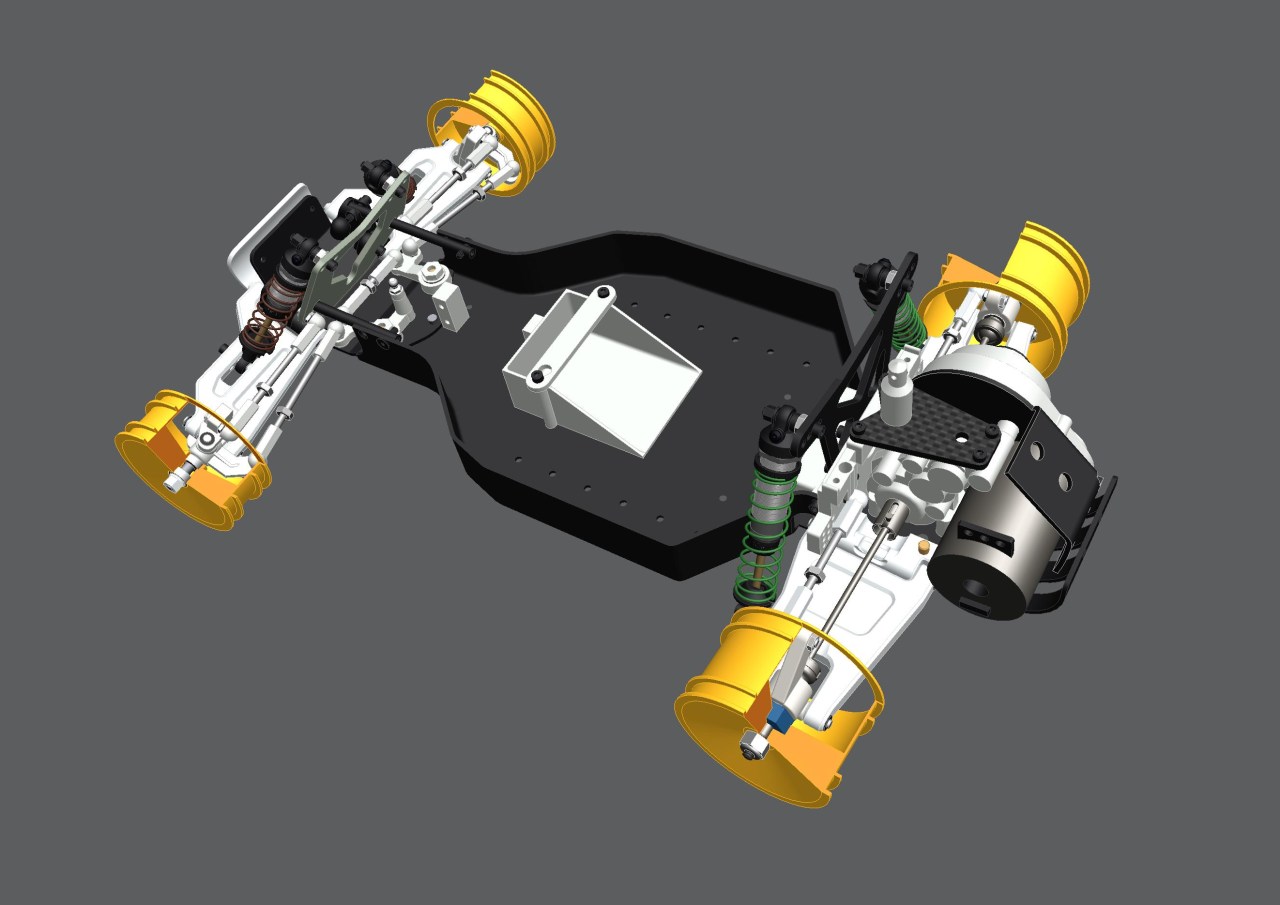

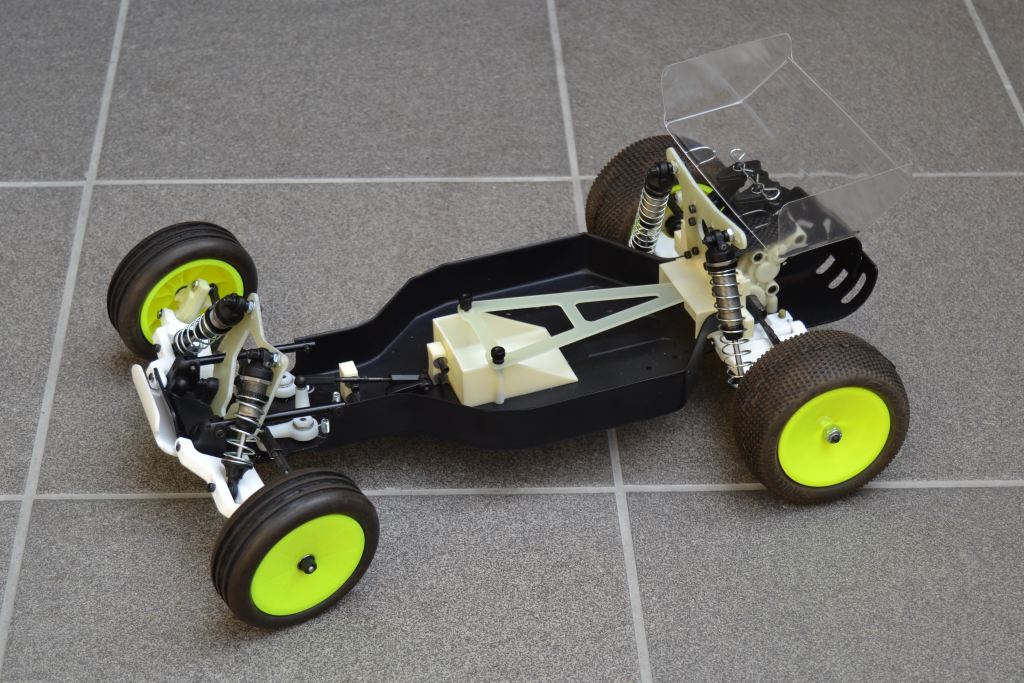

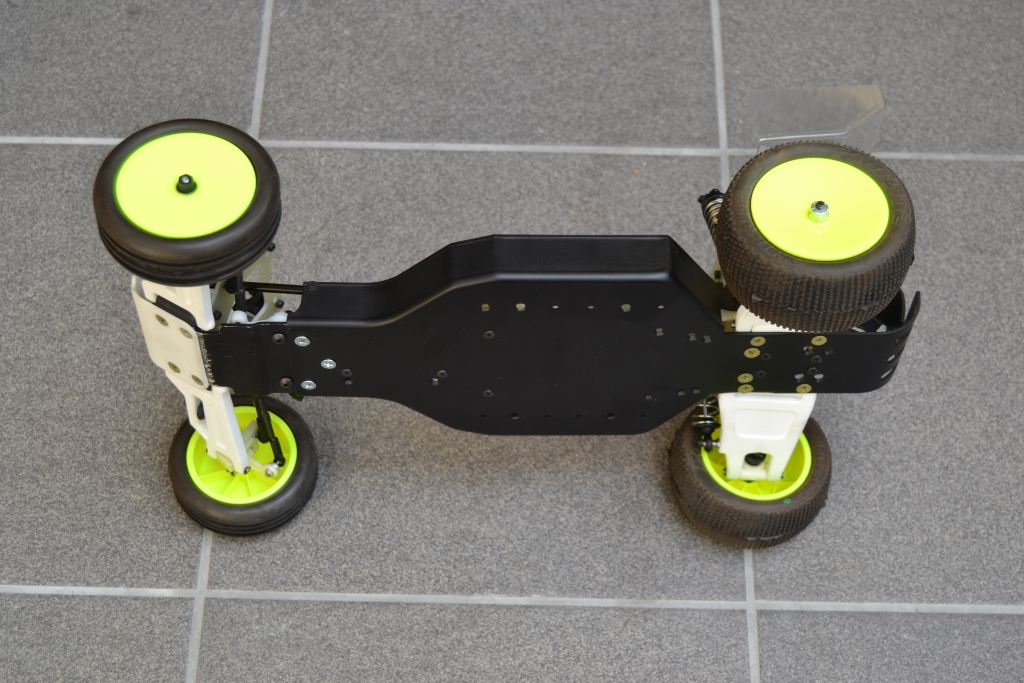

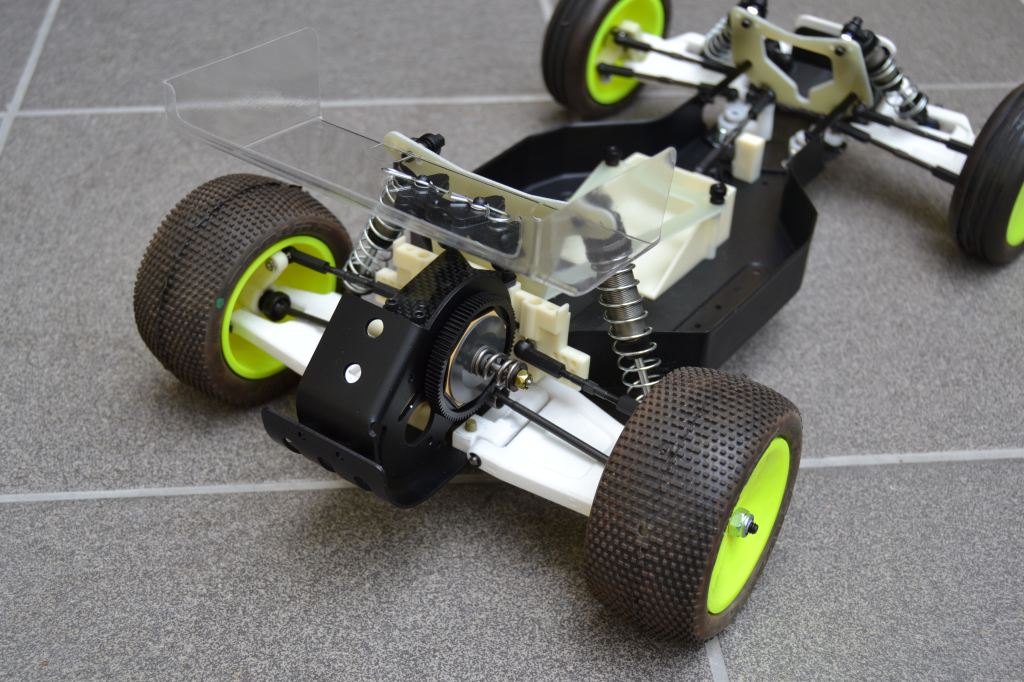

Well, here it is... new long arms and new rear inner arm mounts. No other really special parts.
I wanted it to be as wide as possible within race rules.
-Niki-
While designing longer arms for NIX10M, I started to think about so called quadra-symmetric suspension layout used from RC10B3 onwards.
Can it be done for tub chassis RC10 and how much tuning is needed?
Well, here it is... new long arms and new rear inner arm mounts. No other really special parts.
I wanted it to be as wide as possible within race rules.
-Niki-
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Re: Quadra-symmetric RC10
2. PARTS
#6002 Worlds Car Kit
#7305 Nose plate (10T/GT)
#7207 Front bulkhead (10T/GT)
#7315 Nose brace tubes (10T/GT)
Front shock tower for 10T type nose
(In this build NIX80031 was used. Cut your own using SLS template or order CNC milled part from gomachv)
Front bumper if wanted/needed. RC10 Quadra V2 Arm Set available now (update 2015-12-11)
Available at Shapeways also.

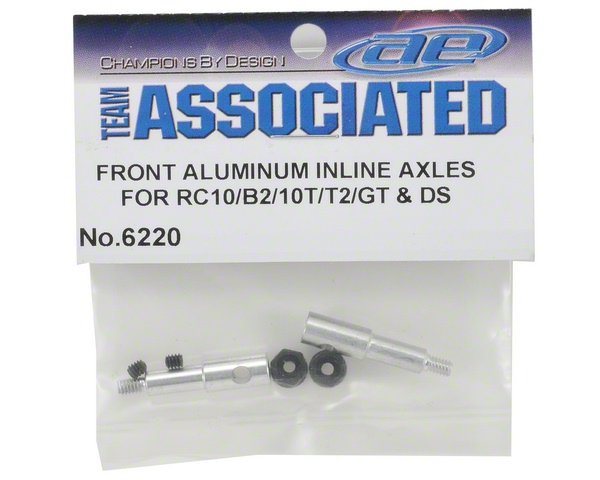

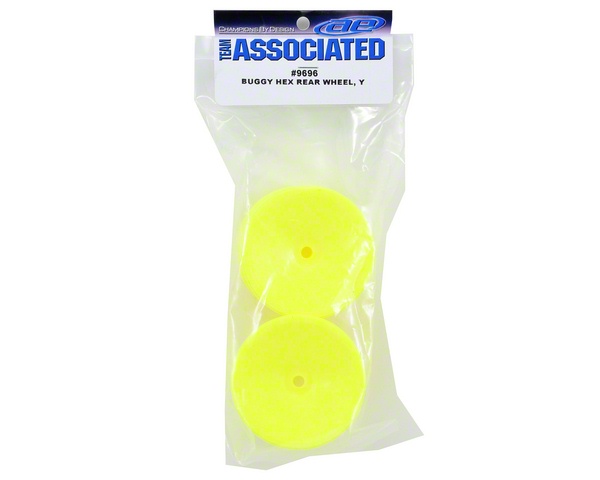

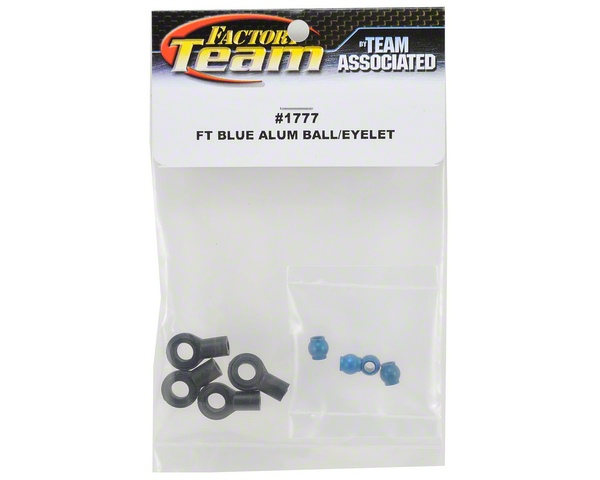

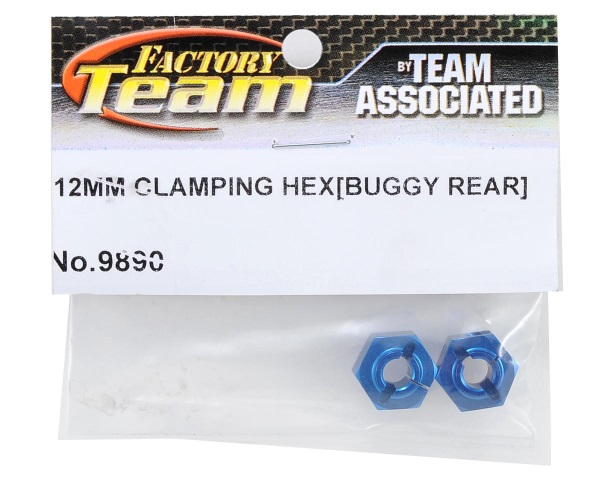

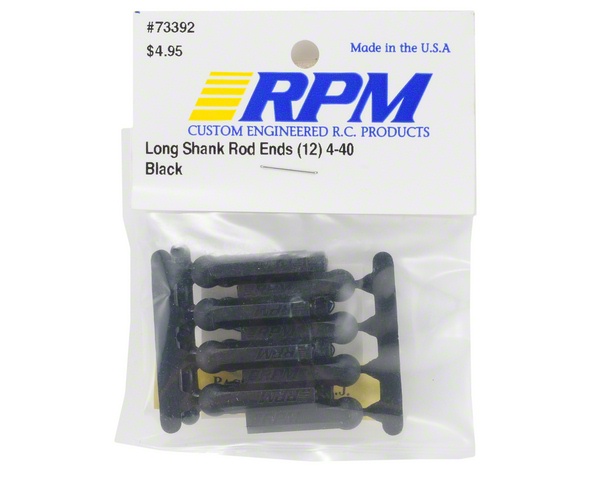

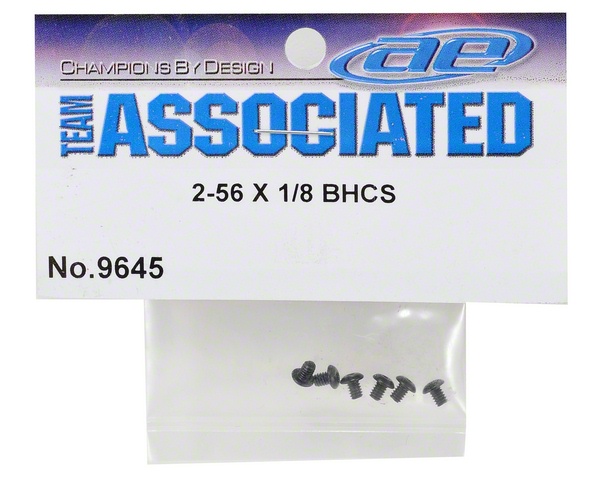

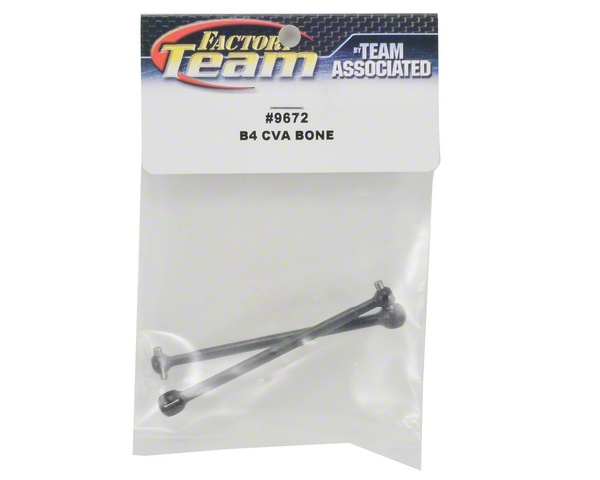

#1777 Shock alum ball/eyelet (Front shocks only) #9645 2-58x1/8 BHCS (Front arm inner hinge pin mounting) #6220 Inline axles #9672 B4 CVA Bone #9890 12mm clamping hex #9696 Rear hex wheels #73392 RPM Long Shank Rod Ends (AE #7230 Ball Cups might work also)
#6002 Worlds Car Kit
#7305 Nose plate (10T/GT)
#7207 Front bulkhead (10T/GT)
#7315 Nose brace tubes (10T/GT)
Front shock tower for 10T type nose
(In this build NIX80031 was used. Cut your own using SLS template or order CNC milled part from gomachv)
Front bumper if wanted/needed. RC10 Quadra V2 Arm Set available now (update 2015-12-11)
Available at Shapeways also.
#1777 Shock alum ball/eyelet (Front shocks only) #9645 2-58x1/8 BHCS (Front arm inner hinge pin mounting) #6220 Inline axles #9672 B4 CVA Bone #9890 12mm clamping hex #9696 Rear hex wheels #73392 RPM Long Shank Rod Ends (AE #7230 Ball Cups might work also)
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Re: Quadra-symmetric RC10
3. BUILD

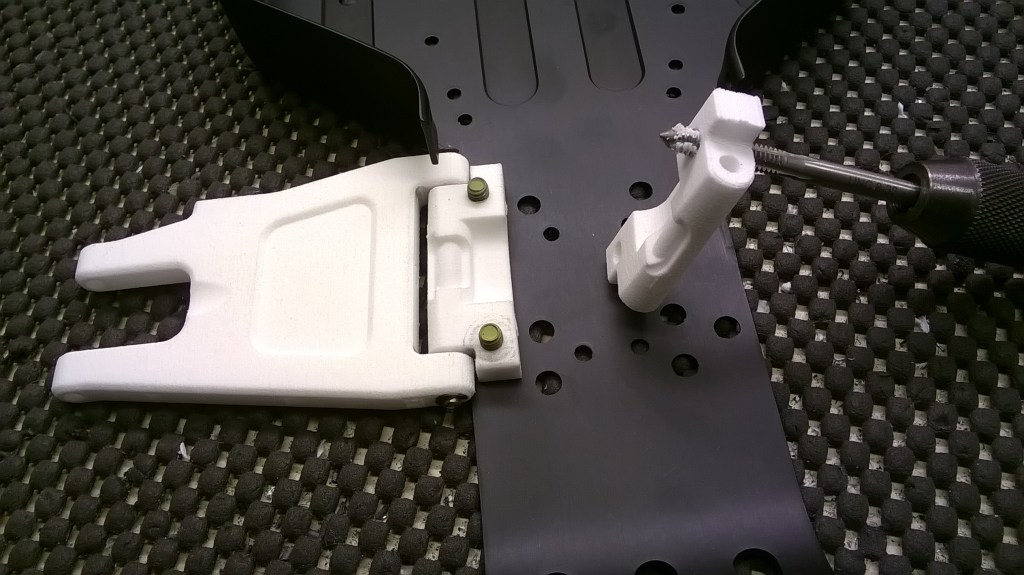

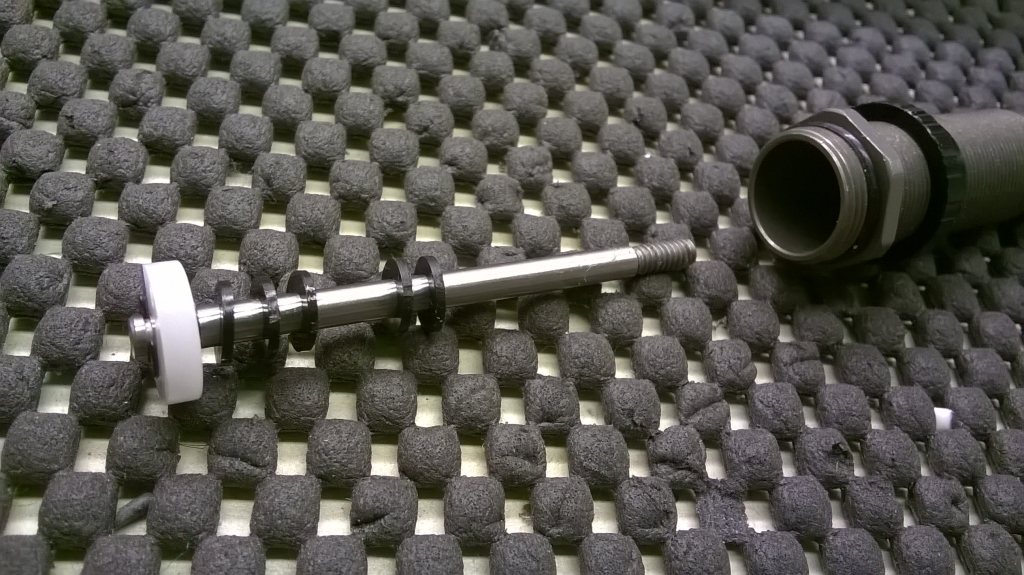

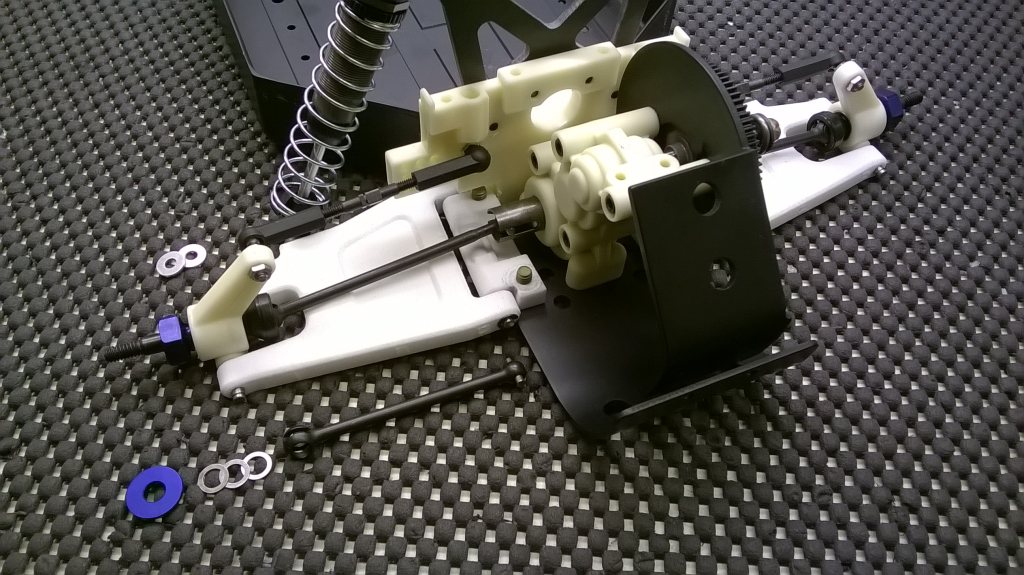

Tap and drill out all SLS part holes. RC10 bone and shims out. B4 bone and wheel hex in. No washers under shock lower end either. Five washers inside rear shock. Four might work also. No washers inside front shocks. There are good amount of front towers available for 10T bulkhead but I wanted to make my own.

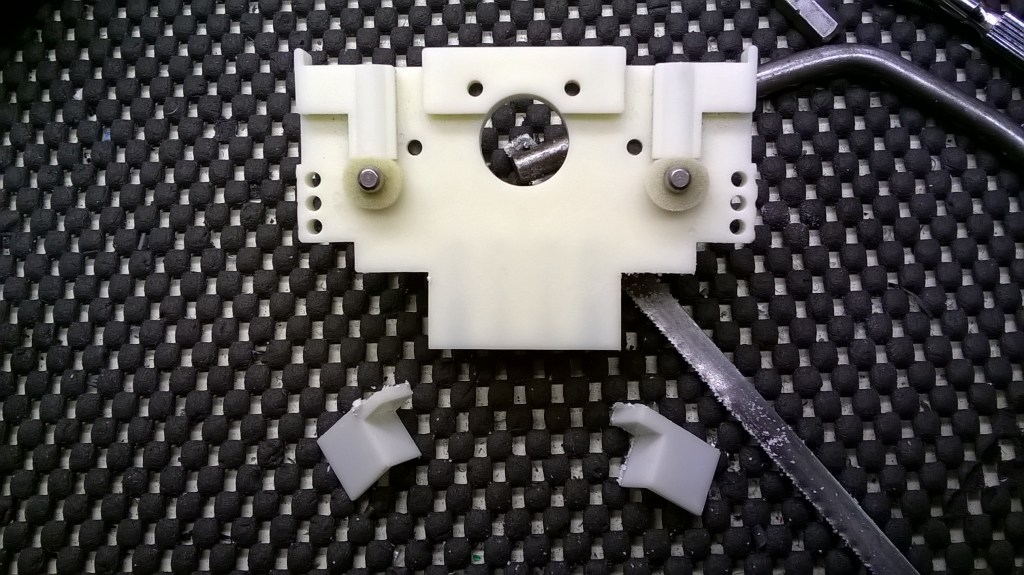

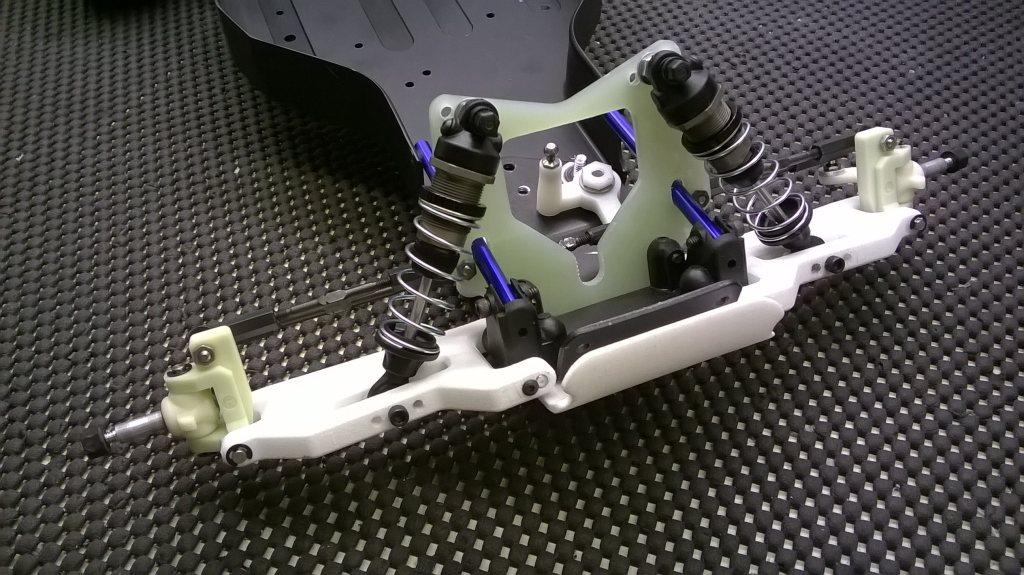

SLS cutting template and Dremel Workstation were used. Later I swapped both rear (NIX63772) and front tower (NIX80031) with CNC machined parts made by GoMachV.
Tap and drill out all SLS part holes. RC10 bone and shims out. B4 bone and wheel hex in. No washers under shock lower end either. Five washers inside rear shock. Four might work also. No washers inside front shocks. There are good amount of front towers available for 10T bulkhead but I wanted to make my own.
SLS cutting template and Dremel Workstation were used. Later I swapped both rear (NIX63772) and front tower (NIX80031) with CNC machined parts made by GoMachV.
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- abailey21
- Approved Member
- Posts: 273
- Joined: Sun Feb 13, 2011 1:28 pm
- Location: Leander TX
- Been thanked: 2 times
Re: Quadra-symmetric RC10
This thread is worthless without sending me some!
Maybe sure to link them if you're going to sell cause a long arm runner would be choice!
Maybe sure to link them if you're going to sell cause a long arm runner would be choice!
-
- Approved Member
- Posts: 1166
- Joined: Fri Mar 11, 2011 9:20 pm
- Location: Houston
- Been thanked: 4 times
Re: Quadra-symmetric RC10
I had been looking at doing the same thing too and also determined that the truck nose would have to be used. After thinking about things, all equal length arms would only be optimal if there was no front end kick. With front end kick, the front arms would optimally be longer. The exact length based on the level of kick. Losi got this right with the 22 (when using the 20° kick) which incidentally was also correct with the 91 Ifmar JR-XX car as well. All equal length is a big improvement over shorter front arms though so this will give you a much nicer handling car.
Raborn Racing Originals Shapeways store
- ChisaiKuso
- Approved Member
- Posts: 526
- Joined: Sun Jun 17, 2012 11:50 pm
- Location: United States
- Has thanked: 4 times
- Been thanked: 27 times
Re: Quadra-symmetric RC10
I will be watching this thread with great interest.
Something clever goes here...
- JK Racing
- Approved Member
- Posts: 4612
- Joined: Thu Jul 19, 2007 6:32 pm
- Location: Placentia, CA
- Has thanked: 115 times
- Been thanked: 217 times
Re: Quadra-symmetric RC10
Looks good Niki.
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
- Lonestar
- Approved Member
- Posts: 4270
- Joined: Wed Dec 12, 2007 10:17 am
- Location: Switzerland, yannow, in Europe (or almost)
- Has thanked: 623 times
- Been thanked: 167 times
Re: Quadra-symmetric RC10
basically a b4 with pan chassis
I love it
Paul
I love it
Paul
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
-
- Approved Member
- Posts: 958
- Joined: Mon Oct 05, 2009 2:59 pm
- Location: Manila/Singapore
- Been thanked: 3 times
Re: Quadra-symmetric RC10
h#ll y#ah, im in...
“It is more shameful to distrust our friends than to be deceived by them.”
― Confucius
― Confucius
-
- Approved Member
- Posts: 545
- Joined: Tue Dec 06, 2011 11:17 am
- Location: Kent , UK
- Has thanked: 25 times
- Been thanked: 29 times
Re: Quadra-symmetric RC10
Want!
Looking forward to ordering up these parts!
Looking forward to ordering up these parts!
If in doubt go flat out!
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Re: Quadra-symmetric RC10
Thanks for your interest
2nd post updated, Quadra arms set heading to SLS machine.
-Niki-
2nd post updated, Quadra arms set heading to SLS machine.
-Niki-
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Re: Quadra-symmetric RC10
Three quadra arm sets available in B/S/T-section.
In case someone wants to build Quadra-RC10 side by side with me
I'm starting my build any day now...
-Niki-
In case someone wants to build Quadra-RC10 side by side with me
I'm starting my build any day now...
-Niki-
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- Niki
- Approved Member
- Posts: 524
- Joined: Wed Nov 02, 2011 11:32 am
- Location: Finland
- Has thanked: 3 times
- Been thanked: 44 times
Re: Quadra-symmetric RC10
NIXconcepts --- Imaterialise Shop --- Printables.com/@NIXconcepts --- Quadra-symmetric RC10 --- RC10 '91 Worlds Conversion --- Start of NIX91 story...
- RichieRich
- Approved Member
- Posts: 2358
- Joined: Thu Jun 15, 2006 3:42 am
- Location: Los Angeles, CA
- Has thanked: 39 times
- Been thanked: 24 times
Re: Quadra-symmetric RC10
I was thinking of upgrading my Klein armed RC10 with these. Can I use the B4 rear axle carriers?
-
