New RC10 parts. The first Associated parts!

Post by mytimac »

These look to be pretty much finished now. Will work on getting more product pictures soon. Right now just have final prints of the versions without the wire clip. Then more pictures and get them up on the store.

I have now tested on 3 different chassis setups.
Gold Pan A stamp with offset holes.
The TQ chassis with centered holes.
The late model black chassis with centered farther forward holes.

These will allow up to 3 different battery types to be used depending on the setup you buy.
3 different models for each chassis. Universal, Basic, and Shorty Lipo Only. No more hacking your chassis or battery cups. None of them require and permanent changes to your chassis or other parts.

Universal :
Allows the use of Shorty Lipo packs, the smaller full size lipo packs "24mm height", and the Ni-Mh Stick packs. Has notch in front for stick pack wires.

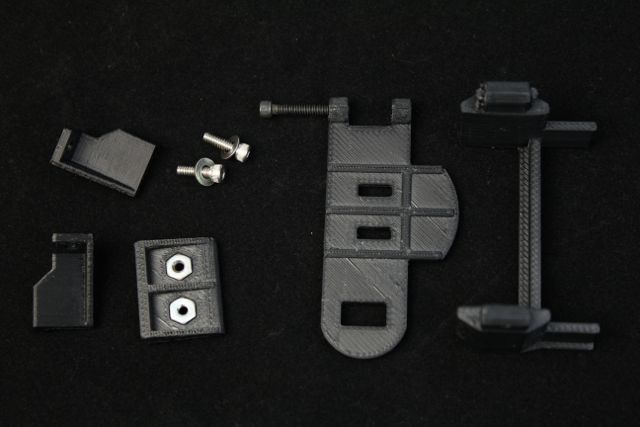

Comes with cup, adjustable shorty pack strap, rear battery holders. Will include hardware for back holders, and adjustable strap.

Basic :
Allows the use of the smaller full size lipo packs "24mm height", and the Ni-Mh Stick packs.
Comes with cup, basic pack strap, Will include hardware for strap.

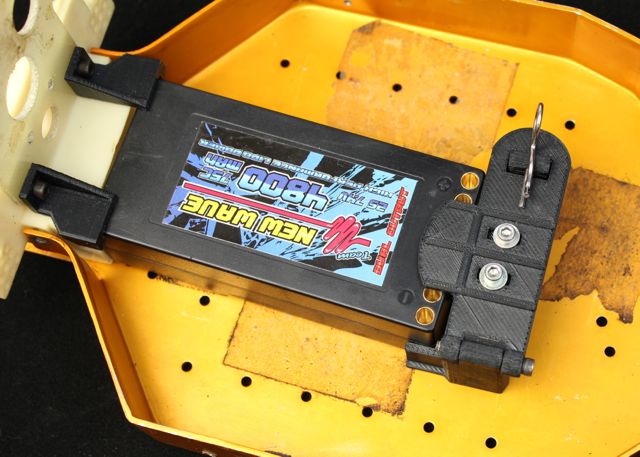

Shorty Lipo Only :
Allows the use of Shorty Lipo packs only. Leaves room in front of battery to mount small electronics parts.

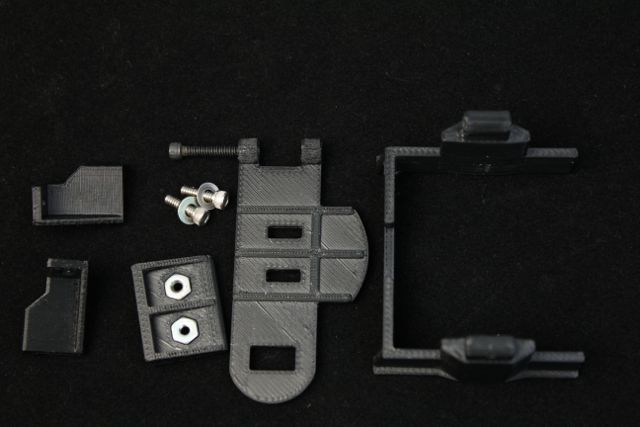

Comes with cup, adjustable shorty pack strap, rear battery holders. Will include hardware for back holders, and adjustable strap.

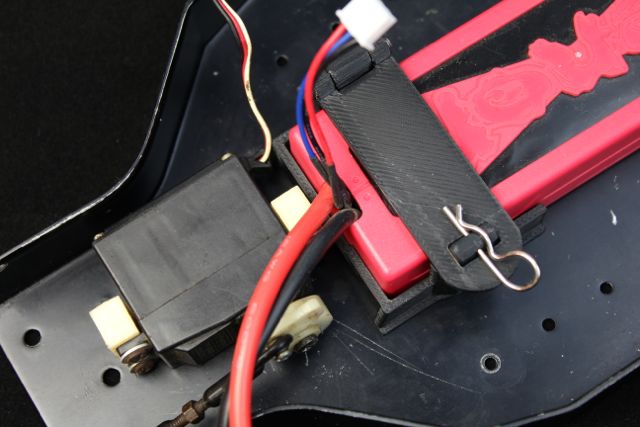

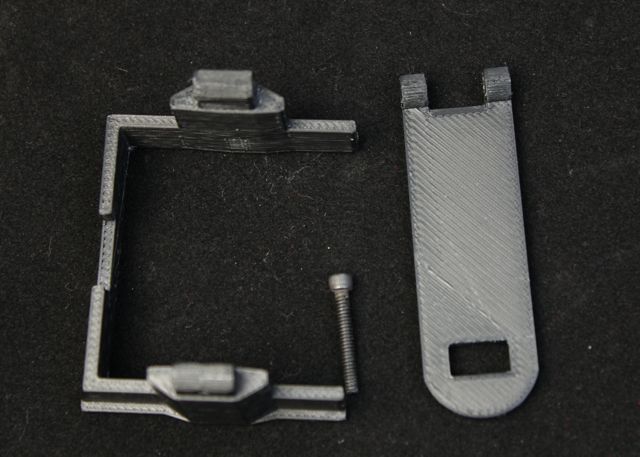

Some first pictures!
Attachments
Late with Basic.jpg
Late with Basic2.jpg
Early Shorty Only.jpg
Early Shorty Only2.jpg

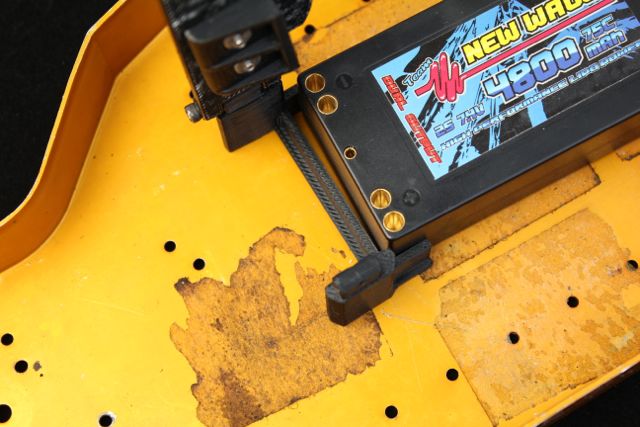

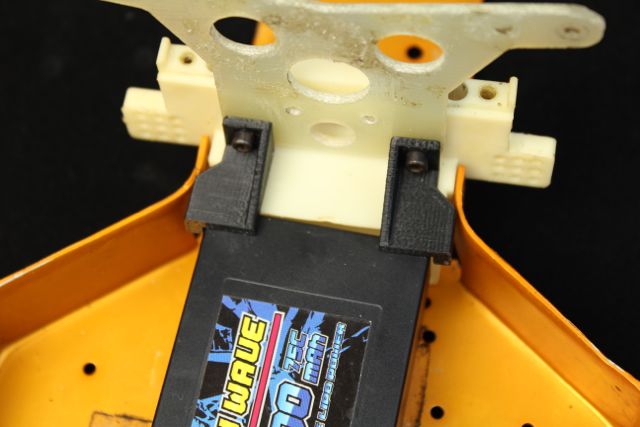

Rear Braces.jpg

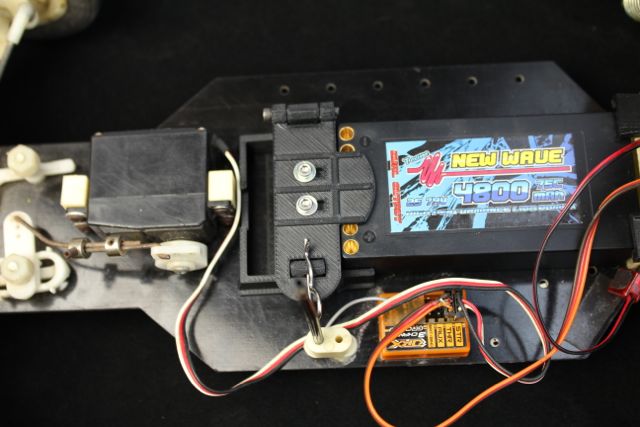

TQ Universal SHorty.jpg

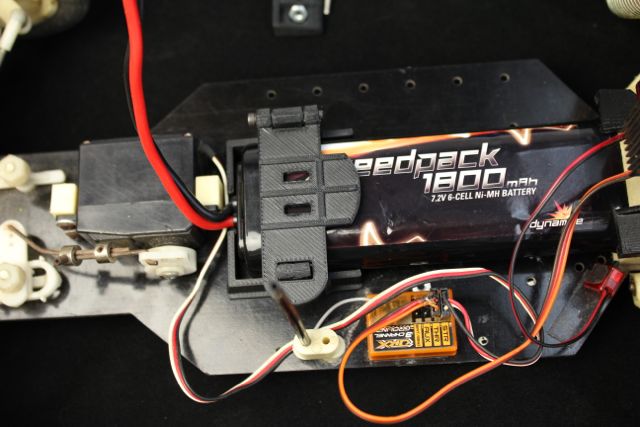

TQ Universal Stick.jpg

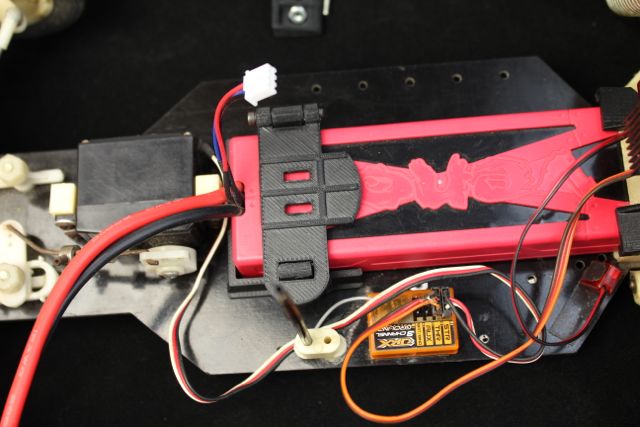

TQ Universal Lipo.jpg
Late Universal.jpg
Late Shorty Lipo.jpg
Late Basic.jpg
http://oldrc.com - Find parts for older Losi, Associated, Tamiya and others.
http://vintagelosi.com - Manuals and information on older Team Losi models

User avatar
mytimac
Business Member
Posts: 945
Joined: Tue Apr 29, 2008 12:42 am
Location: Rochester MN
Has thanked: 7 times
Been thanked: 54 times

Re: New RC10 parts. The first Associated parts!

Post by mytimac »

They are up for sale now. The Basic model actually weighs a little less than the standard Associated cup with all its parts. Price starts at $7.59 for the Basic.

There is 12 different versions in 8 different colors available to choose from. Took a lot of work and testing to get to this point.
If there is interest I can make a version available from Shapeways. But our in house versions would be far cheaper than anything from Shapeways and includes the hardware.

So here they are.
x40081 Early Chassis Basic Cup http://sabulatech.com/storefront/product.php?id_product=3796
x40082 Early Chassis Basic Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3797
x40083 Early Chassis Universal Cup http://sabulatech.com/storefront/product.php?id_product=3798
x40084 Early Chassis Universal Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3799
x40091 Late Chassis Basic Cup http://sabulatech.com/storefront/product.php?id_product=3800
x40092 Late Chassis Basic Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3801
x40093 Late Chassis Universal Cup http://sabulatech.com/storefront/product.php?id_product=3802
x40094 Late Chassis Universal Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3803
x40101 Early Chassis Shorty Cup http://sabulatech.com/storefront/product.php?id_product=3804
x40102 Early Chassis Shorty Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3805
x40111 Late Chassis Shorty Cup http://sabulatech.com/storefront/product.php?id_product=3806
x40112 Late Chassis Shorty Cup w/Clip http://sabulatech.com/storefront/product.php?id_product=3807

As always if you purchases one and find an issue please let me know.
http://oldrc.com - Find parts for older Losi, Associated, Tamiya and others.
http://vintagelosi.com - Manuals and information on older Team Losi models
