Re: Mark Pavidis RC10 Replica

Post by scr8p »

Dyed the rear arms. Gave the bulkhead a trim and added a hole to route the motor wires. Also did the aterations to the rear shock tower.

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

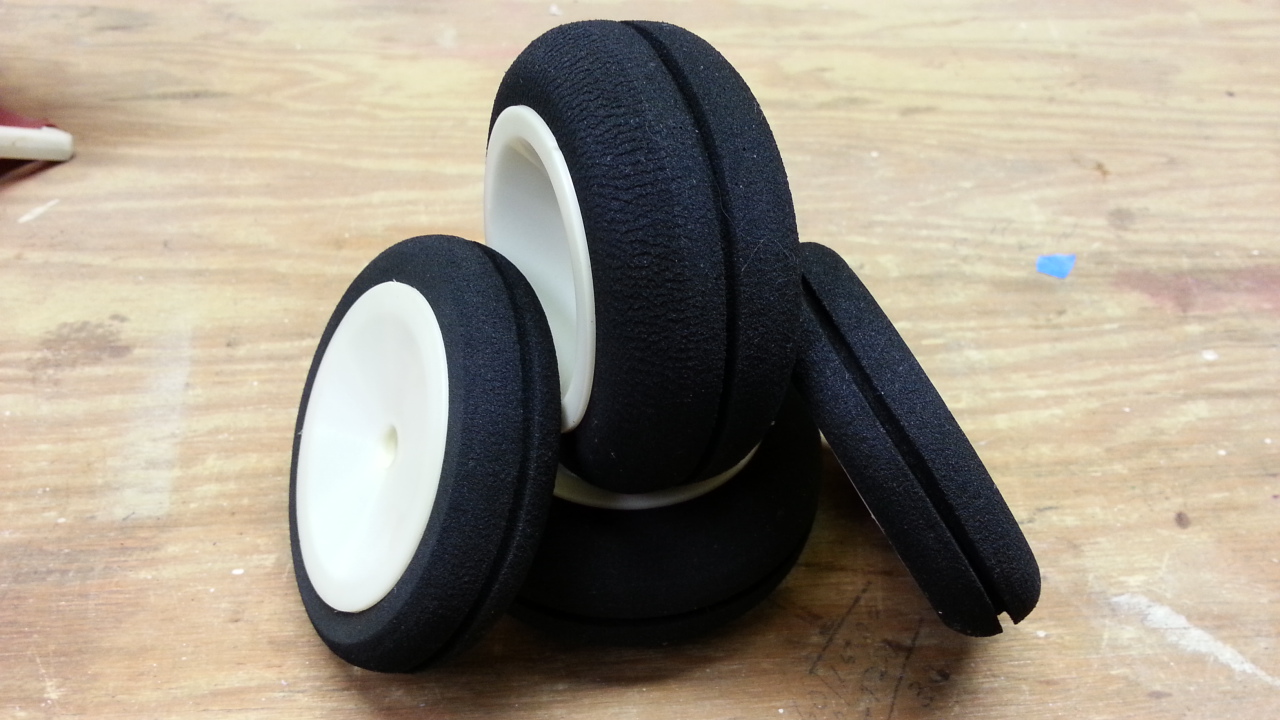

Got the inner beads cut off the wheels and mounted up the tires. Sooo glad they didn't rip...... I was worried. :shock:

User avatar
RC10th
Approved Member
Posts: 4174
Joined: Sat Feb 16, 2013 2:51 pm
Location: Australia
Has thanked: 36 times
Been thanked: 889 times

Re: Mark Pavidis RC10 Replica

Post by RC10th »

Was it a tight stretch to get them on?
I was old school - when old school wasn't cool !

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

They're pretty hard and dried out. I didn't measure the inside diameter of them, but they were probably in the 1.8 range having to go on 2.1-2.0 wheels. If they were fresh I wouldn't have worried one bit about them. Damn 20+ year old parts. :lol:

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

Got the alterations finished on the nose and motor plate.

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

Once the tub comes back from milling, I have almost everything ready to go to make it a roller pretty quick.
Attachments

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

Found the correct M1c, and it's in nice shape. :)

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

I picked up this little bellcrank lot on ebay the other day. The auction didn't have the greatest pics, but I was pretty sure the black ones were Composite Craft...... which I need for this build. Thankfully, that's exactly what they were. :)

The white ones are new, original worlds bellcranks. I'm sure they'll find their way onto something one day.


User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica

Post by scr8p »

I'm pretty sure mark use a JG front bumper on his car that was slightly altered. I didn't want to cut up an original, so I got some kydex sheet and made one. Got a little haevy handed with the countersink, so I'll probably end up making another at some point. :roll: :lol:



User avatar
losiXXXman
Approved Member
Posts: 936
Joined: Sat Aug 29, 2009 1:53 pm
Location: Cary, NC
Been thanked: 5 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by losiXXXman »

What thickness kydex are you using there? That looks a little thinner than the 1/8 I got from McMaster. 1/16? Just curious. The 1/8 I got is going to be a b$%@ to put any bend into unless I drop it in some scalding water for a bit...

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by scr8p »

Yup, 1/16".

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by scr8p »

I'm gonna have to blow it back apart to have some milling done to the bottom of the tub, but I had to somewhat throw it together to see what it looked like. :lol:
Attachments

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 7 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by Charlie don't surf »

I don't like that car at all.










I LOVE IT! 8)

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 205 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by clm »

That car really hits the spot... and the other spot... and that spot over there....

Sweet ride ;)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
scr8p
Administrator
Posts: 16465
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 904 times

Re: Mark Pavidis RC10 Replica - '92 Japan Reedy Race

Post by scr8p »

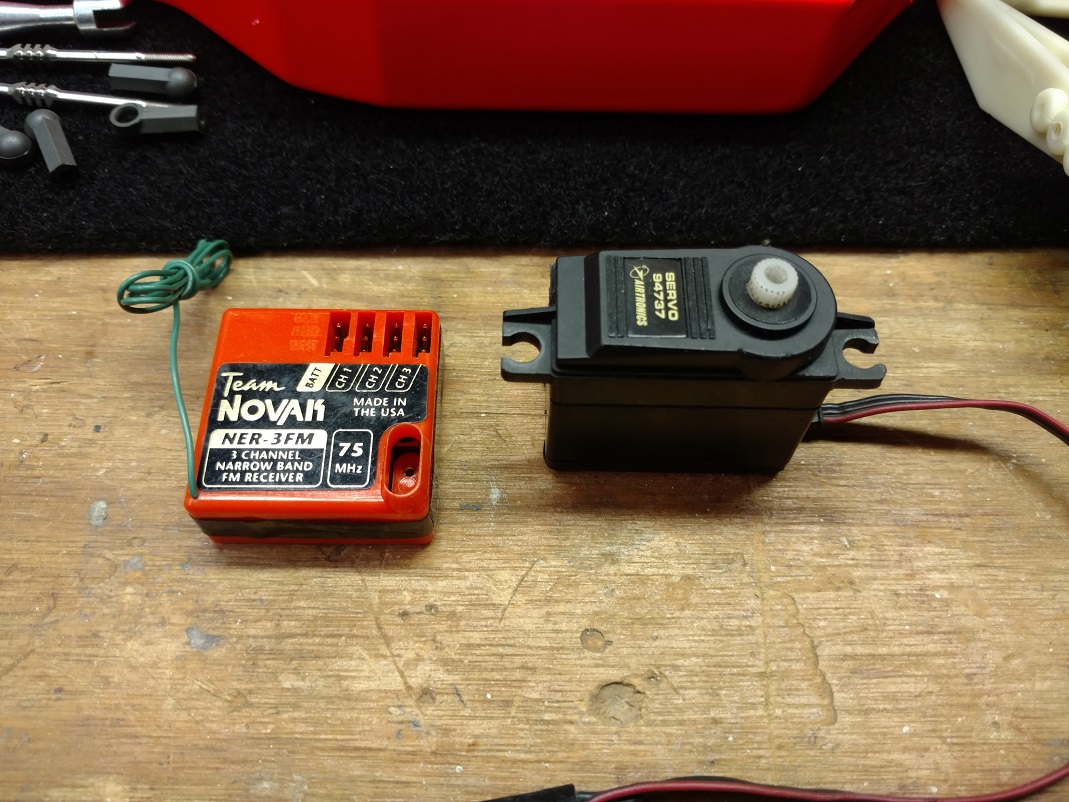

A few more gadgets to throw in it when ready.
