LWB Optima MID with Lazer suspension.

Post by DennisM »

Trinity Yokomo wheels with Schumacher tires
Carbon shocks towers, hingepin mounts, camber link mount and transmission brace.
Lazer suspension.
Steering is shaved T2 Fasttrax ballraced bellcranks with ZX ballraced link.
AE 1. gen. slipper modified to fit SPW965-01 shaft.
Ball diff. front and geared rear diff.
Steering and rear camber links are fitted with Ultima RB6 turnbuckles.
Lazer ZX belt guard fitted (not pictured)
Attachments
2015-12-21 17.13.59.jpg
2015-12-21 17.15.18.jpg
2015-12-21 17.14.41.jpg
2015-12-20 18.48.05.jpg
Gone fishing

HKS_TRD
Approved Member
Posts: 328
Joined: Mon Aug 20, 2012 3:47 am
Location: Australia

Re: LWB Optima MID with Lazer suspension.

Post by HKS_TRD »

Wow, very nice.
I love the Optima Mid.
I should get my act together and finish mine

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: LWB Optima MID with Lazer suspension.

Post by DennisM »

HKS_TRD -
Thanks for the kind words.
Being holiday season with lots of time off from work, I think we´re ready to see the first cople of pictures of Your MID :D
Gone fishing

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: LWB Optima MID with Lazer suspension.

Post by Mr. ED »

Nice hard-core racing build Dennis.
The custom bumper gives it a nice little extra personal detail too.
DennisM wrote: AE 1. gen. slipper modified to fit SPW965-01 shaft.
SPW... Is that a different shaft from the stock mid ones? I wouldn't mind some details about how you maneged to put a decent diff on there.

HKS_TRD
Approved Member
Posts: 328
Joined: Mon Aug 20, 2012 3:47 am
Location: Australia

Re: LWB Optima MID with Lazer suspension.

Post by HKS_TRD »

DennisM wrote:HKS_TRD -
Thanks for the kind words.
Being holiday season with lots of time off from work, I think we´re ready to see the first cople of pictures of Your MID :D
This is my LWB Mid
http://www.rc10talk.com/viewtopic.php?f=30&t=34445

And I also started a SWB Mid
http://www.rc10talk.com/viewtopic.php?f=30&t=30497

As you can guess, I have a soft spot for the Mid

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden
Been thanked: 4 times

Re: LWB Optima MID with Lazer suspension.

Post by j0pp3 »

Mr. ED wrote:Nice hard-core racing build Dennis.
The custom bumper gives it a nice little extra personal detail too.
DennisM wrote: AE 1. gen. slipper modified to fit SPW965-01 shaft.
SPW... Is that a different shaft from the stock mid ones? I wouldn't mind some details about how you maneged to put a decent diff on there.
Hi ED,

OT-87 is the stock shaft. The prefix SPW use to be parts for the Kyosho Spider model but in this particular case I can't confirm.
Cheers
Joel

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: LWB Optima MID with Lazer suspension.

Post by Mr. ED »

Thanks Joel,
I knew about SPW being for option-house and tuning parts, hence the question :wink:

I have both the spider shaft and the optima-mid one, but don't see any difference. (Actually, I have no clue which is which either.)
Enlighten us Dennis.

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: LWB Optima MID with Lazer suspension.

Post by DennisM »

Thanks for the kind words.

Just for You Mr. ED, I´ve taken the gearbox apart to snap a picture :mrgreen:

The Shaft should be for Pureten GP10.

That shaft is HARD! I had to heat it to get a bite.
Attachments
2015-12-19 11.25.09.jpg
2015-12-29 15.04.51.jpg
2015-12-29 15.05.19.jpg
Gone fishing

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: LWB Optima MID with Lazer suspension.

Post by Mr. ED »

That flattened part looks almost as if you could put the newer double-pad slipper on it

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden
Been thanked: 4 times

Re: LWB Optima MID with Lazer suspension.

Post by j0pp3 »

That's really interesting. A slipper mod using existing parts.
Cheers
Joel

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: LWB Optima MID with Lazer suspension.

Post by DennisM »

Mr. ED wrote:That flattened part looks almost as if you could put the newer double-pad slipper on it
There´s no flat parts on the shaft - That´s why I went with the 1. gen slipper.
It´s just to drill two holes and cut a groove for the E-clips.

A while ago, I made a MID shaft using the TLR22B slipper - Took me quite a few attempts to get the flat part accurate enough by hand :lol:
Gone fishing

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: LWB Optima MID with Lazer suspension.

Post by Mr. ED »

éJoel: sure, but drilling that hole for the crosspin is a huge barrier to me.
I guess I could get one of Alcyon's topshafts for a b4 slipper, but they're pricey.

I already tried:
- a top-shaft sold for putting a b4 slipper on the traxxas slash (2wd).
- some tower hobbies shaft for a gas car
- traxxas 4-tec top shaft
nothing worked out right: crossholes in the wrong places, too short, no groove for the E-clip at the end.

It's a good thing shelfers don't really need slippers :mrgreen:

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: LWB Optima MID with Lazer suspension.

Post by DennisM »

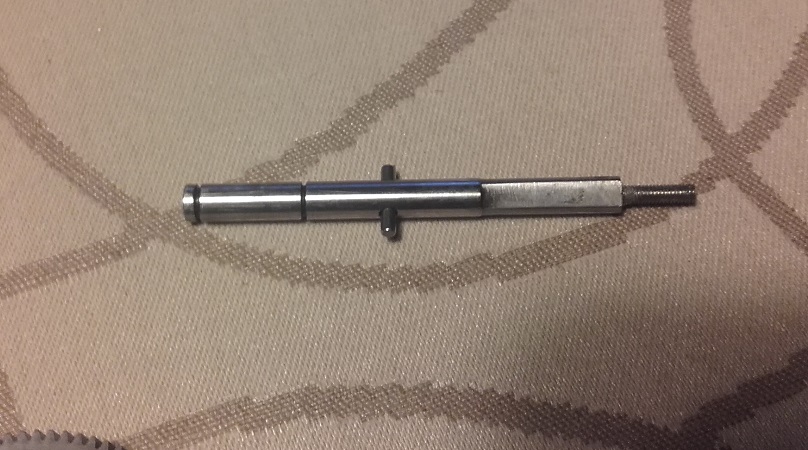

This morning, I did a shaft for the B4 slipper
Shaft material is a Hornet rear axle.
Time spent - app. 1 hour

Tools used:
2mm drill bit
2,5mm thread tap
Junior hacksaw
Electric drill
Bench vise
Various files
Propane torch (hardening)
20 cl oilbath (hardening)
Threadlock or snap glue

Mark the length of the flat area on the shaft.
Put the shaft in the drillchuck (the drill is mounted in the bench vise)
Then take away 0,3mm material, with a file (while the shaft spins) where the flat part is going to be (this leaves a shoulder for the inner slipper plate)
Put the shaft in the vise and file the flat part - make sure not to ruin the "shoulder" for the inner slipper plate.
Drill the 2mm hole for the pinion crosspin.
Reinstall the shaft in the chuck and cut the two e-clips grooves with the junior hacksaw while the shaft spins.
Shorten the shaft, in the correct length on the non slipper side, with the hacksaw while the shaft spins.
Now comes the hard part - put the shaft upright in the vise and drill a 2mm hole app. 7mm deep - then thread it 2,5mm.
After hardening - clean the inner threads with degreaser and let it dry.
Install a 2,5x20 screw, of good quality, with the thread lock and cut the screw head and exceed thread.
Attachments
2015-12-30 09.24.08.jpg
2015-12-30 09.23.52.jpg
2015-12-30 09.21.59.jpg
Gone fishing

User avatar
Coelacanth
Approved Member
Posts: 7361
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 280 times

Re: LWB Optima MID with Lazer suspension.

Post by Coelacanth »

Beautiful work! 8)
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: LWB Optima MID with Lazer suspension.

Post by DennisM »

Thanks Marc :D
