RC10 with gear diff

Post by Niki »

Hello All,

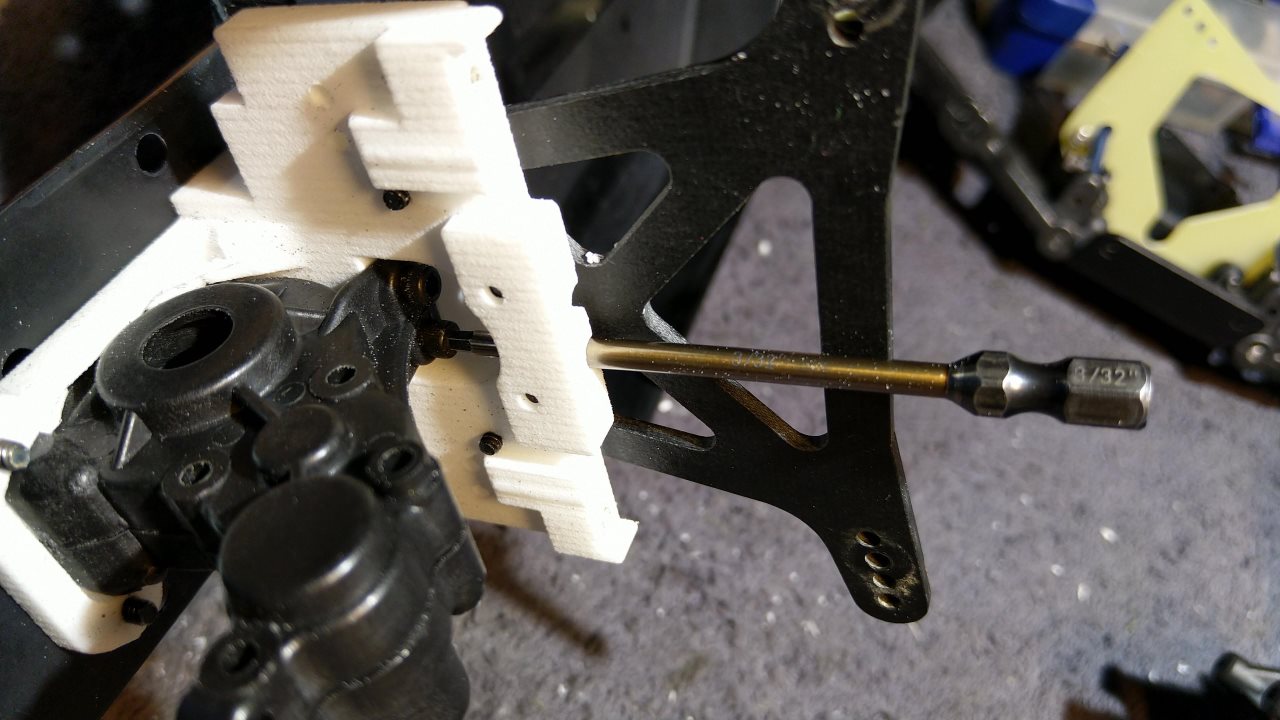

By replacing RC10 stock bulkhead with NIX63231 bulkhead, you'll be able to mount RC10B4 transmission to your RC10 tub or carbon chassis. You don't even need RC10 Stealth transmission holes as this one mounts to stock bulkhead holes and rear holes of classic 6-gear transmission. There's no need to modify your chassis at all which I personally like alot and kept as a guide for this design. You only need to cut away the lower section of the B4 transmission case just under the diff gear. It's easy when using NIX63231 bulkhead as a guide.
What do you think? Do you see all the nice options here... :)

Here is the link to NIX63231:
http://shpws.me/RABQ


TomiS
Approved Member
Posts: 112
Joined: Mon Dec 04, 2017 10:21 am
Location: Helsinki, Finland
Has thanked: 4 times
Been thanked: 12 times

Re: How to easily mount B4 transmission to your RC10?

Post by TomiS »

I see the gear differential option. Actually I have been running B4.1 transmission with gear diff on my RC10 Graphite with modified original bulkhead and on astroturf it proved unbeatable. This makes the swap much easier.

Headling
Approved Member
Posts: 545
Joined: Tue Dec 06, 2011 11:17 am
Location: Kent , UK
Has thanked: 25 times
Been thanked: 29 times

Re: How to easily mount B4 transmission to your RC10?

Post by Headling »

Thats an awesome idea!!

Will the B4.1 box fit so we can run a gear diff??
If in doubt go flat out!

User avatar
Niki
Approved Member
Posts: 522
Joined: Wed Nov 02, 2011 11:32 am
Location: Finland
Has thanked: 3 times
Been thanked: 36 times

Re: How to easily mount B4 transmission to your RC10?

Post by Niki »

Yeah... that's B6 gear diff in the last two pictures!

User avatar
RC10th
Approved Member
Posts: 4177
Joined: Sat Feb 16, 2013 2:51 pm
Location: Australia
Has thanked: 36 times
Been thanked: 890 times

Re: How to easily mount B4 transmission to your RC10?

Post by RC10th »

Good job Niki :D As always a well thought out and executed design.
I was old school - when old school wasn't cool !

User avatar
jwscab
Super Member
Posts: 6471
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 431 times

Re: How to easily mount B4 transmission to your RC10?

Post by jwscab »

That's dead sexy right there.

User avatar
XLR8
Approved Member
Posts: 2812
Joined: Sun Feb 19, 2017 8:46 am
Location: north/central Alabama
Has thanked: 978 times
Been thanked: 723 times

Re: How to mount B4 transmission on RC10?

Post by XLR8 »

Very clever design - very nice!!

It's interesting to see this post today as I've been thinking about how the original Stealth gearbox case design could be modified to accommodate a later 52t diff assembly (either gear or ball). By chance has anyone explored this approach to any degree?
By the way, how do the B4 through B6 diffs actually differ - they're all 52t so does it come down to bearing size -- are the widths and drive cups the same?
Doug

User avatar
Niki
Approved Member
Posts: 522
Joined: Wed Nov 02, 2011 11:32 am
Location: Finland
Has thanked: 3 times
Been thanked: 36 times

Re: How to mount B4 transmission on RC10?

Post by Niki »

I think from B4.1 to B6 gear diff main dimensions stays the same.

mikea96
Approved Member
Posts: 3203
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 124 times
Been thanked: 507 times

Re: How to mount B4 transmission on RC10?

Post by mikea96 »

Wow that is awesome! Nice job 8)

User avatar
KidAgain
Super Member
Posts: 902
Joined: Fri Feb 01, 2019 7:11 pm
Location: So Cal
Has thanked: 276 times
Been thanked: 190 times

Re: How to mount B4 transmission on RC10?

Post by KidAgain »

Dang what a great way of executing another option for us.
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts

Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44

User avatar
Niki
Approved Member
Posts: 522
Joined: Wed Nov 02, 2011 11:32 am
Location: Finland
Has thanked: 3 times
Been thanked: 36 times

Re: How to mount B4 transmission on RC10?

Post by Niki »

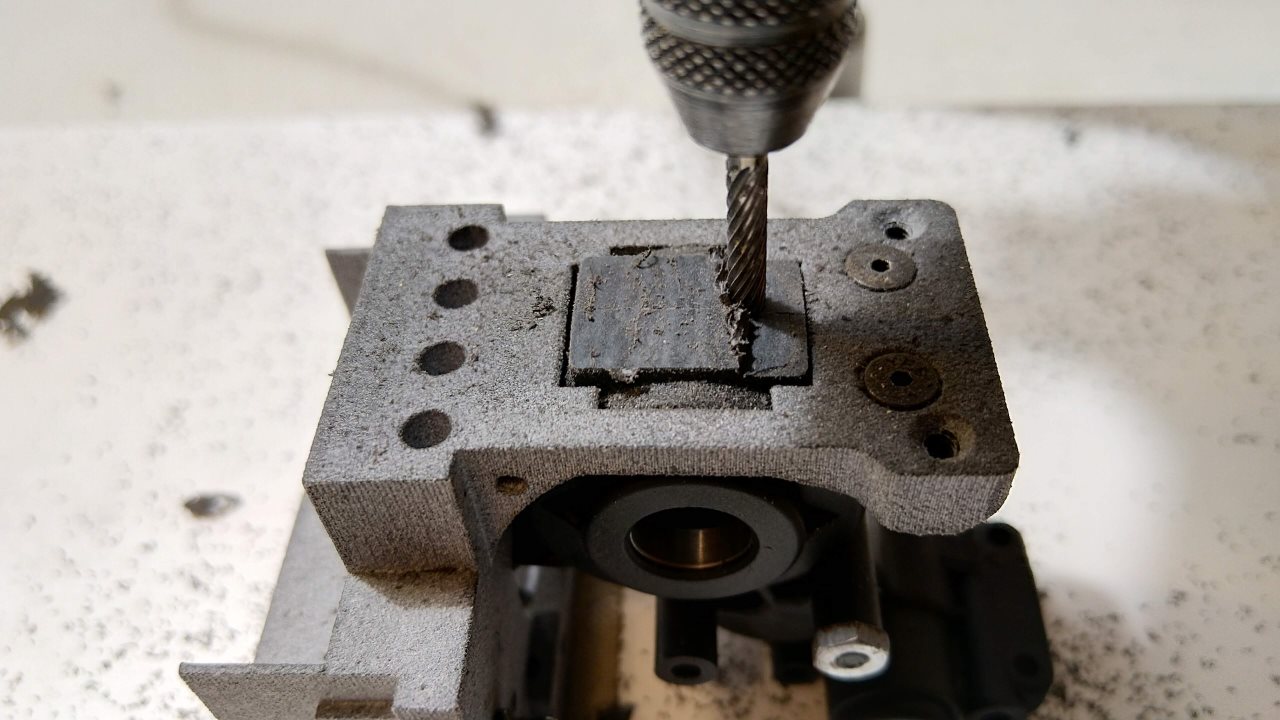

With the first bulkhead (white SLS + ASC9574 case) I removed the lower section of transmission with a Dremel sanding drum. Easy. With the second bulkhead (grey MJF + ASC9826 case) I tried a flat head cutter. Even easier. TomiS will get the SLS bulkhead to his car and I will upgrade mine with the MJF bulkhead. This plan fits in well with the fact that some RC10 Stealth transmission parts seems to be hard to find these days...


User avatar
Niki
Approved Member
Posts: 522
Joined: Wed Nov 02, 2011 11:32 am
Location: Finland
Has thanked: 3 times
Been thanked: 36 times

Re: How to mount B4 transmission on RC10?

Post by Niki »

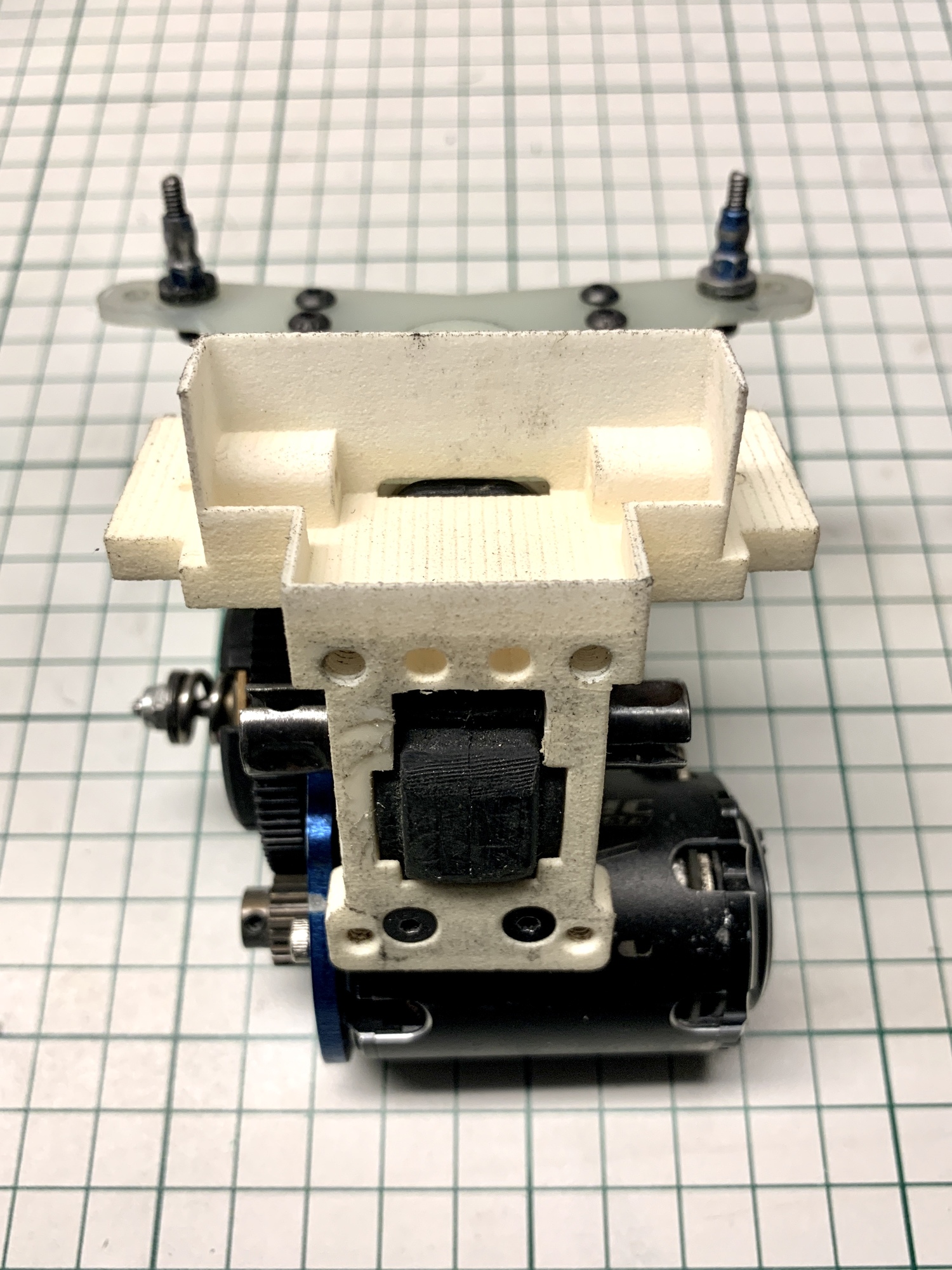

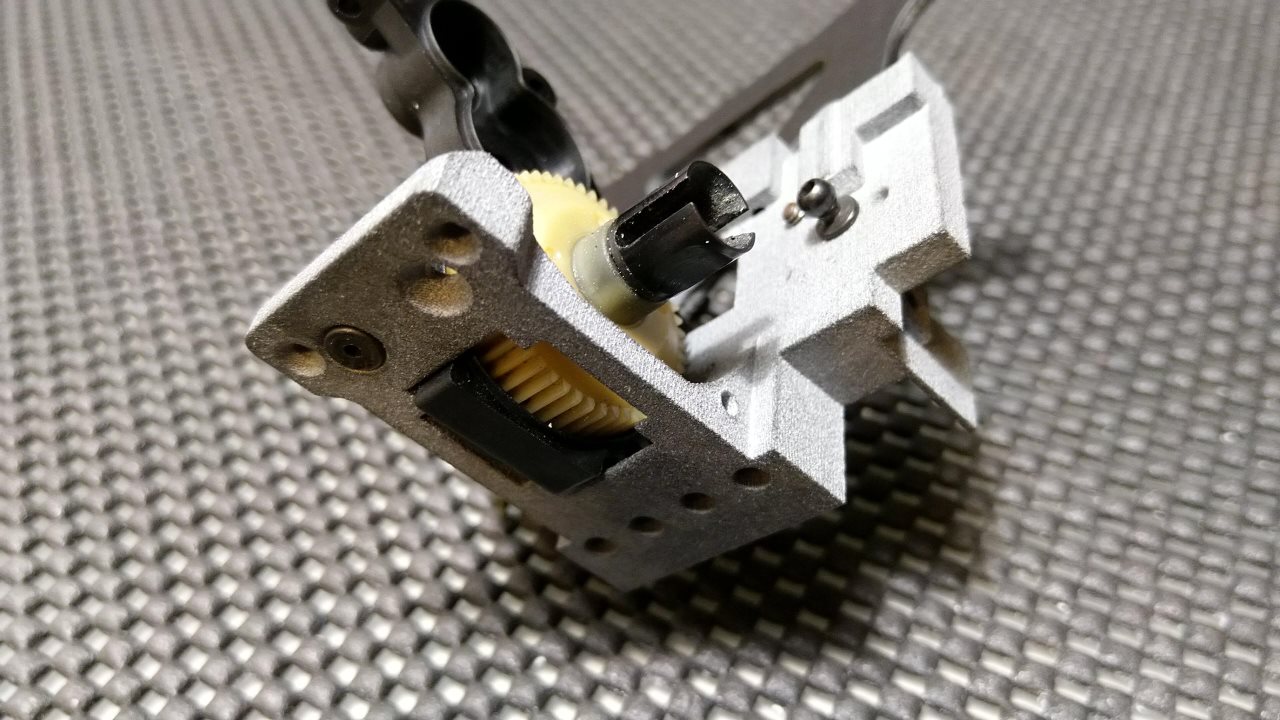

NIX63231 + B4.x gearbox + B6 gear diff.
If needed, you can easily shim the gearbox up to get diff gear just above chassis. Or make a small groove to chassis.


TomiS
Approved Member
Posts: 112
Joined: Mon Dec 04, 2017 10:21 am
Location: Helsinki, Finland
Has thanked: 4 times
Been thanked: 12 times

Re: How to mount B4 transmission on RC10?

Post by TomiS »

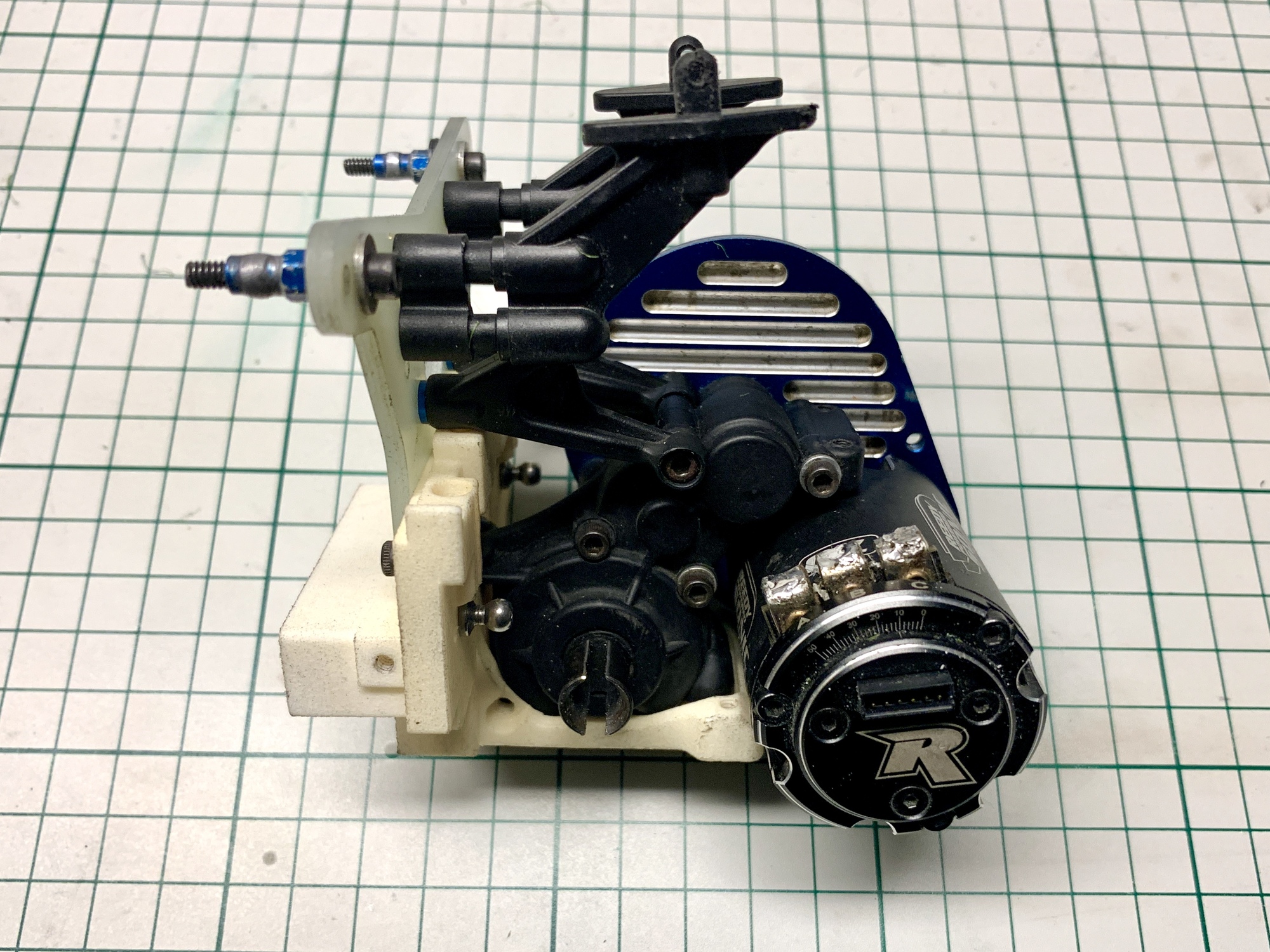

I finally managed to strip down my Graphite and mount b4.1 transmission with Niki’s bulkhead. Previously I had it mounted with only two screws at the bottom and wing mounts so now it’s much more secure with two more screws. As I have already modified the chassis I didn’t have to remove any material from the lower section of the transmission case. It sits right on the chassis without any spacers. I’m using b4.1 gear diff but may have to go for b6 diff eventually as outdrives are quite worn out. The car handles very well on astroturf and no need to worry about burning the ball diff.

User avatar
TRX-1-3
Approved Member
Posts: 1610
Joined: Sat Mar 29, 2014 4:13 pm
Location: USAG Humphreys, South Korea
Has thanked: 1179 times
Been thanked: 647 times

Re: How to mount B4 transmission on RC10?

Post by TRX-1-3 »

That's a slick set-up for sure. Excellent adaptation.
Hope you're doin' something fun.

TomiS
Approved Member
Posts: 112
Joined: Mon Dec 04, 2017 10:21 am
Location: Helsinki, Finland
Has thanked: 4 times
Been thanked: 12 times

Re: RC10 with gear diff

Post by TomiS »

OK, I finished the build once again. I’m also using Niki’s rear arm mounts for RPM73282 rear arms, so I’m able to use 12mm hex wheels. I can now use same wheels as with my b6.1 so that’s a big advantage. In my hands this car is 1.5s slower than my b6.1 on our local astroturf track. Best laps are 21.xxx with b6.1 so that is not really too big of a difference. With better setup I hope to get a bit faster still.
