Orangemazda’s Radiant build

Post by orangemazda »

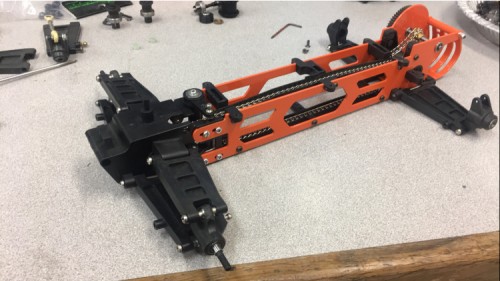

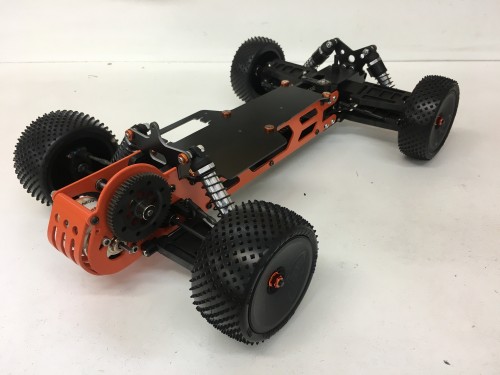

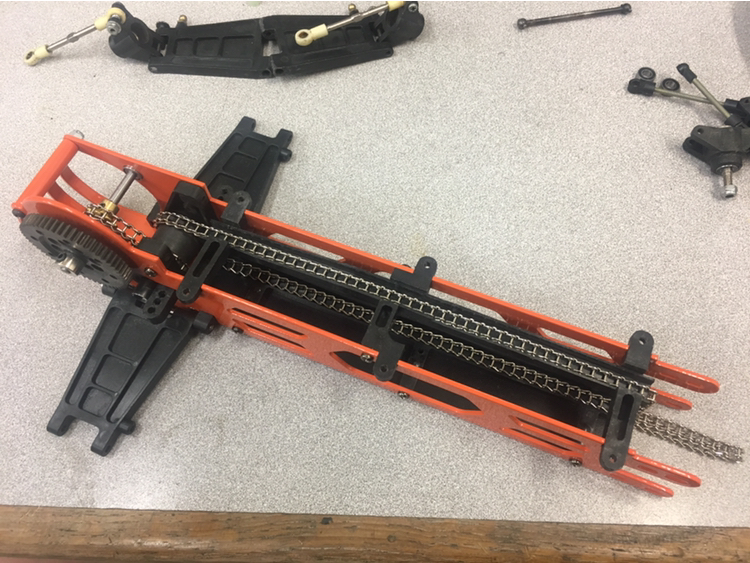

Here is the custom AYK Radiant I built. I built it a bit custom, hopefully the purests won’t be too mad that I didn’t build it stock.

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

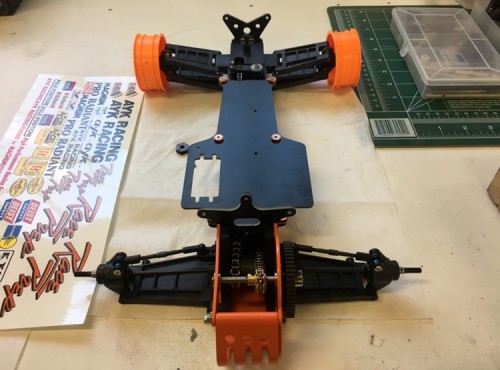

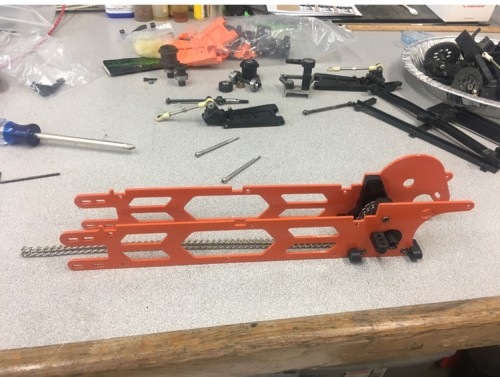

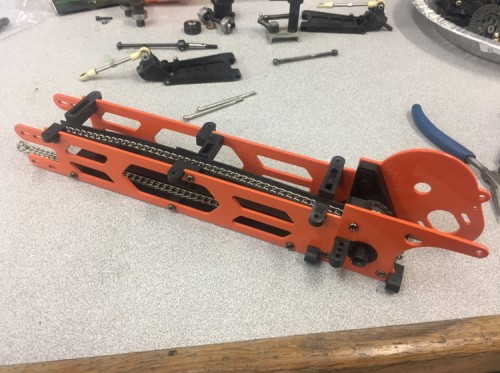

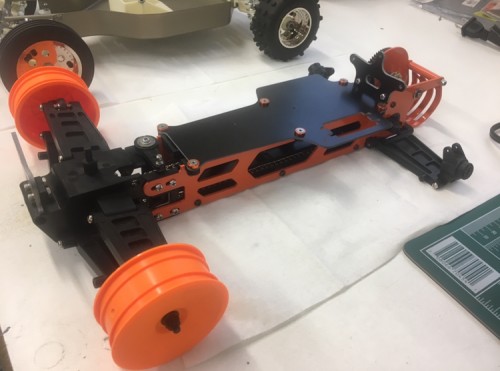

Some cool custom plates and towers made by Jeff.

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

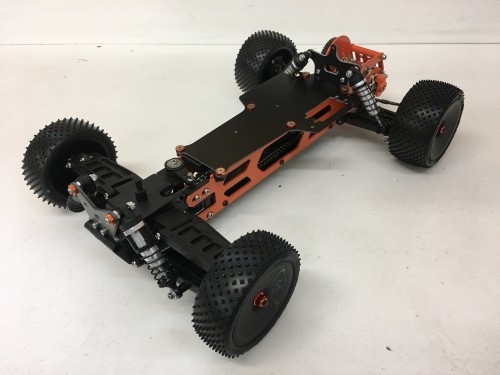

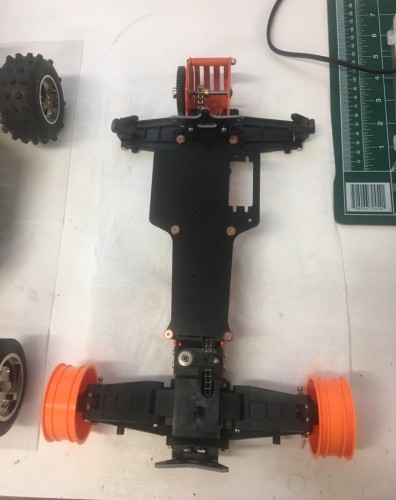

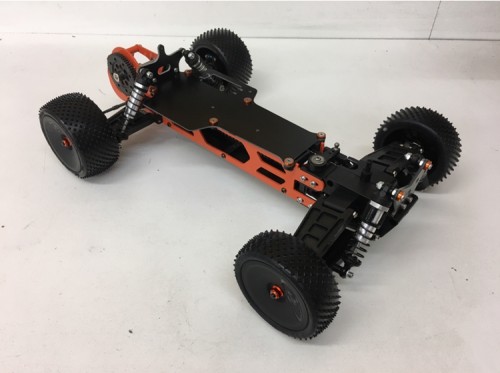

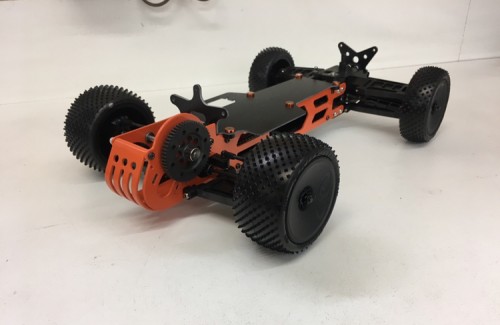

Time for black DE racing wheels, proline carpet spikes, Kyosho CVD’s and hexes.

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

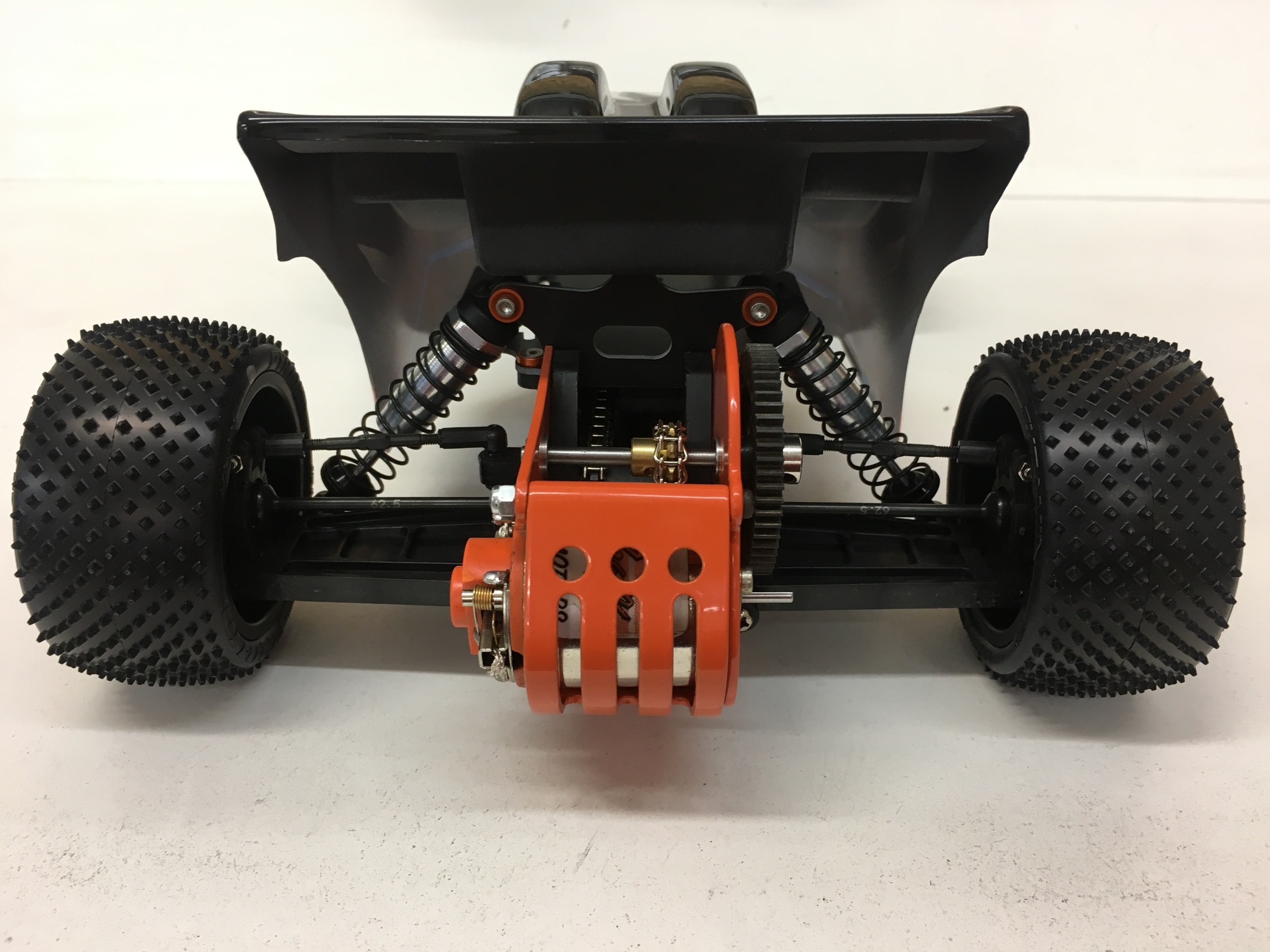

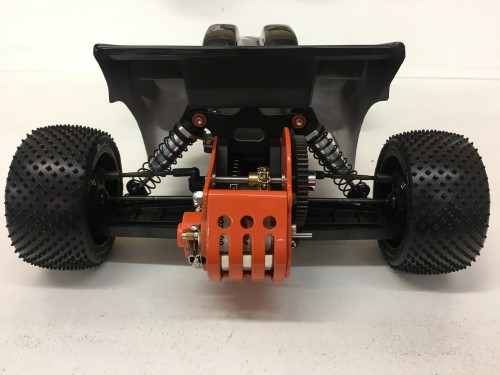

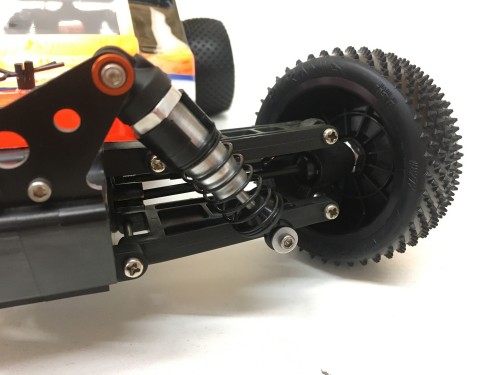

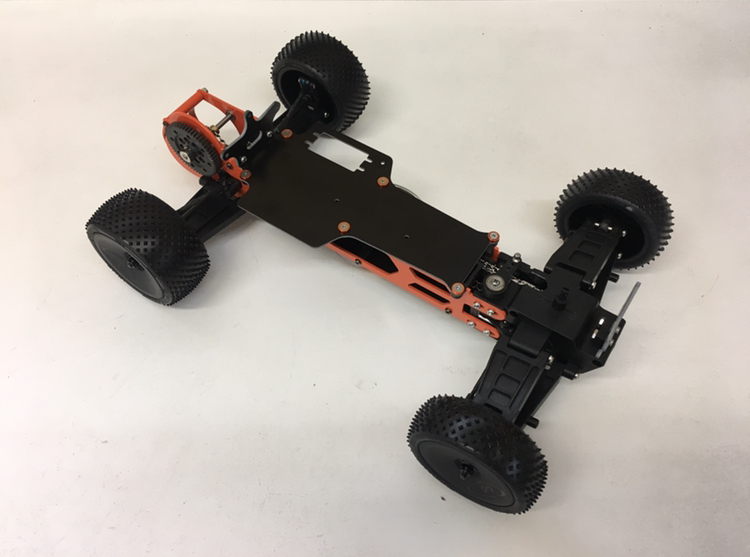

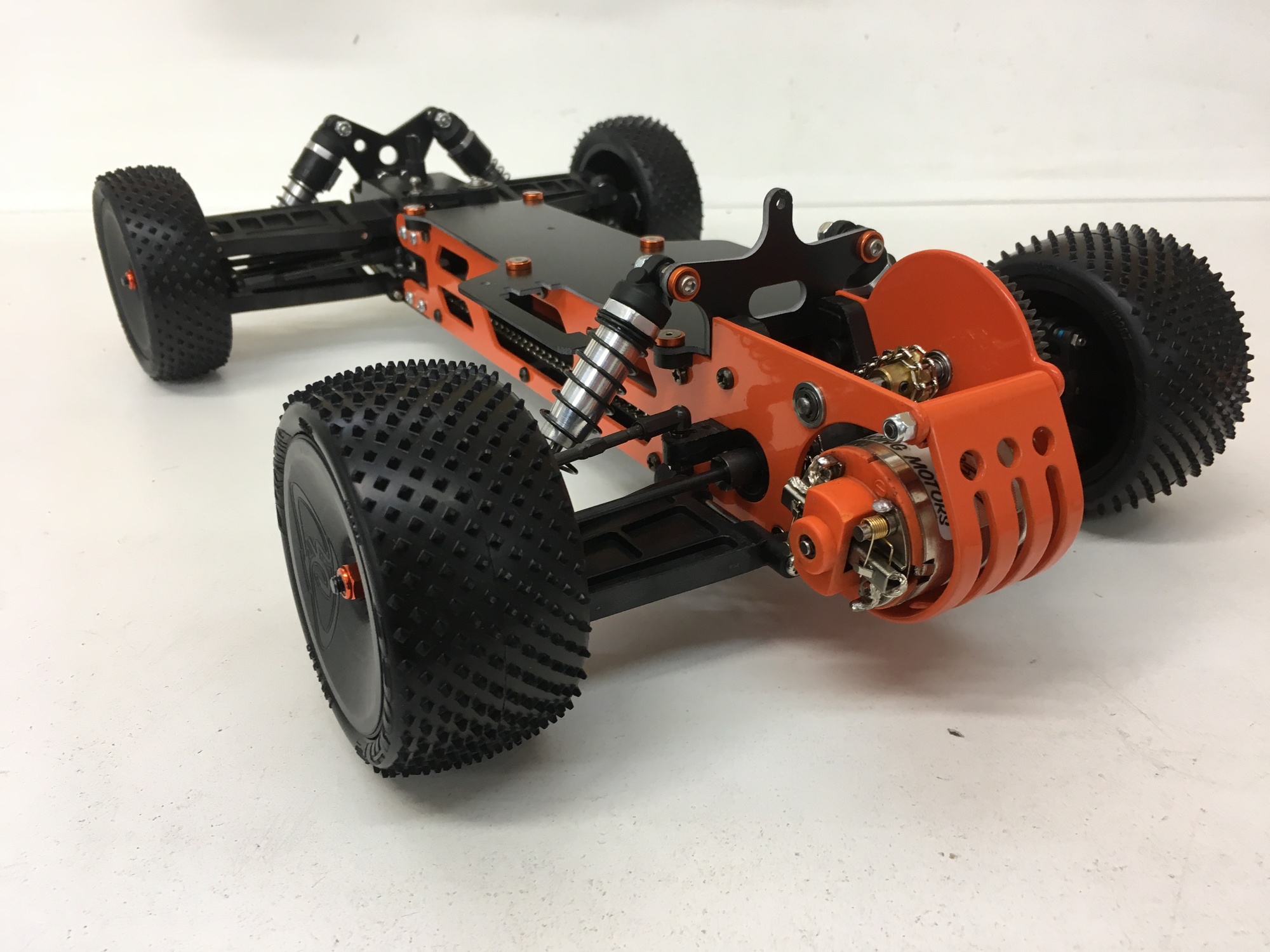

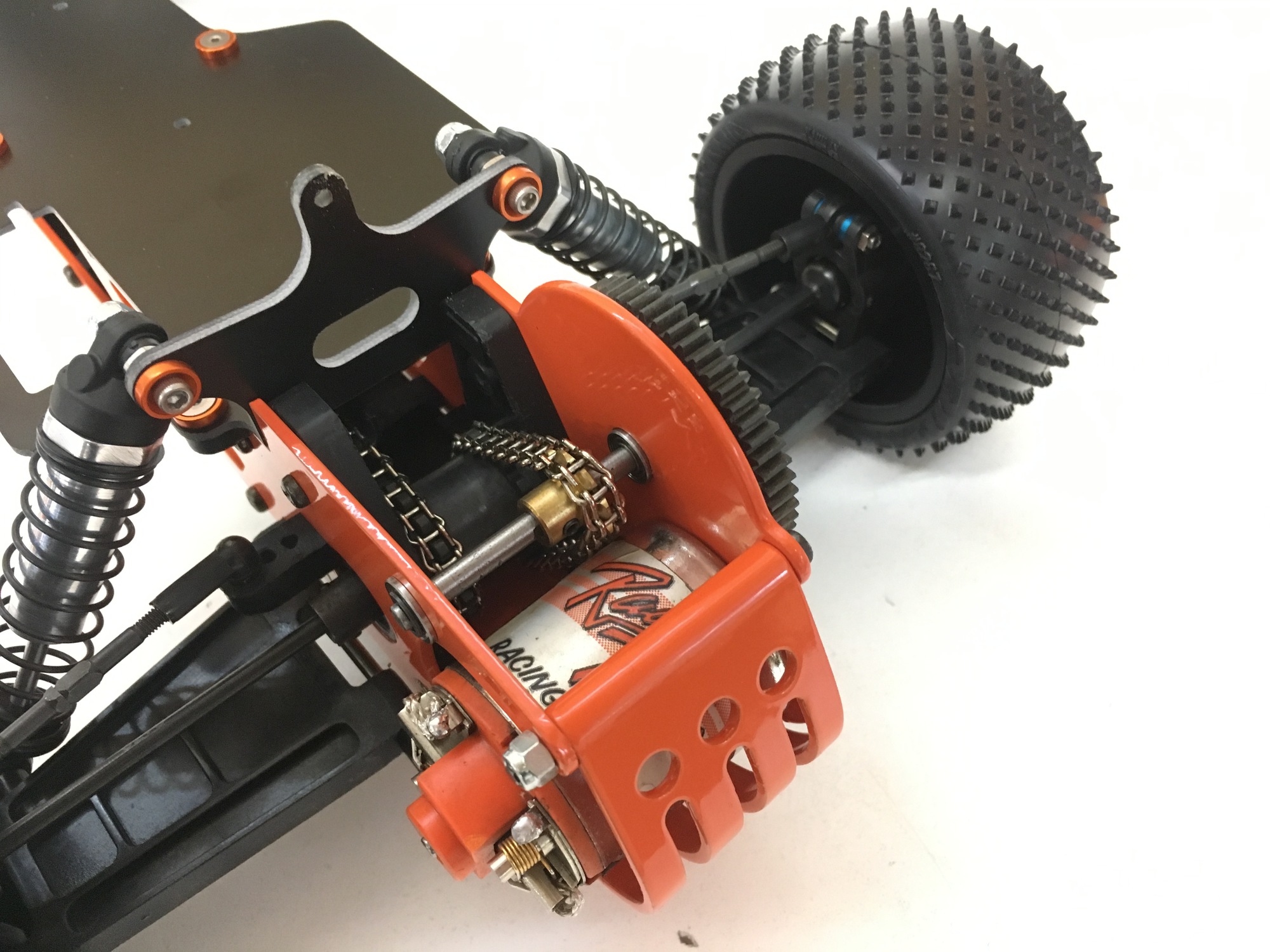

Finishing touches

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

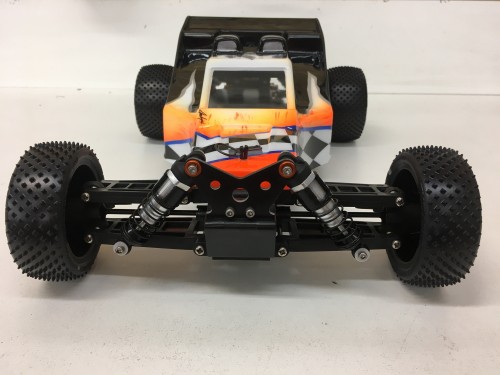

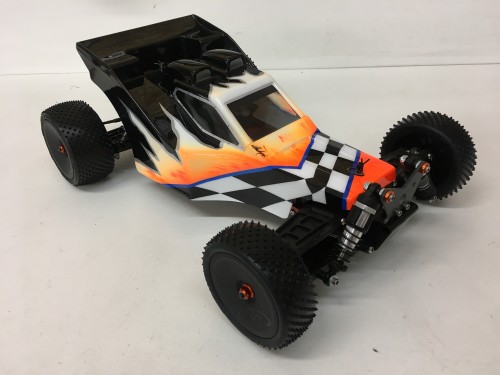

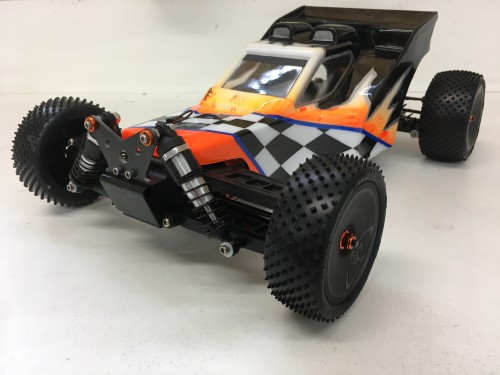

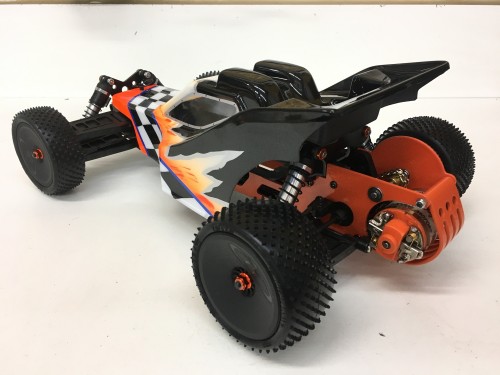

Custom painted body by Andy

User avatar
matt1ptkn
Approved Member
Posts: 910
Joined: Wed Dec 12, 2012 1:27 pm
Location: Moundsville, WV
Has thanked: 80 times
Been thanked: 132 times

Re: Orangemazda’s Radiant build

Post by matt1ptkn »

Looks like a proper Radiant to me! I really like the color scheme, too!
Matt

Just a part of my RC collection: Matt1ptkn's Toys

"I wish there was a way to tell you're in the good old days, before you've actually left them."

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 453 times

Re: Orangemazda’s Radiant build

Post by jwscab »

beautifully done sir!!!

User avatar
RC10resto
Super Member
Posts: 2947
Joined: Tue Sep 09, 2008 6:26 am
Location: Los Angeles, CA
Has thanked: 1147 times
Been thanked: 442 times

Re: Orangemazda’s Radiant build

Post by RC10resto »

Very nice, looks like it could have been a factory Race Prep Special Edition 8)

User avatar
Coelacanth
Approved Member
Posts: 7375
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 292 times

Re: Orangemazda’s Radiant build

Post by Coelacanth »

Very nice car, consistent color scheme, beautiful body...and we shouldn't ever need to apologize to "purists" when building a work of art like this that is unique and different from boring box-art. 8) Anybody can follow a manual; to do something like this takes creativity and vision, and execution.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
XLR8
Approved Member
Posts: 3019
Joined: Sun Feb 19, 2017 8:46 am
Location: north/central Alabama
Has thanked: 1274 times
Been thanked: 914 times

Re: Orangemazda’s Radiant build

Post by XLR8 »

I agree, please don't apologize. It's your car so build it your way.
... and what a beautiful car! 8)
Doug

AYKBOBCAT
Approved Member
Posts: 585
Joined: Wed Nov 22, 2006 7:32 pm
Location: Bas St-Laurent, Canada

Re: Orangemazda’s Radiant build

Post by AYKBOBCAT »

Very cool project! I love the color! This is powder coated?

I am also working on one and was wondering about which CVD and wheel setup to use. You mentioned Kyosho axles. Did you use axles and wheels for the Optima?

Very cool buggy!

User avatar
jkelm24
Approved Member
Posts: 377
Joined: Fri Nov 16, 2012 3:03 am
Location: Portland, Or
Has thanked: 20 times
Been thanked: 77 times

Re: Orangemazda’s Radiant build

Post by jkelm24 »

Wow! That looks fantastic! Great work!

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

The CVD’s I used are for the rb5/lazer and I used matching Kyosho 12mm hexes
AYKBOBCAT wrote: Sat Dec 21, 2019 4:28 am Very cool project! I love the color! This is powder coated?

I am also working on one and was wondering about which CVD and wheel setup to use. You mentioned Kyosho axles. Did you use axles and wheels for the Optima?

Very cool buggy!

AYKBOBCAT
Approved Member
Posts: 585
Joined: Wed Nov 22, 2006 7:32 pm
Location: Bas St-Laurent, Canada

Re: Orangemazda’s Radiant build

Post by AYKBOBCAT »

orangemazda wrote: Sat Dec 21, 2019 8:53 am The CVD’s I used are for the rb5/lazer and I used matching Kyosho 12mm hexes


AYKBOBCAT wrote: Sat Dec 21, 2019 4:28 am Very cool project! I love the color! This is powder coated?

I am also working on one and was wondering about which CVD and wheel setup to use. You mentioned Kyosho axles. Did you use axles and wheels for the Optima?

Very cool buggy!
Excellent thanks! Did you have to change the bearings width or they fit just right? Thanks for the info, that really helps.

orangemazda
Approved Member
Posts: 711
Joined: Mon Apr 16, 2012 3:20 am
Location: Bellingham, Wa
Has thanked: 14 times
Been thanked: 57 times

Re: Orangemazda’s Radiant build

Post by orangemazda »

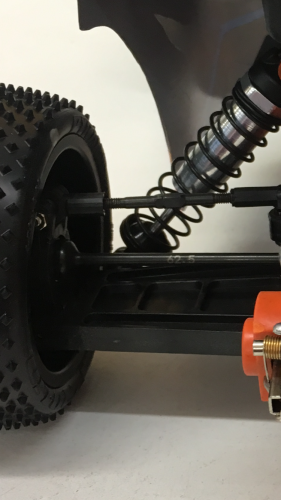

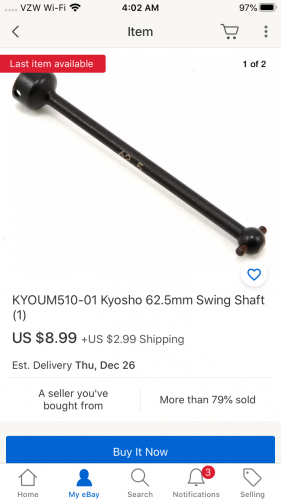

There are two different lengths of axles for these CVD’s. There are the short two “stripe” and the longer three “stripe”. I used the longer axles as pictured which allowed me to shim the inside or outside of the hub as needed.

I actually used new Kyosho bearings front and rear. They are the exact same size as the Radiant ones.
AYKBOBCAT wrote: Sat Dec 21, 2019 1:09 pm
orangemazda wrote: Sat Dec 21, 2019 8:53 am The CVD’s I used are for the rb5/lazer and I used matching Kyosho 12mm hexes


AYKBOBCAT wrote: Sat Dec 21, 2019 4:28 am Very cool project! I love the color! This is powder coated?

I am also working on one and was wondering about which CVD and wheel setup to use. You mentioned Kyosho axles. Did you use axles and wheels for the Optima?

Very cool buggy!
Excellent thanks! Did you have to change the bearings width or they fit just right? Thanks for the info, that really helps.
