Rear arm widths or vintage Quadra Sym-ish

Post by Chewbacca »

Hey everyone,

I currently have 3 Rc10 runners:

Buggy, narrowed tub chassis (Rpm kit) in the rear, truck nose, wide RPM Arm front and rear

Graphite chassis with truck nose (previous owner hacked chassis) wide RPM arms all around -> original width rear chassis. Reversed stealth for mid motor.

RC10T Tub RPM arms

I really like the width in the rear of the graphite. I’m considering making a custom aluminum chassis with the RPM mod.

Are the rear B3 / B2arms wider than the wide rpm / Klein Arms? I would like to narrow the chassis and compensate with wider arms.

I will have to make pictures later
*** POWDER - KING ***

Chewbacca
Approved Member
Posts: 535
Joined: Sat Jun 24, 2006 10:41 am
Location: Herrenberg, Germany
Has thanked: 29 times
Been thanked: 66 times

Re: Rear arm widths or vintage Quadra Sym-ish

Post by Chewbacca »

Since I have too many ideas in my head, and too little time to actually build them here is what I have been thinking about:

The second RC10 I bought (my first eBay RC10 purchase), was a black pan, stealth transmission car, with the RPM narrow conversion setup. This must have been 1999 ish.

The rear cutout was poorly executed, but drivable.

Anyway I like the narrow rear, but I also like the wider setup (normal chassis with wider arms RPM / Klein) and want to build the following:

Narrow rear chassis (RPM mod) with even wider arms (truck conversion / B3 ?) try to make the best of both worlds

custom narrowed nose plate and bulkhead to match the rear to make it match the rear to have all the hinges on the body side aligned aka Quadra symmetric

try to match the front arms as close as possible to the rear setup.

perhaps flip the tranny and rear around for a mid-motor setup.

Info I have on rear arm widths hole to hole:

wide RPM / Klein: 64mm
RC10T: 84mm
Monster Truck conversion: 74ish (?) that would be a perfect fit, just need to find a pair.
B3 arms: ???

Matching front arms:

So far I found the front Bandit (1995) arms to be pretty close, approx 71-72mm

Drive train: I will start with a dogbone setup and then see what universal langth migh work out.

I want to keep the parts as much associated as possible, so we'll see.

I want to start off only using parts or repros of parts the were available somewhat back in the day. Kind of what would have been possible back then without making a whole new car.

So I am picking up NIX' general idea, but I want to avoid making parts that were simply not available back then or not producible on a hobby level. You could cut a bulkhead or nose plate back then.

I have nothing bot respect and admiration for the NIX' builds, but I often read the comment "how much RC10 is actually left?"

Since modding an RC10 was basically there from the beginning I want to see what I can put together.

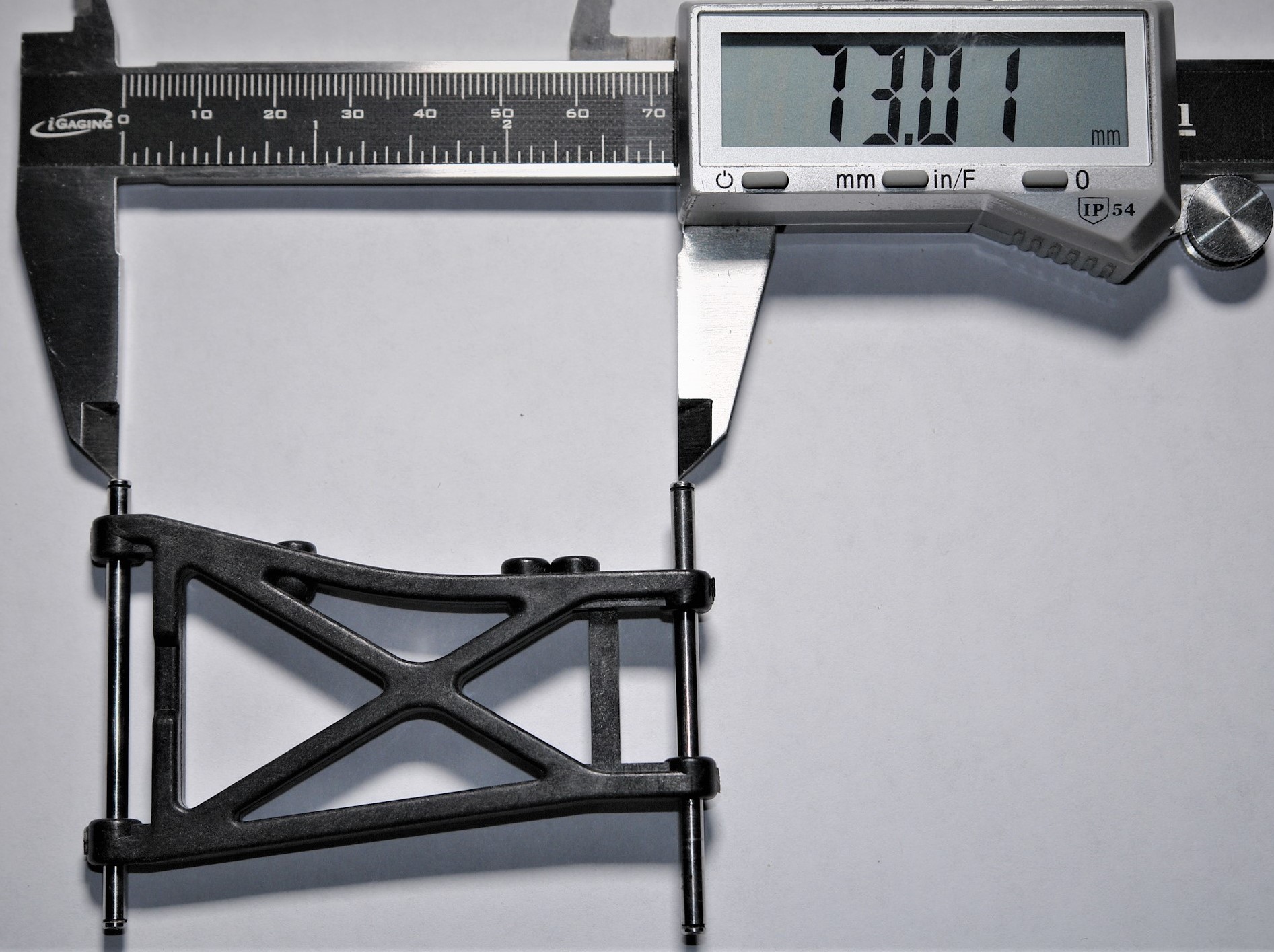

The pictures show the narrow rear of an RPM ultra molded chassis and the monster truck conversion arms.
Attachments
*** POWDER - KING ***

Faux4x4
Approved Member
Posts: 34
Joined: Fri Jun 12, 2020 7:33 am
Has thanked: 5 times
Been thanked: 1 time

Re: Rear arm widths or vintage Quadra Sym-ish

Post by Faux4x4 »

I think that is my picture of the arms.

User avatar
radioactivity
Super Member
Posts: 802
Joined: Wed Jan 24, 2018 4:46 pm
Location: Dripping Springs Tx
Has thanked: 340 times
Been thanked: 504 times

Re: Rear arm widths or vintage Quadra Sym-ish

Post by radioactivity »

Chewy

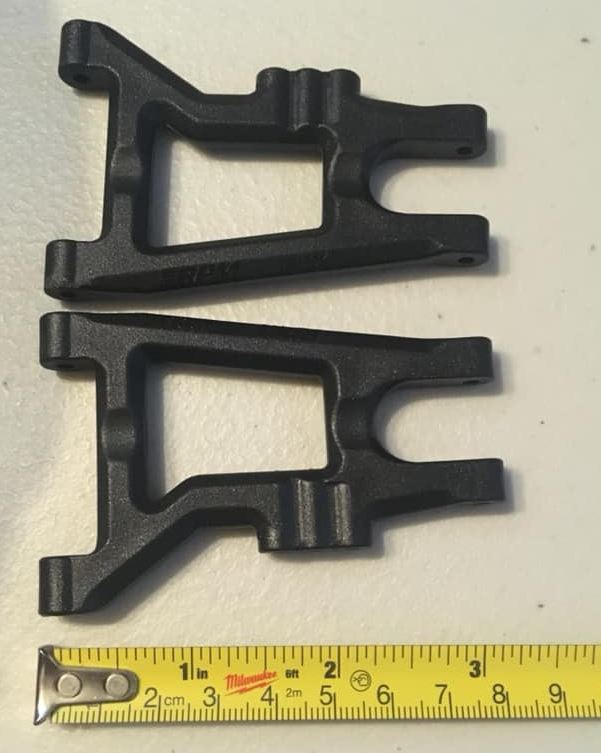

Don't know why I've got it but I do believe this is a B3 hard rear arm.

Chuck
Attachments
Hydrodip how to https://www.rc10talk.com/viewtopic.php?f=62&t=42727
When all you have is a hammer everything looks like a nail :wink:

Chewbacca
Approved Member
Posts: 535
Joined: Sat Jun 24, 2006 10:41 am
Location: Herrenberg, Germany
Has thanked: 29 times
Been thanked: 66 times

Re: Rear arm widths or vintage Quadra Sym-ish

Post by Chewbacca »

Faux4x4 wrote: Wed Jul 15, 2020 5:44 pm I think that is my picture of the arms.
Most likely, if you posted this picture on FaceBook. I hope you don't mind my borrowing.
*** POWDER - KING ***

Faux4x4
Approved Member
Posts: 34
Joined: Fri Jun 12, 2020 7:33 am
Has thanked: 5 times
Been thanked: 1 time

Re: Rear arm widths or vintage Quadra Sym-ish

Post by Faux4x4 »

No problem at all, hope your project works out.
