4wd SRB Trailing arm buggy

Post by AscotConversion »

In admiration of 1300GT's 4wd SRB, I'm starting on my own attempt at building a similar car. I figured out a B4 slipper gearbox setup in this thread - https://www.rc10talk.com/viewtopic.php?f=32&t=44855

Now I'm mocking things up for the chassis. 2 3D printed replica MIP gearboxes, 3D Printed front arms, Optima front hubs, Scorpion trailing arms.

rraeford
Approved Member
Posts: 223
Joined: Fri Oct 16, 2009 2:52 pm
Location: Savannah, Ga
Been thanked: 6 times

Re: 4wd SRB Trailing arm buggy

Post by rraeford »

Cool. I really enjoyed that thread. Can’t wait.

Carknowledge101
Approved Member
Posts: 101
Joined: Sat Jan 25, 2020 4:45 pm
Location: Portland, OR
Has thanked: 5 times
Been thanked: 3 times

Re: 4wd SRB Trailing arm buggy

Post by Carknowledge101 »

Could you share the files for the 3D printed stuff?

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2357 times
Been thanked: 2018 times

Re: 4wd SRB Trailing arm buggy

Post by Dadio »

Cool , can't wait for progress :D
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

AscotConversion
Approved Member
Posts: 287
Joined: Fri Jun 13, 2008 10:19 pm
Location: CHICAGO USA
Has thanked: 33 times
Been thanked: 43 times

Re: 4wd SRB Trailing arm buggy

Post by AscotConversion »

Carknowledge101 wrote: Sun Aug 16, 2020 6:15 pm Could you share the files for the 3D printed stuff?
Got it from this shapeways store, I believe the designer is a member
https://www.shapeways.com/shops/td3d

User avatar
1300GT
Approved Member
Posts: 705
Joined: Fri Feb 01, 2013 11:58 pm
Location: Clare, Australia
Has thanked: 348 times
Been thanked: 283 times

Re: 4wd SRB Trailing arm buggy

Post by 1300GT »

Cool! 8)
Chris.

Toys.............they are!

AscotConversion
Approved Member
Posts: 287
Joined: Fri Jun 13, 2008 10:19 pm
Location: CHICAGO USA
Has thanked: 33 times
Been thanked: 43 times

Re: 4wd SRB Trailing arm buggy

Post by AscotConversion »

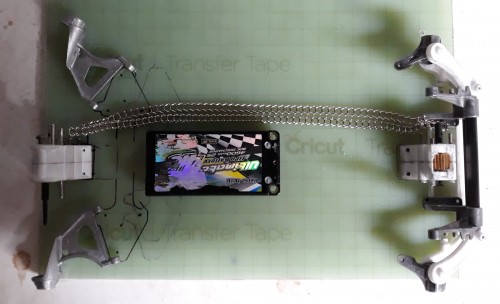

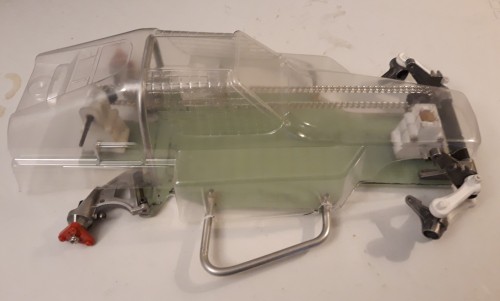

I got the chassis cut out and suspension mounted. I'll have to make a roll hoop to mount the shocks in the rear. The motor is going to hang off the back Scorpion style.

I think the 3d parts will get dyed too, they get dirty if you handle them too much when you're mocking things up.

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2357 times
Been thanked: 2018 times

Re: 4wd SRB Trailing arm buggy

Post by Dadio »

I'm conflicted , a Tamiya / Kyosho hybrid , its against all that's natural ! But I like it , I think I need to go to confession !
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

AscotConversion
Approved Member
Posts: 287
Joined: Fri Jun 13, 2008 10:19 pm
Location: CHICAGO USA
Has thanked: 33 times
Been thanked: 43 times

Re: 4wd SRB Trailing arm buggy

Post by AscotConversion »

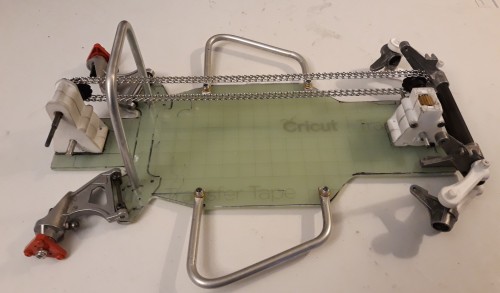

Made a little progress today

garfield88
Regular Member
Posts: 4
Joined: Sat Apr 20, 2019 1:43 pm

Re: 4wd SRB Trailing arm buggy

Post by garfield88 »

AscotConversion wrote: Sun Aug 23, 2020 1:41 am srb_rollbar.jpg


Made a little progress today
Can you show the gears combination for reference? Where are the gears come from? Thanks

AscotConversion
Approved Member
Posts: 287
Joined: Fri Jun 13, 2008 10:19 pm
Location: CHICAGO USA
Has thanked: 33 times
Been thanked: 43 times

Re: 4wd SRB Trailing arm buggy

Post by AscotConversion »

Gears are :
Rear:
topshaft- STRC B4 slipper shaft - https://www.amainhobbies.com/st-racing-concepts-cnc-machined-transmission-layshaft-sptst3793ae/p185515 - and this gear (which needs to be slotted to fit the shaft) - https://www.ebay.com/itm/Brass-Gear-tamiya-sand-scorcher-SRB-rough-rider-fighting-buggy-champ-super-champ/141736106916 -

idler - standard SRB topshaft

Bottom Tamiya SRB/Sand Scorcher ball diff

front:
idler - standard SRB topshaft

Bottom Tamiya SRB/Sand Scorcher ball diff

Pulleys are from the Kyosho Blizzard - B plastic parts set https://www.amainhobbies.com/kyosho-b-plastic-parts-set-kyobl7/p221429

User avatar
coxbros1
Approved Member
Posts: 2195
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1997 times
Been thanked: 1766 times

Re: 4wd SRB Trailing arm buggy

Post by coxbros1 »

freak'n awsome!
Tap pic for clarity: Derek

User avatar
TheDiamondOne
Approved Member
Posts: 431
Joined: Fri Nov 12, 2010 7:26 pm
Location: Energy, IL
Has thanked: 1592 times
Been thanked: 418 times

Re: 4wd SRB Trailing arm buggy

Post by TheDiamondOne »

Why did this thread just end? I am not nice like Derek, need answer now?
David, The artist formerly known as coxbros

AscotConversion
Approved Member
Posts: 287
Joined: Fri Jun 13, 2008 10:19 pm
Location: CHICAGO USA
Has thanked: 33 times
Been thanked: 43 times

Re: 4wd SRB Trailing arm buggy

Post by AscotConversion »

I'm workin on it! :mrgreen:

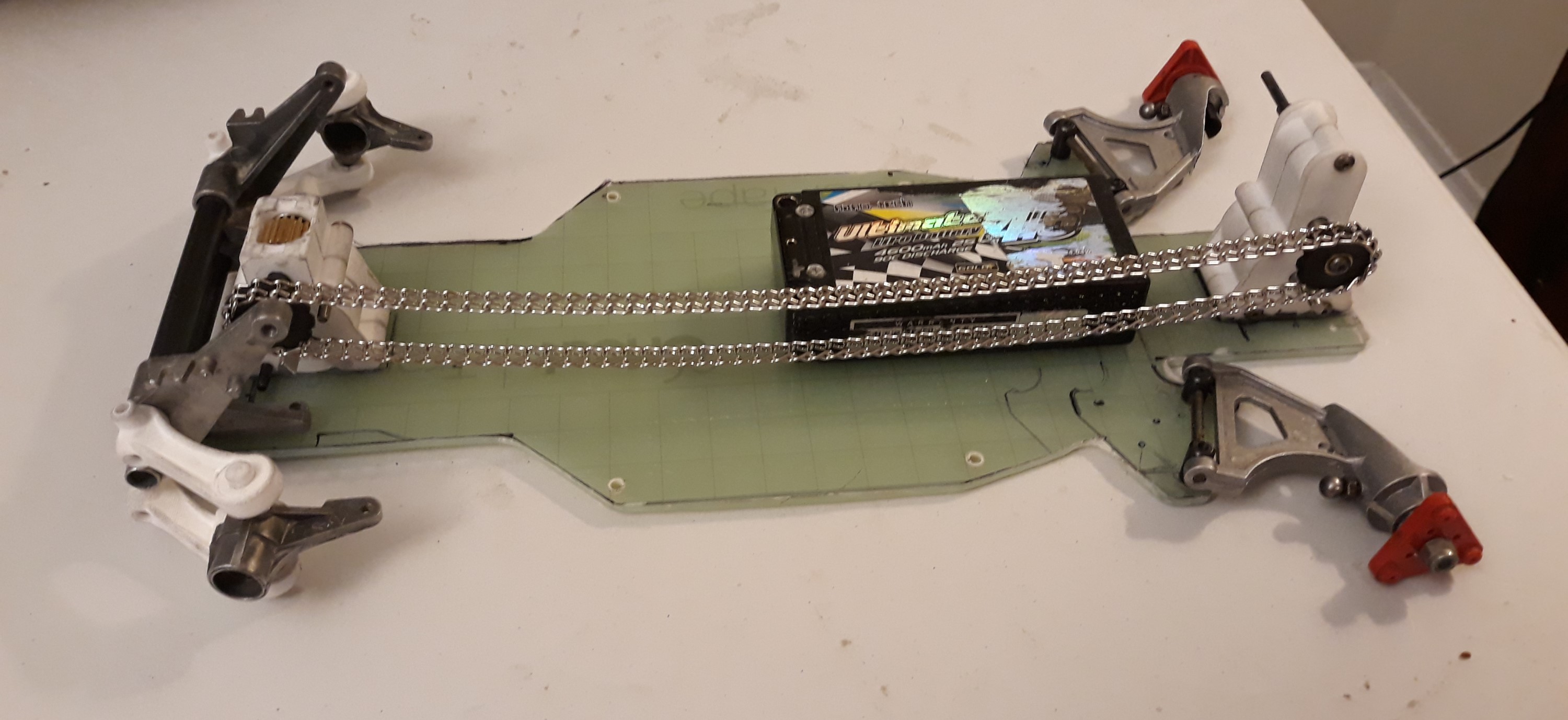

Just got some more aluminum tube to finish the cage. Unfortunately, remodeling my kitchen keeps getting in the way.

I also ground down the Optima front knuckles, as they are taller than SRB knuckles, and take away a little front end travel in stock form.

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2357 times
Been thanked: 2018 times

Re: 4wd SRB Trailing arm buggy

Post by Dadio »

Pesky real world problems slowing down a good project
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
