losi mini t brushless powdery slipper pads

Post by pedrolucero »

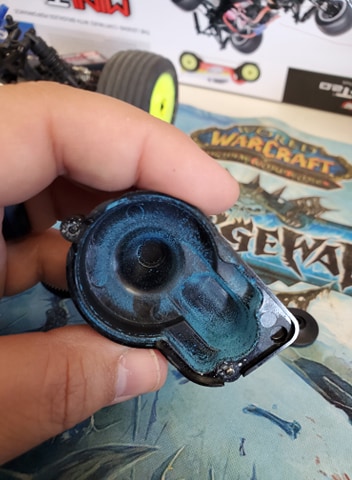

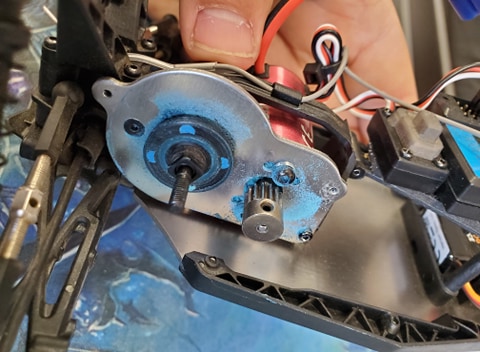

Hello! First time poster here. I co own a hobby shop and we've just started selling and fixing r.c. stuff. I had a customer buy a brand new mini t brushless, and after the first run his back left tire stopped turning and the back right tire turned at about half speed. Upon opening it up, I found blue powder all over the inside where the spur gear and pinion are housed. My questions are these: how does this happen, how do I avoid it next time, has anyone experienced this as a defect, and is it as simple as replacing the slipper pads to fix it?

https://photobucket.com/u/bowzer/p/5d5714ad-4268-457b-9c96-c35b0207cba9
https://photobucket.com/u/bowzer/p/00e2ca88-a8fd-4ad5-88d0-1cd95baf432e
https://photobucket.com/u/bowzer/p/4502e016-7f76-4e7b-bd8b-19f764bf8504
https://photobucket.com/u/bowzer/p/2ec7f07d-3b7e-489f-9c2c-da0e4b1e4171

Let me know if these pictures don't work. Havent logged into my photobucket since 2009 and I forgot how to use bbcode =/

User avatar
GoMachV
Approved Member
Posts: 11115
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 730 times
Been thanked: 2101 times

Re: losi mini t brushless powdery slipper pads

Post by GoMachV »

Unable to view pics and I will never go out of my way for anything photosuckit related after they destroyed our forum here.

That said, if one wheel is froze up and the other barely turning, the slipper disc was the result but not the cause. Need to determine what locked up the one side first. A bearing went bad, something caught in it etc. That locking up is what would have lead to the pad getting wore down.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
juicedcoupe
Super Member
Posts: 2854
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1631 times

Re: losi mini t brushless powdery slipper pads

Post by juicedcoupe »

Photo album set to private.

Just upload them directly.
Always looking for new and interesting ways to waste money.

mikea96
Approved Member
Posts: 3200
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 123 times
Been thanked: 504 times

Re: losi mini t brushless powdery slipper pads

Post by mikea96 »

Mine started doing weird stuff like that on the second battery through it and the dynamite motor with internal esc started smoking and burned up.

pedrolucero
Regular Member
Posts: 6
Joined: Fri Oct 30, 2020 11:32 pm
Location: fortuna
Has thanked: 1 time

Re: losi mini t brushless powdery slipper pads

Post by pedrolucero »

Oh man I can just attach photos!? I'm so sorry. I'm new to this. I feel real dumb too cause I took the time to re open my photobucket account for this AND forgot to set it to not private lol. Sorry guys =/

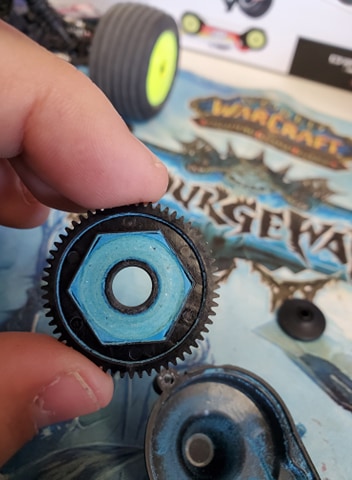

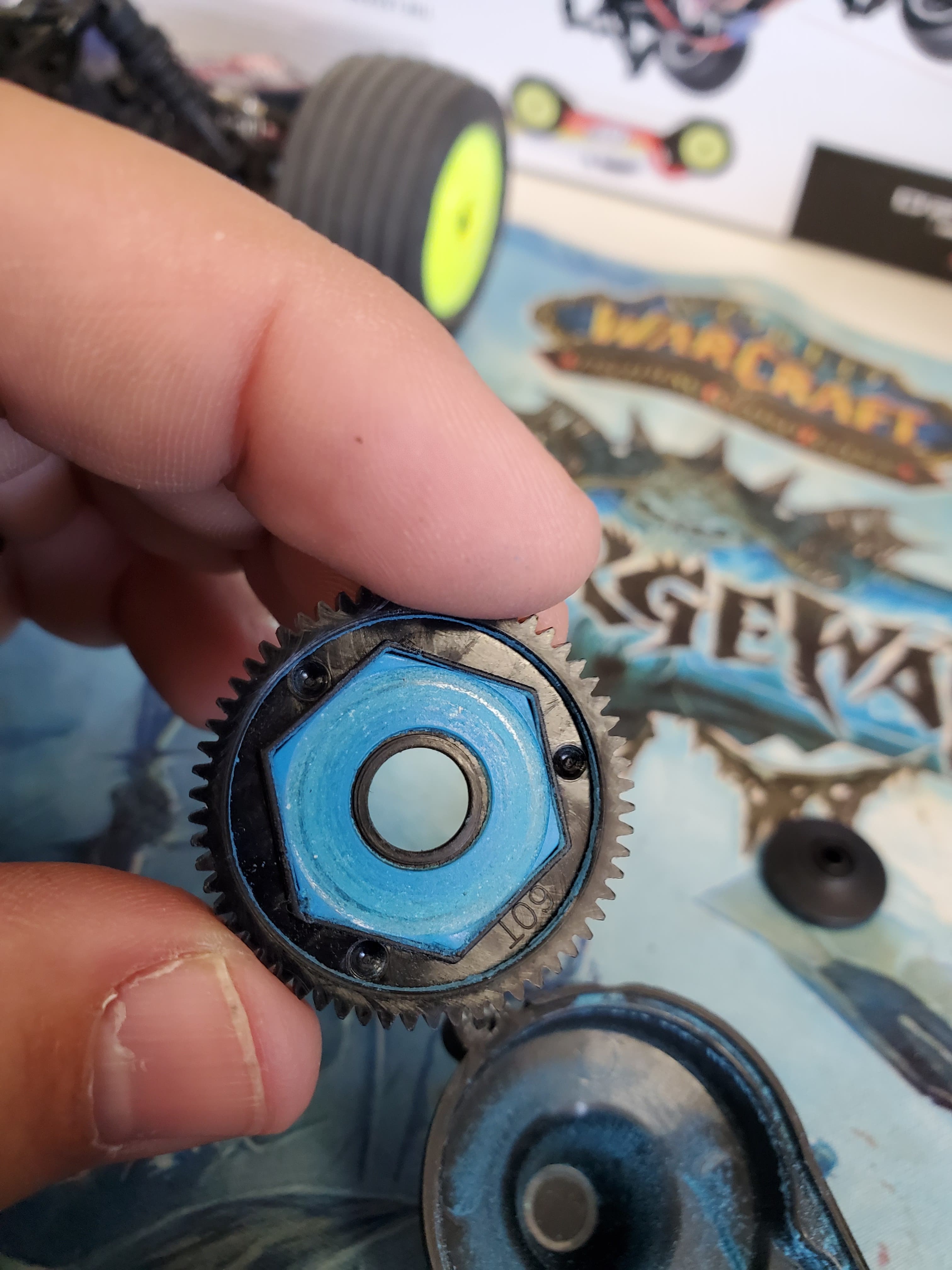

I have attached the photos. Since posting it seems that the housing is enclosed versus what the replacement packaging says. This is the replacement part http://www.losi.com/Products/Features.aspx?ProdID=LOS211016 part number LOS211016. The stock housing doesn't have the hole on the end so it doesn't need the plug. I wonder though if the slipper pads would have survived the first run if that piece was included? I bought a replacement, no plug. *shrug*. I have no replaced the slipper pad and spur gear (they come as a package so why not) and we'll see.
Attachments

pedrolucero
Regular Member
Posts: 6
Joined: Fri Oct 30, 2020 11:32 pm
Location: fortuna
Has thanked: 1 time

Re: losi mini t brushless powdery slipper pads

Post by pedrolucero »

mikea96 wrote: Sun Nov 01, 2020 3:13 am Mine started doing weird stuff like that on the second battery through it and the dynamite motor with internal esc started smoking and burned up.
whoa your motor burned up? Did you ever figure out why?

pedrolucero
Regular Member
Posts: 6
Joined: Fri Oct 30, 2020 11:32 pm
Location: fortuna
Has thanked: 1 time

Re: losi mini t brushless powdery slipper pads

Post by pedrolucero »

GoMachV wrote: Sat Oct 31, 2020 9:07 pm Unable to view pics and I will never go out of my way for anything photosuckit related after they destroyed our forum here.

That said, if one wheel is froze up and the other barely turning, the slipper disc was the result but not the cause. Need to determine what locked up the one side first. A bearing went bad, something caught in it etc. That locking up is what would have lead to the pad getting wore down.
Alright, I'll let my customer know. He said he and his friends used it, but he was watching everyone like a hawk and nothing weird happened. Maybe one of his friends messed it up and hid it well like a jerk =p

mikea96
Approved Member
Posts: 3200
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 123 times
Been thanked: 504 times

Re: losi mini t brushless powdery slipper pads

Post by mikea96 »

pedrolucero wrote: Fri Nov 06, 2020 1:27 am
mikea96 wrote: Sun Nov 01, 2020 3:13 am Mine started doing weird stuff like that on the second battery through it and the dynamite motor with internal esc started smoking and burned up.
whoa your motor burned up? Did you ever figure out why?
I didn't! I just read on some other forums that others were having the same issue. The esc mounted inside the motor seems like a real bad design.

pedrolucero
Regular Member
Posts: 6
Joined: Fri Oct 30, 2020 11:32 pm
Location: fortuna
Has thanked: 1 time

Re: losi mini t brushless powdery slipper pads

Post by pedrolucero »

The engine is dynamite yeah? I've had some bad luck with dynamite products. They are like the faygo of rc stuff right? Not even like a middle of the road brand?

User avatar
juicedcoupe
Super Member
Posts: 2854
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1631 times

Re: losi mini t brushless powdery slipper pads

Post by juicedcoupe »

pedrolucero wrote: Sat Nov 07, 2020 1:34 am The engine is dynamite yeah? I've had some bad luck with dynamite products. They are like the faygo of rc stuff right? Not even like a middle of the road brand?
Dynamite is one of the old Horizon brands, from before they bought up half of the RC world.

I've never noticed any higher failure rates than that of other similar products.
Always looking for new and interesting ways to waste money.

pedrolucero
Regular Member
Posts: 6
Joined: Fri Oct 30, 2020 11:32 pm
Location: fortuna
Has thanked: 1 time

Re: losi mini t brushless powdery slipper pads

Post by pedrolucero »

I think I've widdled down the issues to one thing: the differential inside has too much play. The gears get kinda loose making 1 tire spin at full speed and the other only partially. I've been recommended to regrease? I don't see that will help but at this point, I think about how I can't fix this everyday and it's starting to make me sad inside my heart =p
