WOIN 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

The 2020 VONATS were a blast, and after a 9 year racing hiatus, I did ok in both of my classes.

I decided to add a 3rd class, and the main inspiration behind it was the Ten4 buggy.

My version is going to be based on the “Old Is New” style buggy, using the Klein Arms, and 10T shock towers and shocks.

Why not a full blown Ten4?? I already had, on hand, a GT tranny👍

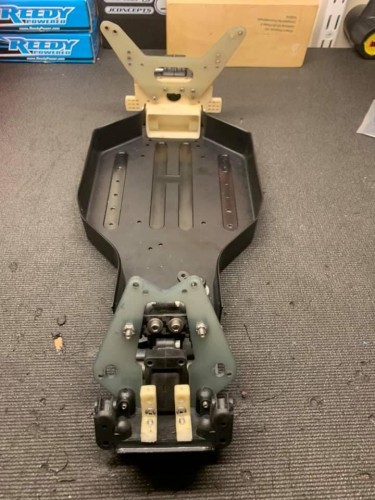

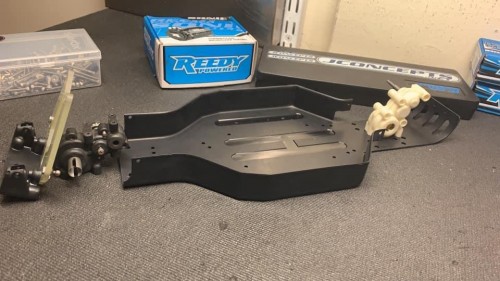

Here’s the starting point:

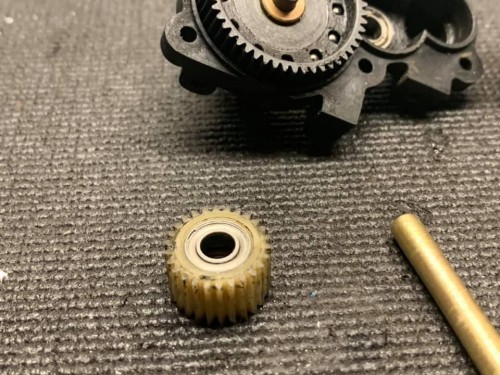

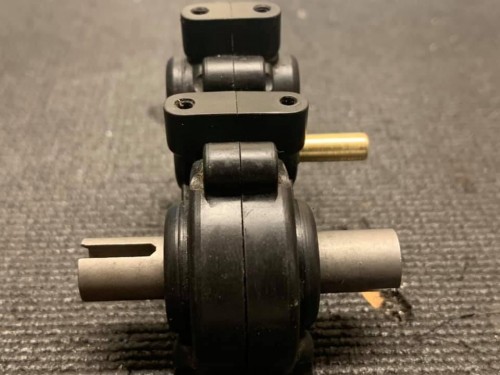

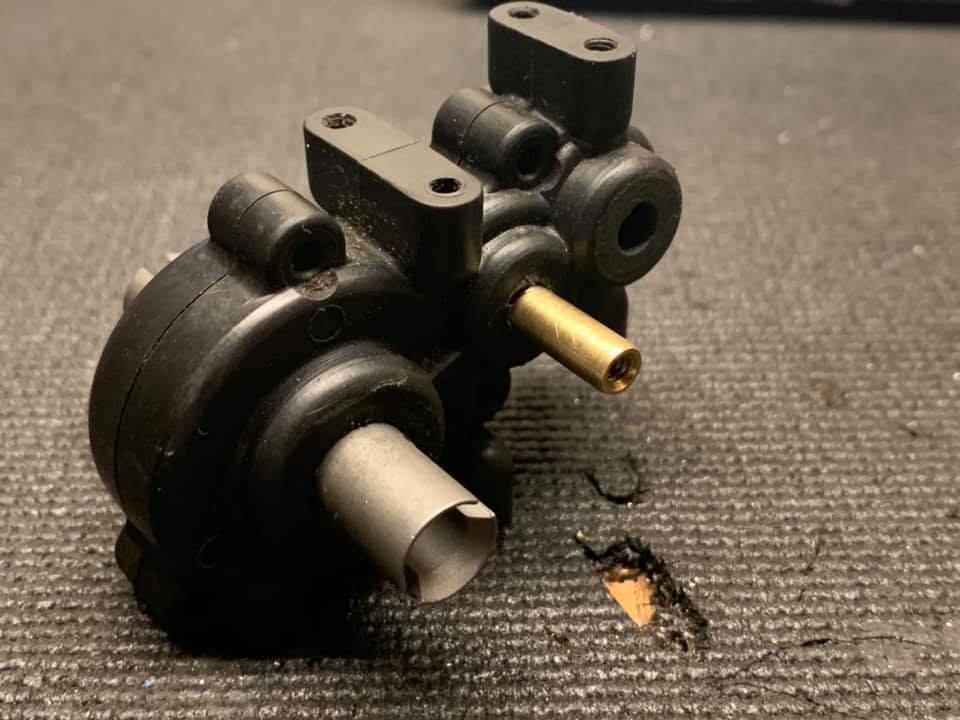

Had to find a long enough shaft that would protrude out of the transmission to be able to mount a pulley onto it.
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

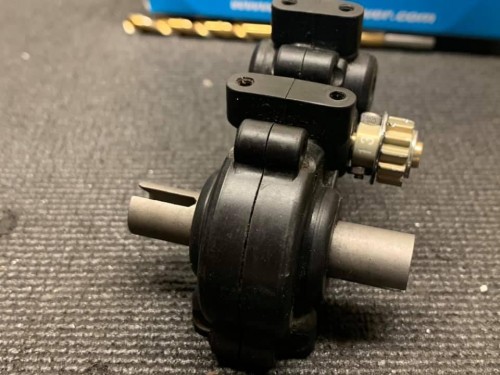

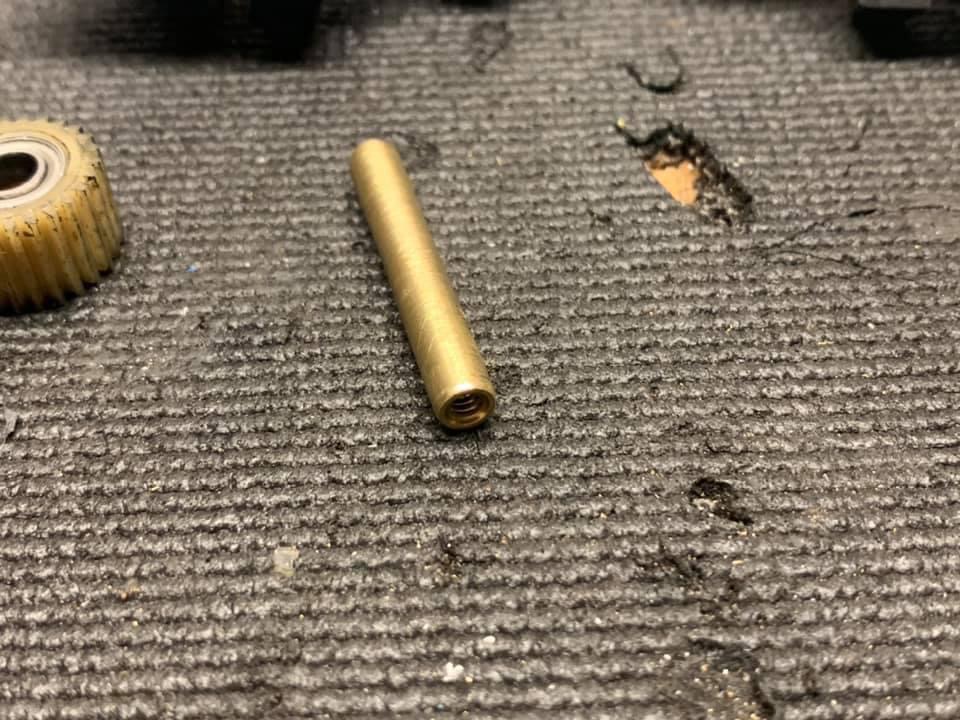

These are 1.2” long, 4-40 threaded standoffs with an outer dimeter of 3/16”, PERFECT RIGHT?? Nope? They are actually a bit larger than 3/16, had to ground them down a bit to fit in the bearings
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

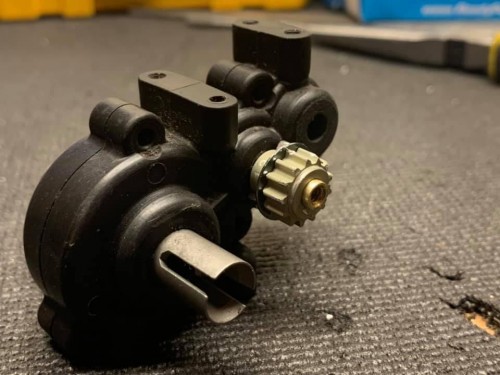

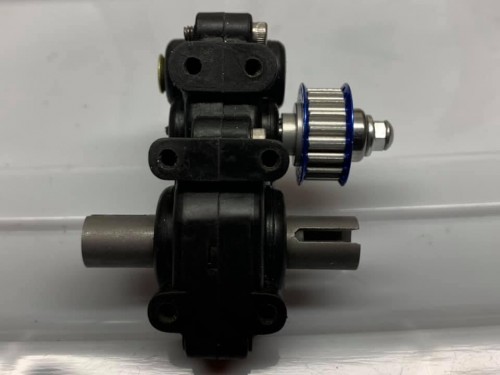

The pulley is a Sakura drift car 13t center pulley, and the inner diameter is 4mm, so I had to grind down the outer portion of the shaft to fit in the pulley, drilled through the shaft using the set screw hole as a guide, and fastened it on the shaft using an m2 screw and nut.
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

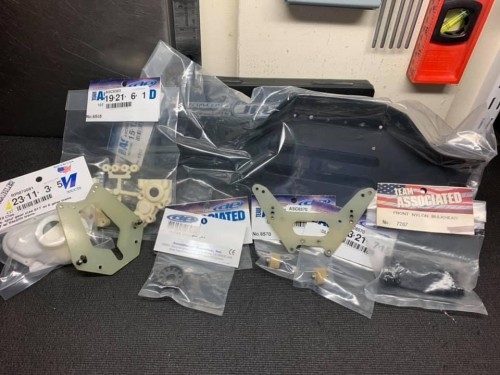

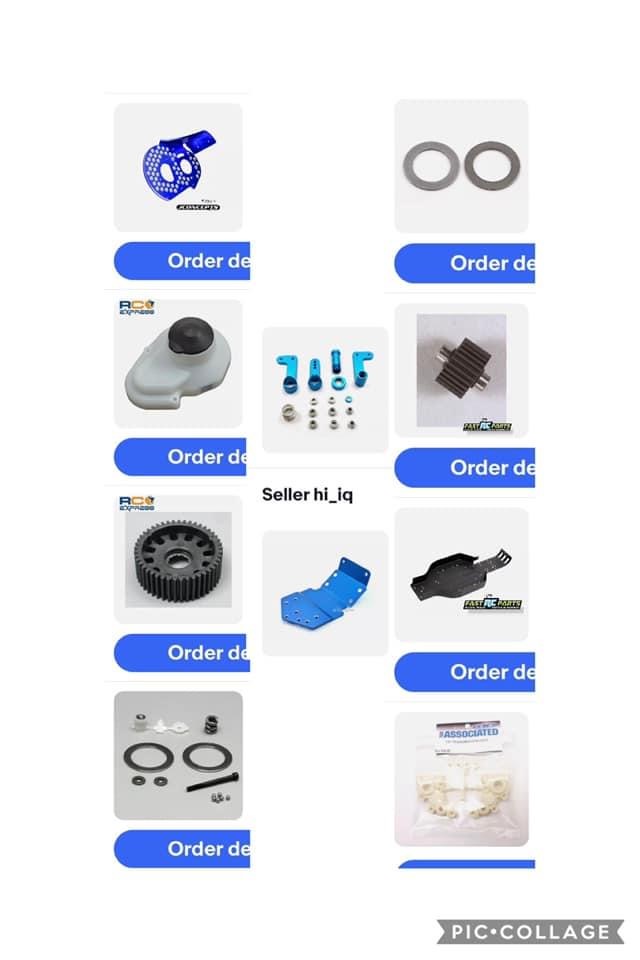

Ordered some STUFFS👍
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

User avatar
coxbros1
Approved Member
Posts: 2157
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1893 times
Been thanked: 1685 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by coxbros1 »

cool build homz!
Tap pic for clarity: Derek

User avatar
dldiaz
Approved Member
Posts: 793
Joined: Thu Apr 01, 2010 3:21 pm
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by dldiaz »

Very nice, Freddy!

The races were fun! :)


-Danny
-dldiaz

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

dldiaz wrote: Wed Nov 04, 2020 1:51 am Very nice, Freddy!

The races were fun! :)


-Danny
Heck yeah,

Hope to see you again next year for a rematch😁
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

User avatar
scr8p
Administrator
Posts: 16467
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 27 times
Been thanked: 907 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by scr8p »

What trans are you gonna run out back? A 2.25 and 2.60 aren't going to place nice together.

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

A 2.25

I have several different size pulleys, one way included, coming in the mail, so I can play with ratios😁

If all else fails, I can always buy a xx4 or xxx4 to run at the VONATS😭😭😭
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

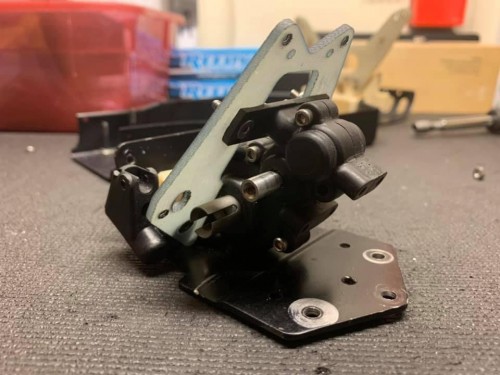

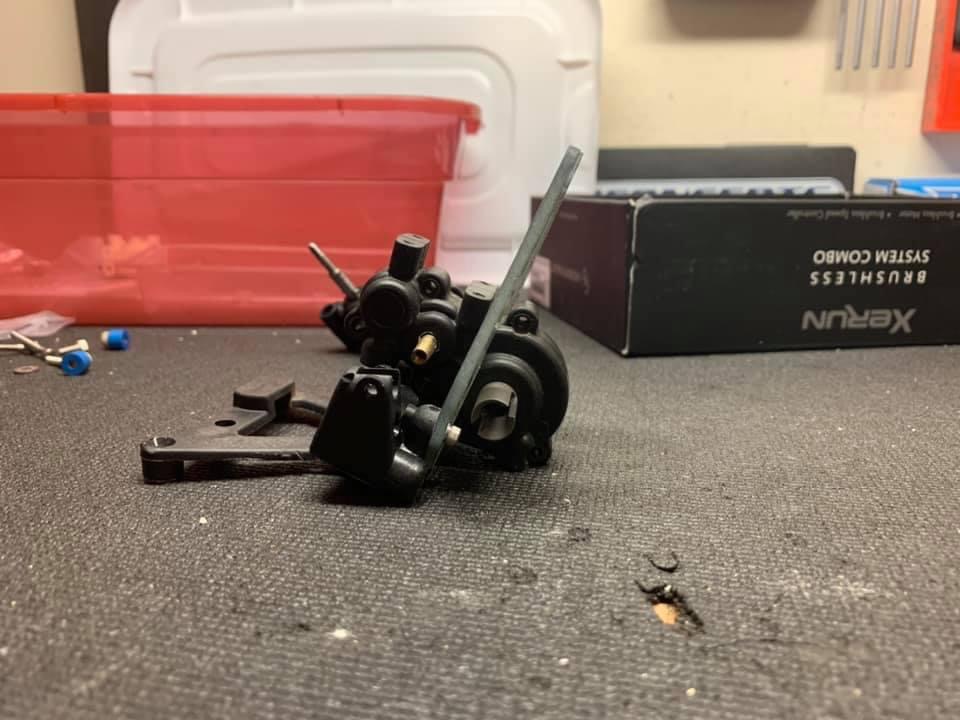

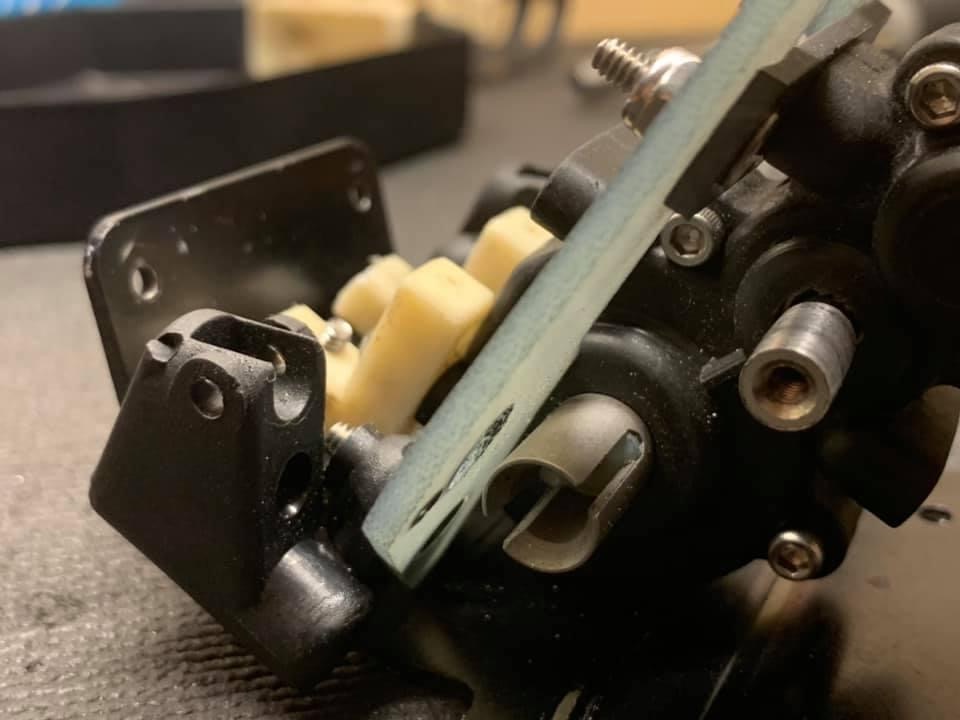

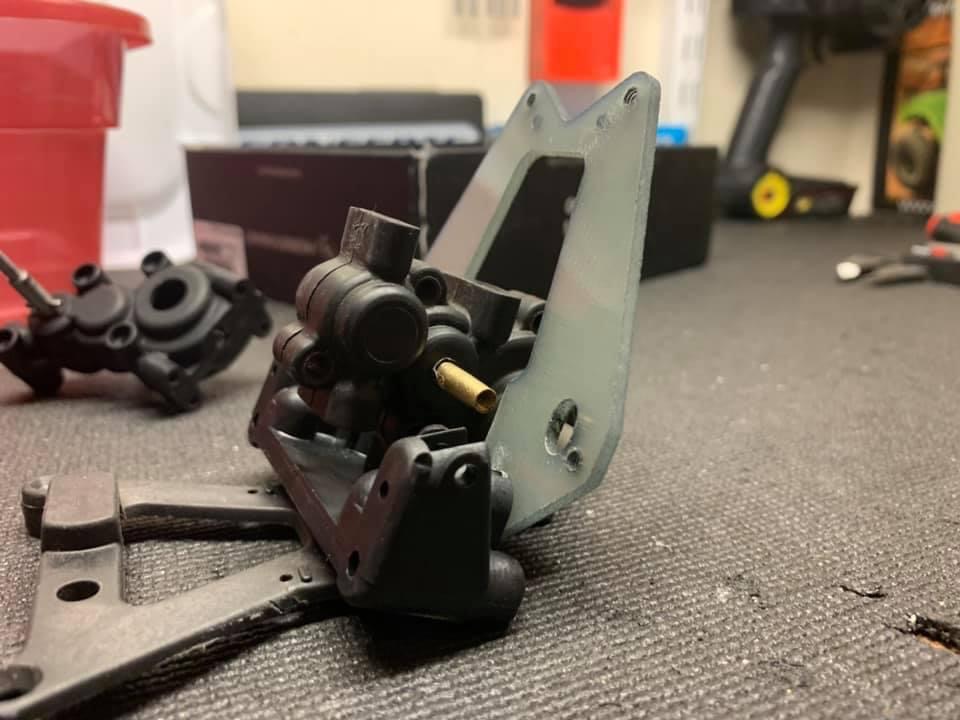

I cut down the front tower and tried a couple of mounting options for the tranny....

I can mount it onto the Nose plate, and onto the shock tower.

This way would give me nice steering clearance👍
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

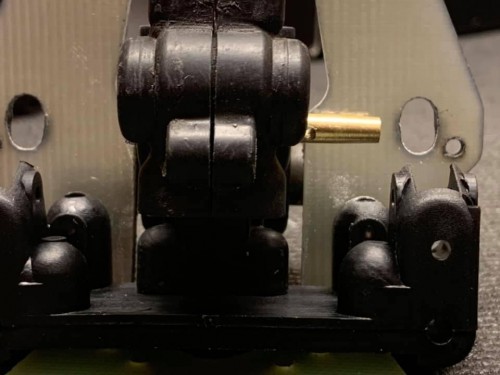

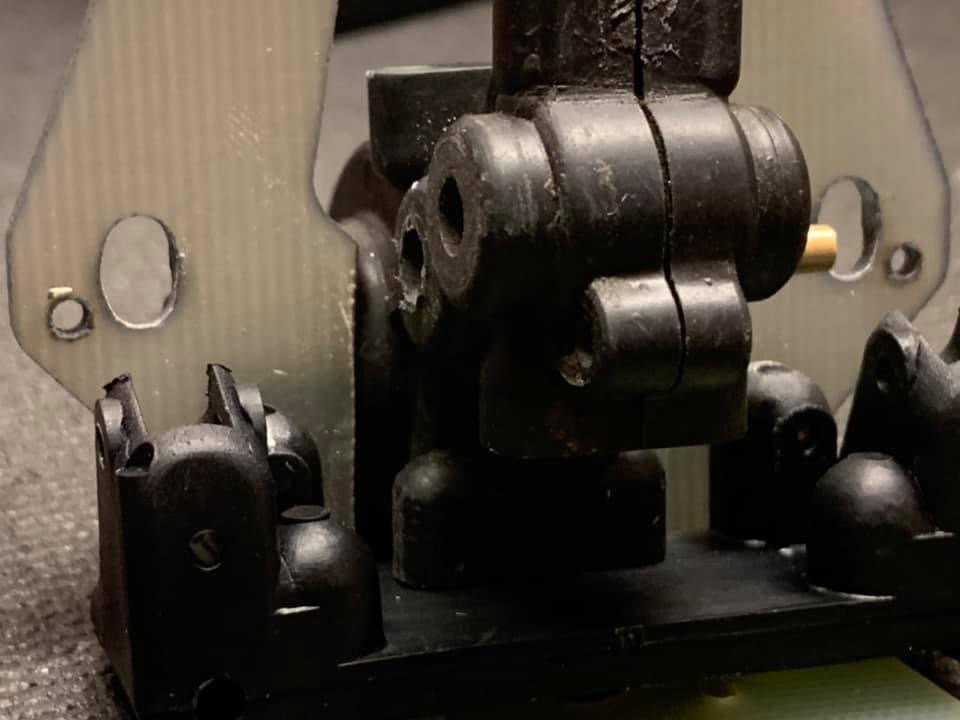

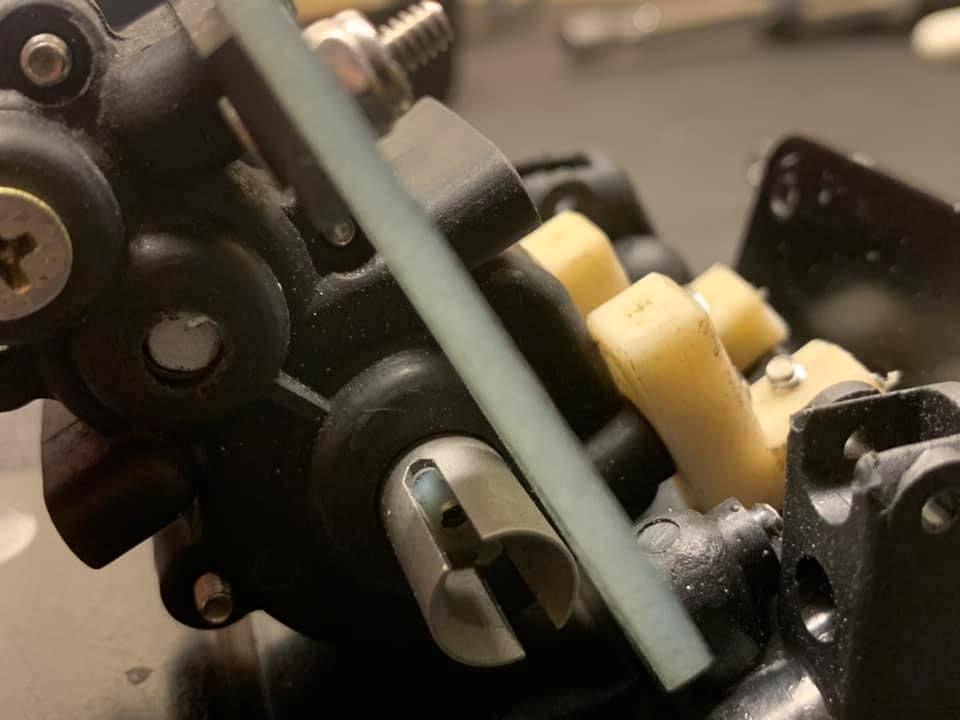

This way, all 4 mounting points would be on the nose plate, and I could brace it to the tower also, and theoretically, gives me good clearance....👍
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

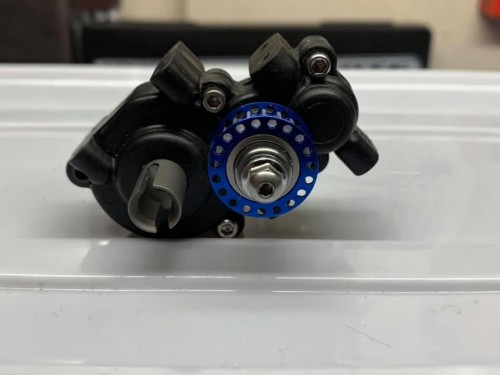

Bought a one way pulley for an SC10 4x4, just to have that option, it’s a 19t pulley from hot racing.... had to make a new input shaft(idler gear shaft) to fit the larger diameter of the one way.
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

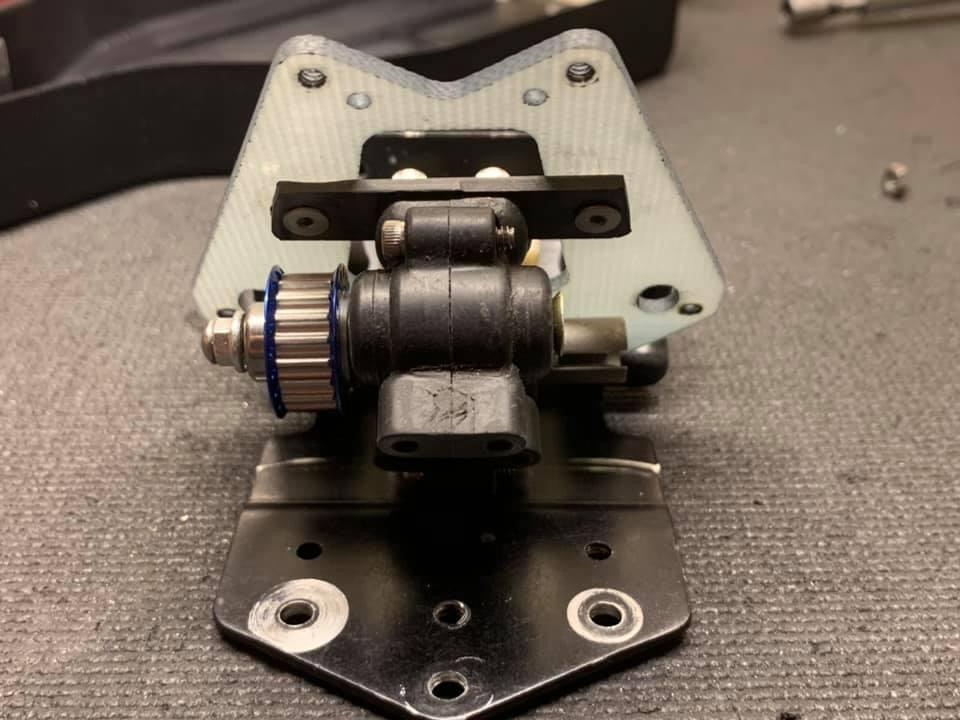

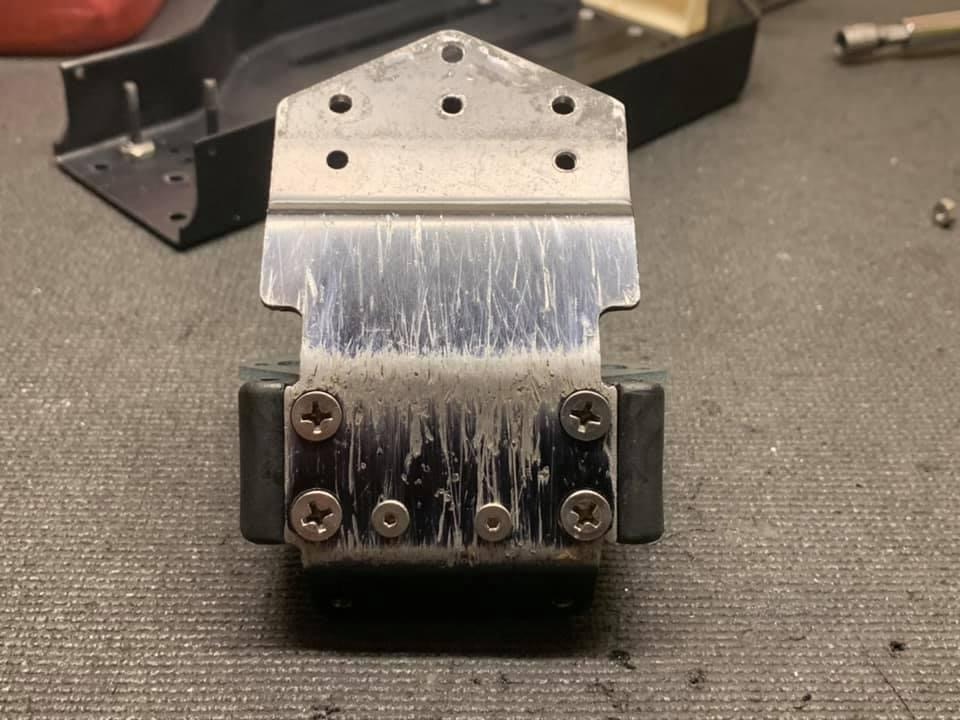

So this will be the final resting place for the GT gearbox, everything from here on out will have to work around this.

It’s tied to the nose plate using a par of Traxxas servo mounts that will either be replaced for something a bit stronger or just dyed black😁

I made a carbon brace to tie the top of the gear case to the shock tower.

Without the nose tubes, it all fill pretty stiff👍
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1050
Joined: Mon Jun 30, 2008 7:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by tecnica2001 »

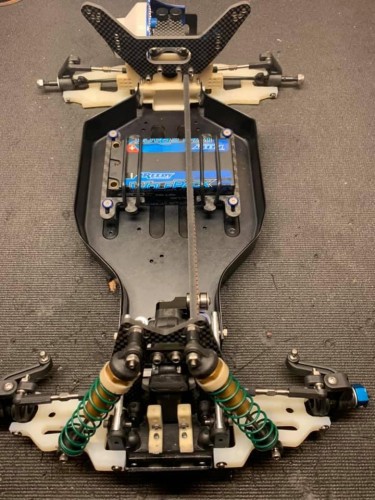

For those not following the build on the RC10Talk Facebook page, here’s a. It of an update:

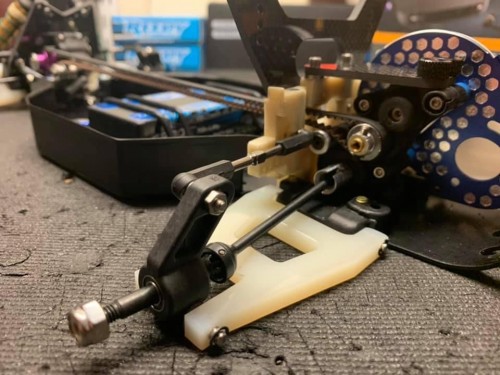

After struggling to find the right sized front cvds, I’m still struggling with that 😁, so I’ve decided to extend the arms out a bit, to accommodated the 176mm cvd...waiting on parts🤷🏻

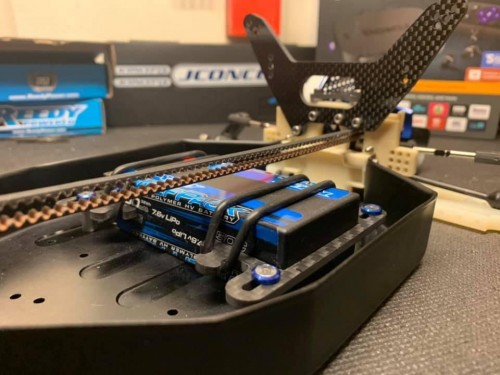

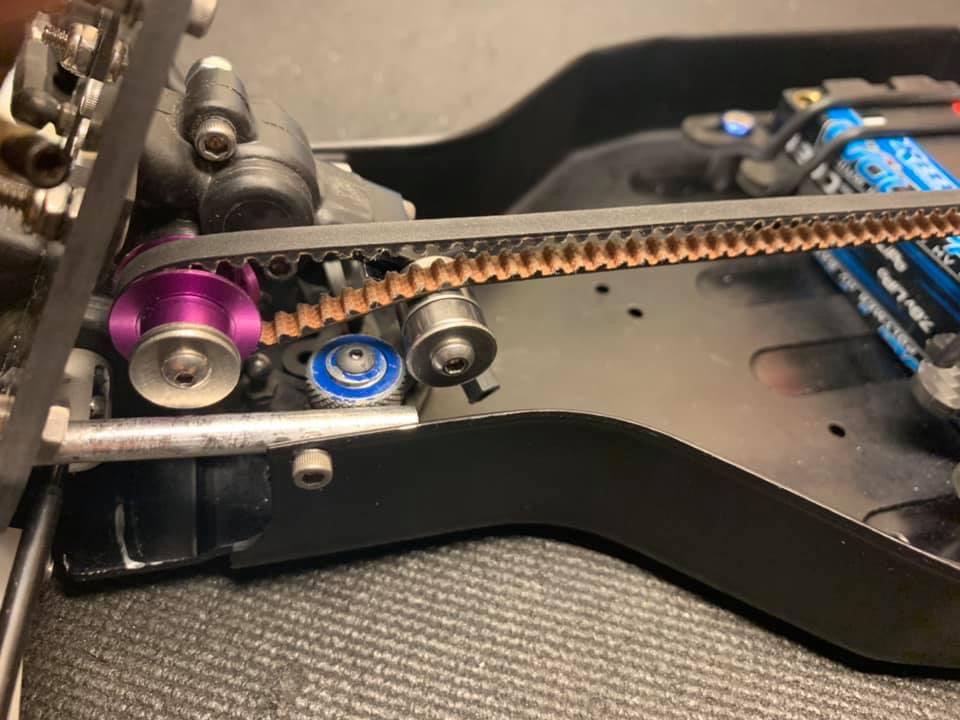

Decided to move onto solving the belt issues, finding the proper size belt was an issue, so I ordered an HPI RS4 MT Tough Racing Belt....when I got it, it was short by a couple of millimeters, so I decided to move the noseplate back to the buggy wheelbase, and use smaller pulleys.

A belt tensioner in the front, and the belt drive system is “complete”.

Need to eliminate some of the rear end chassis flex, so next step is to make some sort of brace👍
Attachments
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

User avatar
romulus22
Approved Member
Posts: 2434
Joined: Wed May 19, 2010 11:30 pm
Location: KY
Has thanked: 548 times
Been thanked: 571 times

Re: 4wd RC10 — 2021 VONATS Entry

Post by romulus22 »

Cool project!

And just a question about cars like these. Is belt slap ever a concern? Where the belt cogs hit each other and cause wheel lockup or just momentary loss of power?
