DSPPC EXP3 MID kit Cougar

Post by Djerk »

Right... this is going to be my first topic here!
As you see in the topics name.. you all probably see where this will go to.
This project started somewhere in September 2020.
A friend, (Marshky) helped me with the CAD designs, and others supported me with with all the options and advices i needed to complete this job.
As for now, i am finishing on the details, waiting to get new parts coming in, and measuring al lot with the Caliper (a lot!! Haha).

I the end, the idea is to create a full kit, to build your own Cougar MID car! A full kit with all carbon/plastics/screws/bearings what you’ll need. You only need to use the Cougar transmission and suspension parts!
It won’t be cheap, but if there is enough interest.. it will get less expensive.

So, you all have to wait some time before the first pictures show up here.. but, they are coming... (end of January!?) ☺️👍🏼!

Any questions, just let me know.. regards Dirk.

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

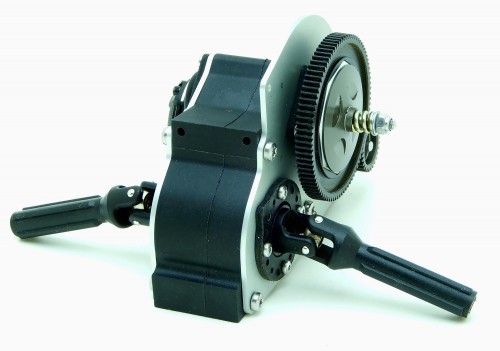

First part build.
Using the Pro Trans, pinion 23 and spur 89
Motor will be the Hobbywing V10 8.5T
Hard anodized the side plates in plain matt finish.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

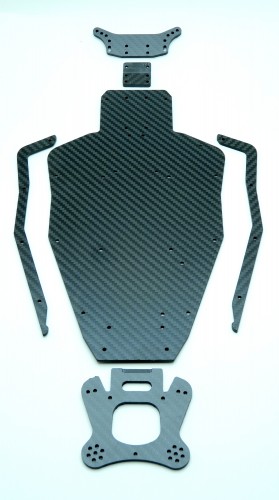

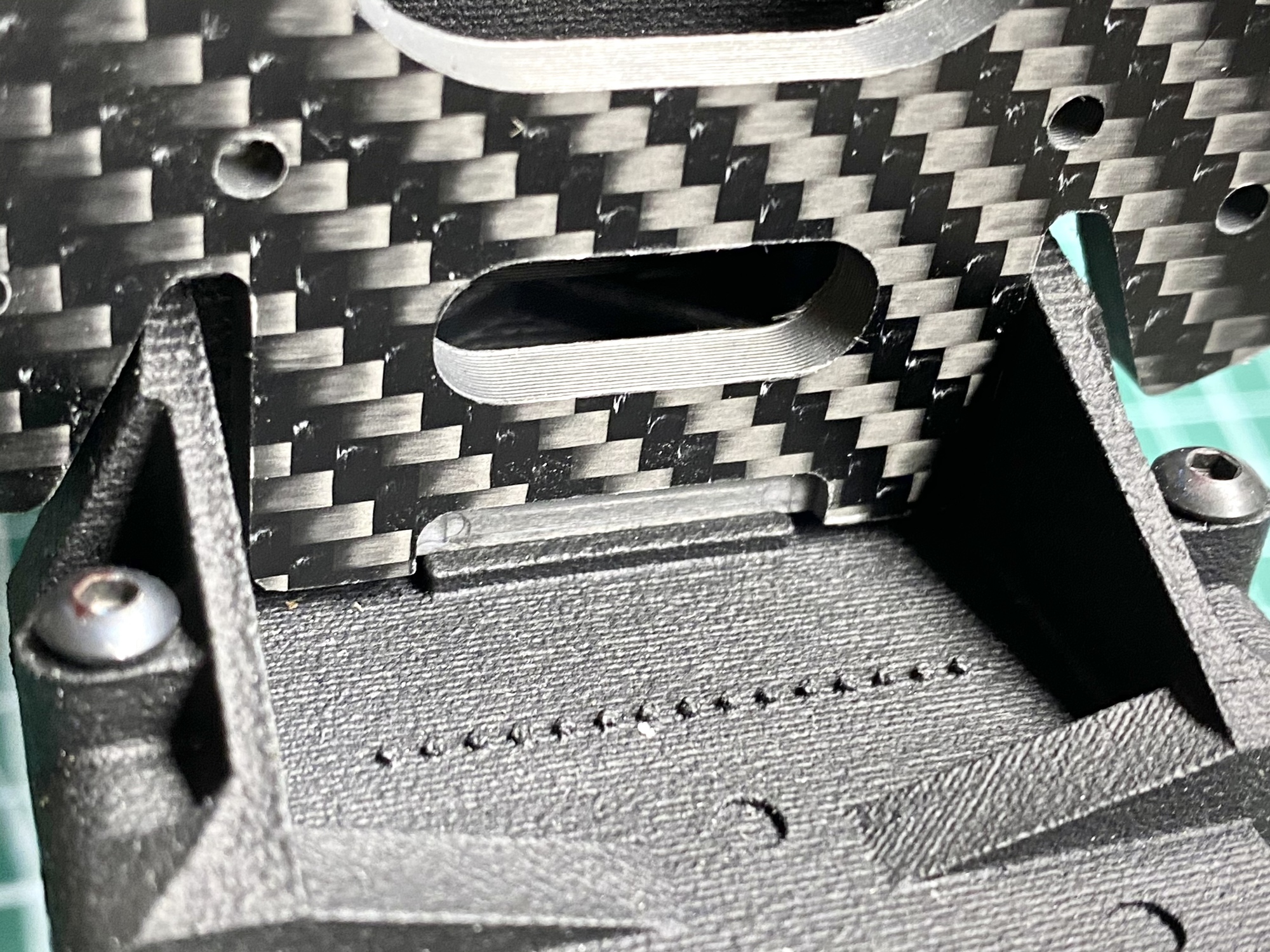

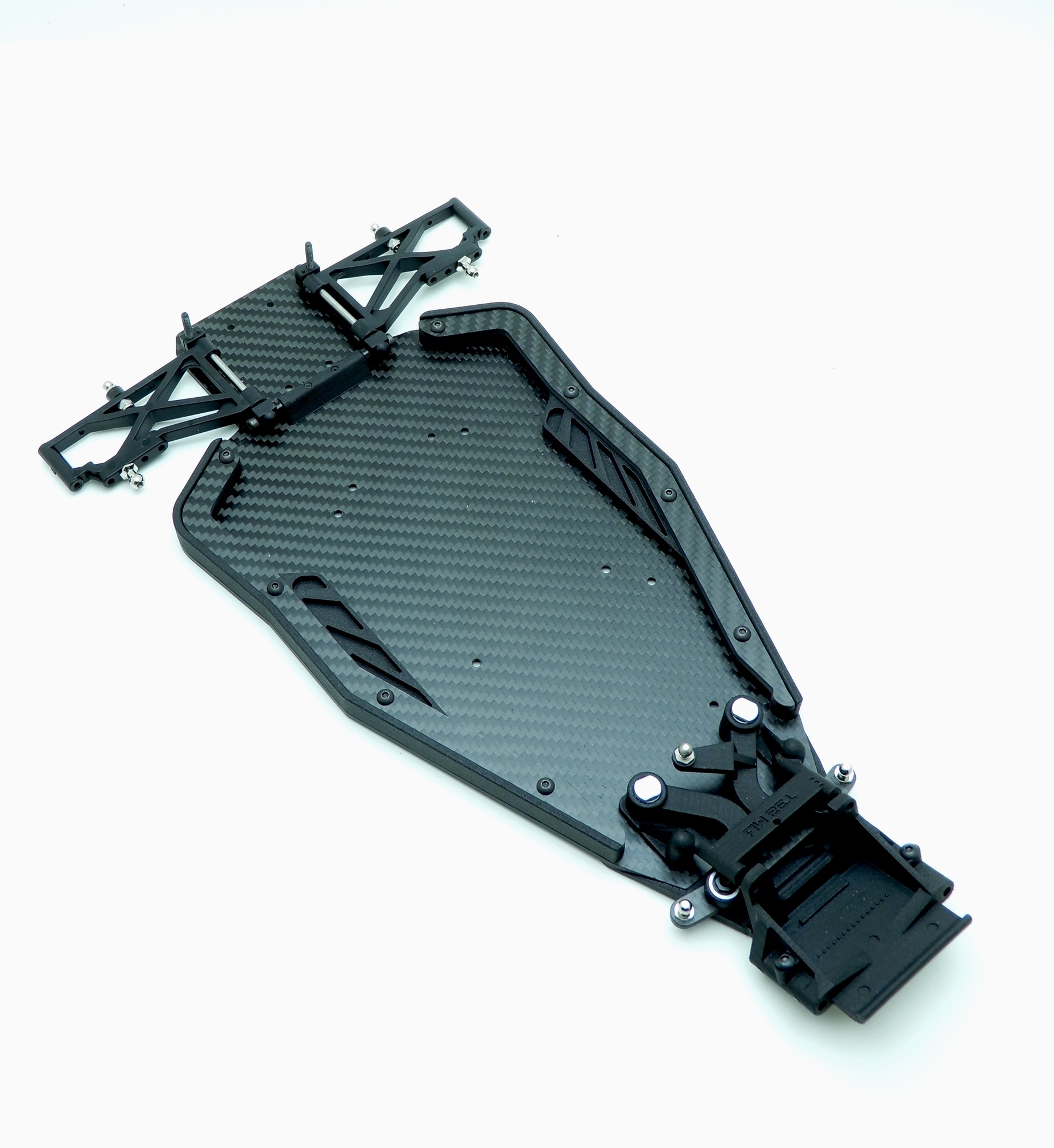

Carbon fiber parts and 3D printed parts all together.
Assembly can begin!
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

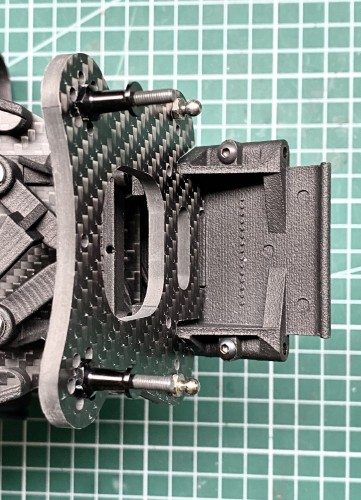

Putting the front end together.

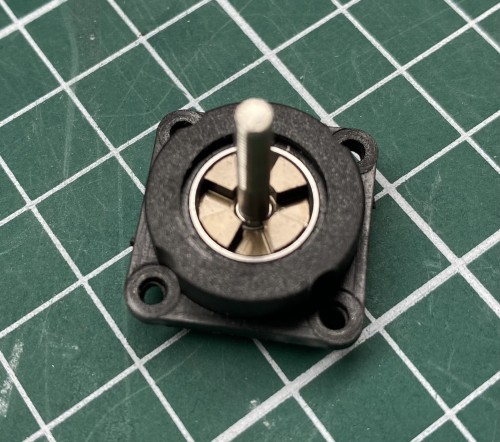

New designed ballrace steering system.
8 bearings inside, original steering posts, carbon Ackerman.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

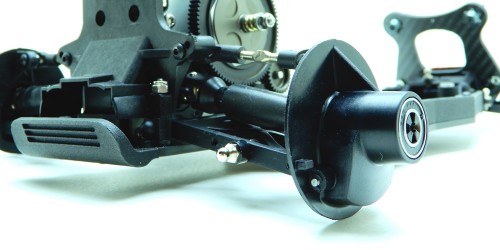

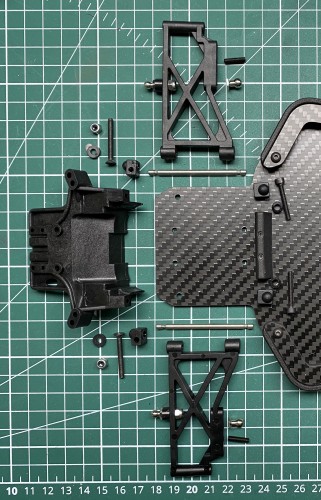

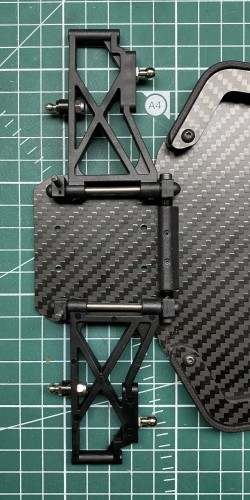

Building the rear end.
Created an easy way to adjust toe inn-out and Antisquad.
Using all original Schumacher parts for suspension.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

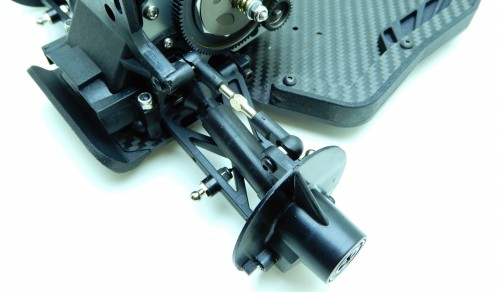

Getting the transmission on, building the rear shock tower and placed them on the chassis.
(Rear tower will be adjusted, needs a new design).
Attachments

User avatar
Incredible_Serious
Approved Member
Posts: 3345
Joined: Tue Jan 29, 2008 5:09 am
Location: Melbourne, Victoria, Australia
Has thanked: 1295 times
Been thanked: 770 times

Re: DSPPC EXP3 MID kit Cougar

Post by Incredible_Serious »

Watching with interest.... certainly looks like great workmanship so far....

Alex
Osiris is the key.

"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken

Look out for Todd K. - he's a convicted serial killer!!!

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

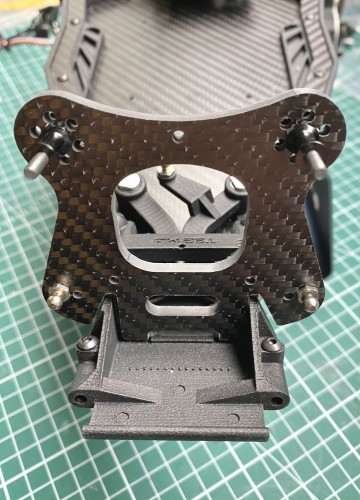

Mounted the new front shocktower.
4mm carbon, and fully adjusted so it will fit the original (U322) front plate too.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

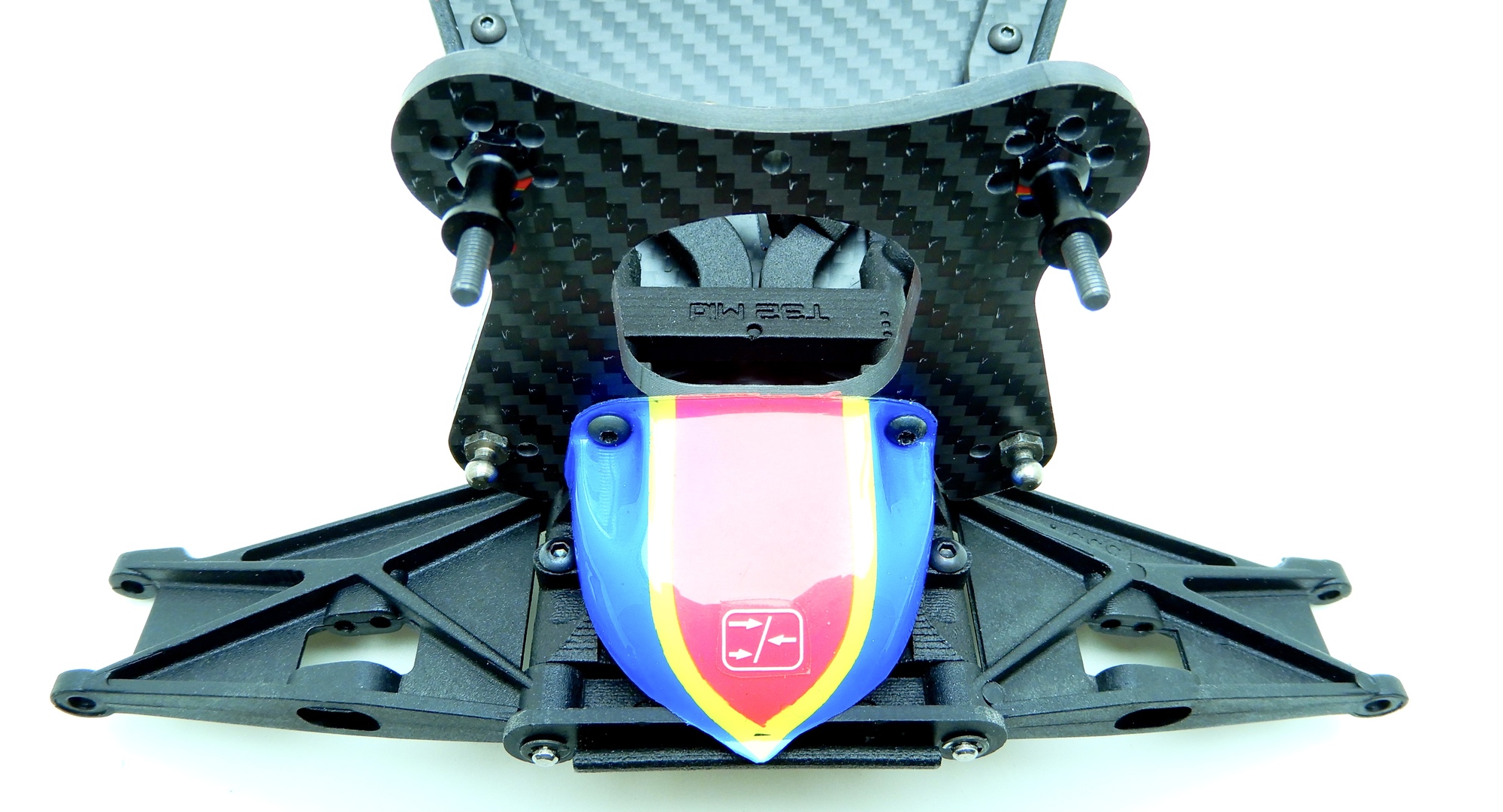

Added most of the NIB suspension parts.
Still need to tweak some things, but close-as for now.
Also you have a sneak preview of the paintsceme on the nosecone... ☺️

(Rear shock tower did not arrived today with post.. #waitingforparts)
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

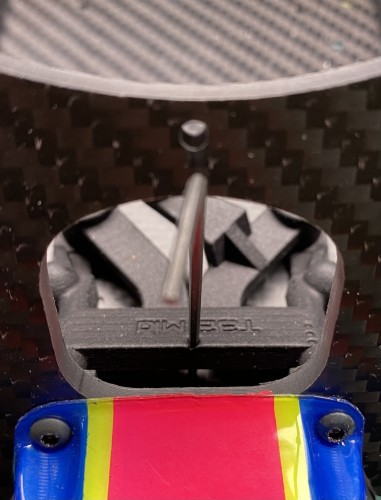

Just a minor little detail on the Sunday afternoon...

My friend Marshky came up with an idea when CAD designing the front end (which other brands do..).

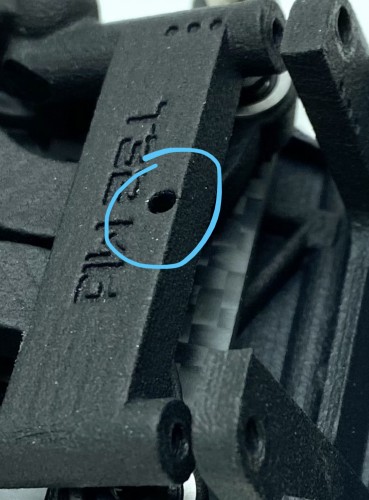

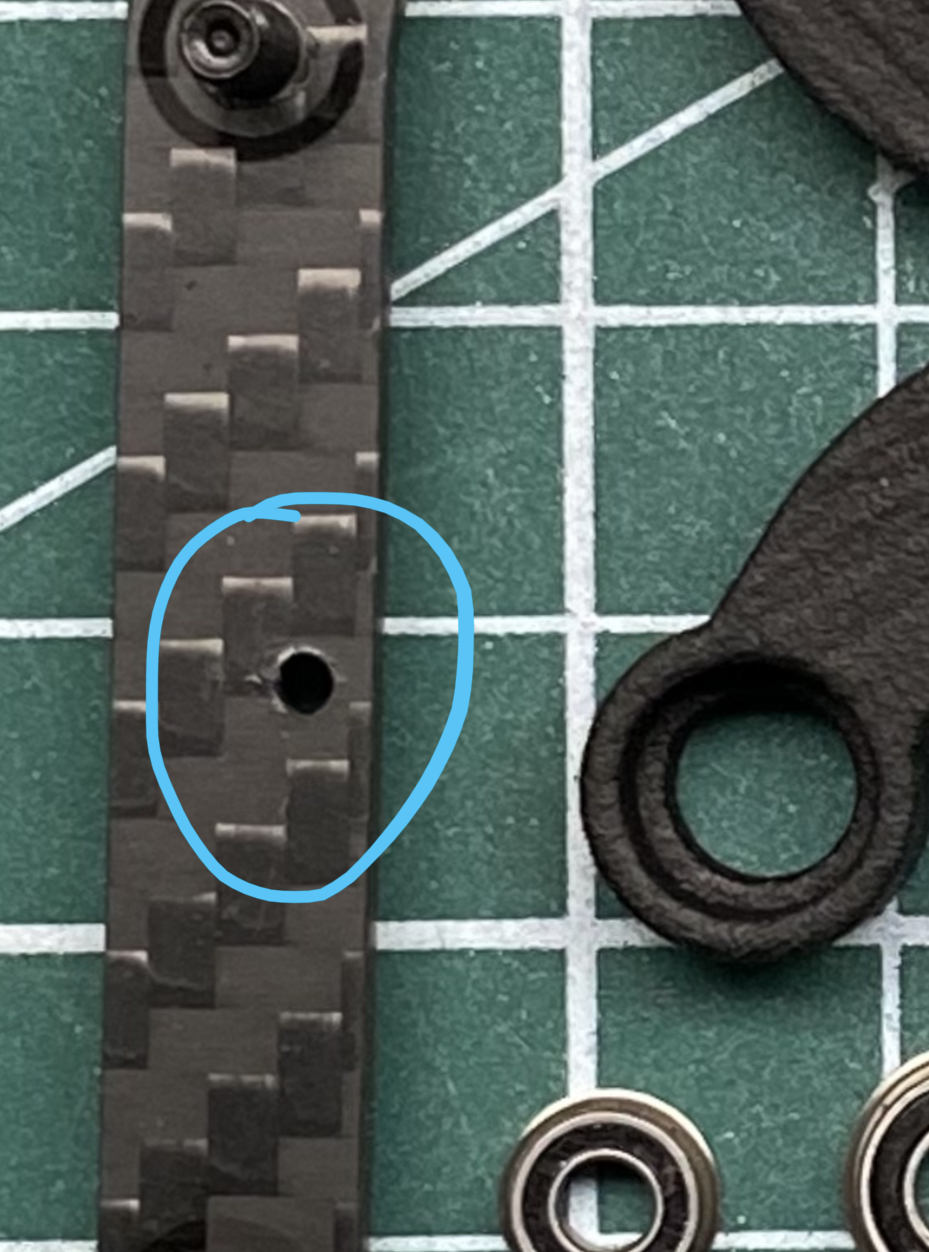

Put some holes in the Ackerman, and brace, make a reference hole in the tower... so you can easily set up the middlepoint of the steering.

Smart, easy, simple!
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

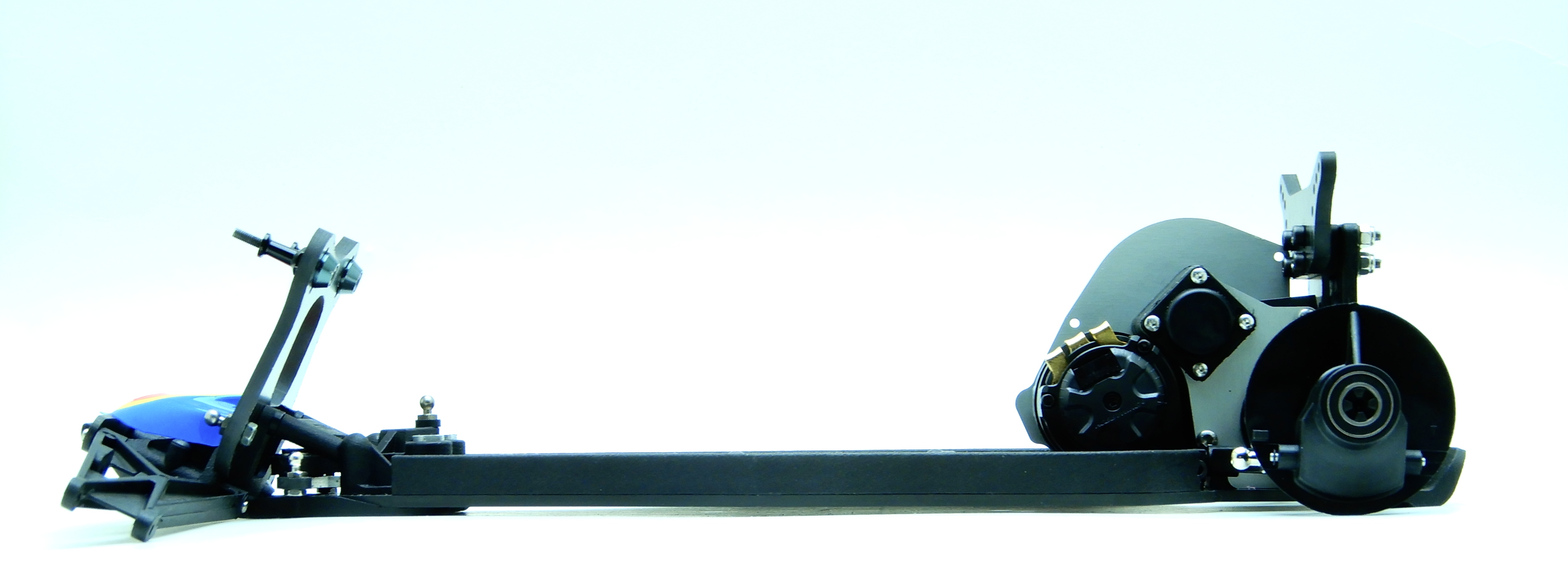

Some tiny updates in between today.

Mounted the waterfall motor guard. This was was needed to stabilize the motorplate. And just looks really nice!

Also mounted the battery straps.
And put the servo in place (the most thight-spot-on-fit ever!)
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

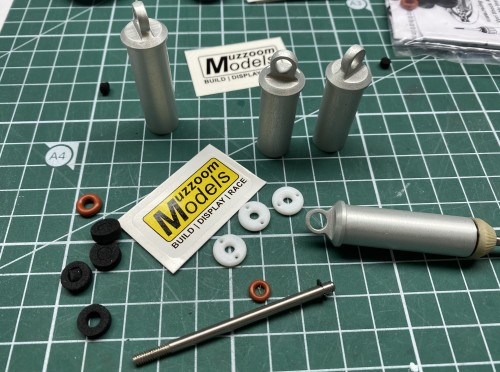

Rebuild the Vari-shocks.

The shocks have been re-anodized, so that all aluminum parts on the build have the same color.
Used the Muzzoom Models Motorsport teflon pistons (2 holes).
All new seals, and new shock shafts.
Went for the bigbore springs on this one, and they look pretty cool i must say!
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

Right... this is something i always wanted back in the day...
Double bearings in the front hubs!!

I used all standard Schumacher parts for this piece of long thinking-engineering... haha.
Not sure how it will work when racing, but i like the feel how it came out.

10mm alloy castle axles
2 bearings
Squeezed a 3mm o-ring in the wheels

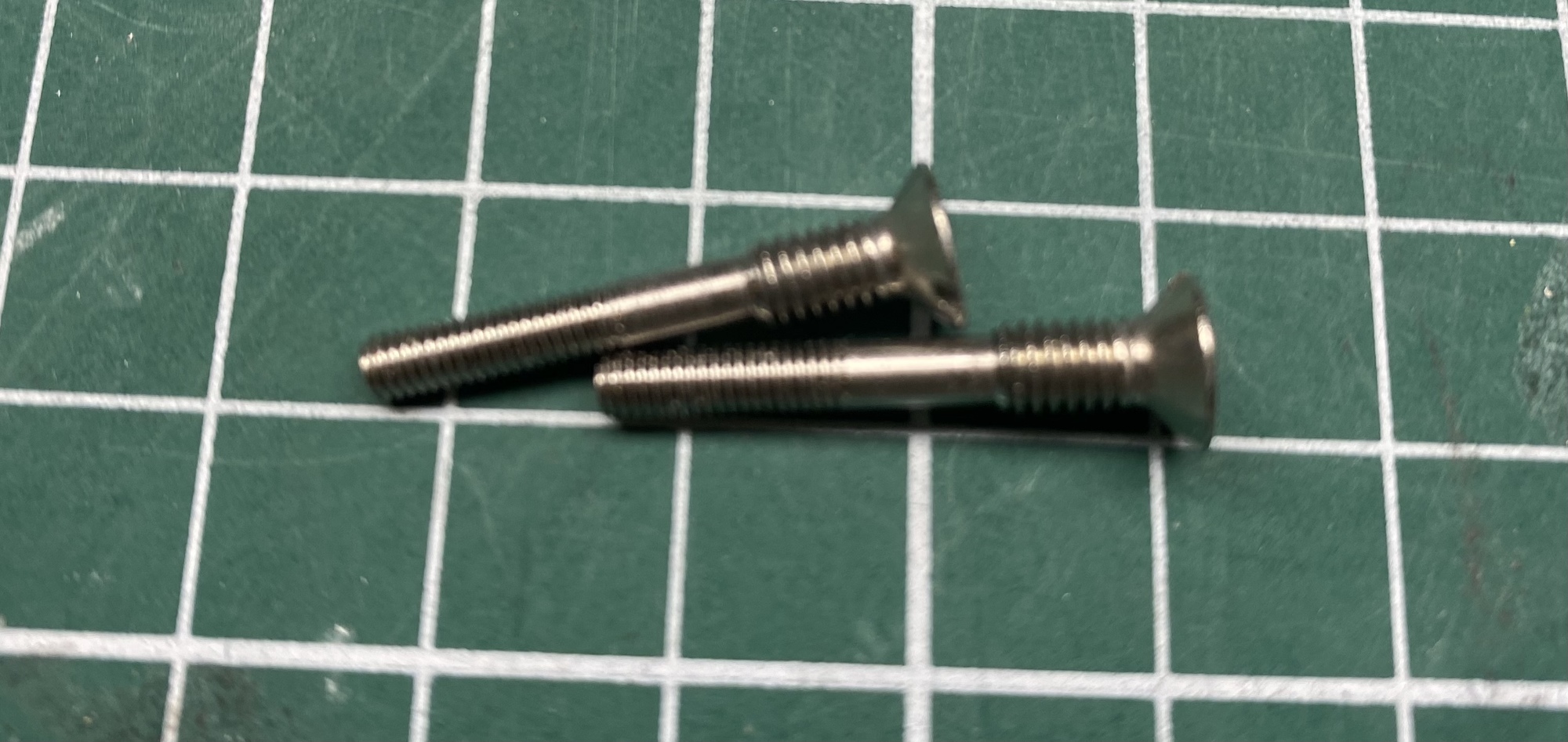

Milled a stainless axle shaft to fit the 10mm caste axles
Used a washer to get rid of the play

In the end, it feels very solid, and no play left.
When testing we will see how it works! Haha.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: DSPPC EXP3 MID kit Cougar

Post by Djerk »

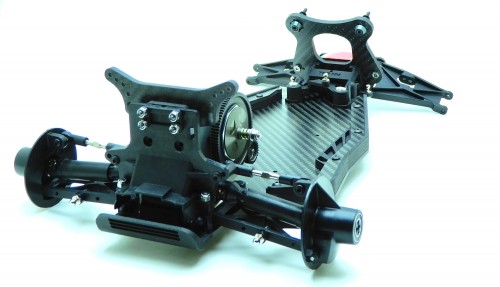

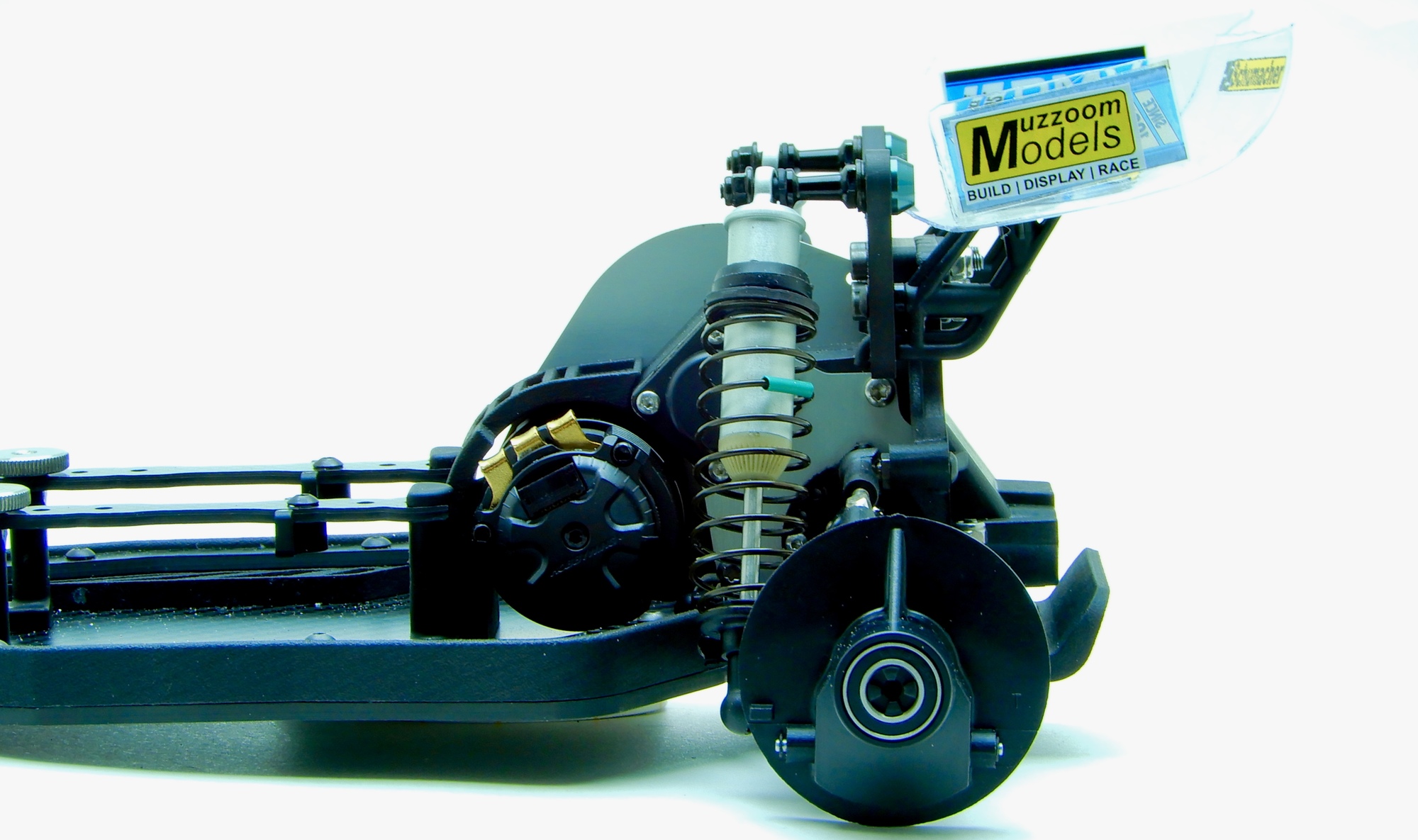

Today finally the postman arrived with the new designed rear shocktower!

So, mounted it, and finished almost the whole rear end.

Together with the carbon milled washer plate, the whole rear bulkhead, and carbon shock tower is realy solid. Pretty happy about how it came out, plus the way it looks.

The Schumacher wingmounts are positioned as low as possible, to create a really streamlined appearance.

Fitted the rear shocks, and all fits nicely!
What do you all think?
Attachments

User avatar
coxbros1
Approved Member
Posts: 2157
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1893 times
Been thanked: 1685 times

Re: DSPPC EXP3 MID kit Cougar

Post by coxbros1 »

That thing would compete with anything made today! F
