Will these still work with the right battery and controller?

Post by Aplanetman »

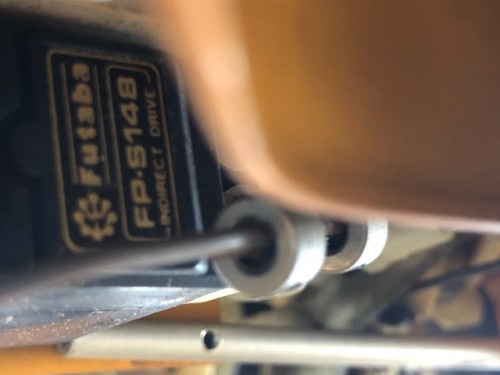

These are from, I think, a Classic or a Cadillac circa 1986:


What do I need for a battery and controller to be able to revive this ? Or do I need to go with all new electronics...

User avatar
coxbros1
Approved Member
Posts: 2161
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1903 times
Been thanked: 1698 times

Re: Will these still work with the right battery and controller?

Post by coxbros1 »

no pics coming up homz☹
Tap pic for clarity: Derek

Aplanetman
Regular Member
Posts: 3
Joined: Tue Nov 24, 2020 2:15 pm
Has thanked: 4 times

Re: Will these still work with the right battery and controller?

Post by Aplanetman »

I am so lame...how do I select a photo from my home page to post? When I touch the photo icon, it places something in the post but not a photo I need...

Aplanetman
Regular Member
Posts: 3
Joined: Tue Nov 24, 2020 2:15 pm
Has thanked: 4 times

Re: Will these still work with the right battery and controller?

Post by Aplanetman »

...I mean from my desktop...

User avatar
GoMachV
Approved Member
Posts: 11126
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 739 times
Been thanked: 2117 times

Re: Will these still work with the right battery and controller?

Post by GoMachV »

Aplanetman wrote: Tue Jan 26, 2021 11:41 pm ...I mean from my desktop...

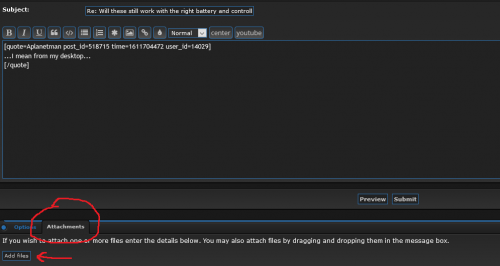

click attachments at the bottom and select "add files". That is how I attached this screenshot

the photo icon is for attaching pic hosted elsewhere
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
terry.sc
Approved Member
Posts: 839
Joined: Wed Feb 07, 2007 9:58 pm
Location: Stockport, UK
Has thanked: 6 times
Been thanked: 74 times

Re: Will these still work with the right battery and controller?

Post by terry.sc »

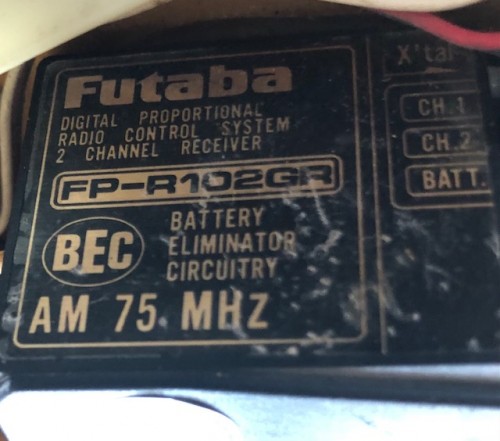

Any 75mhz AM transmitter and matching crystals should work with those, but for reliability it's worth replacing the receiver with a modern 2.4Ghz radio. Minimises the chance of any radio interference and basic radios can be picked up very cheaply. The servo and ESC will work fine with modern receivers.

User avatar
juicedcoupe
Super Member
Posts: 2875
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1646 times

Re: Will these still work with the right battery and controller?

Post by juicedcoupe »

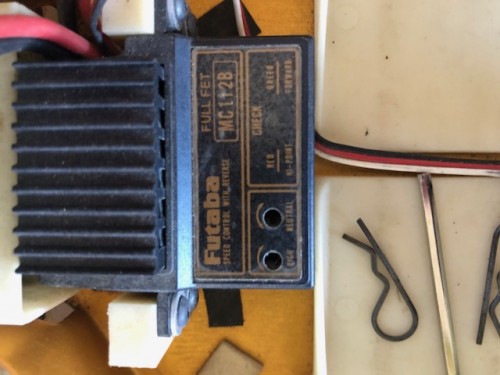

I still use that same esc in my Stadium Blitzer. If you choose to use a lipo battery, you will need to add one of the inexpensive buzzers to prevent over discharging the battery.

NIMH batteries are still available but common stick packs don't fit well when mounted transverse in a RC10. In-line mounting fits better but earlier pans will require drilling new holes for the battery cup or finding a 3D printed cup that fits. The esc will also have to be moved.

If you do choose the lipo route, there are 3D printed cups available that fit short packs in transversely.

While I do like those old esc's for vintage cars, a $20 Hobbywing will likely serve you better if you intend to drive it much. It has a lipo cutoff as well.
Always looking for new and interesting ways to waste money.
