Team Pit Stop Slipper

General info, Q&A.

Moderators: scr8p, klavy69

User avatar
bscotti
Approved Member
Posts: 619
Joined: Fri Jul 14, 2006 1:48 pm
Location: Freeville, NY
Been thanked: 1 time

Team Pit Stop Slipper

Post by bscotti »

I came across a few parts in my TPS stash that I haven't seen before. It's an interesting slipper concept from days gone by. I am going to guess that it was optional as it is not included in the nip trans I have ...

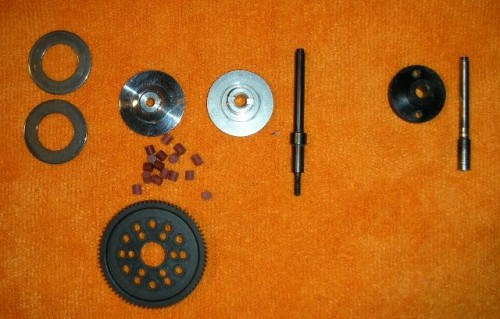

Slipper parts on the left, standard non-slipper shaft and gear adapter on the right. The red parts are Rulon, the same material as the early Associated slipper pads.

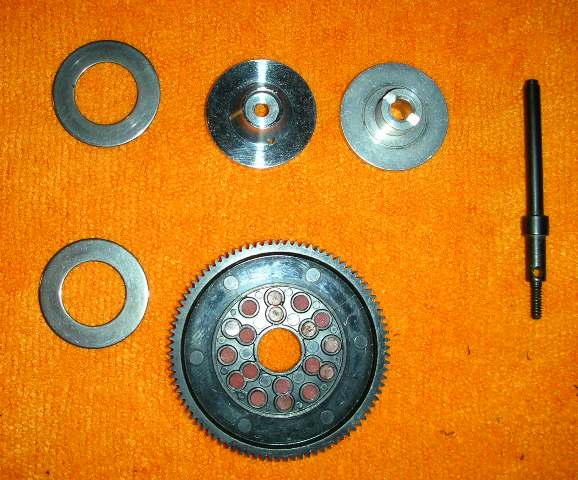

Here are the Rulon nubs installed in the spur gear. Yes, assembly is as tedious as it seems!

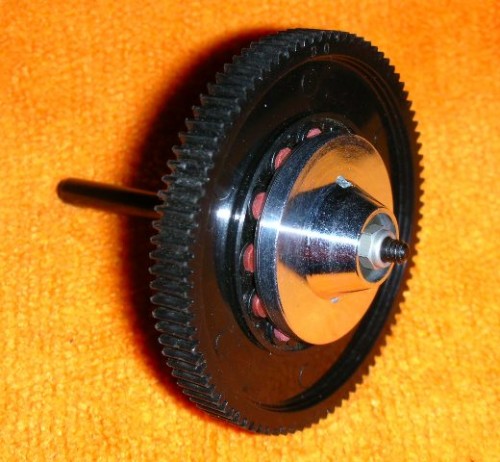

Fully assembled. The Rulon nubs sit proud of the gear and slip on the 2 steel rings.
Classics rule, moderns drool

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 56 times
Been thanked: 56 times

Re: Team Pit Stop Slipper

Post by Mr. ED »

maybe a dumb question, but, which car is it for?

User avatar
bscotti
Approved Member
Posts: 619
Joined: Fri Jul 14, 2006 1:48 pm
Location: Freeville, NY
Been thanked: 1 time

Re: Team Pit Stop Slipper

Post by bscotti »

This one fits the RC10 TPS trans.
Classics rule, moderns drool

User avatar
JK Racing
Approved Member
Posts: 4590
Joined: Thu Jul 19, 2007 6:32 pm
Location: Placentia, CA
Has thanked: 98 times
Been thanked: 182 times

Re: Team Pit Stop Slipper

Post by JK Racing »

That may be where traxxas got their inspiration...my TMaxx has the same set up.
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

Motor'n
Regular Member
Posts: 25
Joined: Fri Jan 09, 2009 7:05 am

Re: Team Pit Stop Slipper

Post by Motor'n »

I had the very same slipper in my losi cars back before the stealth came out.(Then I went back to associated) They worked very well even by todays standards. I can't remember if I ever saw one on a 6 gear but I definitely remember them on the MIP's and it took the performance of a already great trans to the next level. All of the fast guys ( including "TEAM" guys) ran that setup. Most would not cop to it but when they raced Roar and Norrica points races most had them.
Racin since 1987

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 56 times
Been thanked: 56 times

Re: Team Pit Stop Slipper

Post by Mr. ED »

I don't think any one would put it on a 6-gear 'cause that would take away the diff
