Track Master Turbo Glide trans instructions 1989

Moderators: scr8p, klavy69

4 posts • Page 1 of 1

GAMMACRUSH: Approved Member; Posts: 433; Joined: Sat Dec 01, 2007 5:41 am; Location: California; Been thanked: 1 time

Track Master Turbo Glide trans instructions 1989

Quote

Post by GAMMACRUSH » Thu Mar 13, 2008 11:34 pm

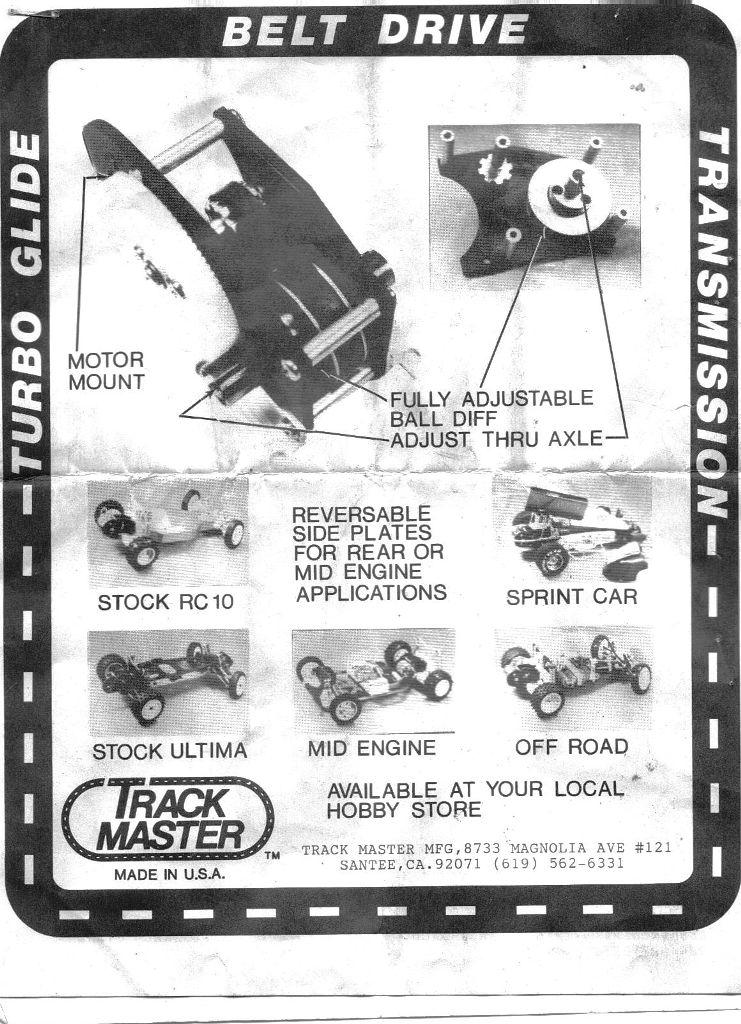

: tm1xx.jpg (170.44 KiB) Viewed 1212 times

: tm1xx.jpg (170.44 KiB) Viewed 1212 times

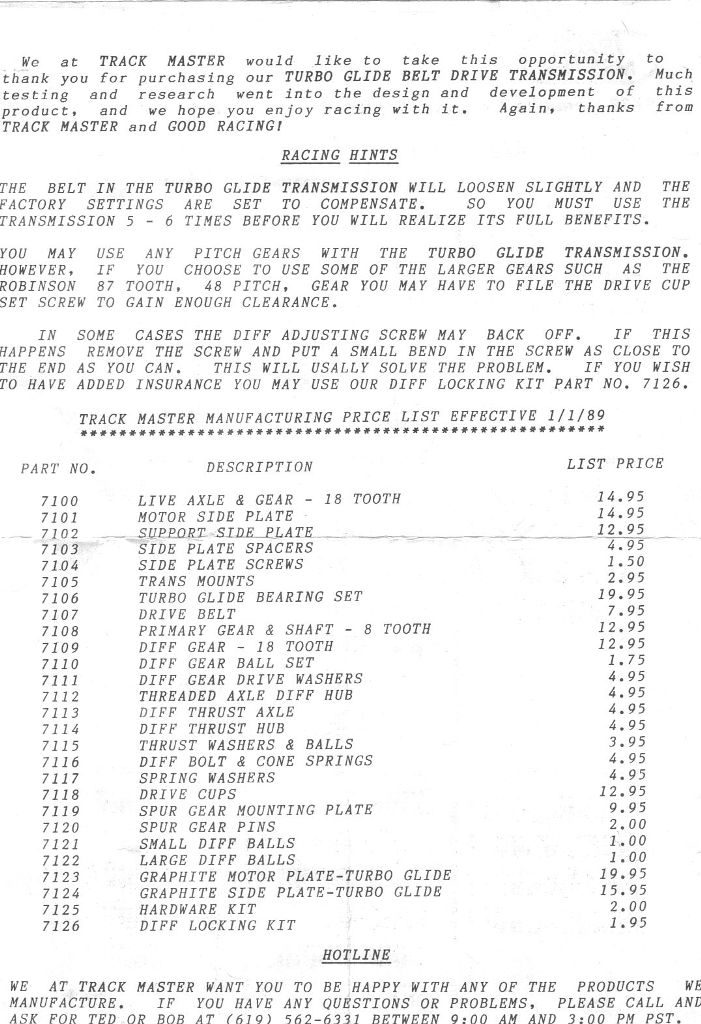

: tm2xx.jpg (144.01 KiB) Viewed 1197 times

: tm2xx.jpg (144.01 KiB) Viewed 1197 times

GAMMACRUSH: Approved Member; Posts: 433; Joined: Sat Dec 01, 2007 5:41 am; Location: California; Been thanked: 1 time

Re: Track Master Turbo Glide trans instructions 1989

Quote

Post by GAMMACRUSH » Thu Mar 13, 2008 11:36 pm

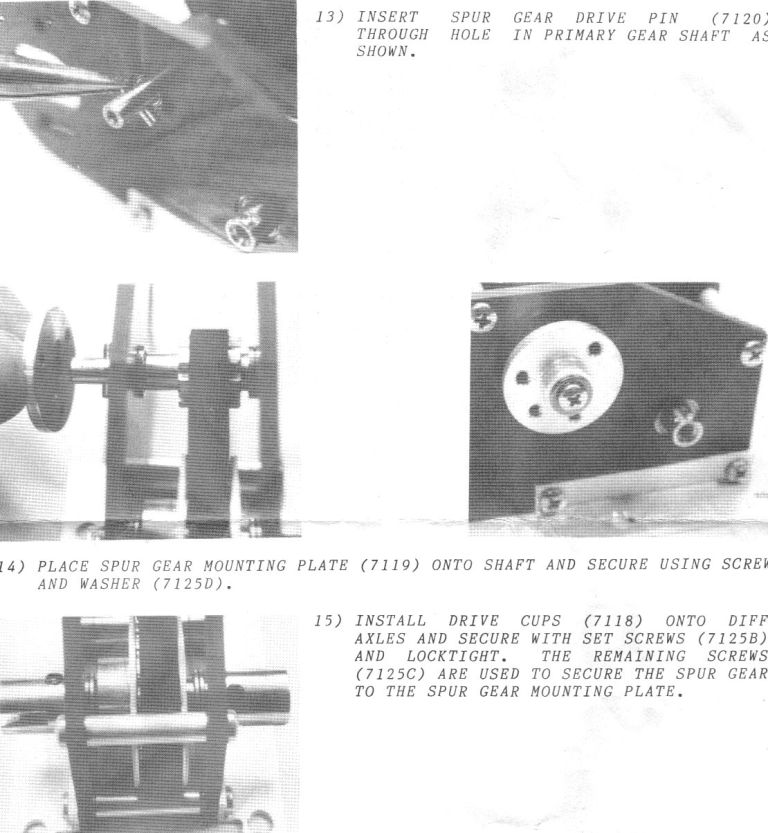

: tm3xx.jpg (123.71 KiB) Viewed 1199 times

: tm3xx.jpg (123.71 KiB) Viewed 1199 times

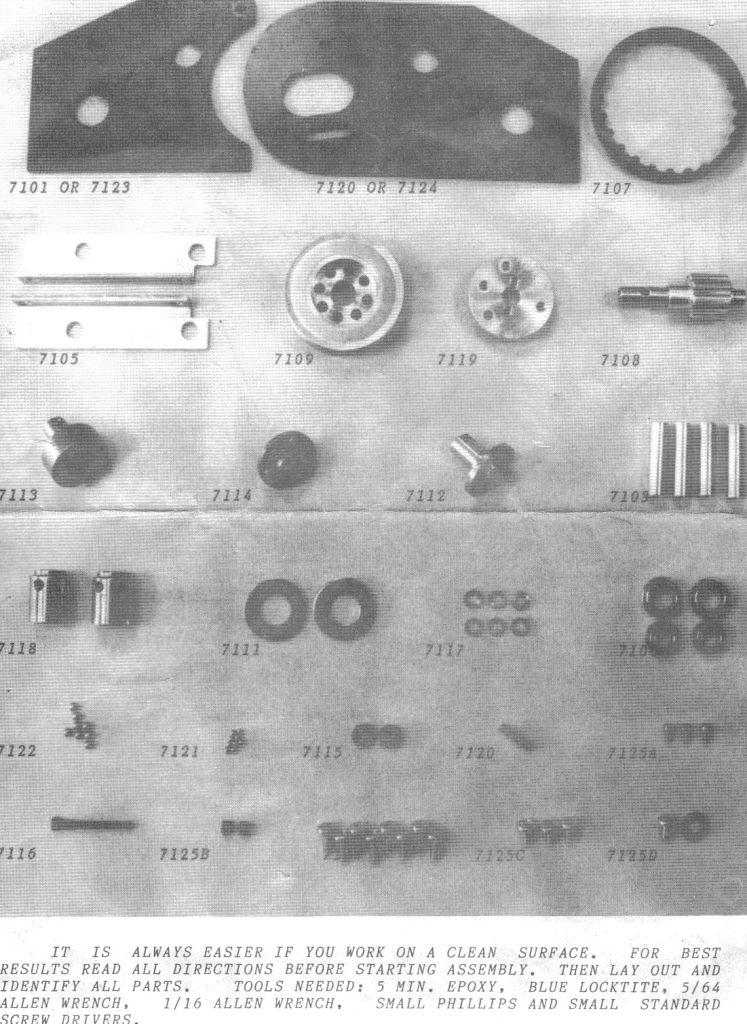

: tm4xx.jpg (128.98 KiB) Viewed 1198 times

: tm4xx.jpg (128.98 KiB) Viewed 1198 times

GAMMACRUSH: Approved Member; Posts: 433; Joined: Sat Dec 01, 2007 5:41 am; Location: California; Been thanked: 1 time

Re: Track Master Turbo Glide trans instructions 1989

Quote

Post by GAMMACRUSH » Thu Mar 13, 2008 11:39 pm

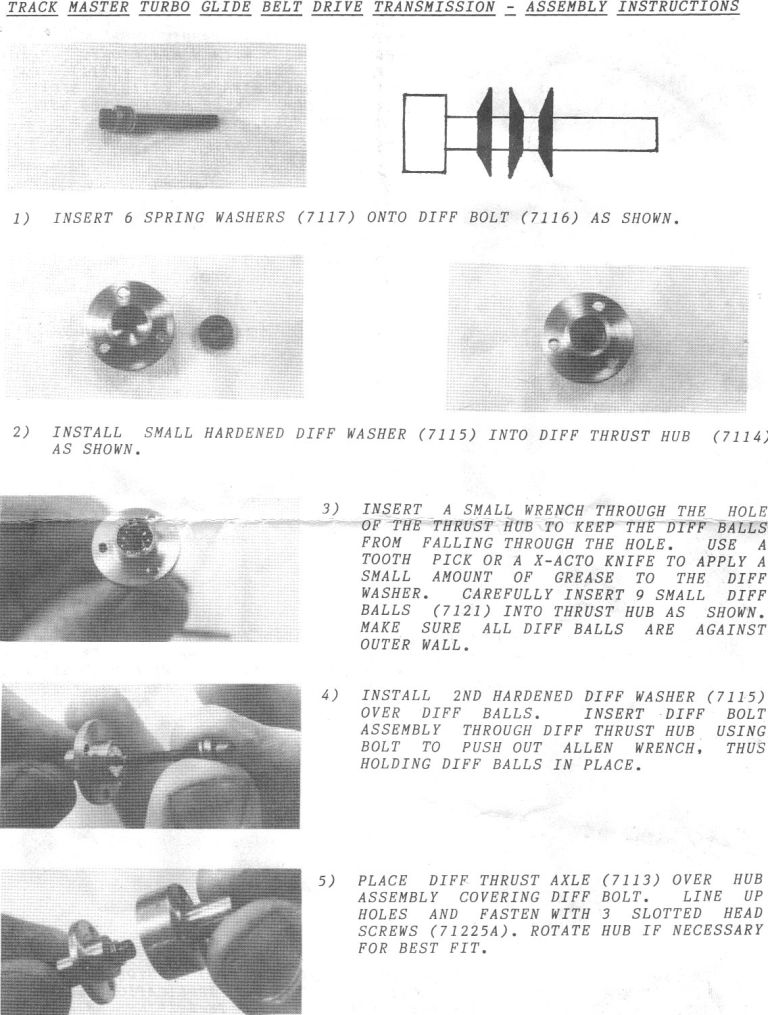

: tm5xx.jpg (102.35 KiB) Viewed 1184 times

: tm5xx.jpg (102.35 KiB) Viewed 1184 times

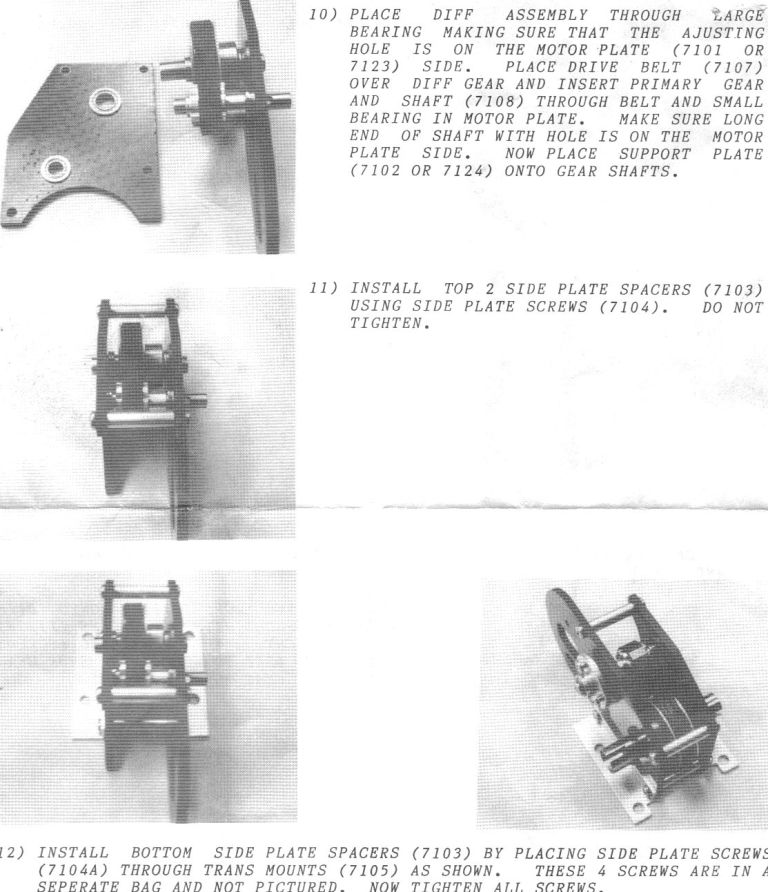

: tm6xx.jpg (86.51 KiB) Viewed 1180 times

: tm6xx.jpg (86.51 KiB) Viewed 1180 times

GAMMACRUSH: Approved Member; Posts: 433; Joined: Sat Dec 01, 2007 5:41 am; Location: California; Been thanked: 1 time

Re: Track Master Turbo Glide trans instructions 1989

Quote

Post by GAMMACRUSH » Thu Mar 13, 2008 11:45 pm

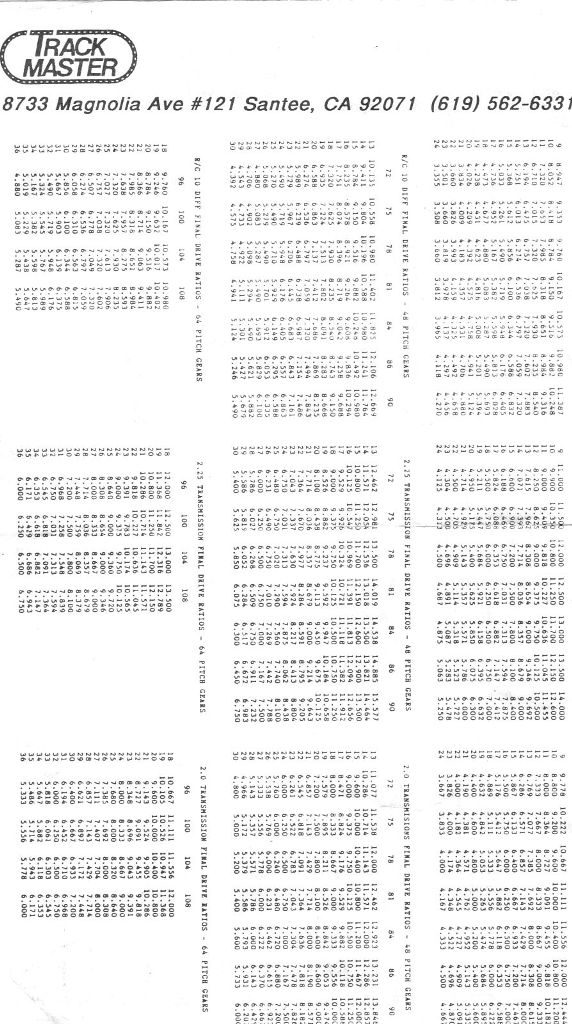

: tm7xx.jpg (155.34 KiB) Viewed 1170 times

: tm7xx.jpg (155.34 KiB) Viewed 1170 times

: tm8xx.jpg (146.99 KiB) Viewed 1168 times

: tm8xx.jpg (146.99 KiB) Viewed 1168 times
