Original Stealth Manual Pt 2

Moderators: scr8p, klavy69

Post Reply

3 posts • Page 1 of 1

superfly: Approved Member; Posts: 125; Joined: Fri Aug 18, 2006 5:09 pm; Location: Toronto ON Canada; Been thanked: 1 time

Original Stealth Manual Pt 2

Quote

Post by superfly » Fri Mar 23, 2007 9:33 pm

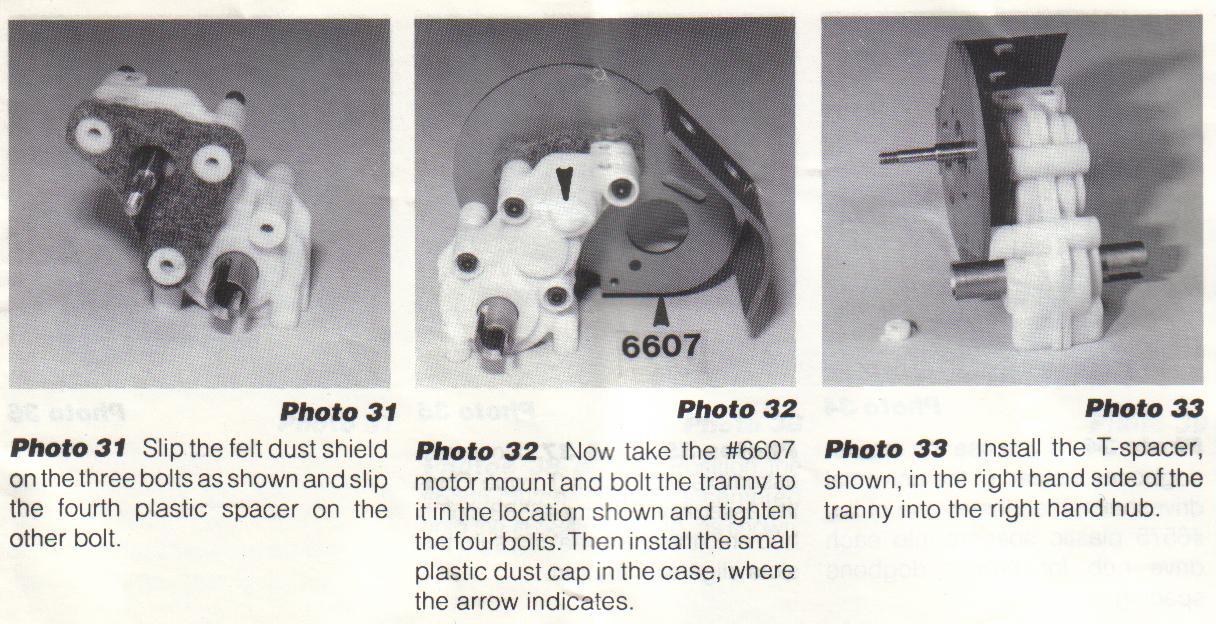

Continued...

Attachments

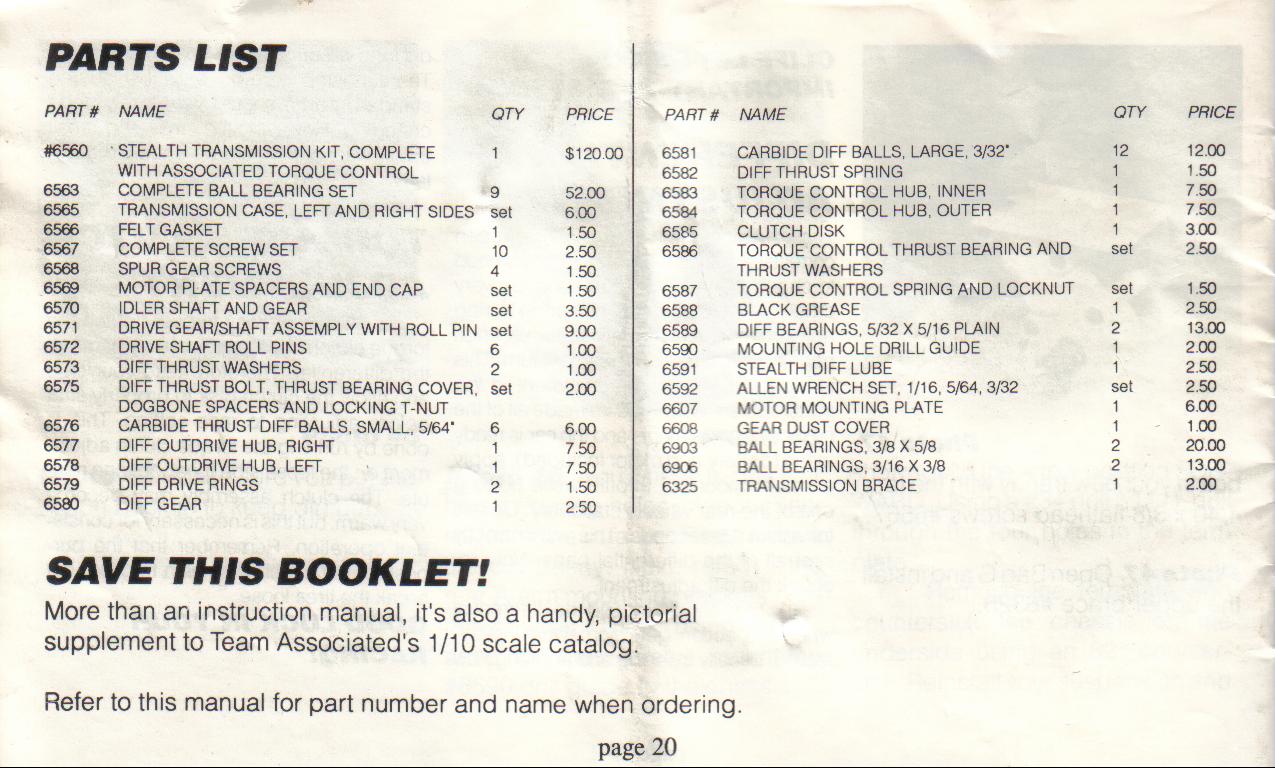

: Stealth20.jpg (162.97 KiB) Viewed 833 times

: Stealth20.jpg (162.97 KiB) Viewed 833 times

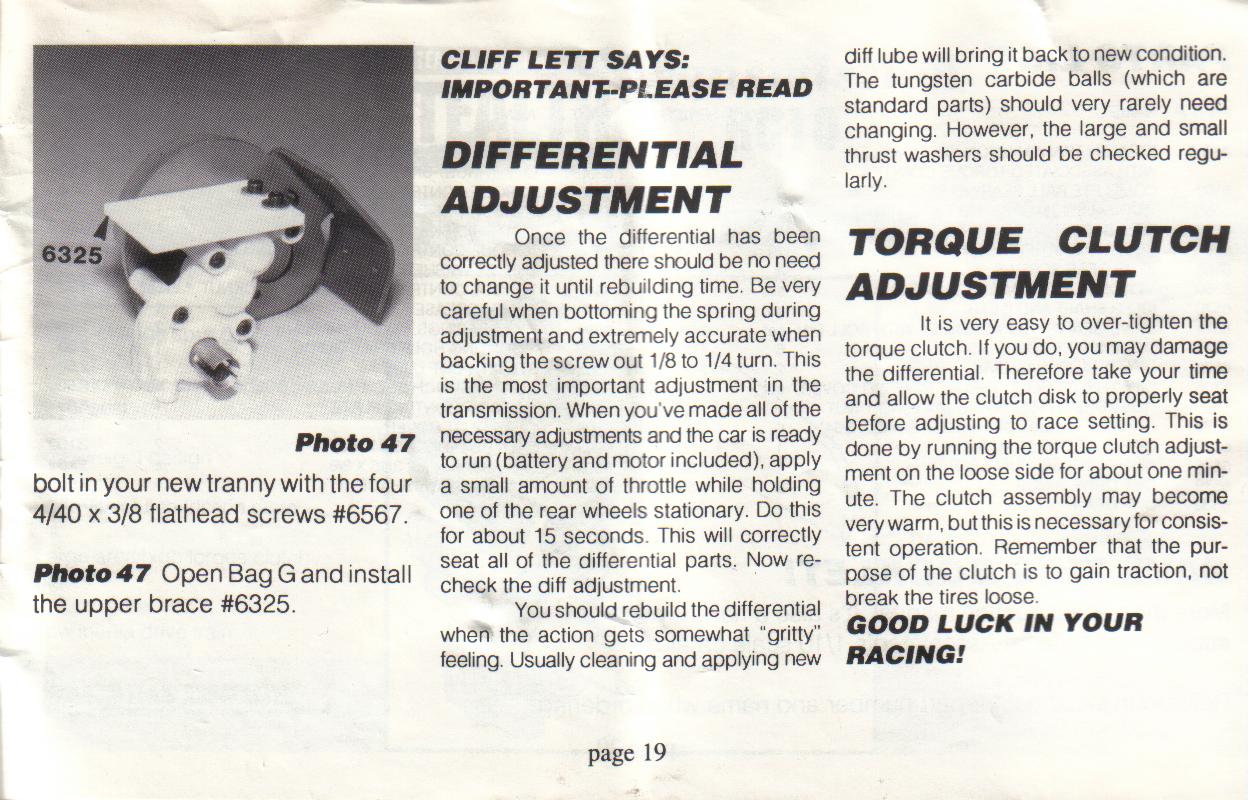

: Stealth19.jpg (201.21 KiB) Viewed 835 times

: Stealth19.jpg (201.21 KiB) Viewed 835 times

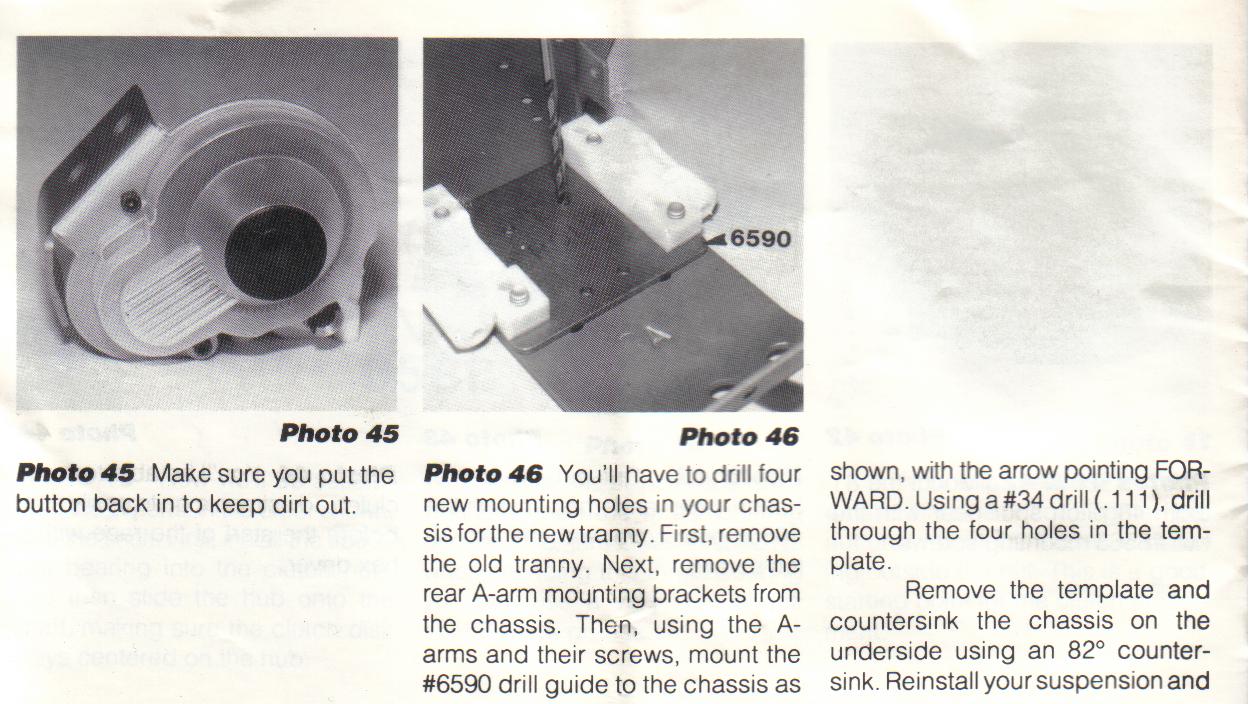

: Stealth18.jpg (145.79 KiB) Viewed 835 times

: Stealth18.jpg (145.79 KiB) Viewed 835 times

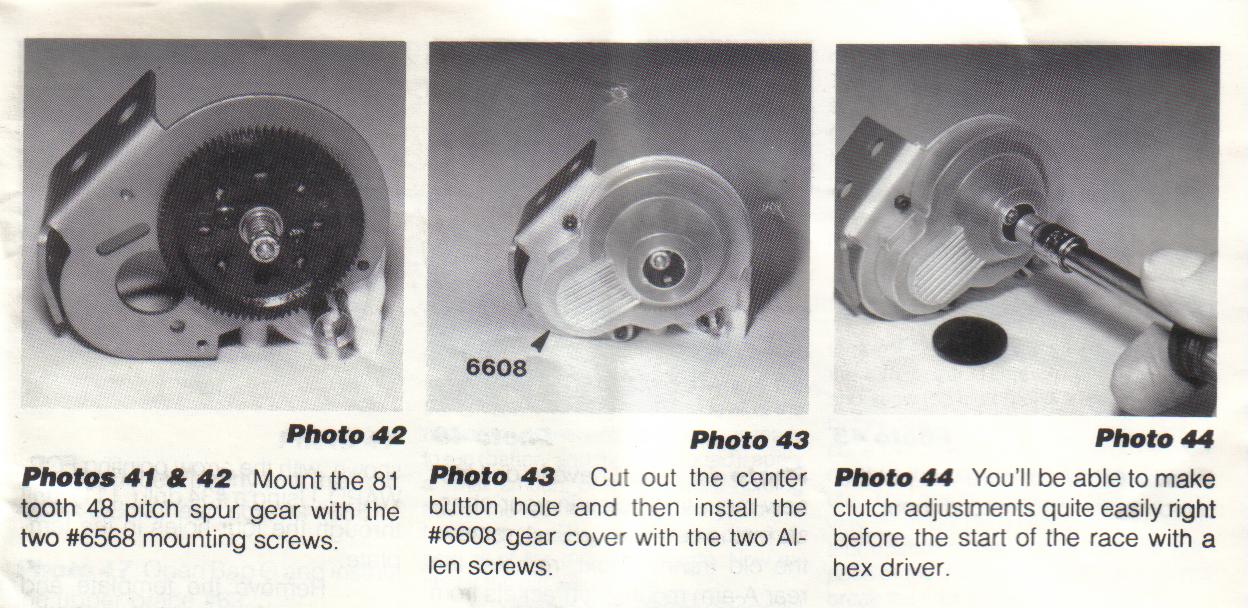

: Stealth17.jpg (148.59 KiB) Viewed 837 times

: Stealth17.jpg (148.59 KiB) Viewed 837 times

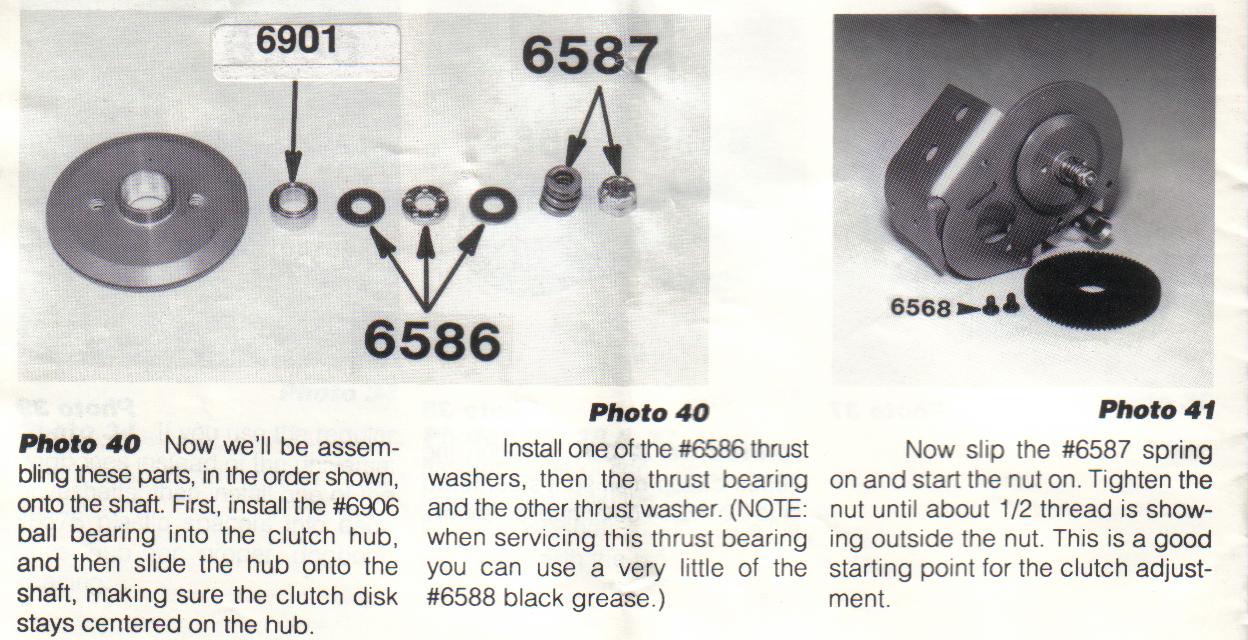

: Stealth16.jpg (149.33 KiB) Viewed 842 times

: Stealth16.jpg (149.33 KiB) Viewed 842 times

: Stealth15.jpg (104.36 KiB) Viewed 840 times

: Stealth15.jpg (104.36 KiB) Viewed 840 times

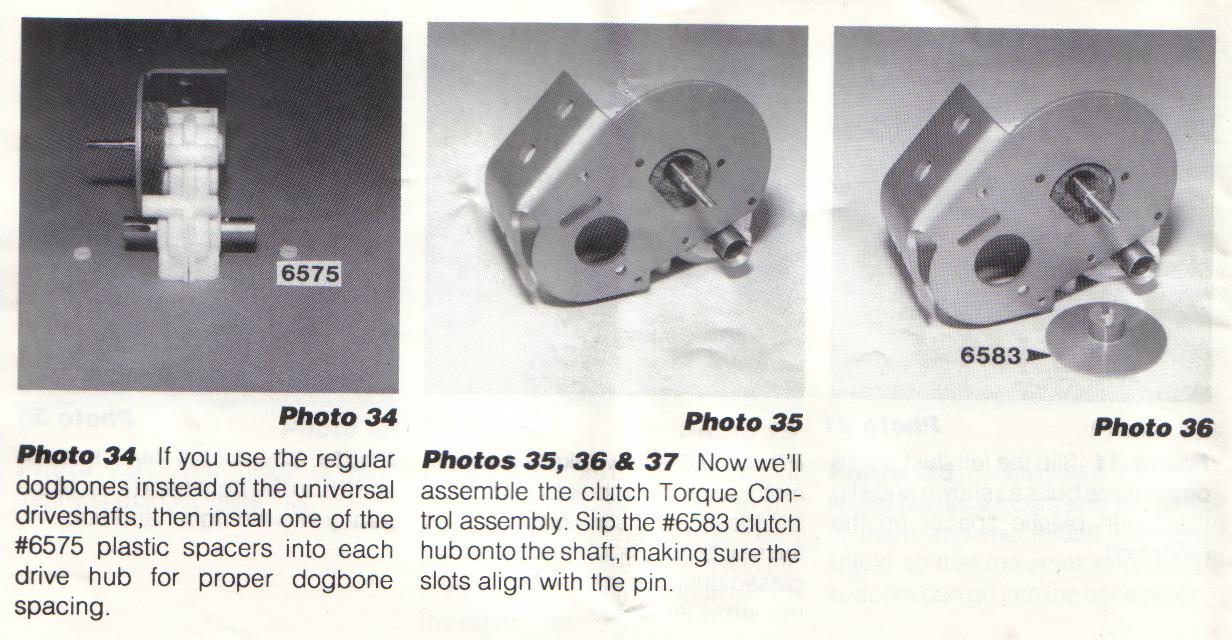

: Stealth14.jpg (149.79 KiB) Viewed 842 times

: Stealth14.jpg (149.79 KiB) Viewed 842 times

: Stealth13.jpg (164.37 KiB) Viewed 843 times

: Stealth13.jpg (164.37 KiB) Viewed 843 times

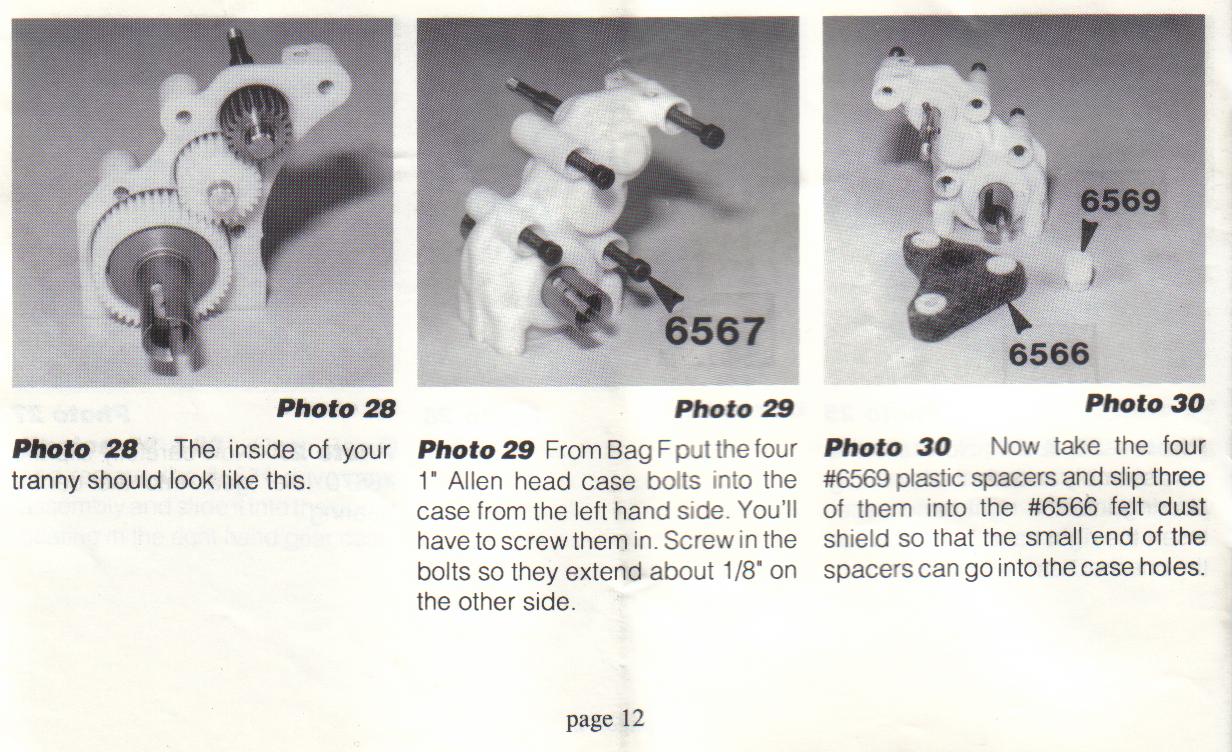

: Stealth12.jpg (161.32 KiB) Viewed 843 times

: Stealth12.jpg (161.32 KiB) Viewed 843 times

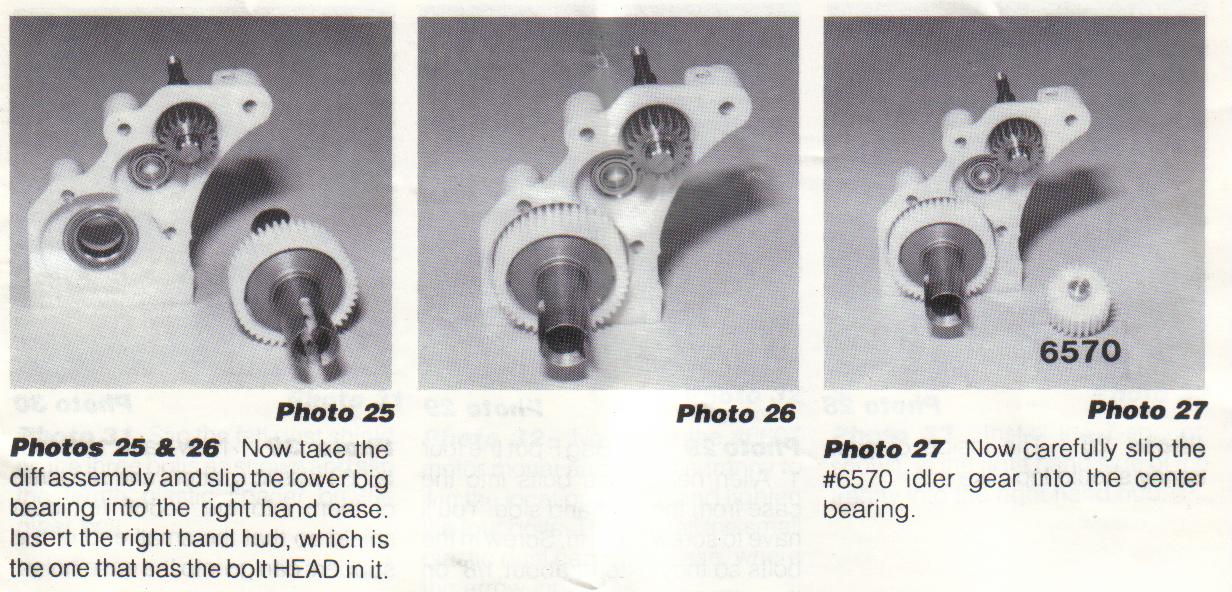

: Stealth11.jpg (158.9 KiB) Viewed 843 times

: Stealth11.jpg (158.9 KiB) Viewed 843 times

Ron Jeremy: Approved Member; Posts: 263; Joined: Mon Jan 29, 2007 2:27 am; Been thanked: 2 times

Quote

Post by Ron Jeremy » Fri Mar 23, 2007 10:46 pm

Ahhh, there's that stealth drill template.

superfly: Approved Member; Posts: 125; Joined: Fri Aug 18, 2006 5:09 pm; Location: Toronto ON Canada; Been thanked: 1 time

Quote

Post by superfly » Fri Mar 23, 2007 10:46 pm

oh yeah that was in the box too

Post Reply

3 posts • Page 1 of 1
