calculate shaft distance for given 48dp ratio

Quote

Post by Chewbacca » Fri Nov 22, 2019 9:04 am

Hi RC10 world,

is there a calculating tool out there, where you can calculate the required distance of to gear center shafts for given gears?

I need this for an upcoming RC10 Project that I will share when ready.

Thanks, Tony

*** POWDER - KING ***

RC10th: Approved Member; Posts: 4276; Joined: Sat Feb 16, 2013 9:51 am; Location: Australia; Has thanked: 40 times; Been thanked: 1001 times

Re: calculate shaft distance for given 48dp ratio

Quote

Post by RC10th » Fri Nov 22, 2019 11:28 pm

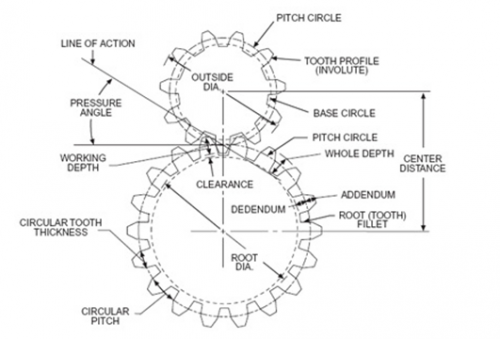

I'll leave it to those much smarter than myself but you'll need to know the "pitch circle"

Attachments

I was old school - when old school wasn't cool !

XLR8: Approved Member; Posts: 2967; Joined: Sun Feb 19, 2017 3:46 am; Location: north/central Alabama; Has thanked: 1188 times; Been thanked: 866 times

Re: calculate shaft distance for given 48dp ratio

Quote

Post by XLR8 » Sat Nov 23, 2019 12:50 am

Maybe you could have a look at this site:
https://www.engineersedge.com/gear_formula.htm

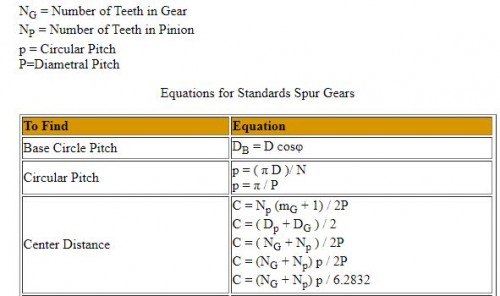

You can calculate the center distance if you know the number of teeth and the diametral pitch.
As an example, using the equation C=(Ng+Np)/2P, the center distance for a 48DP 20t pinion and its 26t gear would be 0.479".
(26+20)/96 = 0.479"

Attachments

Doug
