Front hex conversion using old broken stub axles
- mAdMan
- Approved Member
- Posts: 465
- Joined: Wed Oct 28, 2015 7:30 pm
- Location: Oak Hills, California
- Has thanked: 162 times
- Been thanked: 98 times
Front hex conversion using old broken stub axles

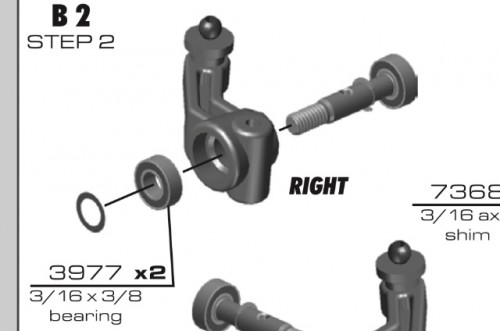

It dawned upon me not long ago that rear hubs are the same as front bearing T4/SC10 hubs. So you can use any 3/16 rear stub axle (CVD or Bone stub axle) to convert to front hex. Just hack off the bone cup or ball joint.
You can finally use those chewed up rear stub axles. Enjoy.
You can finally use those chewed up rear stub axles. Enjoy.
- KidAgain
- Approved Member
- Posts: 905
- Joined: Fri Feb 01, 2019 2:11 pm
- Location: So Cal
- Has thanked: 281 times
- Been thanked: 190 times
Re: Front hex conversion using old broken stub axles
Can you elaborate a little more or show me a completed assembly, I think your onto something major bud...............
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
- mAdMan
- Approved Member
- Posts: 465
- Joined: Wed Oct 28, 2015 7:30 pm
- Location: Oak Hills, California
- Has thanked: 162 times
- Been thanked: 98 times
Re: Front hex conversion using old broken stub axles

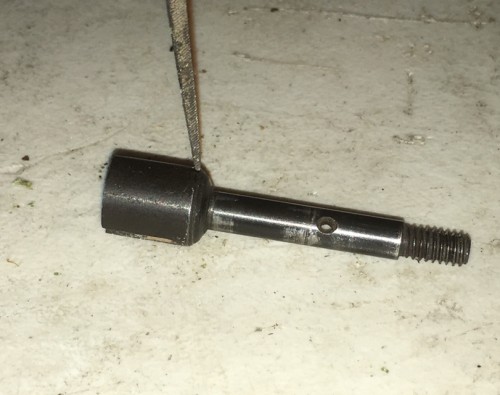

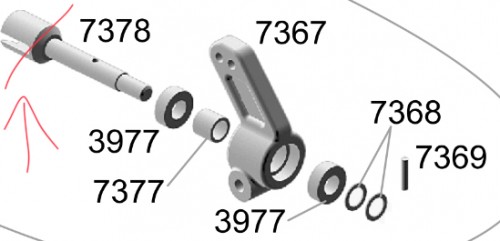

You can just cut off the ball/cup end of the stub axle so it can rotate in the front assembly freely.

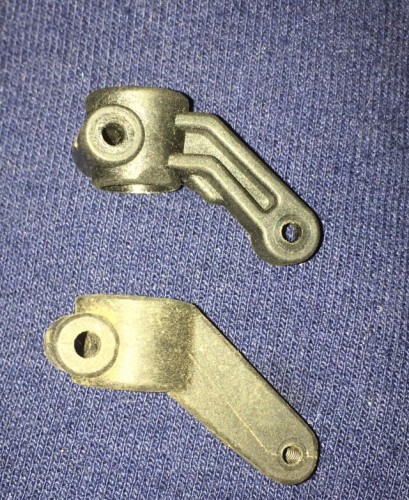

You can use an old stub axle in an old rear hub, or use it in a new SC10 front steering block. Either way is fine. You will need crush washers for longevity. Or just buy a 10 pack of bearings and use a lightly tightened nylon locknut on the front wheels.
When I find some time I’ll set up a pair. But I don’t need one so not sure when I will.
It should be pretty straight forward though.
- juicedcoupe
- Super Member
- Posts: 2976
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 229 times
- Been thanked: 1741 times
Re: Front hex conversion using old broken stub axles

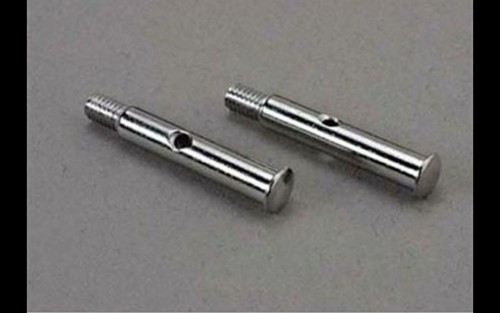

With the dogbone cup removed, it would basically look like a 3/16 version of a Traxxas axle. FWIW, Traxxas vehicles don't use crush tubes on the axles. You just can't run the endplay as tight. Also, the bearings on a Traxxas (5X11X4) are much more substantial.
Always looking for new and interesting ways to waste money.
- mAdMan
- Approved Member
- Posts: 465
- Joined: Wed Oct 28, 2015 7:30 pm
- Location: Oak Hills, California
- Has thanked: 162 times
- Been thanked: 98 times
Re: Front hex conversion using old broken stub axles
I just realized this morning that 3/16” all thread with a well placed hole drilled in it, and 2 pair of thin “low clearance” nuts jammed on either side up against the bearings would net one some very cheap axles.juicedcoupe wrote: ↑Mon Apr 05, 2021 5:35 pm With the dogbone cup removed, it would basically look like a 3/16 version of a Traxxas axle. FWIW, Traxxas vehicles don't use crush tubes on the axles. You just can't run the endplay as tight. Also, the bearings on a Traxxas (5X11X4) are much more substantial.
Actually, another thought. Get the Outer pair of nuts not low clearance, in 12mm, and forget the hole/pin.
