Reaming Gearbox for 10mm bearings
Hi all,
Since the B4 top shafts have become unicorns and the whole industry has gone metric I was wondering on how you guys would try to ream the Ø 3/8 inch (= 9.525mm) bearings seats of the gearbox top shaft bearing location to Ø 10mm. That is an increase of 0.5mm in diameter. So only 0.25mm of Material would be emoved.
That way a hole lot of current top shafts would become usable.
Herer are a few examples:
STRC shaft for Traxxas Bandit / Rustler in combination with a 20t gear (Axial makes one)
B5 top shaft
Durango DEX210 top shaft and slipper (If you can find one Durango has gone out of business)
B6 top shaft and slipper if you remove the flange
.........
How would you proceed to keep everything centered?
I just like the modern slipper setup so much more.
Thanks for your input.
Tony
Since the B4 top shafts have become unicorns and the whole industry has gone metric I was wondering on how you guys would try to ream the Ø 3/8 inch (= 9.525mm) bearings seats of the gearbox top shaft bearing location to Ø 10mm. That is an increase of 0.5mm in diameter. So only 0.25mm of Material would be emoved.
That way a hole lot of current top shafts would become usable.
Herer are a few examples:
STRC shaft for Traxxas Bandit / Rustler in combination with a 20t gear (Axial makes one)
B5 top shaft
Durango DEX210 top shaft and slipper (If you can find one Durango has gone out of business)
B6 top shaft and slipper if you remove the flange
.........
How would you proceed to keep everything centered?
I just like the modern slipper setup so much more.
Thanks for your input.
Tony
*** POWDER - KING ***
- jwscab
- Super Member
- Posts: 6500
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 448 times
Re: Reaming Gearbox for 10mm bearings
just use a 10 mm reamer. you could use it in a drill press and it will center just fine. you might have to modify the reamer though, to remove much of the leading chamfer, because the bearing bores are pretty narrow. how wide is the 10mm bearing vs the 3/8" bearing? narrower or wider? that could be a bit of a sticking point if you can't get the reamer in far enough.
-
- Approved Member
- Posts: 535
- Joined: Sat Jun 24, 2006 6:41 am
- Location: Herrenberg, Germany
- Has thanked: 29 times
- Been thanked: 66 times
Re: Reaming Gearbox for 10mm bearings
Thanks for the suggestion. Drill press and reamer are no problem, I just want to avoid ruining a perfectly fine gearbox.
I was afraid the reamer might bite into the plastic.
In this case I wand to modify a GT gearbox for a GT-E conversion.
The 5 x10 or 6x10mm bearings are available in 3mm or 4mm thickness. I will have to measure the current ones.
I am pretty sure the 3mm will be thinner, the 4mm I don't know.
I was afraid the reamer might bite into the plastic.
In this case I wand to modify a GT gearbox for a GT-E conversion.
The 5 x10 or 6x10mm bearings are available in 3mm or 4mm thickness. I will have to measure the current ones.
I am pretty sure the 3mm will be thinner, the 4mm I don't know.
*** POWDER - KING ***
- jwscab
- Super Member
- Posts: 6500
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 448 times
Re: Reaming Gearbox for 10mm bearings
Yeah you will want to fixture the case to a block of wood or something to hold it in position. You could actually just spin the drill quill by hand once you have it centered to make the cut. Basically you use the drill press to keep things aligned
-
- Approved Member
- Posts: 535
- Joined: Sat Jun 24, 2006 6:41 am
- Location: Herrenberg, Germany
- Has thanked: 29 times
- Been thanked: 66 times
Re: Reaming Gearbox for 10mm bearings
I just came up with a plan B. At least for 5mm shafts.
There are 5x9x3mm bearings available, I couldn't find 6x9mm (yet).
So I can buy 0.25mm feeler gauge stripes and make a shim to fil the 9mm bearing into the 3/8 inch hole.
At least I won't be destroying anything that way.
For testing I have both the Durango and the Traxxas STRC shaft.
projects projects....
There are 5x9x3mm bearings available, I couldn't find 6x9mm (yet).
So I can buy 0.25mm feeler gauge stripes and make a shim to fil the 9mm bearing into the 3/8 inch hole.
At least I won't be destroying anything that way.
For testing I have both the Durango and the Traxxas STRC shaft.
projects projects....
*** POWDER - KING ***
- juicedcoupe
- Super Member
- Posts: 2994
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 233 times
- Been thanked: 1747 times
Re: Reaming Gearbox for 10mm bearings
Are these an option?
https://www.avidrc.com/product/5/accessories/3506/Associated-Aluminum-Topshaft-B4-Stealth-AV10062-accessories.html
Seems preferable.
https://www.avidrc.com/product/5/accessories/3506/Associated-Aluminum-Topshaft-B4-Stealth-AV10062-accessories.html
Seems preferable.
Always looking for new and interesting ways to waste money.
-
- Super Member
- Posts: 1553
- Joined: Thu Mar 23, 2017 5:31 pm
- Has thanked: 1015 times
- Been thanked: 474 times
Re: Reaming Gearbox for 10mm bearings
I just grabbed one and it's a perfect fit. there is no reason for a topshaft to go for more than $25 at this pointjuicedcoupe wrote: ↑Tue Jun 29, 2021 11:35 am Are these an option?
https://www.avidrc.com/product/5/accessories/3506/Associated-Aluminum-Topshaft-B4-Stealth-AV10062-accessories.html
Seems preferable.
-
- Approved Member
- Posts: 535
- Joined: Sat Jun 24, 2006 6:41 am
- Location: Herrenberg, Germany
- Has thanked: 29 times
- Been thanked: 66 times
Re: Reaming Gearbox for 10mm bearings

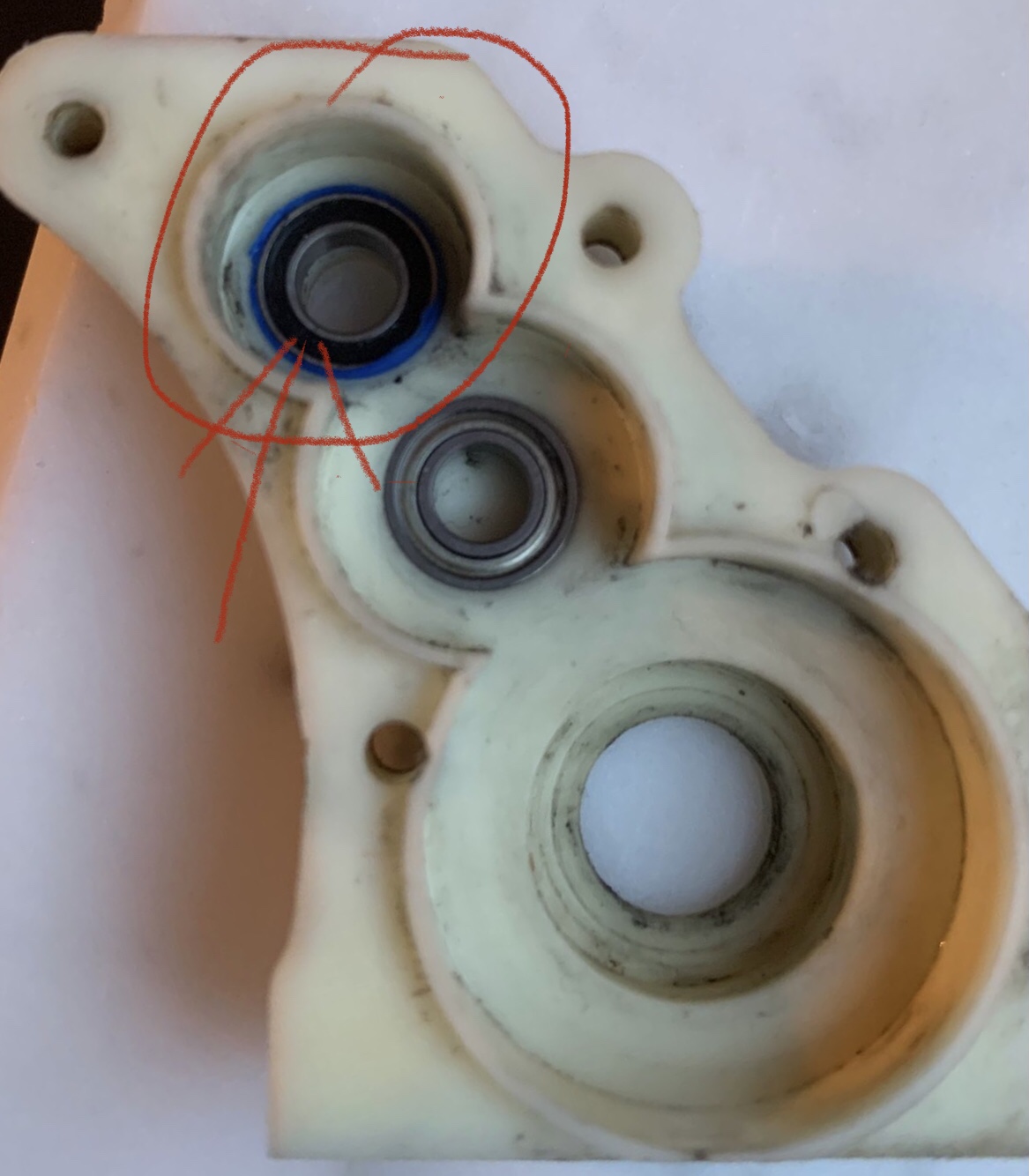

So, instead of harming a stealth case I first tried some electrical tape around the 9mm bearings.
The dry run works perfectly fine
The dry run works perfectly fine
