How to polish aluminum wheels - WITHOUT sore wrists!

Post by Coelacanth »

I received some rather drab-looking aluminum wheels that really needed to be polished. I think a lot of people avoid polishing aluminum because it's a pain in the butt that involves a lot of elbow-grease. But nothing beats the look of polished aluminum! I wanted to figure out a way to polish the wheels that used their own spinning motion to do most of the work. This is what I came up with--simple yet brilliant (pun not intended)!

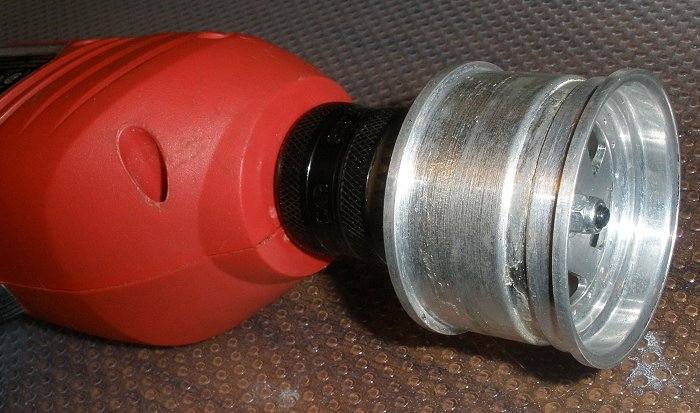

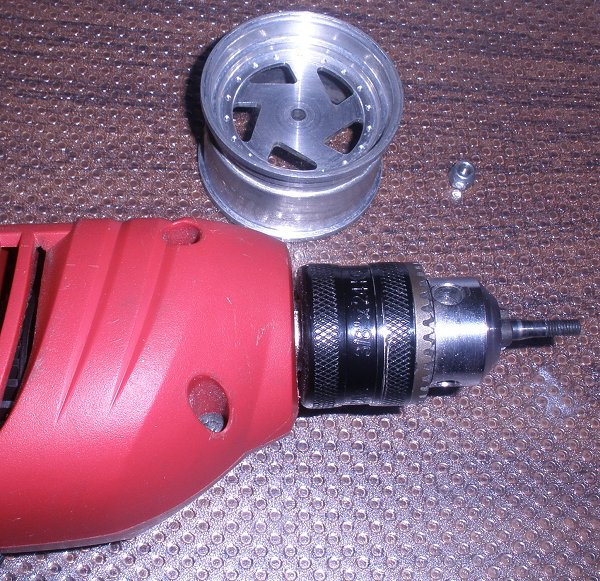

I took a spare axle and hack-sawed off the inner end where the dogbone slots; placed the axle shaft in my drill chuck; placed the wheel & lock-nut onto the axle (just as if it were on the car), and put my drill in a vise.

Next, I did the usual progression of sanding, I figured 600 grit was a good starting point because the wheels have no major scratches or scuffs; then 1000, 1500...and followed that up with rubbing compound, polishing compound, and a bit of Nu-Finish Scratch Doctor.

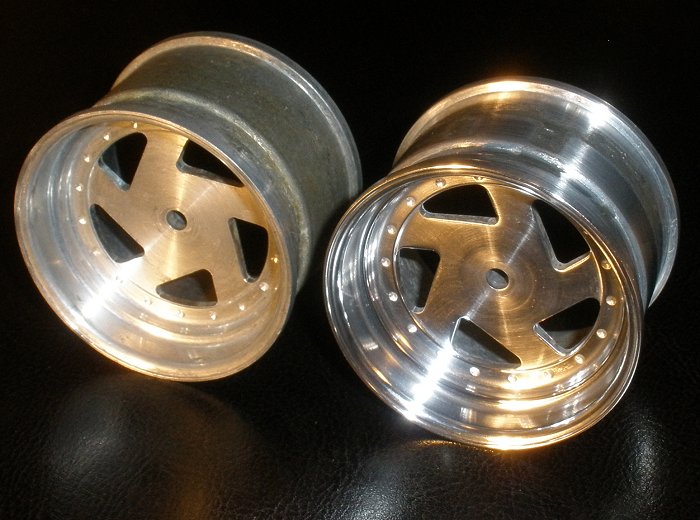

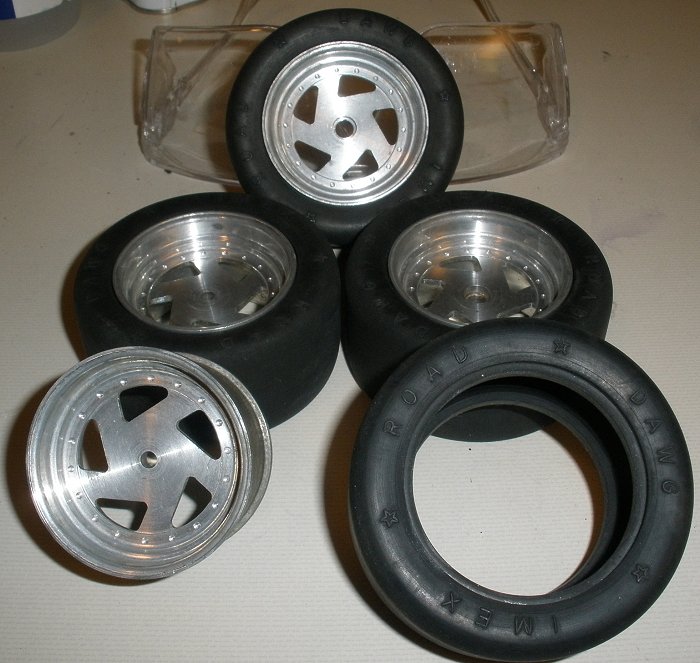

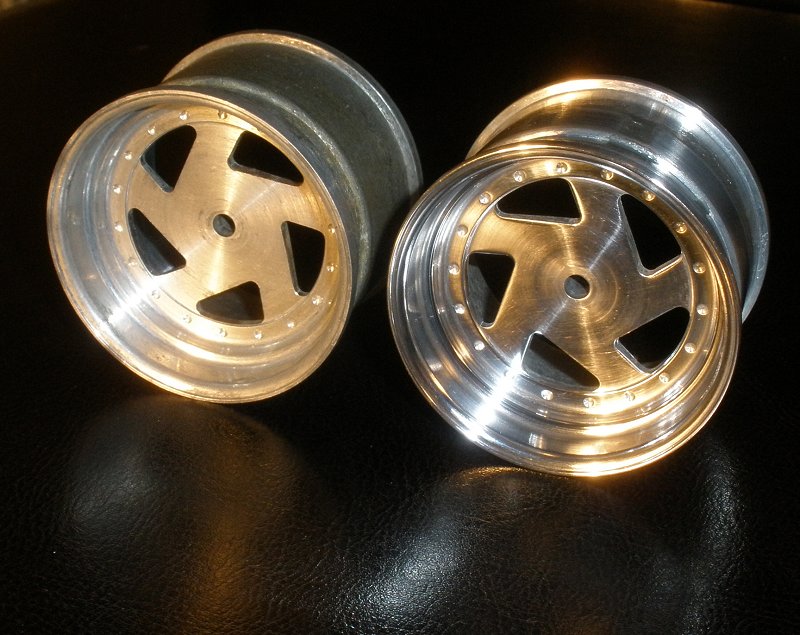

It probably took the same amount of time as doing it by hand, but with one major difference--it was so much easier!!! Not even the slightest sore hands or wrists! I'll complete the wheels by doing the insides too, and a bit of touch-up in the hard-to-get-at rim edges with some more polishing compound, but the results look great. Very little elbow-grease spent!
Attachments
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Lowgear
Administrator
Posts: 3955
Joined: Tue Feb 07, 2006 1:00 pm
Location: New England
Has thanked: 78 times
Been thanked: 606 times

Re: How to polish aluminum wheels - WITHOUT sore wrists!

Post by Lowgear »

This is a good tutorial. :)

Another method is to use a Mothers PowerBall while holding the rim with a gloved hand as they get hot. That only works though if the rims are just tarnished and have superficial scratches.

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 453 times

Re: How to polish aluminum wheels - WITHOUT sore wrists!

Post by jwscab »

I use this method or something like it (I can use a lathe also) for any cylindrical parts, axles, hubs, tie-rods, bones, screws, shock shafts, hinge pins, anything that need a good polishing that can spin.

User avatar
esaresky75
Approved Member
Posts: 332
Joined: Mon Jan 24, 2011 9:09 pm
Location: Scranton, PA

Re: How to polish aluminum wheels - WITHOUT sore wrists!

Post by esaresky75 »

Another method for those that have a few bucks to spend is Electro-polishing. Not sure what shops do small batches but the results are amazing.
