Bosscat Works project- updating the slipper
This is the Bosscat I was lucky enough to grab from a forum member. I've seen many people looking for Cat and Bosscat slippers (apparently a lot of Bosscat Sports out there!) and since this one needed a shaft (bent shaft, slipper backplate tore up and drilled out) I decided to draw up an adapter shaft to run a SV2 slipper. This keeps the Schuey guys happy (not cross breeding) and parts are readily available.
This slipper has an odd drive that should have my machinist cussing like a sailor, but the goal is to produce a few of these. The bearing adapter is very similar to the stock one on the left side, however this one needs to be cut in half to install it. Schumacher uses a tiny 4mm shaft so loading the pulleys will have to happen from the left side, then the bearing adapter will slide over it, and the bearing will hold it together. Unlike stock, when this shaft and bearing adapter are installed they will not rely on the slipper backplate, meaning any shimming should be much easier.
I also have drawn up an associated shaft for a standard dual or b5 style but I don't think the Shuey guys are as interested.
Pic shows stock SV2 shaft, just for reference
This slipper has an odd drive that should have my machinist cussing like a sailor, but the goal is to produce a few of these. The bearing adapter is very similar to the stock one on the left side, however this one needs to be cut in half to install it. Schumacher uses a tiny 4mm shaft so loading the pulleys will have to happen from the left side, then the bearing adapter will slide over it, and the bearing will hold it together. Unlike stock, when this shaft and bearing adapter are installed they will not rely on the slipper backplate, meaning any shimming should be much easier.
I also have drawn up an associated shaft for a standard dual or b5 style but I don't think the Shuey guys are as interested.
Pic shows stock SV2 shaft, just for reference
- Attachments
-
- image.jpg (7.14 KiB) Viewed 2224 times
- image.jpg (7.14 KiB) Viewed 2224 times
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 578
- Joined: Tue Feb 25, 2014 3:55 am
- Location: Nottingham, UK
- Been thanked: 3 times
Re: Bosscat Works project- updating the slipper
I can't wait for one looks very good dose the sx2 and sx3 use the same shaft and slipper plates
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 831 times
- Been thanked: 2460 times
Re: Bosscat Works project- updating the slipper
I cannot say for sure. I was able to find this SV2 setup in the US but for the most part it looks like most pieces will be from overseas- keeping me from experimenting much.
The manuals and exploded views are down on the website, but in some searching it appears they are very similar
The manuals and exploded views are down on the website, but in some searching it appears they are very similar
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 578
- Joined: Tue Feb 25, 2014 3:55 am
- Location: Nottingham, UK
- Been thanked: 3 times
Re: Bosscat Works project- updating the slipper
I've got an sx3 in the shed I can pull it apart and get you some pics if you want
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 831 times
- Been thanked: 2460 times
Re: Bosscat Works project- updating the slipper

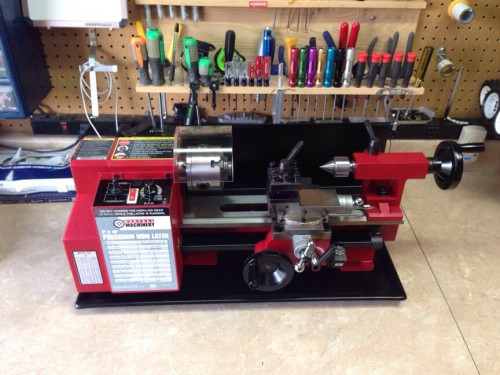

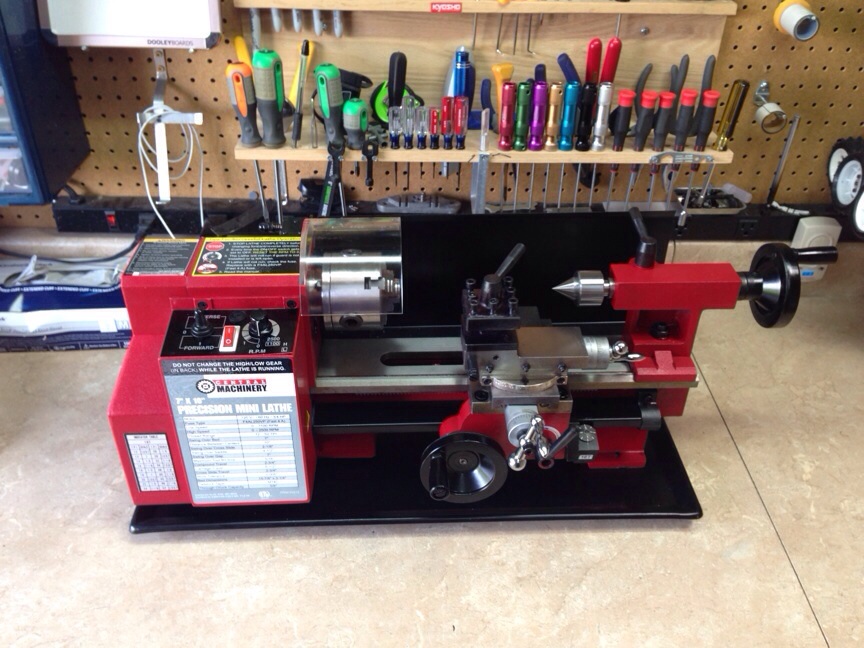

Now look what ya made me do
It's cheap, but for re-learning it should be fine. I don't need huge capacity, just decent precision and the size and upgradability was right.
It's cheap, but for re-learning it should be fine. I don't need huge capacity, just decent precision and the size and upgradability was right.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- Incredible_Serious
- Approved Member
- Posts: 3437
- Joined: Tue Jan 29, 2008 12:09 am
- Location: Melbourne, Victoria, Australia
- Has thanked: 1425 times
- Been thanked: 866 times
Re: Bosscat Works project- updating the slipper
I was keeping an eye on this before..... now watching with interest!!!!
Go for it, m5!!!
Alex
Go for it, m5!!!
Alex
Osiris is the key.
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
- DerbyDan
- Approved Member
- Posts: 1836
- Joined: Tue Sep 08, 2009 8:04 am
- Location: Northampton UK
- Has thanked: 2 times
- Been thanked: 17 times
Re: Bosscat Works project- updating the slipper
This looks great.... excellent work! Can I put my name down for one!?
My T.C Showroom; http://www.tamiyaclub.com/member.asp?id=28990
- Incredible_Serious
- Approved Member
- Posts: 3437
- Joined: Tue Jan 29, 2008 12:09 am
- Location: Melbourne, Victoria, Australia
- Has thanked: 1425 times
- Been thanked: 866 times
Re: Bosscat Works project- updating the slipper
At $5 a pop, I'm ordering five or six!!!DerbyDan wrote:This looks great.... excellent work! Can I put my name down for one!?
Osiris is the key.
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
-
- Approved Member
- Posts: 578
- Joined: Tue Feb 25, 2014 3:55 am
- Location: Nottingham, UK
- Been thanked: 3 times
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 831 times
- Been thanked: 2460 times
Re: Bosscat Works project- updating the slipper
Lol! That would pay for the material at least
I have a ways to go, the B4/hydra style shaft should be pretty easy but the Schumacher slipper shaft is going to be a PITA
I have a ways to go, the B4/hydra style shaft should be pretty easy but the Schumacher slipper shaft is going to be a PITA
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- Incredible_Serious
- Approved Member
- Posts: 3437
- Joined: Tue Jan 29, 2008 12:09 am
- Location: Melbourne, Victoria, Australia
- Has thanked: 1425 times
- Been thanked: 866 times
Re: Bosscat Works project- updating the slipper
Pita is cheap..... no yeast needed....gomachv wrote:Lol! That would pay for the material at least
I have a ways to go, the B4/hydra style shaft should be pretty easy but the Schumacher slipper shaft is going to be a PITA
Osiris is the key.
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken
Look out for Todd K. - he's a convicted serial killer!!!
- DerbyDan
- Approved Member
- Posts: 1836
- Joined: Tue Sep 08, 2009 8:04 am
- Location: Northampton UK
- Has thanked: 2 times
- Been thanked: 17 times
Re: Bosscat Works project- updating the slipper
I'm not tooo proud to go with the B4 slipper assembly on my ProCat if its going to be that much easier to produce... I think the Associated items are likely to be cheaper aswell?gomachv wrote:Lol! That would pay for the material at least
I have a ways to go, the B4/hydra style shaft should be pretty easy but the Schumacher slipper shaft is going to be a PITA
My T.C Showroom; http://www.tamiyaclub.com/member.asp?id=28990
- DerbyDan
- Approved Member
- Posts: 1836
- Joined: Tue Sep 08, 2009 8:04 am
- Location: Northampton UK
- Has thanked: 2 times
- Been thanked: 17 times
Re: Bosscat Works project- updating the slipper
P.S; do you have a build thread for your Bosscat Gomachv - or have I missed it? The car looks sweet with the blue anodising!
My T.C Showroom; http://www.tamiyaclub.com/member.asp?id=28990
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 831 times
- Been thanked: 2460 times
Re: Bosscat Works project- updating the slipper
No pics if the rebuild. It was just a simple cleanup in the ultrasonic cleaner with soap and water. DennisM sent rear brackets for me to copy and I still need shocks and of course the slipper shaft. I'll get better pics soon

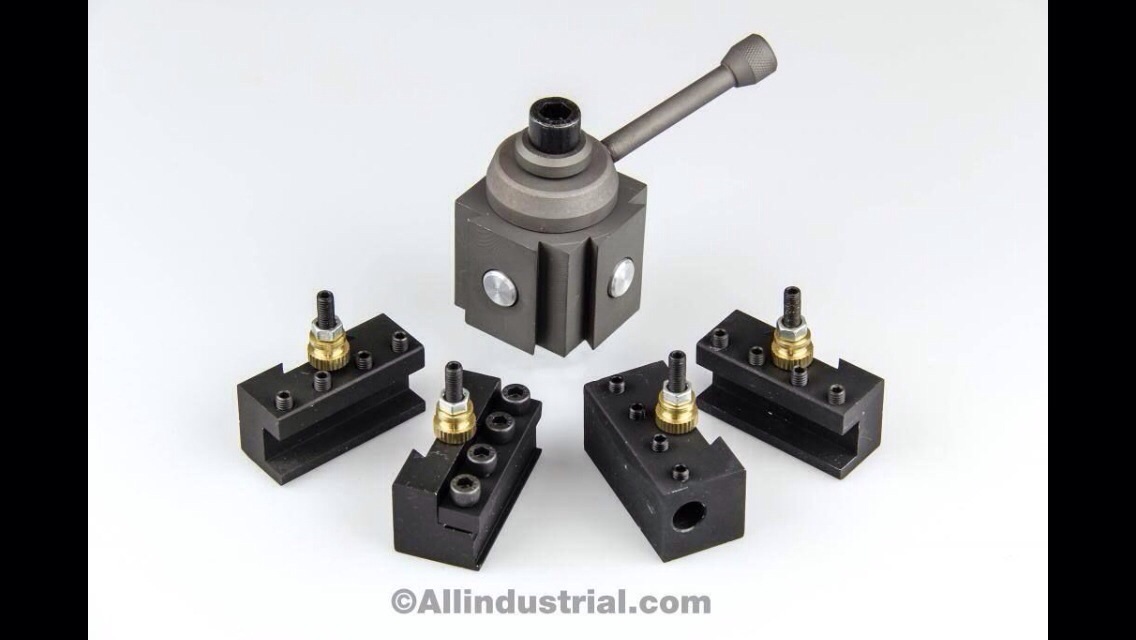

I had to buy a couple more things for the lathe too
I had to buy a couple more things for the lathe too
