1986/87 Supercharge Hotshot

Post by dinglem »

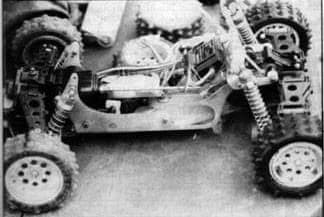

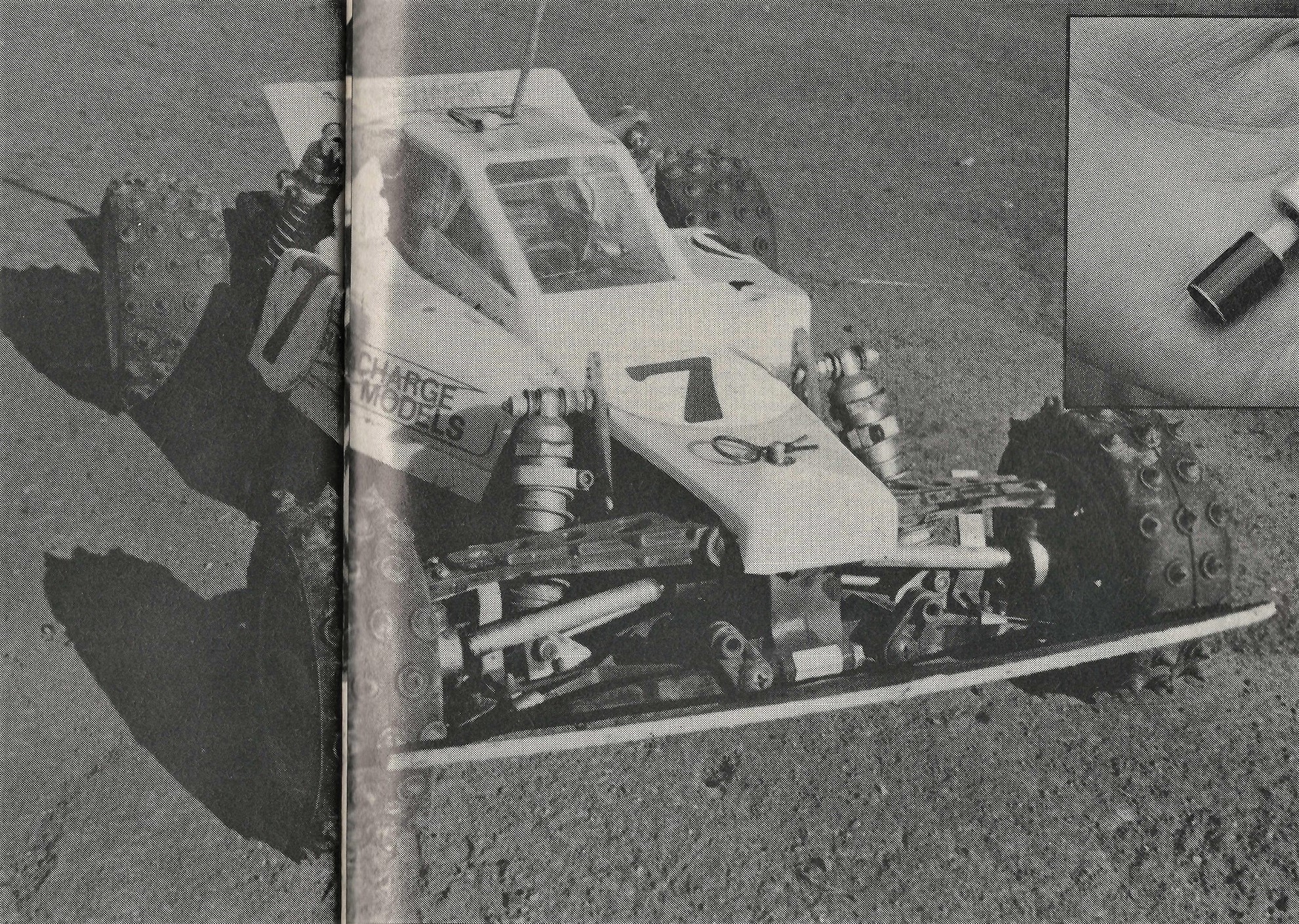

Probably not a car many on here will have even heard of, but in 1986 a chap by the name of Bill Jones campaigned a much modified Hotshot, which was dubbed the 'Supercharge Hotshot' and was named after his shop down near Romsey, Supercharge Models.

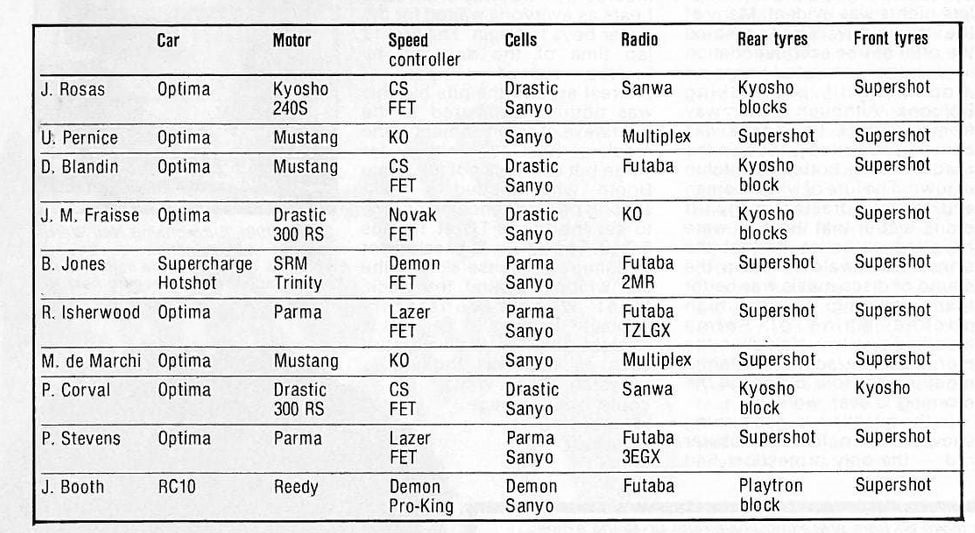

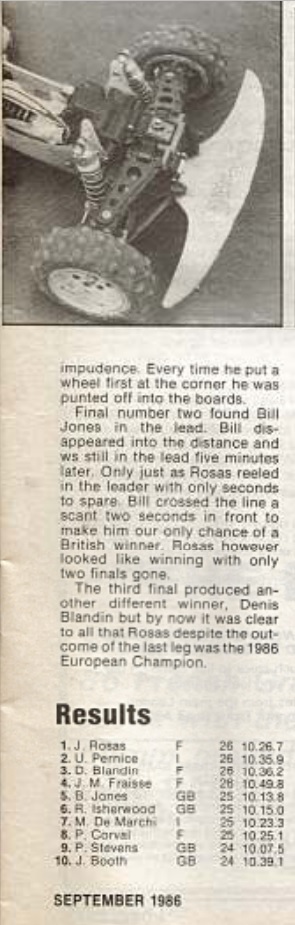

Bill Jones was a very competitive driver, and actually campaigned one of his cars at the 1986 European Championships in Bologna, Italy, qualifying second on the grid with it and actually winning one of the A Final legs, eventually finishing 5th overall. He also used this success as a platform to sell on his Hotshot tuning parts and cars at this event. One write-up actually documents how he offered to lend a Supercharge Hotshot to one of the 2wd car owners in the hope of improving their chances (at that time 2wd and 4wd cars were in the same class).

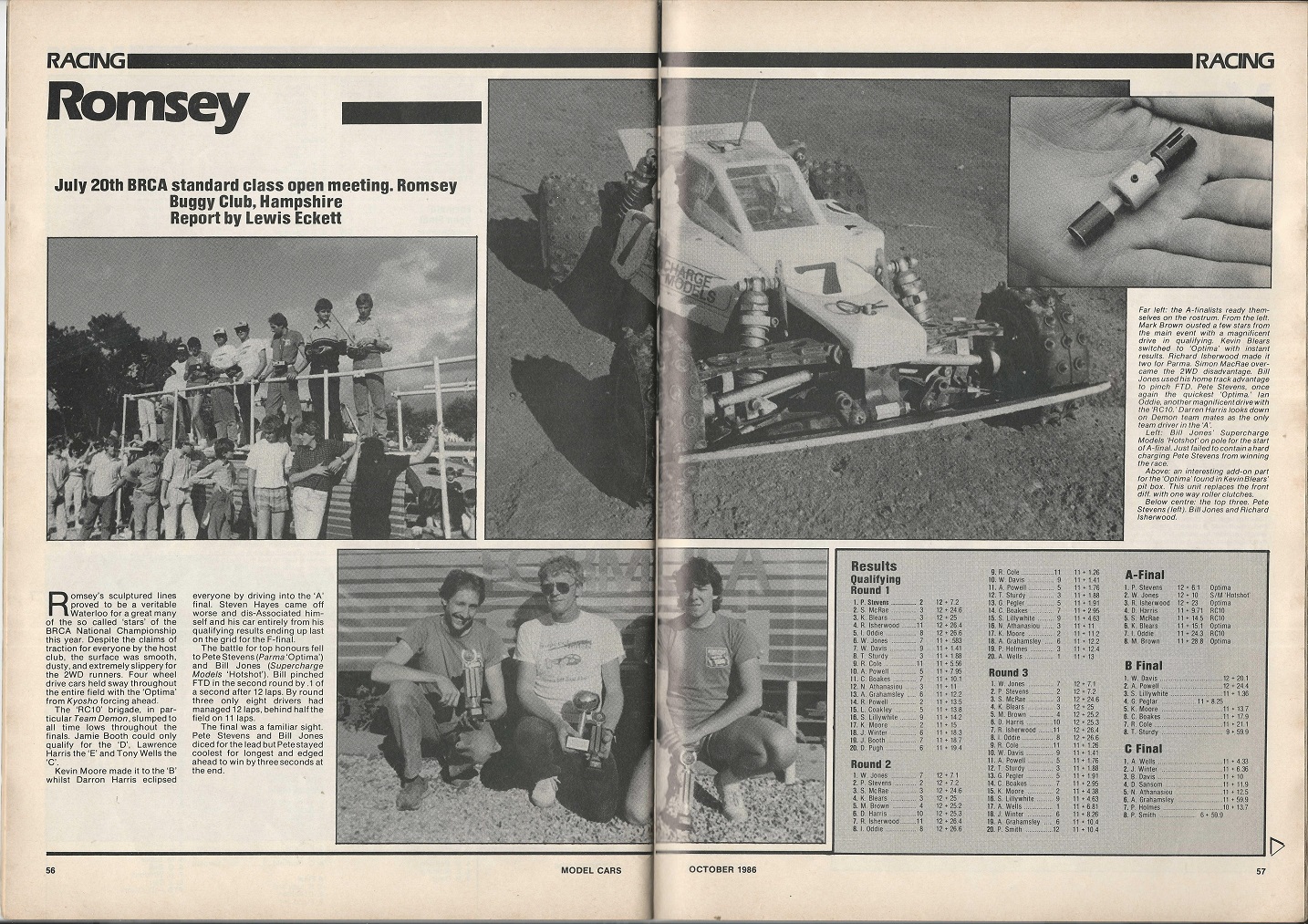

Bill Jones was also the Race Director at the now famous Romsey circuit, so clearly had success there at his local track, with pictures of his car existing from a 1987 event.

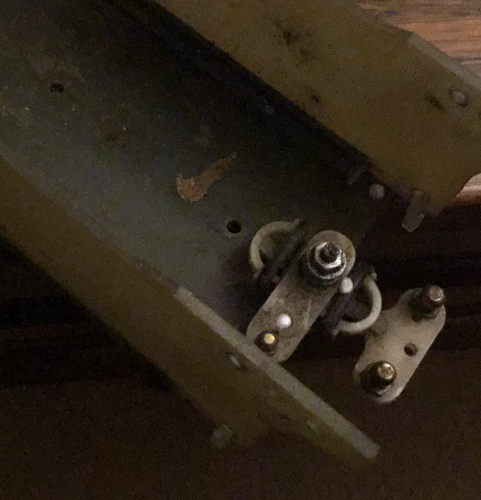

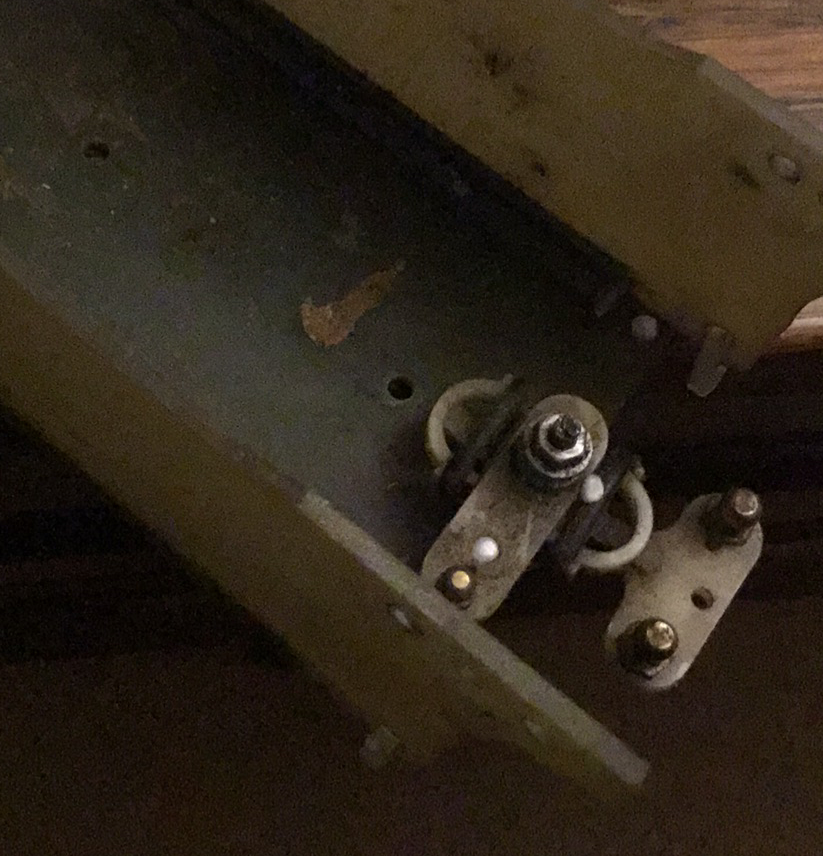

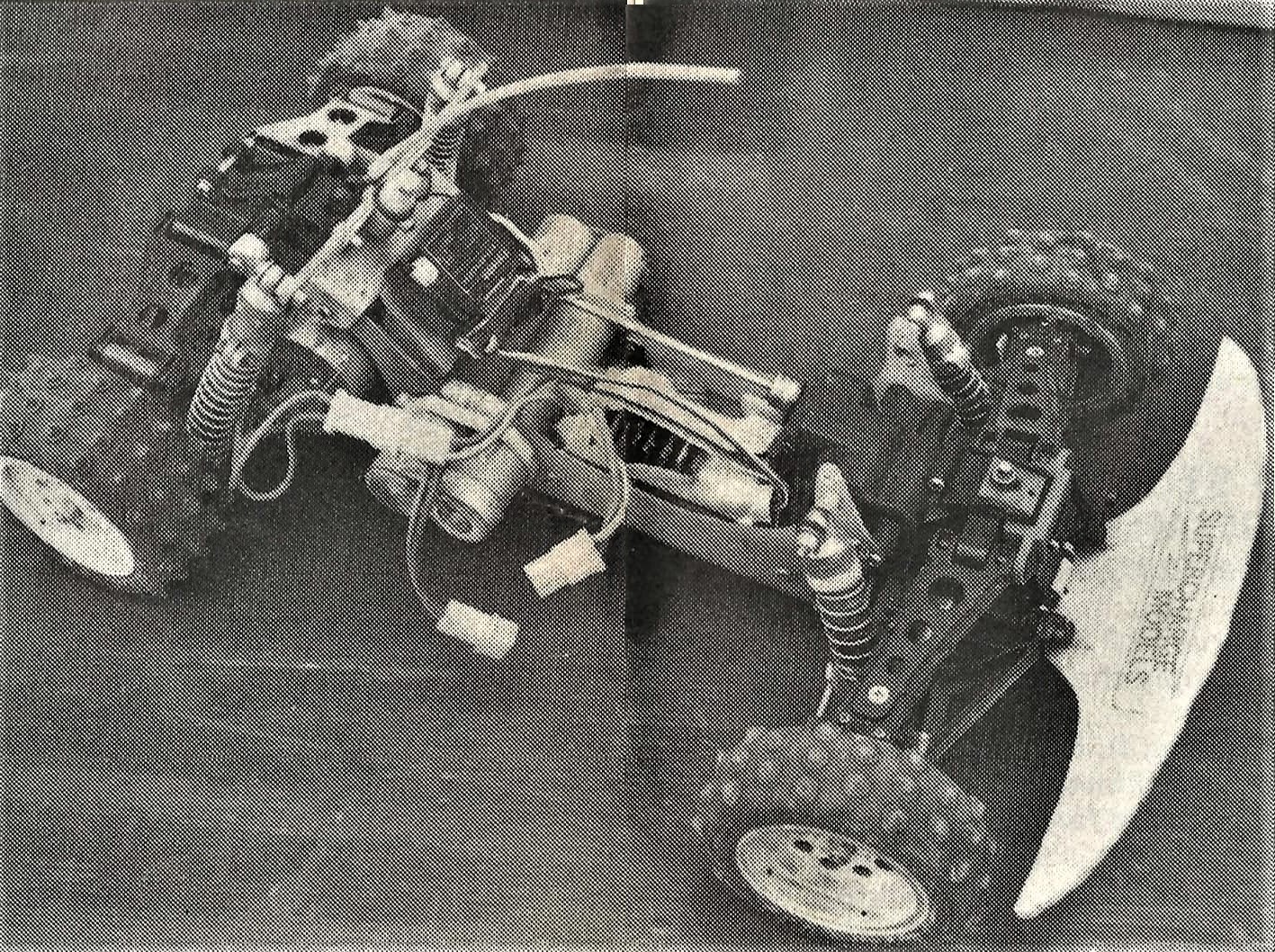

I have always been really interested in the look of this car, particularly the low-slung swooping fibreglass chassis which was notably minimalist when compared to the FTD Hotshot - the other well-known and successful Hotshot racer of that time (over in Europe at least). A few months ago an elderly racer gave me the opportunity to purchase a fibreglass chassis Hotshot he had been steadily restoring, and so i grabbed it. I didn't really know too much about these cars and their tuning options so have spent a little time trying to work out the spec, but in summary as it goes back together after a thorough clean-up it has the shortened wheelbase swooping fibreglass chassis and a short main prop shaft, really low-angled Associated shocks (well worn), the red CRP front A-arm brace, alloy steering hubs (again well worn but perfectly fine), a centrally positioned single RC10 steering bellcrank which was the norm for these chassis modified cars, and a Thorpe rear ball diff.

It is still at the rebuild stage for the moment, but I can add a little on the original pictures of the car I have managed to gather in the last 4 weeks or so during my research. I have no idea how many Supercharge cars were built, or how many chassis parts Bill actually sold either at events or from his shop, but I can only assume it wasn't very many. This chassis has some light damage on the underside - just dings and scratches, but apart from being slightly yellowed it has come up really rather well. I will add some pictures of it once it goes back together, plus i don't have a shell for it just at the minute, although I have sourced a TMS swb Hotshot shell to go on to it.
86 final result.jpg
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

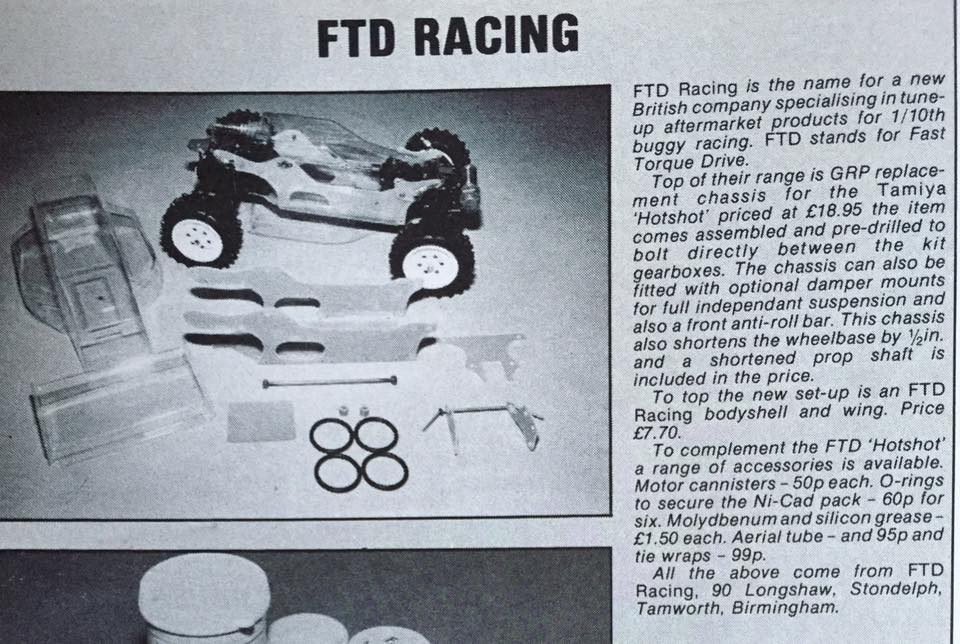

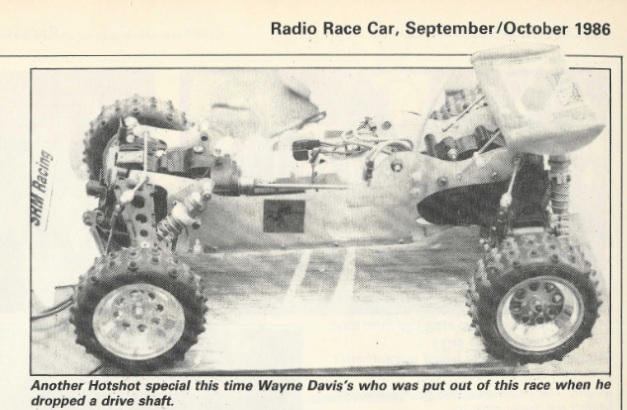

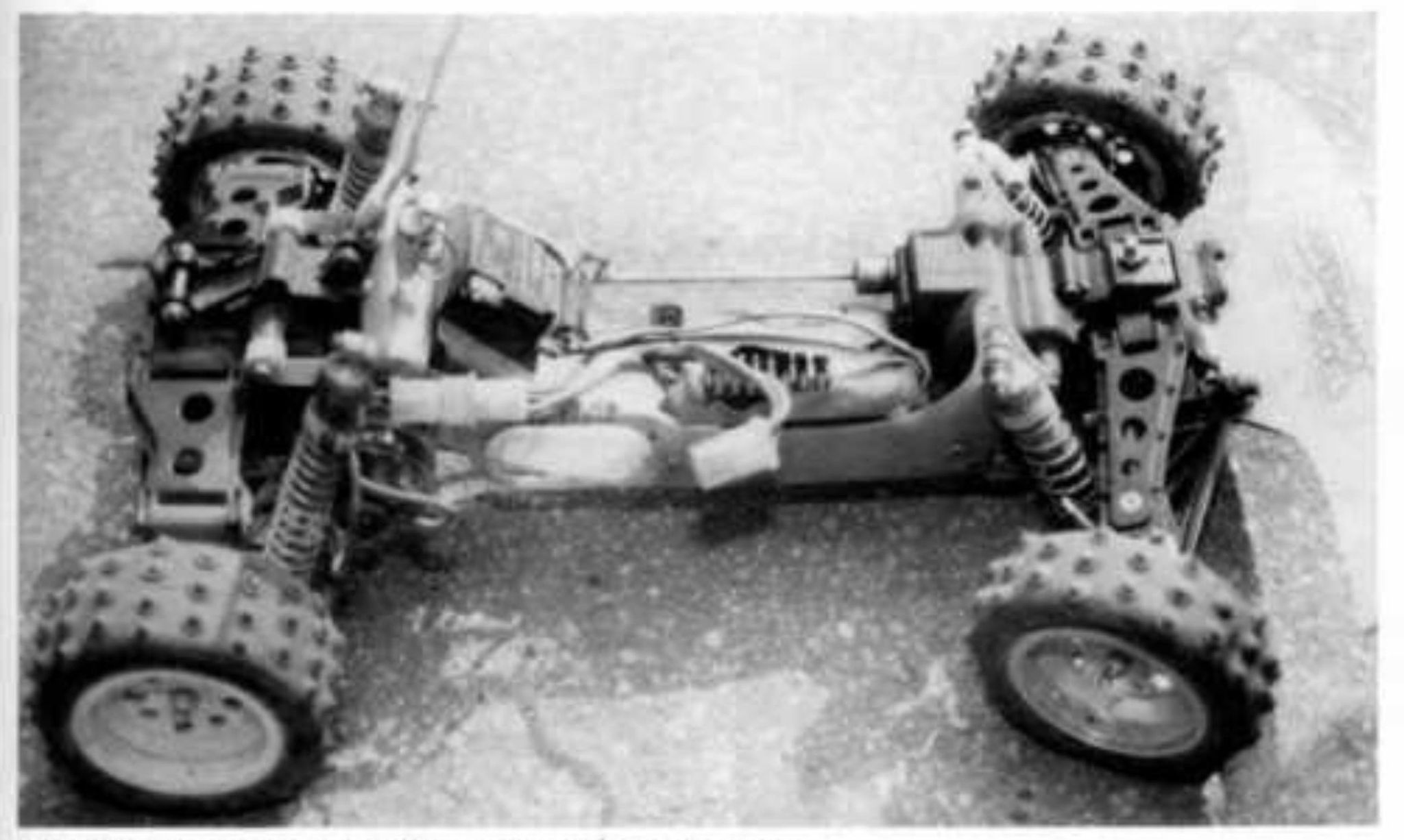

BTW - just to add a little more here, this is the other fibreglass chassis Hotshot i mentioned, famously campaigned by Jimmy and Wayne Davis. This was known as the FTD Hotshot conversion, and was very popular in the UK at that time. I certainly recall seeing a few of these on the track when I was first starting out. As things usually go, whilst researching the Supercharge I car, somebody responding to my questions claimed to have an original FTD chassis from bitd, so i ultimately now have another car to build up after the Supercharge one 8)

The FTD one is thicker fibreglass, taller sided, but still has the same central single RC10 steering bellcrank mod.
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

Dadio
Approved Member
Posts: 3869
Joined: Sun Apr 24, 2016 2:21 pm
Location: Guildford UK
Has thanked: 2286 times
Been thanked: 1994 times

Re: 1986/87 Supercharge Hotshot

Post by Dadio »

You know I was just planning on building a replica of my TMS chassis hotshot from back in my racing days but once again you got there first " Damn you Dinglem !" :lol:
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
coxbros1
Super Member
Posts: 2187
Joined: Mon Dec 24, 2018 8:50 am
Location: Energy, Illinois
Has thanked: 1975 times
Been thanked: 1756 times

Re: 1986/87 Supercharge Hotshot

Post by coxbros1 »

Cool write up! Stoked about these builds
Tap pic for clarity: Derek

User avatar
TheDiamondOne
Approved Member
Posts: 428
Joined: Fri Nov 12, 2010 2:26 pm
Location: Energy, IL
Has thanked: 1571 times
Been thanked: 405 times

Re: 1986/87 Supercharge Hotshot

Post by TheDiamondOne »

Rightous build homz!!!
David, The artist formerly known as coxbros

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

Dadio wrote: Thu Dec 24, 2020 5:47 pm You know I was just planning on building a replica of my TMS chassis hotshot from back in my racing days but once again you got there first " Damn you Dinglem !" :lol:
Better get in there quick then mate.... prices of the fibreglass chassis variant Hotshots are going to sky-rocket once i have finished this.... allegedly... :lol:

I have to admit it is starting to look absolutely wicked already though.
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

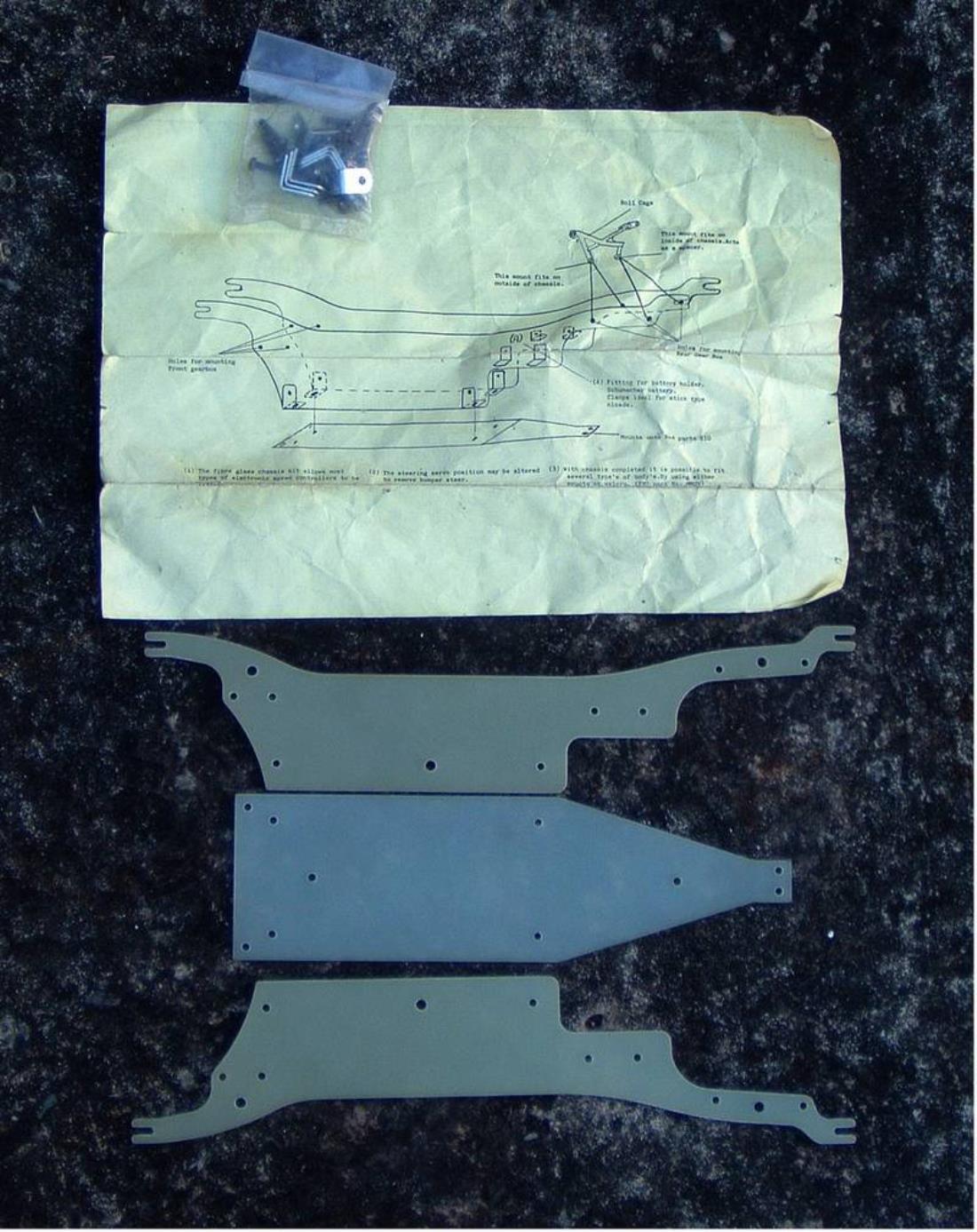

The TMS version was one I hadn't heard of bitd actually, but somebody did find an new in packet TMS chassis complete with instructions. Looks cool. I have nabbed this picture from another forum so apologies in advance to the pic owner... good for reference on this thread however.

CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

Dadio - can you give some feedback on your Hotshot racing days? I have never actually run one. Anything I need to be aware of as I intend racing this particular car at the Revival event in the summer. What am i going to break first?
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
GoMachV
Super Member
Posts: 11329
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 821 times
Been thanked: 2410 times

Re: 1986/87 Supercharge Hotshot

Post by GoMachV »

I finally got some parts cut and bent to recreate to “hotting up a hotshot” magazine do it yourself chassis. Now in the middle of a move so I’ll pick it back up when we are done.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

Sounds good - do you have any pictures of the article by any chance?
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

Scratch that - i found your thread!

https://www.rc10talk.com/viewtopic.php?t=38565
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
GoMachV
Super Member
Posts: 11329
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 821 times
Been thanked: 2410 times

Re: 1986/87 Supercharge Hotshot

Post by GoMachV »

Yeah I only made the one attempt and never bothered finishing it. Finally decided it was time haha.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

Just read through the article - very interesting. I am sure there must be others detailing the various tuning upgrades and options for the Hotshot, which as an introduction for many drivers to 4wd at that time must have proven very popular. I already have my Rory Cull Hotshot which is a variation on the themes seen above, and that car did particularly well on the UK scene, but it was the FTD car which was most popular and most people seem to remember. Not many however, even in the UK, know of the Supercharge Models cars, although that was the design which had the most success internationally.

I have listed the hop-ups this car has in my initial post - does anybody on here have an actual Hotshot racing experience at all? I am hoping to get a little feedback on the spec I have here and whether it will hold up on the track for some light racing. I am assuming the Thorpe rear diff will offer some drivetrain protection at the motor end of things, and the red CRP suspension brace at the front will offer some addition strength there. I forgot to mention that the car also has a well used and scratched-up full width polycarbonate bumper which will get cleaned up and put back on, so front-end protection will be fairly decent. Does anybody have any details on when the Thorpe ball diff was first available at all?

I have the various components to enable me to replicate the electrics set-up that Bill Jones used. Futaba 131-SH servo, Demon ProKing esc and a Futaba FP-R102H Mini-Receiver, so they will all be going into this build. For once the radio gear install should be fairly simple. I also have a few old school stick packs so they can go in too. Back in 1986 the batteries were held in place by fitting two fairly thick rubber rings on either side of the battery on the outside of the chassis plates, thus preventing the cells from sliding sideways out of the chassis cut-outs. I am sure I can come up with something suitable to replicate this.
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.

User avatar
GoMachV
Super Member
Posts: 11329
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 821 times
Been thanked: 2410 times

Re: 1986/87 Supercharge Hotshot

Post by GoMachV »

Sadly I can’t help with much details as far as the racing side of the Hotshots. We didn’t get many around here, 4wd started getting popular later on.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
dinglem
Approved Member
Posts: 1376
Joined: Tue Oct 25, 2016 9:45 am
Location: Lichfield, UK
Has thanked: 243 times
Been thanked: 629 times

Re: 1986/87 Supercharge Hotshot

Post by dinglem »

When i was first starting out at my initial indoor club (Perry Common Buggy Club on the outskirts of Birmingham) the main car to have was the Pb Mini Mustang. It was basically a flat carpet track with wooden jumps an table-tops. The other common cars were very hopped-up Hotshots and Boomerangs, many of which had the FTD fibreglass chassis conversion which is why i so fondly remember these. I was racing my Meteor at that time. If you didn't have a 4wd car you basically weren't making the top two heats.
CAT SWB&XL, Meteor (x3), RC10 custom, RC10 Graphite, Goldpan, 870c (x2), Works 91, Samurai, Pro Radiant (x2), Mini Mustang&Maxima, Mid Turbo, TOP Hybrid , Coyote, Hot Trick Optima, Supercharge, Brimod, 'Rory Cull' Hotshot, SRB.
