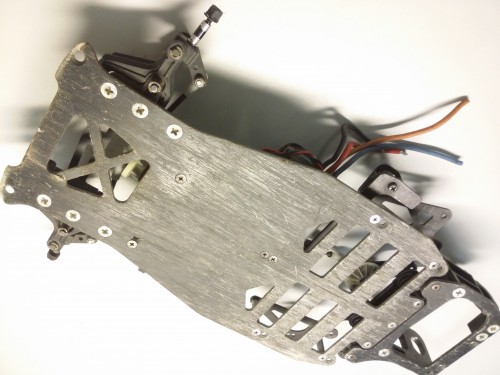

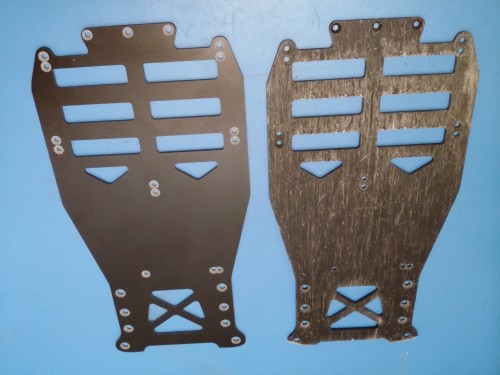

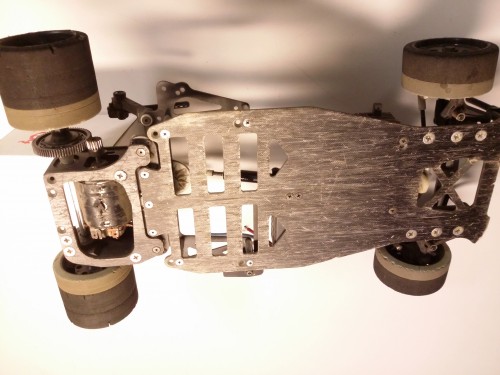

Since the original chassis was essentially junk, I fired up my cad program and drew a new one and sent to Jeff at Factory Works. Not long after it arrived in the mail. The quality he puts out is simply amazing! Thanks Jeff!

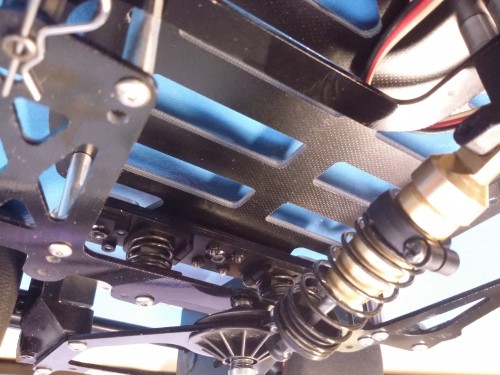

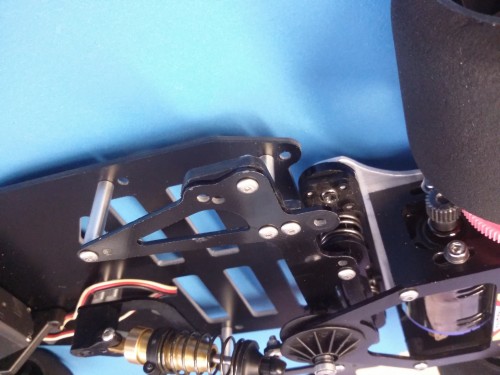

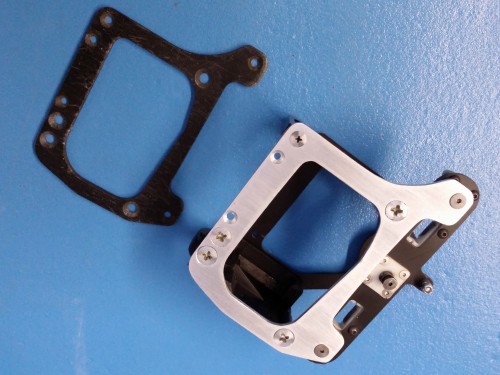

Rebuilt the rear pod and checked fit to main chassis. Just like OEM!

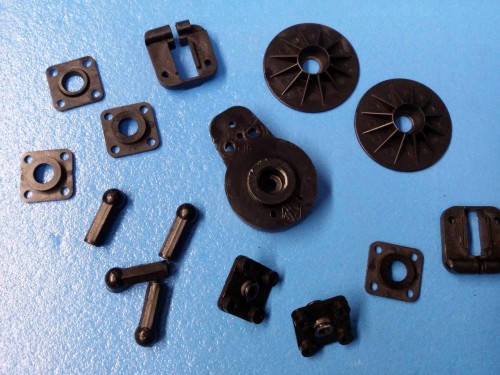

Time to dye the parts black.

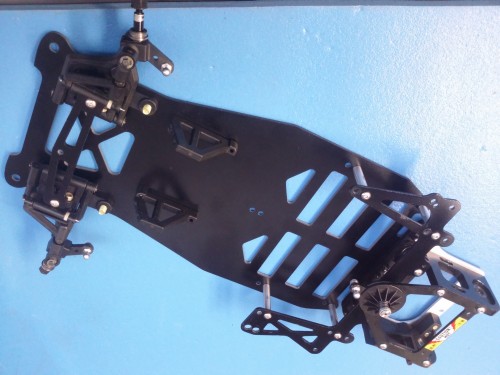

Looks better now.

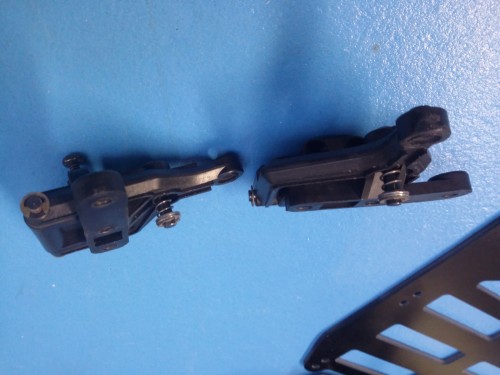

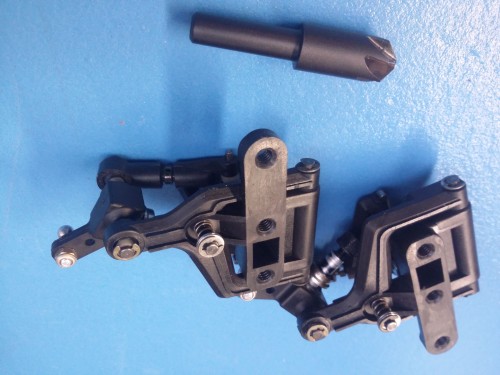

Cleaned and rebuilt the front suspension. The front underside screw holes had to be countersunk a bit to prevent warping of the chassis when tightening down the mounts. I do this step on all my builds and it works to keep the plate flat.

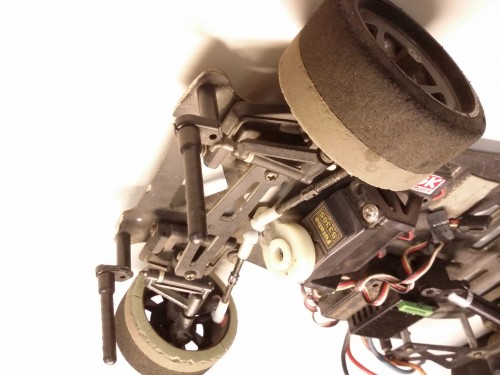

Now on the hunt to locate new front axles. These are worn out due to seized front bearings.
