Just picked this up for what I though was an ok price. Not much to start with but at least what I have looks to have never been run. Just old and shows signs of being handled a lot.
Hoping I can find a complete parts car or parts to get this restoration rolling but initial search isn't bringing up many parts. Just a few on ebay that I cant confirm are for this car. So if any of you international viewers can help me out it would be appreciated
Here's a couple of the sellers pictures of what I have to work with. Looks like the front suspension piece is bolted on backwards but that's an easy swap. Unfortunately the radio plate has been cut on the sides.

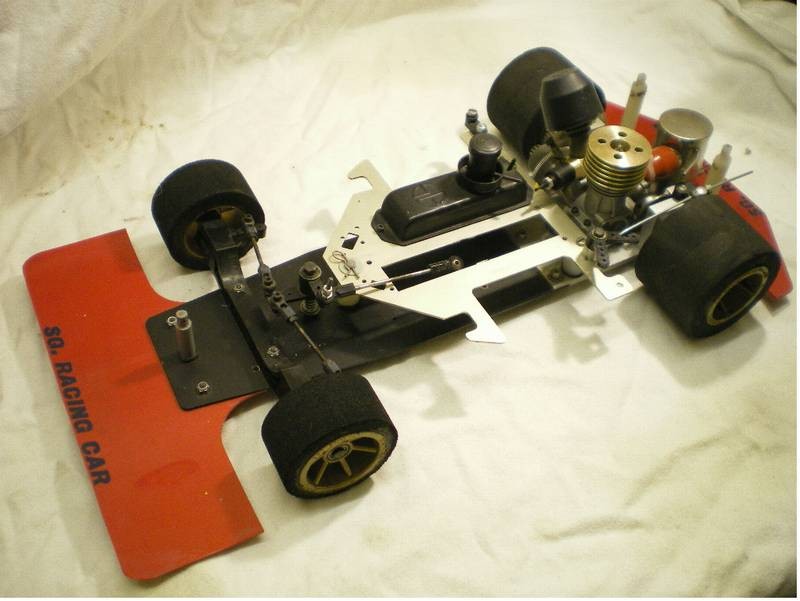

a01butal wrote:I had one and sold it a couple of years ago. Here are the pictures I could find.
Nice car Alan. Very complete. I don't think I could have let it go being that complete.
They do look better with the giant bumpers though.
oca1 wrote:Nice find! I have a similar SG car that needs to be restored.
It was $40 shipped which isn't much but there also isn't much car there. Hoping to only have a few hundred in it finished.
Ill keep an eye out for yours. Your Deltas are pieces of art.
[quote="a01butal"]I had one and sold it a couple of years ago. Here are the pictures I could find.
Hi Al,
Too bad you sold that car with that tank....tank is not original for the SG cars, and worth more than the car alone...at least here in Europe.
Thanks for the Delta diff parts by the way!
Kind regards, Mick (Amsterdam)

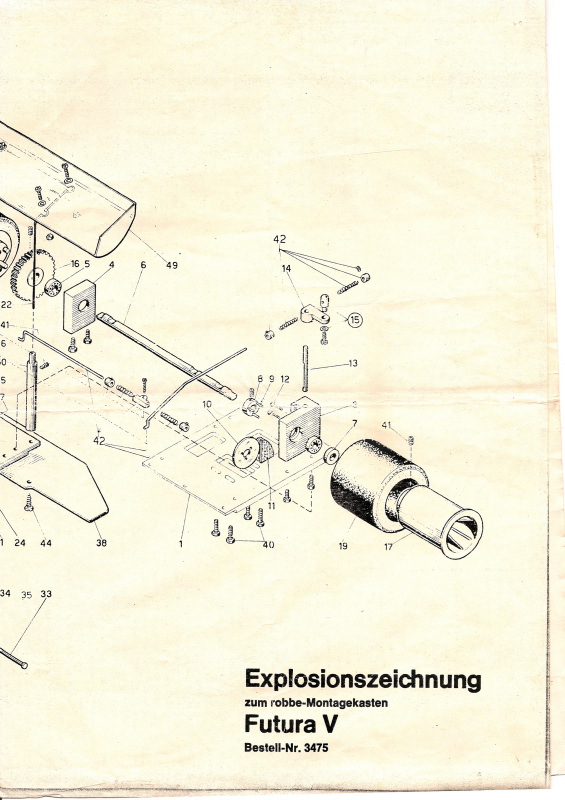

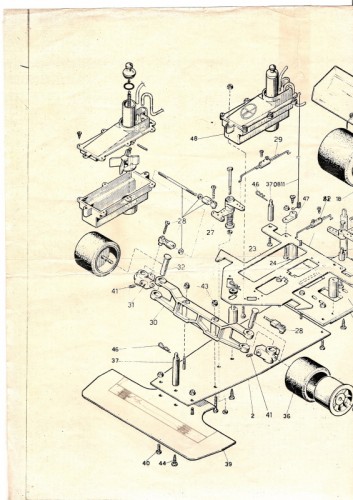

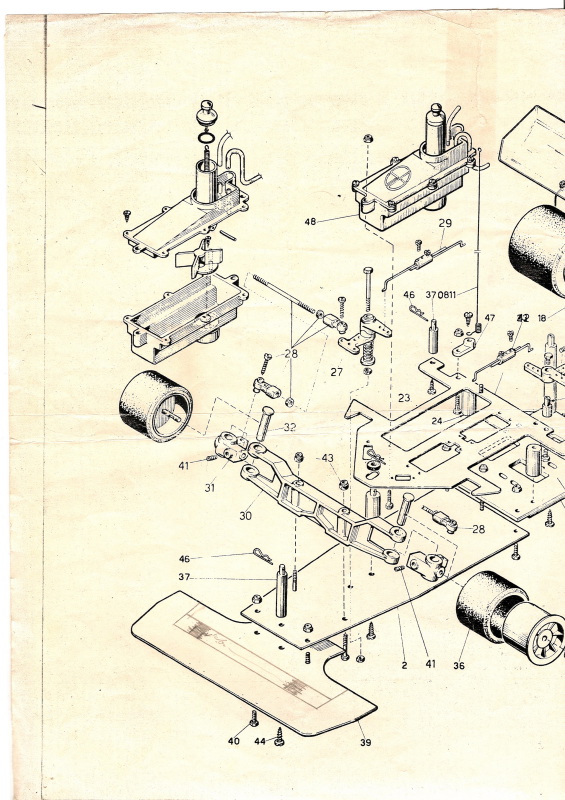

Thank you for the scans. I'm finding tons of pictures and people with these cars on google images. But I'm having a hard time finding parts of any sort. I'm just thinking they weren't popular or many brought over to the US?
So when I researched I thought it was a Futura 111.... Or is it a Futura V? What are the differences. I guess it would help to know before I start buying a bunch of parts and have them be for the wrong car.

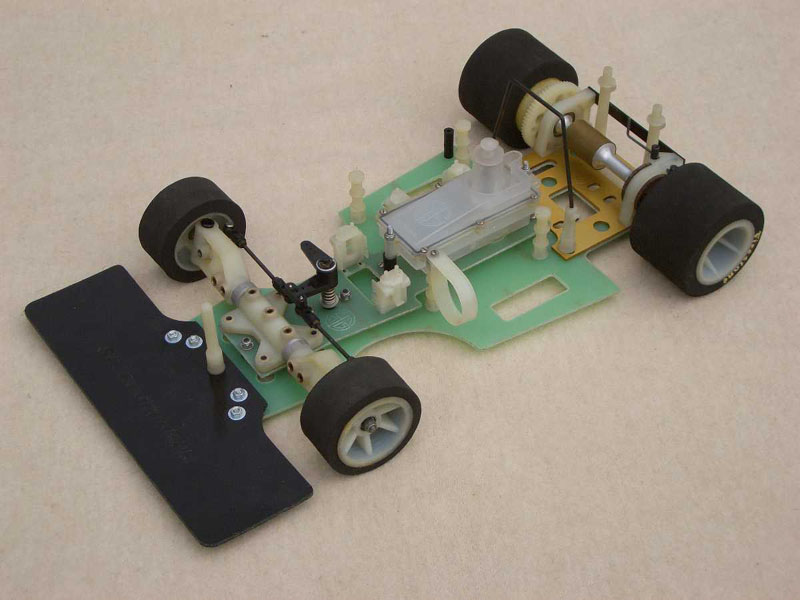

Hi Todd, the Futura 111 was introduced around 1977, it's predecessor was the SG1. the main difference (I think) between the Futura 111 and the Futura V was that the latter had a fibreglass chassis, forward of the aluminum powerpod. And the frontaxle and steering blocks were a bit different. Also the tank is different (111 metal, V plastic). I found one picture on Google that shows what your car should look like after completion. Here it is, not my picture!

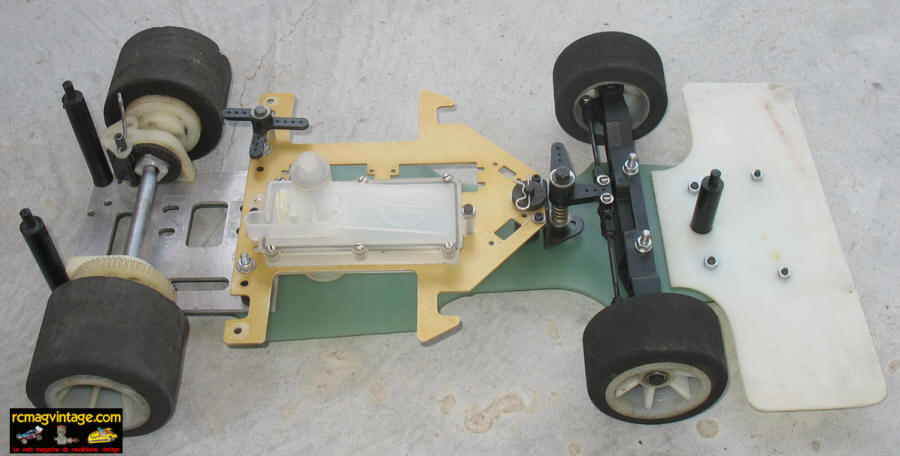

And here's a pic of the evolution of the Futura V, called the Futura VCS with a pendulum style front axle. These are the most sought after, at least here in Europe.
8valve wrote:Hi Todd, the Futura 111 was introduced around 1977, it's predecessor was the SG1. the main difference (I think) between the Futura 111 and the Futura V was that the latter had a fibreglass chassis, forward of the aluminum powerpod. And the frontaxle and steering blocks were a bit different. Also the tank is different (111 metal, V plastic). I found one picture on Google that shows what your car should look like after completion. Here it is, not my picture!
Ok good I think that is the picture I was referencing when I bought mine. Mine is a 111 then. Thanks again for your help
romulus22 wrote:Thank you for the scans. I'm finding tons of pictures and people with these cars on google images. But I'm having a hard time finding parts of any sort. I'm just thinking they weren't popular or many brought over to the US?
So when I researched I thought it was a Futura 111.... Or is it a Futura V? What are the differences. I guess it would help to know before I start buying a bunch of parts and have them be for the wrong car.
Thanks for your help, Todd
Basically, if you look at the pics of the car Al used to have, that's a pretty good reference (save for the gastank and the Associated servosaver/steering arms).
Check the German and French ebay sites, SG cars/parts are on there frequently! On ebay.de (germany), use the searchterm "Hackbrett" which means cutting board, slang for pancar. On ebay.fr use searchterms pistes/vintage/SG
8valve wrote:Hi Todd, the Futura 111 was introduced around 1977, it's predecessor was the SG1. the main difference (I think) between the Futura 111 and the Futura V was that the latter had a fibreglass chassis, forward of the aluminum powerpod. And the frontaxle and steering blocks were a bit different. Also the tank is different (111 metal, V plastic). I found one picture on Google that shows what your car should look like after completion. Here it is, not my picture!
Ok good I think that is the picture I was referencing when I bought mine. Mine is a 111 then. Thanks again for your help
Yes, definitely! Super Tigre engine with rear mounted exhaust-pot would be perfect.
As per the title I’m looking for a new bumper for my yz10 94, as the original zr-111 are very hard to find, I just wondered if reproduction ones are available from anywhere??
Last post
Bumper ordered!
Another question, would anyone know where I can get a set of turnbuckles similar to the ones fitted to the works cars?
