Thanks for the tip on klinik. Those look like team truck decals. If you have the wider 6122 body from the 6001 and 6011 the winshield decal will not fit the winshield all of the way due to that body being wider. It will fit the 6130 team truck body perfectly though.

Dadio wrote: ↑Sun Mar 26, 2023 1:18 pm

Wow! I wonder if it would cause any issues with residue if I put a steel screw back into the hole after? There must be some sort of neutralizer that can be put on it after.

Thanks for the tips guys. I am going to see if i can left hand drill it but am going to try center punching it. The gallium trick sounds cool i may have to look into it.

It looks like there was a broken aluminum screw that broke and someone tried to remove. Unfortunately it looks like someone tried to drill it out but the screw is partially there. For the hole i was thinking a out trying a 4-40 heat insert but wanted to see if anyone had any tips on removing the par...

Wow thats cool! I have heard stories but never actually saw a gold RC10T from the factory. I wonder if it was some sort of special import version.

Also found a variation when i bought a single universal to replace a bemt one that I had. The newer universals at the end of production on the team truck didnt use that collar at the end where the joint of the dogbone/axle is. Picture attached.

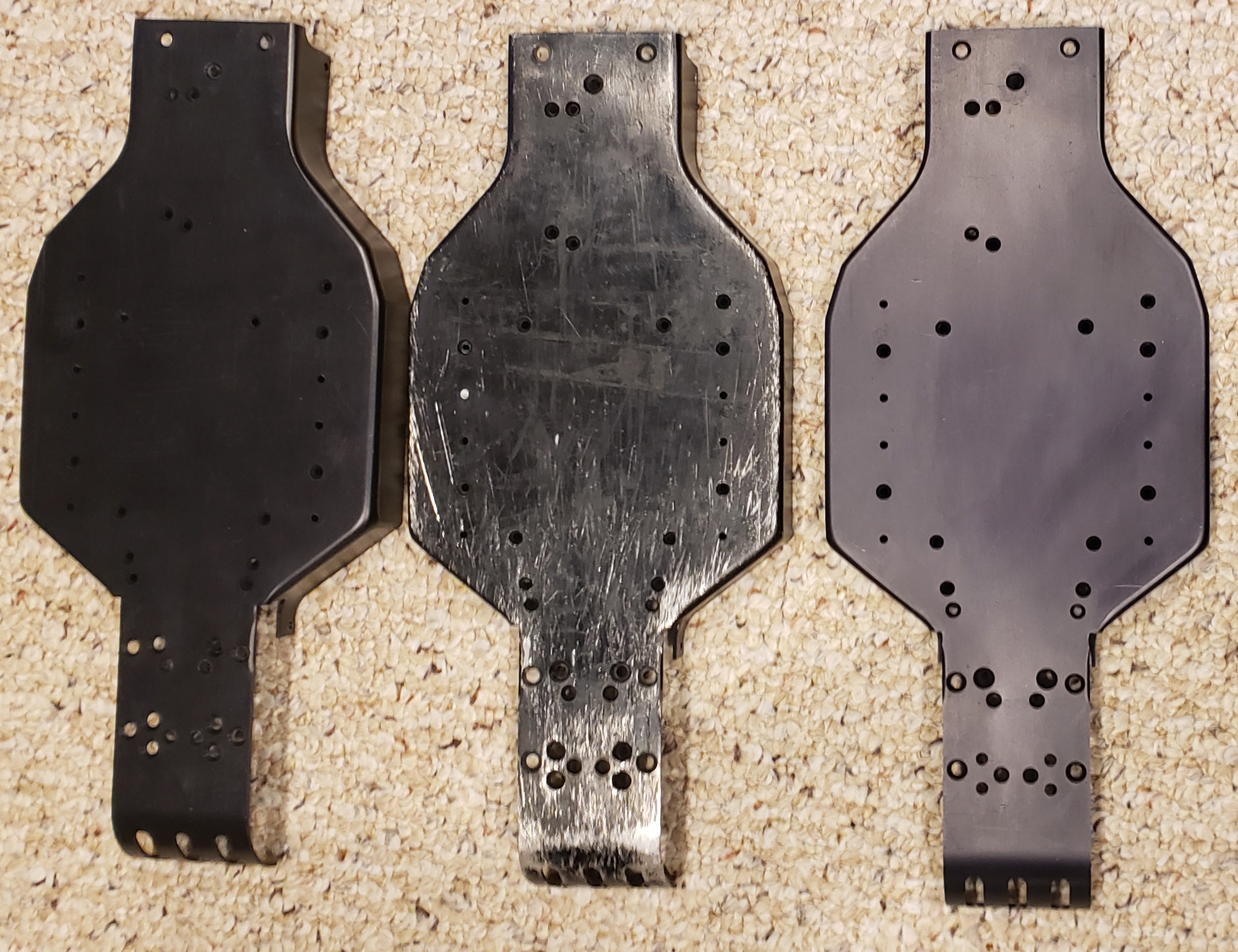

Picture of rc10t chassis variations. Left to right early offset B-stamp, mid production B-stamp with no offset drilled for both stealth and 6 gear trans, late production B-stamp with no offset and 6 gear trans holes not countersunk.

Picture showing 7035 RC10T Team truck universals. Early,mid style in top of picture. Later style as they were switching to T2 parts on bottom. Notice that there is no more collar style flare at the joint where the dogbone portion of the universal meets the axle portion of the joint. 20230325_145738....

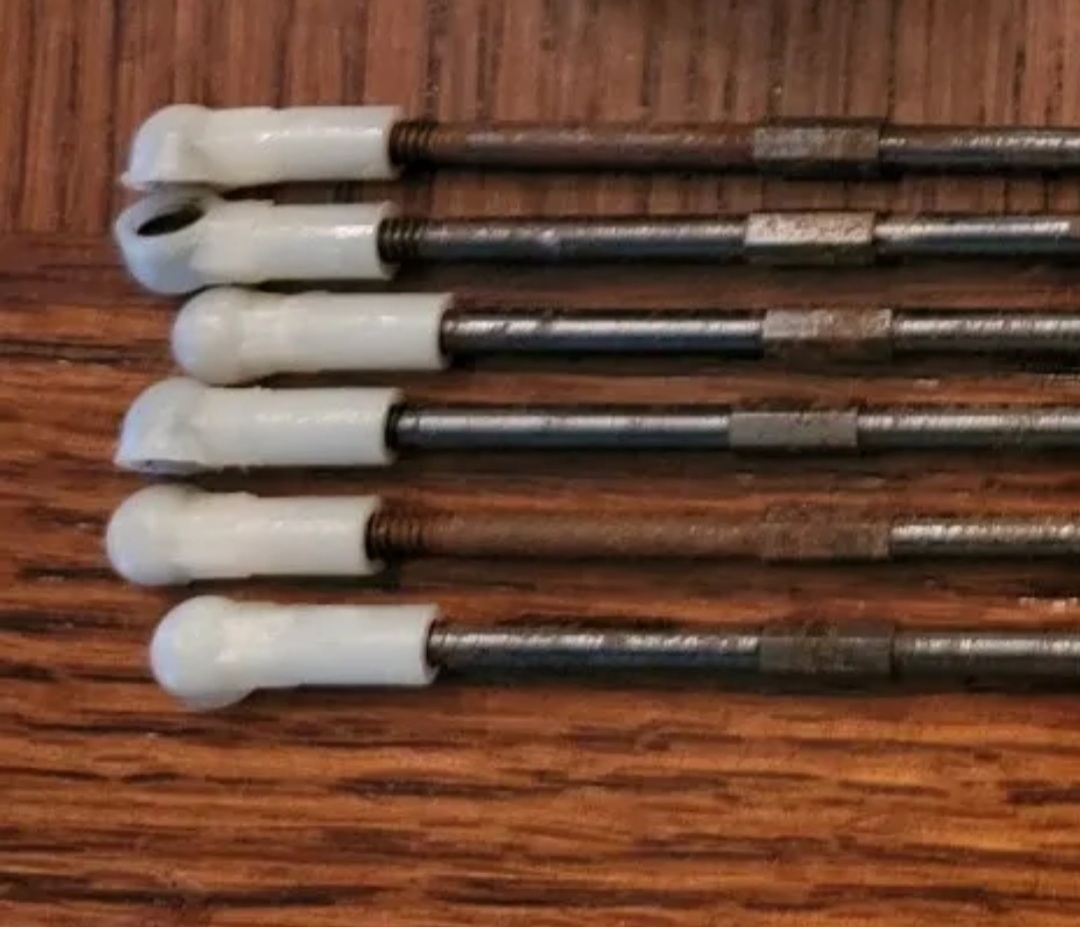

Adding to thread to show picture of early RC10T half hex ball cups.

The top pictured rear suspension mount is the first generation HD (Heavy Duty) suspension mounts. They were available in three degree and zero degree, in white and black. They actually brake kinda easily at the mounting screws. The bottom pictured mounts are original design, available in Zero and o...

There were several versions of the 3 degree arm mounts. https://www.rc10talk.com/viewtopic.php?t=33726 Thanks. These must have mainly been on 7035 team trucks because my 7001 rc10t has the mounts like picture 2 but in zero degrees and my 7011 c stamp has rear mounts like picture 2 but are black and...

Hey guys, as im going through parts i noticed in the team truck manual the 3 degree rear suspension mounts were shaped lime this: 20230215_174016.jpg But ive also seen them as a 3 degree optiin with tbis shape: 20230215_174030.jpg Has anyone had a team truck with rear suspension 3 degree mounts lime...

Thanks guys! Its awesome that there are some really close matches for these parts out there!

One other thing I was going to ask is has anyone had any luck finding switches that are close to stock replacements. Ive seen some replacements for the smaller novak switches but any luck on the larger ones?

That looks great. How did everything fit? Did you have to open up the case any for the wire to fit?
