Re: Starting a new 1/10 pan project (Corally SP10)

Post by DennisM »

Looking great, I´m a bit envious.

I´m not going to ask You about the bumper :D
Gone fishing

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: Starting a new 1/10 pan project (Corally SP10)

Post by V12 »

Of course you can ask about the bumper. :wink:
The early SP10 car came without bumper, this was introduced later.
The original box is showing exactly this.
I personally don´t like the bumper anyway, looks not really good imho.

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 7:07 am
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: Starting a new 1/10 pan project (Corally SP10)

Post by DennisM »

You learn something new every day :D

I was wondered how the original PK Corally wheels looks like - You wouldn´t happend to have a closeup picture?
Gone fishing

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: Starting a new 1/10 pan project (Corally SP10)

Post by V12 »

The original Corally wheels are very different from US style wheels. Rear wheels for a RC10L, Delta, Bolink or whatever 1/10 scale car are using hubs and four screws for mounting to the rear axle. This system is used for any 1/10 car until today.

Original Corally wheels are using driveplates instead of hubs. These driveplates are same diameter as ID of the rear wheels, so wheels are supported at both sides and don´t wobble.
Also there are notches used at the driveplates which lock to pegs moulded into the rear wheels. This way you don´t need any screws or tools, for changing wheels you just have to remove one plastic clip.
Overall this system runs very true and is very lightweight, but no other manufacturer went with this system. Corally wheels were very large diameter similar to early BBS style wheels made by TRC and Twinn-K. Later everybody went with smaller size wheels what was not possible with the Corally system.

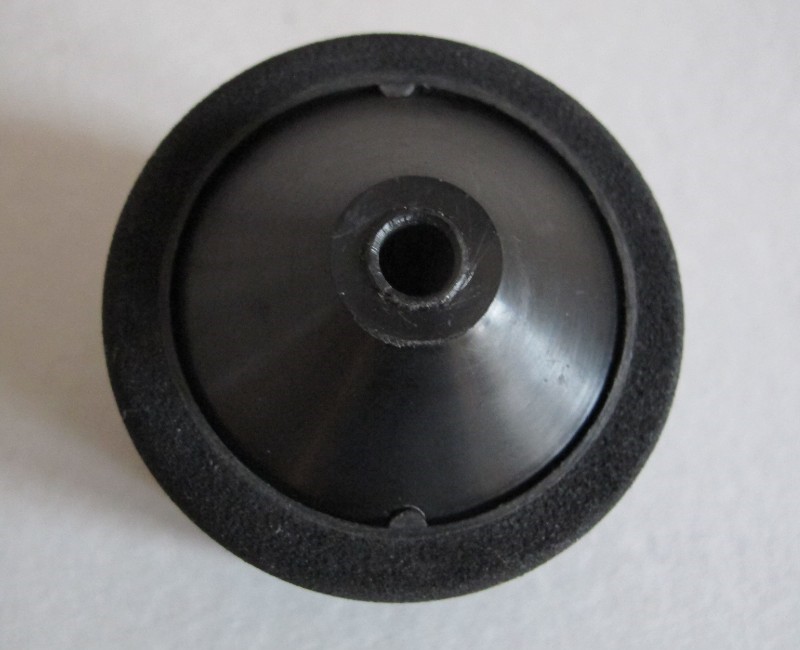

first picture showing driveplate locked to rear wheel

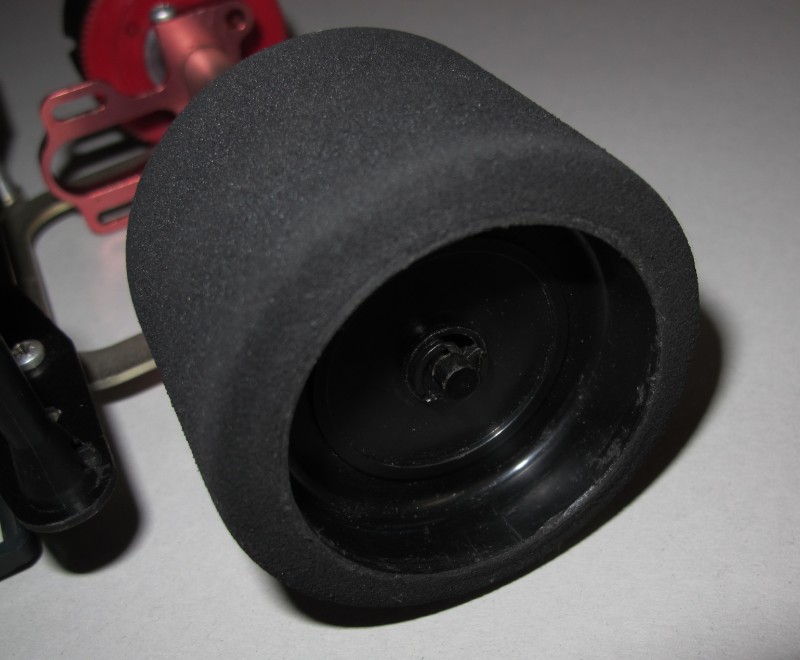

second picture showing closed outside of wheels, note the single clip for fixing
Attachments

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: Starting a new 1/10 pan project (Corally SP10)

Post by V12 »


User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 7:07 am
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: Starting a new 1/10 pan project (Corally SP10)

Post by DennisM »

Many thanks for doing this -
All of my Corally´s are running US wheels :)
Gone fishing
