Slash, served up Ivan Ironman Stewart style.....
- JK Racing
- Super Member
- Posts: 4603
- Joined: Thu Jul 19, 2007 2:32 pm
- Location: Placentia, CA
- Has thanked: 103 times
- Been thanked: 200 times
Re: Slash, served up Ivan Ironman Stewart style.....
Front:
Traxxas Big Bore Shocks, stock piston, stock spring, 50 wt Associated oil, no clips. Outside on arm.
Rear:
Traxxas Big Bore Shocks, stock piston, stock spring, 40 wt Associated oil, stock clip. Stock postions (as out of the box)
Battery to the rear (lipo), no weight added. Rear body mount in highest position (stops the tires from rubbing the body when landing big jumps). -2 camber all around.
Novak Cyclone Speedo, B&R motor (19T single, 550 can), stock gearing (18/86).
I run at Pegasus Hobbies in Monclair CA. We normally get around 15 trucks (sometimes more, more times less). For a couple weeks before the Traxxas race, we were getting a spec and mod class turn out. I ran "mod" class with a 27T stocker, I had my Mamba in there....way too much to race with. I have a set of JC Goosebumps glued up to stock wheels for the rear, and Losi Directionals on the front, as well as a set of bone stockers. All using stock Traxxas wheels. Best trick I have found is to more the rear camber link to the top hole, it requires a bit of shaving on the rear tower, seems to give better side bite. Changes the roll center. I went to the Traxxas big bore shocks, and wow, they are smooth awesome performers. My truck jumps really sweet using them. The one thing I did end up doing was running a 3X30mm screw from the back of the shock tower to attach the shocks. The stock step screws kept backing out after a 5 minute run.
Other than that, be smooth, keep up your momentum and HAVE A BLAST.
Couple more thread stealing photos:
Traxxas Big Bore Shocks, stock piston, stock spring, 50 wt Associated oil, no clips. Outside on arm.
Rear:
Traxxas Big Bore Shocks, stock piston, stock spring, 40 wt Associated oil, stock clip. Stock postions (as out of the box)
Battery to the rear (lipo), no weight added. Rear body mount in highest position (stops the tires from rubbing the body when landing big jumps). -2 camber all around.
Novak Cyclone Speedo, B&R motor (19T single, 550 can), stock gearing (18/86).
I run at Pegasus Hobbies in Monclair CA. We normally get around 15 trucks (sometimes more, more times less). For a couple weeks before the Traxxas race, we were getting a spec and mod class turn out. I ran "mod" class with a 27T stocker, I had my Mamba in there....way too much to race with. I have a set of JC Goosebumps glued up to stock wheels for the rear, and Losi Directionals on the front, as well as a set of bone stockers. All using stock Traxxas wheels. Best trick I have found is to more the rear camber link to the top hole, it requires a bit of shaving on the rear tower, seems to give better side bite. Changes the roll center. I went to the Traxxas big bore shocks, and wow, they are smooth awesome performers. My truck jumps really sweet using them. The one thing I did end up doing was running a 3X30mm screw from the back of the shock tower to attach the shocks. The stock step screws kept backing out after a 5 minute run.
Other than that, be smooth, keep up your momentum and HAVE A BLAST.
Couple more thread stealing photos:
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
- Brandon G
- Approved Member
- Posts: 2106
- Joined: Mon Oct 01, 2007 4:23 pm
- Location: Nashville, TN
- Been thanked: 2 times
Re: Slash, served up Ivan Ironman Stewart style.....
Yeah, keeping up the momentum is the KEY to being fast with these with the stock setup. I would like to try the big bore shocks, but it would be outside of our spec rules. We can use the caps though since the stockers are prone to blowing out. One thing we have been doing is using a little CA on the inner rear a arm pin/screws to keep them from backing out.
The Proline bodies do not rub the tires when compressed.
The Proline bodies do not rub the tires when compressed.
- bearrickster
- Approved Member
- Posts: 4375
- Joined: Thu Mar 06, 2008 11:36 am
- Location: Hollywood Maryland
- Been thanked: 5 times
Re: Slash, served up Ivan Ironman Stewart style.....
mine Does?? worse than the stock one and what exactly are the big bore shocks?? I hate to sound stupid but I am not a Traxxas Fan, you dont know what it took for me to even buy it I dont know anything about them at all??? i get its a hop up, but do you change something in the shocks or replace the whole shock??bngiles wrote:The Proline bodies do not rub the tires when compressed.
- JK Racing
- Super Member
- Posts: 4603
- Joined: Thu Jul 19, 2007 2:32 pm
- Location: Placentia, CA
- Has thanked: 103 times
- Been thanked: 200 times
Re: Slash, served up Ivan Ironman Stewart style.....
They are an all alloy replacement shock. A bit smaller in diameter from the stock "ultra" plastic shock, but very smooth feel to them.
I addressed the shock top issue by using up-travel limiters. Basically, the shaft/piston push up to far and blow the shock off. The rear hinge pins, I removed my stock ones and put them back in from the other side (head facing the front of the truck). When I pulled my boys new truck out of the box, I see they are put in that way now. No issues since swapping sides.
Luckily, our track has spec rules, but they will not turn anyone away. Every time I have raced there, a box stock truck usually wins. (Greg Hodapp is a great driver).
I addressed the shock top issue by using up-travel limiters. Basically, the shaft/piston push up to far and blow the shock off. The rear hinge pins, I removed my stock ones and put them back in from the other side (head facing the front of the truck). When I pulled my boys new truck out of the box, I see they are put in that way now. No issues since swapping sides.
Luckily, our track has spec rules, but they will not turn anyone away. Every time I have raced there, a box stock truck usually wins. (Greg Hodapp is a great driver).
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
- JK Racing
- Super Member
- Posts: 4603
- Joined: Thu Jul 19, 2007 2:32 pm
- Location: Placentia, CA
- Has thanked: 103 times
- Been thanked: 200 times
Re: Slash, served up Ivan Ironman Stewart style.....
If ya want the proline set, save $15 and get these:call-911 wrote:Nicely done! Ivan Stewart is my all time favorites since I was a kid! I'm looking at doing my Slash with the Proline wheel and tire setup. It looks like I can pick up the wheels and tires for $100 total off of ebay brand new. I'd love for someone to make an old school Toyota SR5 body, but I won't hold my breath.
http://cgi.ebay.com/Pro-Line-Switch-Tires-on-Epic-Silver-Bead-Locks-Slash_W0QQitemZ200291540754QQihZ010QQcategoryZ44028QQssPageNameZWDVWQQrdZ1QQcmdZViewItem
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Re: Slash, served up Ivan Ironman Stewart style.....
Is there a part number that you can reference? I looked around, but did not see that specific body....bearrickster wrote:You can still get that body just call these people they still make it I just got one s couple of months ago.call-911 wrote: I'd love for someone to make an old school Toyota SR5 body, but I won't hold my breath.
http://www.mcallisterracing.com/racing/
- Brandon G
- Approved Member
- Posts: 2106
- Joined: Mon Oct 01, 2007 4:23 pm
- Location: Nashville, TN
- Been thanked: 2 times
Re: Slash, served up Ivan Ironman Stewart style.....
They do not have that body on their website. Just give them a call. They are very friendly and helpful. Tell them what you are after and they will hook you up!
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
Re: Slash, served up Ivan Ironman Stewart style.....
It's listed here but without a hyperlink:
http://www.mcallisterracing.com/racing/page8.html
#153 Iron Man Toyota
http://www.mcallisterracing.com/racing/page8.html
#153 Iron Man Toyota
- Brandon G
- Approved Member
- Posts: 2106
- Joined: Mon Oct 01, 2007 4:23 pm
- Location: Nashville, TN
- Been thanked: 2 times
Re: Slash, served up Ivan Ironman Stewart style.....
The Ironman toyota is different than the Toyota extra cab.
- Attachments
-
- d71c_1.jpg (18.03 KiB) Viewed 2435 times
- d71c_1.jpg (18.03 KiB) Viewed 2435 times
- Brandon G
- Approved Member
- Posts: 2106
- Joined: Mon Oct 01, 2007 4:23 pm
- Location: Nashville, TN
- Been thanked: 2 times
Re: Slash, served up Ivan Ironman Stewart style.....

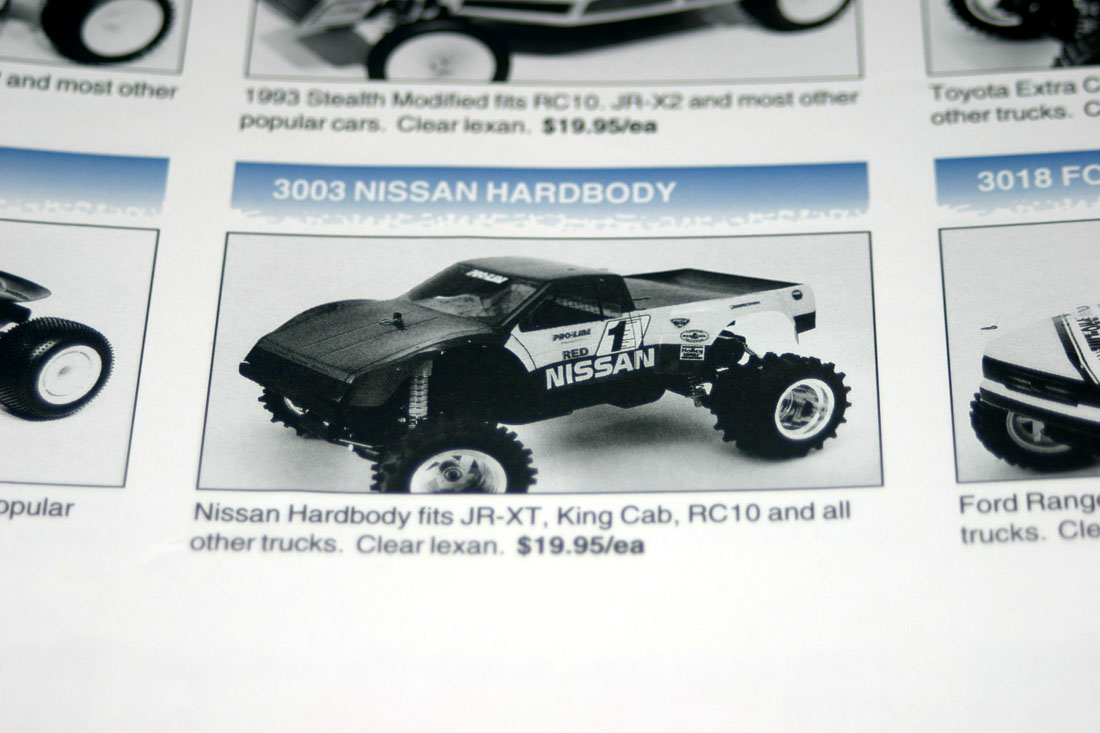

I know the front end is kinda funny lookin, but I really would like to get my hands on one of these:
-
- Approved Member
- Posts: 34
- Joined: Mon Mar 31, 2008 6:58 pm
- Location: Seffner Fl.
- Been thanked: 2 times
Re: Slash, served up Ivan Ironman Stewart style.....
I love the iron man stewart scheme!I bought two slashes for Christmas ,one for my son and one for myself what a blast these trucks are I was shocked my wife didnt get mad when she saw we turned the backyard into a race track
Re: Slash, served up Ivan Ironman Stewart style.....
that nissan body kind of looks like a corvette front end, it's just ugly enough to look really good. Who made the Ironman body for the 10T?
Mark
Aaaaahhhh crap! I'm about to get passed by that orange truck!
Aaaaahhhh crap! I'm about to get passed by that orange truck!
-
- Approved Member
- Posts: 94
- Joined: Wed Oct 22, 2008 6:19 pm
- Location: Colorado USA
- Has thanked: 3 times
Re: Slash, served up Ivan Ironman Stewart style.....
Bngiles -- I've been meaning to post to tell you I think you did an incredible job with your Slash. It's one of the best (if not the best) I've seen. Great job!
Steve
Steve
